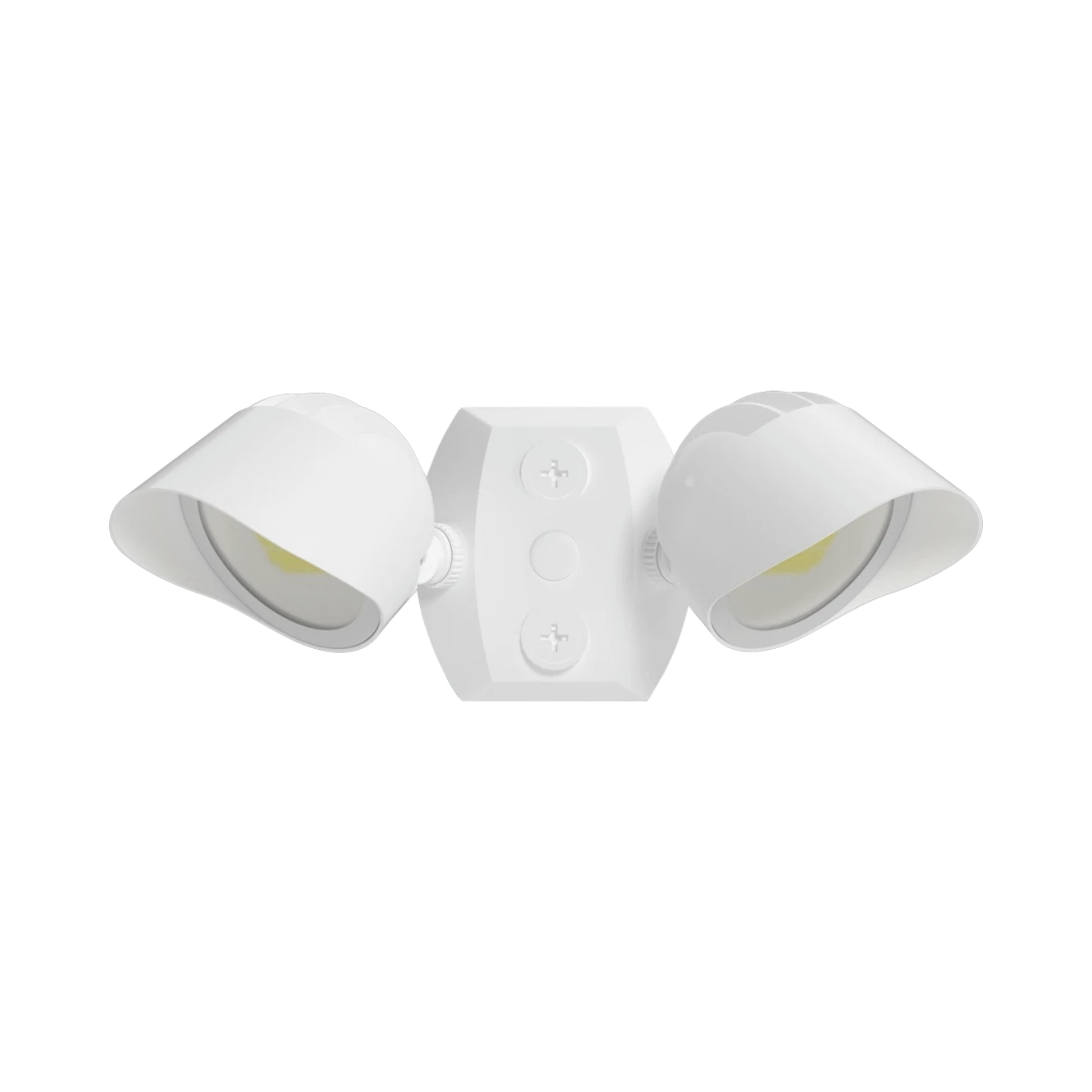

RAB BULLET2X12W Field Adjustable Flood Light 2645 Lumens 24W Selectable CCT 120-277V White
Available in stock (100)
About this item
About this item
- Lumens: Delivers up to 2,645 lumens for bright illumination.
- Wattage: Field adjustable wattage options of 24W, 18W, and 12W.
- Color Temperature: Selectable CCT of 3000K, 4000K, and 5000K to suit various environments.
- IP Rating: Rated IP65 for protection against dust and water ingress.
- Dimming: Compatible with TRIAC dimmers for adjustable light output.
We process payments securely and do not store credit card information.
Description
Description
RAB Bullet Field Adjustable Flood Light — 24W Configuration
The RAB BULLET2X12W is a versatile flood light offering 24W power, delivering up to 2,645 lumens with selectable color temperatures of 3000K, 4000K, and 5000K. It operates on a 120-277V input and is suitable for wet locations with an IP65 rating.
Key Features
- Field Adjustable Wattage: Easily switch between 24W, 18W, and 12W settings.
- Selectable CCT: Choose from 3000K, 4000K, or 5000K for optimal lighting.
- High Efficacy: Achieves an efficacy range of 101.4 to 120.9 lm/W.
- Long Lifespan: Designed for 100,000 hours of operation based on IES LM-80 results.
- Durable Construction: Features a die-cast aluminum housing and glass lens.
- Surge Protection: Equipped with 1 kV surge protection for enhanced reliability.
- TRIAC Dimming: Compatible with TRIAC dimmers for smooth dimming down to 10%.
- UL Listed: Certified for use in wet locations, ensuring safety and compliance.
- Reflector: Utilizes a polyethylene terephthalate (PET) reflector for optimal light distribution.
- Environmentally Friendly: Mercury and UV free, with RoHS-compliant components.
Typical Applications
- Building facades
- Signage lighting
- Landscape illumination
- Security lighting
- Parking lots
Performance & Light Output
This flood light provides up to 2,645 lumens with a color rendering index (CRI) of 82-85, ensuring accurate color representation. It features a NEMA 6H x 6V beam spread for broad coverage.
Electrical & Controls
Operates on 120-277V with a constant current driver. It supports TRIAC dimming and includes surge protection of 1 kV. The power factor is 99.1% at 120V, ensuring efficient operation.
Construction & Durability

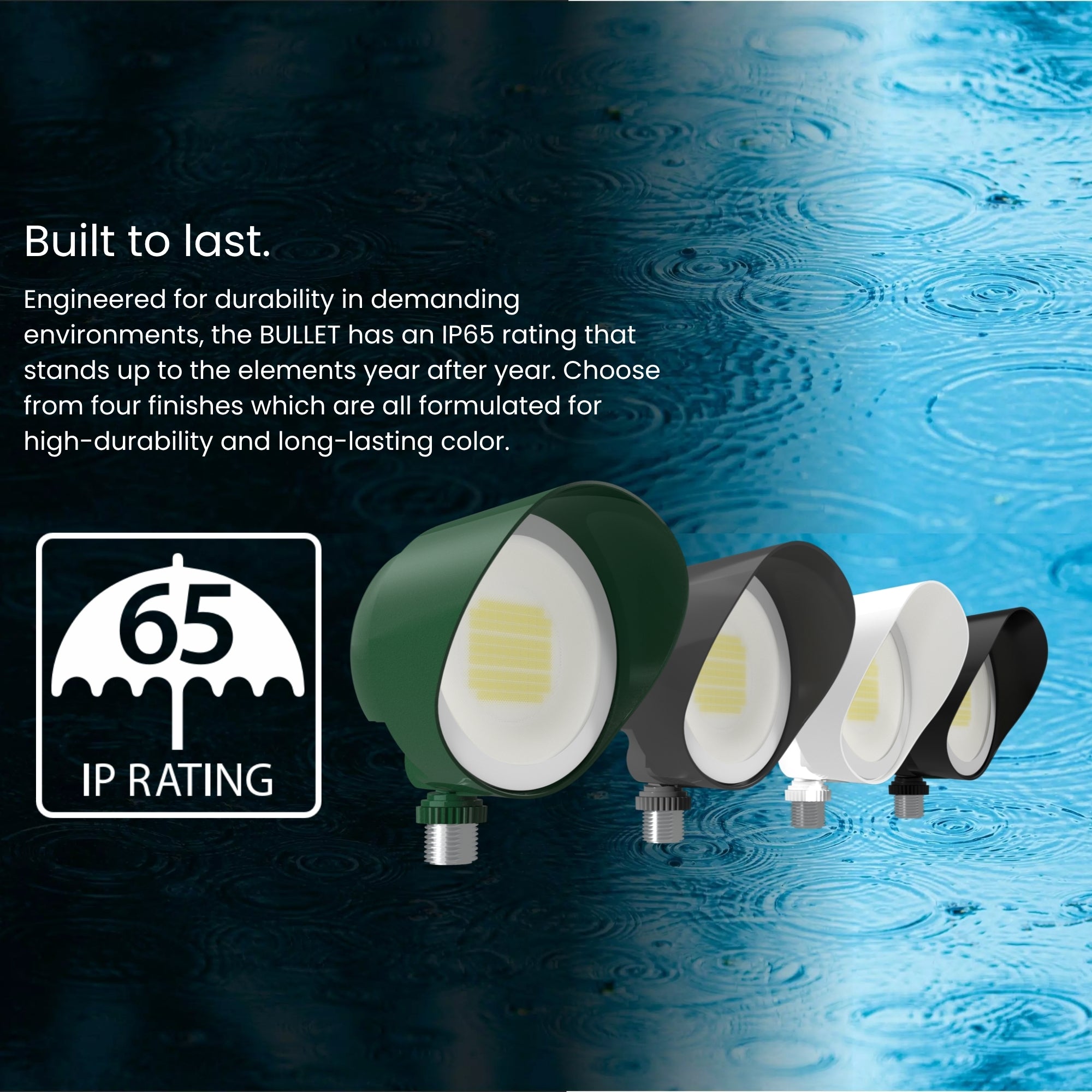

The fixture is built with a die-cast aluminum housing and a glass lens, rated for IP65 protection. It operates in temperatures ranging from -40°F to 104°F, making it suitable for various environments.
Installation & Mounting
Comes with a heavy-duty mounting arm, 'O' ring seal, and stainless steel screws for secure installation. Suitable for wall or ground mounting.
What's Included
- Flood light fixture
- Mounting arm
- Installation hardware
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the RAB BULLET2X12W flood light?
What is the wattage of the RAB BULLET2X12W flood light?
Is the RAB BULLET2X12W flood light dimmable?
Is the RAB BULLET2X12W flood light dimmable?
What is the IP rating of the RAB BULLET2X12W flood light?
What is the IP rating of the RAB BULLET2X12W flood light?
What color temperatures are available for the RAB BULLET2X12W?
What color temperatures are available for the RAB BULLET2X12W?
What is the lifespan of the RAB BULLET2X12W flood light?
What is the lifespan of the RAB BULLET2X12W flood light?
