RAB BULLET2X12B Field Adjustable Flood Light 2645 Lumens 24W Selectable CCT 120-277V Black
Available in stock (20)
About this item
About this item
- Lumens: Provides up to 2,645 lumens for bright illumination.
- Wattage: Field adjustable wattage options of 24W, 18W, and 12W.
- Color Temperature: Selectable CCT of 3000K, 4000K, and 5000K for versatile lighting.

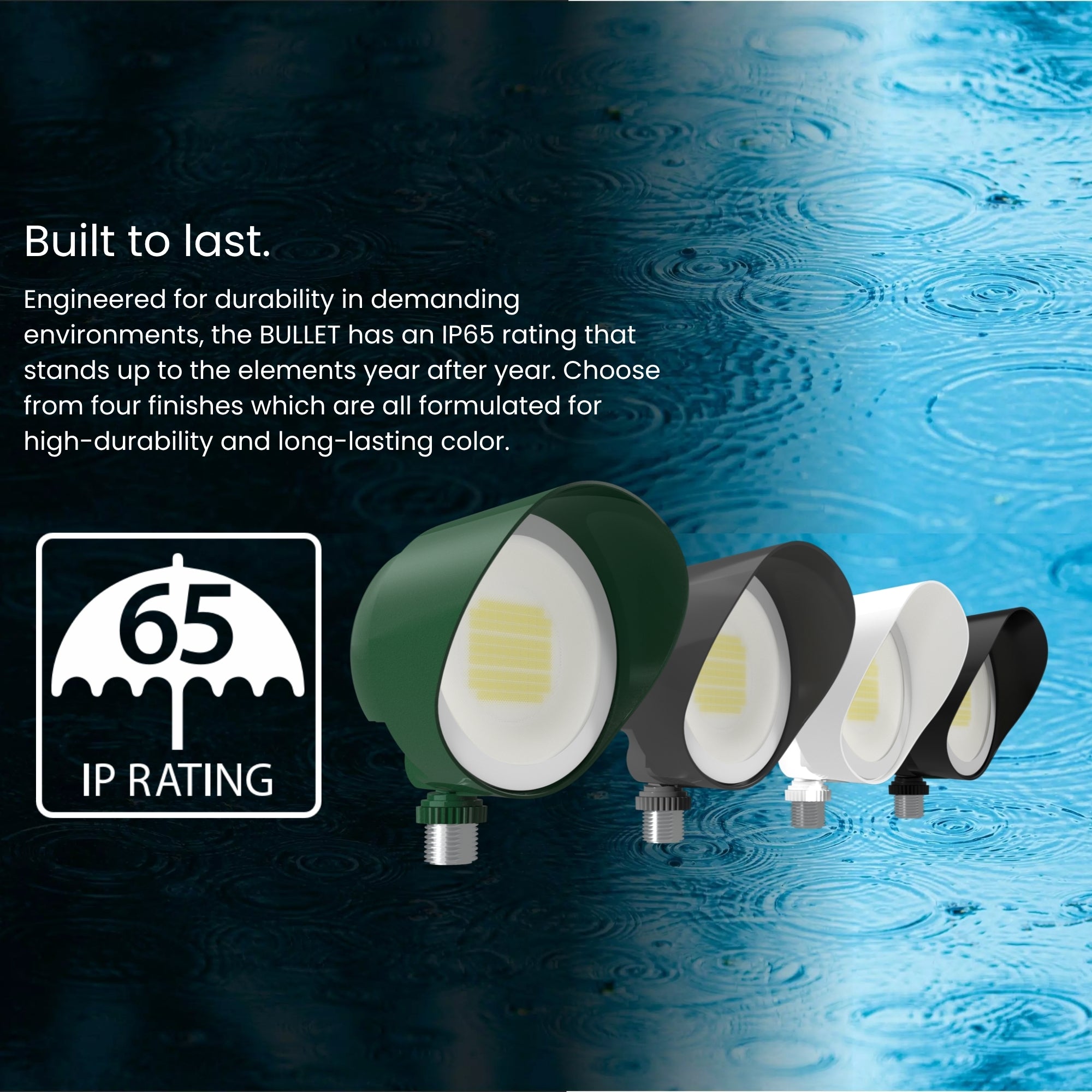

- IP Rating: Rated IP65 for protection against dust and water ingress.
- Dimming: Compatible with TRIAC dimmers for adjustable light levels.
We process payments securely and do not store credit card information.
Description
Description

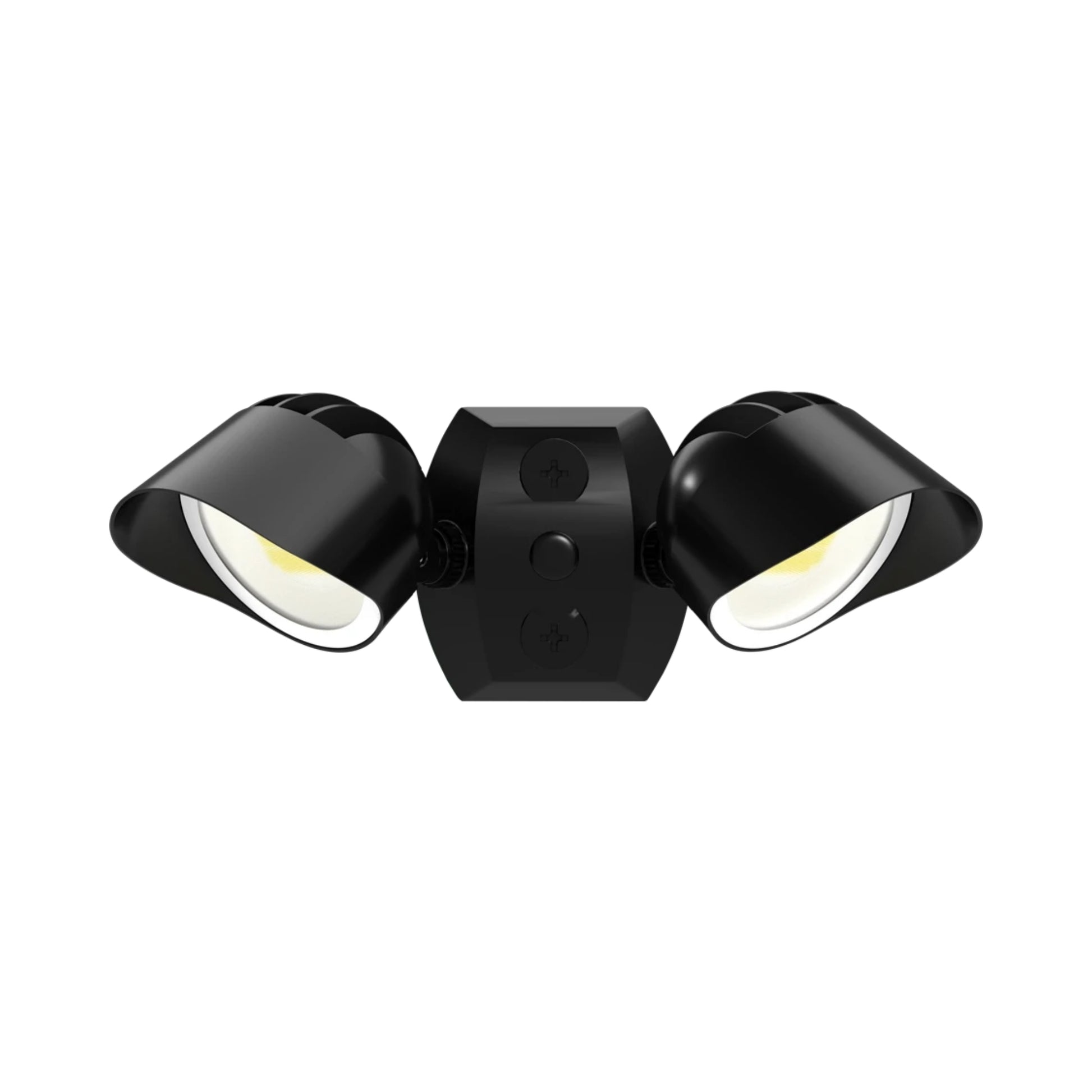

RAB Bullet Field Adjustable Flood Light — 24W Configuration
The RAB BULLET2X12B is a versatile flood light offering 24W power with a maximum output of 2,645 lumens. It supports 120-277V input and features selectable CCT of 3000K, 4000K, and 5000K, making it suitable for various lighting applications. The fixture is IP65 rated, ensuring durability in wet locations.
Key Features
- Field Adjustable Wattage: Easily switch between 24W, 18W, and 12W to suit different lighting needs.
- Selectable CCT: Choose from 3000K, 4000K, or 5000K for optimal color temperature.
- High Efficacy: Delivers an efficacy range of 101.4 to 120.9 lm/W.
- Long Lifespan: Designed for 100,000 hours of operation based on IES LM-80 and TM-21 standards.
- Durable Construction: Features a die-cast aluminum housing and glass lens for robust performance.
- Constant Current Driver: Ensures reliable operation with a power factor of 99.1% at 120V.
- Surge Protection: Equipped with 1 kV surge protection for enhanced safety.
- TRIAC Dimming: Compatible with dimmers for light level adjustments down to 10%.
- Cold Weather Start: Operates in temperatures as low as -40°F (-40°C).
- Environmental Compliance: RoHS-compliant and free from mercury and UV.
Typical Applications
- Building Facades
- Parking Lots
- Security Lighting
- Signage Illumination
- Landscape Lighting
Performance & Light Output
This flood light delivers a range of 1,279 to 2,645 lumens with a color rendering index (CRI) of 82-85, ensuring clear and vibrant lighting. The NEMA 6H x 6V beam spread provides broad coverage.
Electrical & Controls
Operating on 120-277V, the fixture includes a constant current driver and supports TRIAC dimming. It features a power factor of 99.1% and THD of 13.64% at 120V.
Construction & Durability
Constructed with a die-cast aluminum housing and glass lens, this fixture is IP65 rated for protection against dust and water. It is suitable for temperatures up to 104°F (40°C).
Installation & Mounting
Comes with a heavy-duty mounting arm and stainless steel screws for secure installation. The 'O' ring seal ensures a tight fit.
What's Included
- Flood Light Fixture
- Mounting Arm
- Stainless Steel Screws
Specifications
Specifications

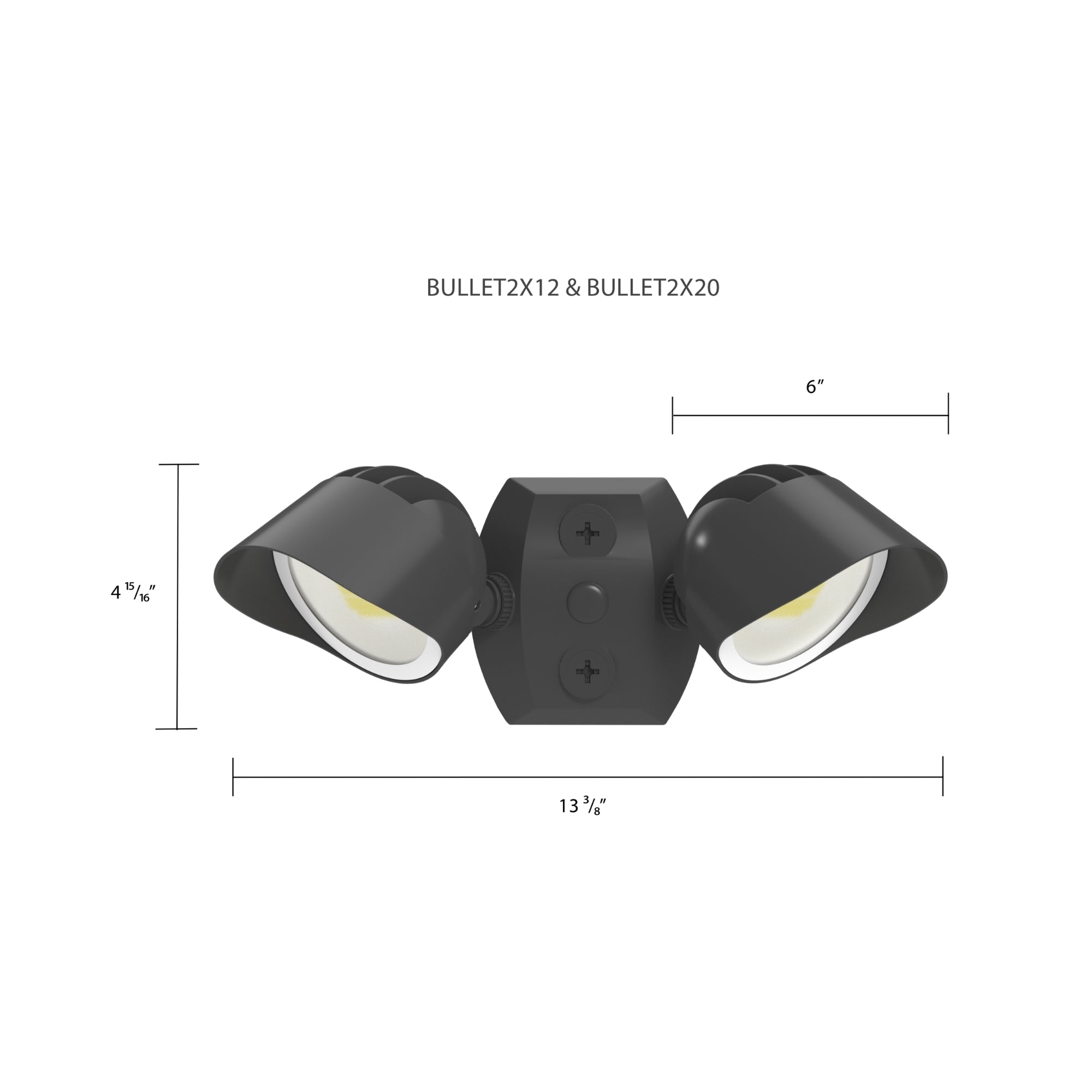

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage range for the RAB BULLET2X12B flood light?
What is the wattage range for the RAB BULLET2X12B flood light?
Is the RAB BULLET2X12B flood light dimmable?
Is the RAB BULLET2X12B flood light dimmable?
What is the IP rating of the RAB BULLET2X12B flood light?
What is the IP rating of the RAB BULLET2X12B flood light?
What color temperatures are available for the RAB BULLET2X12B?
What color temperatures are available for the RAB BULLET2X12B?
What is the lifespan of the RAB BULLET2X12B flood light?
What is the lifespan of the RAB BULLET2X12B flood light?
