RAB BULLET20A Field Adjustable Flood Light 2095 Lumens 20W Selectable CCT 120-277V White
Available in stock (100)
About this item
About this item
- Lumens: Delivers up to 2095 lumens for bright illumination.
- Wattage: Field adjustable wattage options of 20W, 15W, and 10W.
- Voltage: Compatible with 120-277V input for versatile installations.
- IP Rating: IP65 rated for protection against dust and water ingress.
- Dimming: TRIAC compatible dimming down to 10% for flexible lighting control.
We process payments securely and do not store credit card information.
Description
Description

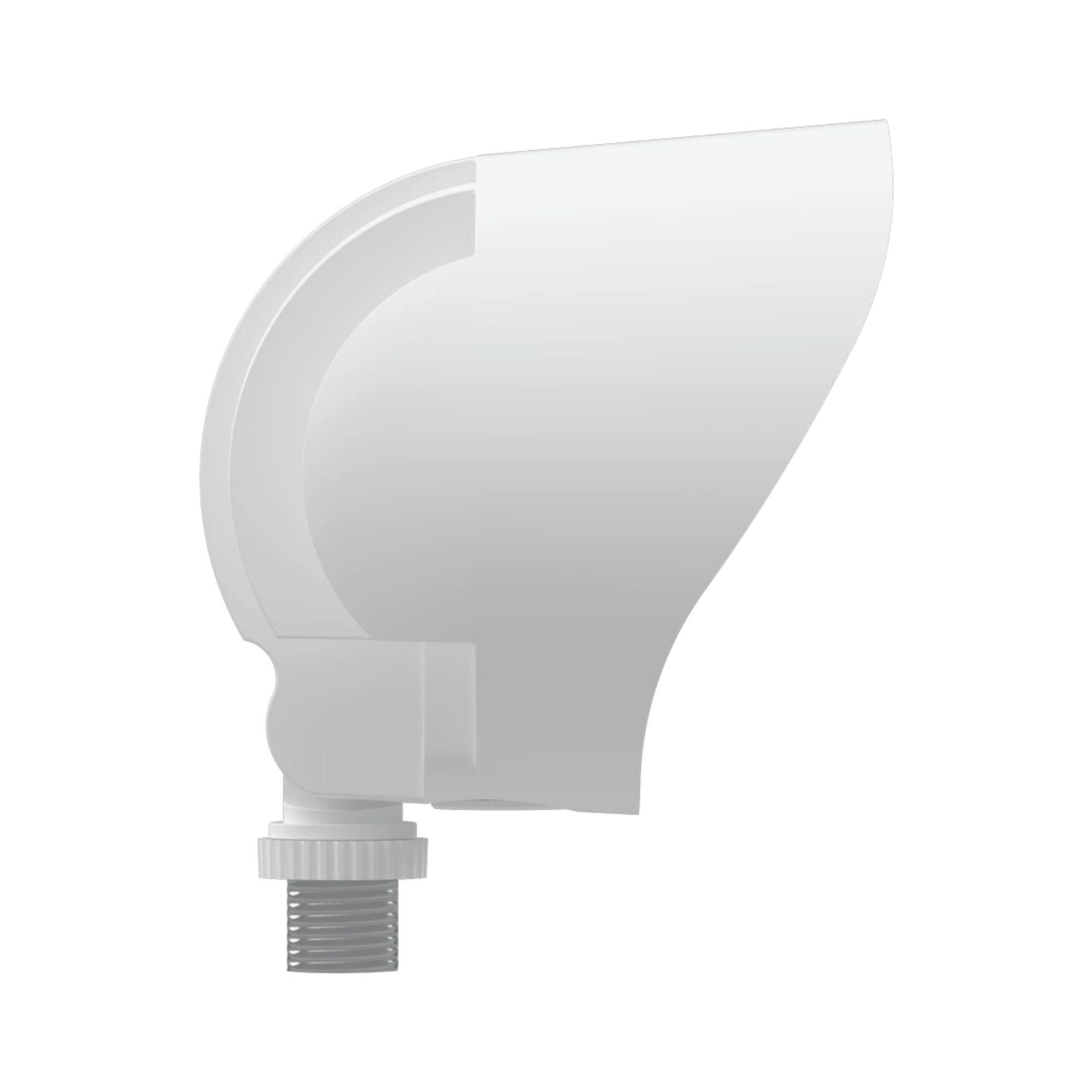

RAB Bullet Field Adjustable Flood Light — 20W Configuration
The RAB BULLET20W flood light provides a versatile lighting solution with 20W power, delivering up to 2095 lumens. It features selectable color temperatures of 3000K, 4000K, and 5000K, and operates on 120-277V. This fixture is IP65 rated, making it suitable for wet locations.
Key Features
- Field Adjustability: Offers adjustable wattage settings of 20W, 15W, and 10W, with a factory default of 20W.
- Selectable CCT: Choose between 3000K, 4000K, and 5000K color temperatures, with a factory default of 4000K.
- Driver: Constant current driver ensures consistent performance across voltage ranges.
- Surge Protection: Equipped with 1 kV surge protection for enhanced durability.
- Construction: Die-cast aluminum housing with a glass lens for robust performance.
- Optics: NEMA 6H x 6V beam spread for wide area coverage.
- Compliance: UL listed for wet locations and compliant with Trade Agreements Act.
- Lifespan: 100,000-hour LED lifespan based on IES LM-80 results.
- Mounting: Includes a heavy-duty mounting arm with an 'O' ring seal and stainless steel screws.
- Environmental: Operates in temperatures from -40°F to 104°F.
Typical Applications
- Building facades
- Security lighting
- Parking lots
- Signage illumination
- Landscape lighting
Performance & Light Output
This flood light offers a luminous efficacy of 98.3-114.3 lm/W and a CRI of 82-85, ensuring high-quality light output. The L70 lifespan is rated at 100,000 hours, providing long-term reliability.
Electrical & Controls
Operates on a 120-277V input with a constant current driver. The fixture supports TRIAC dimming down to 10% and includes surge protection of 1 kV.
Construction & Durability
The fixture is constructed with a die-cast aluminum housing and a glass lens, offering IP65 protection. It is designed to withstand temperatures from -40°F to 104°F.
Installation & Mounting
Features a heavy-duty mounting arm with an 'O' ring seal and stainless steel screws for secure installation. Suitable for various outdoor applications.
What's Included
- Flood light fixture
- Mounting arm
- Installation hardware
Specifications
Specifications

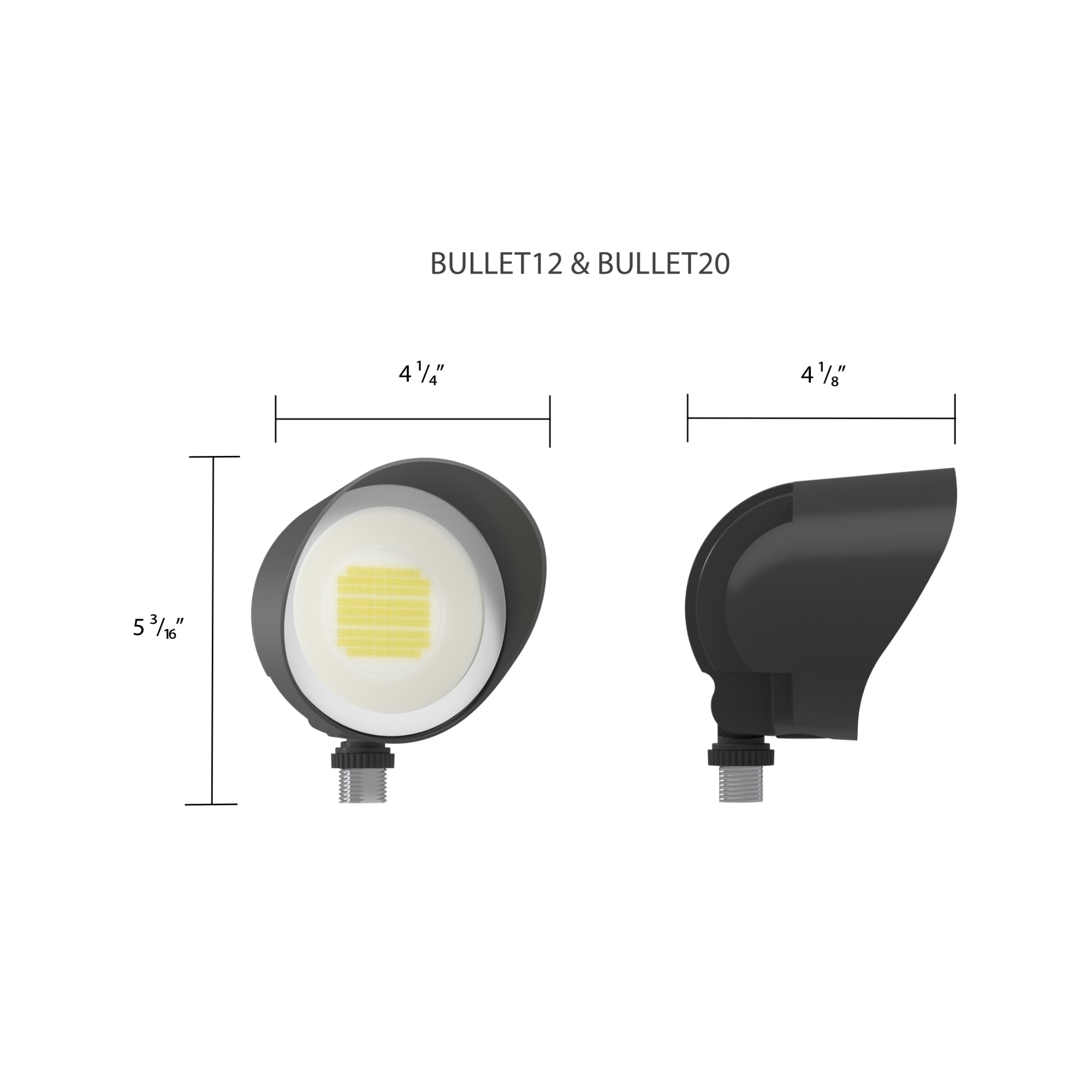

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage range for the RAB BULLET20W flood light?
What is the wattage range for the RAB BULLET20W flood light?
Is the RAB BULLET20W flood light suitable for wet locations?
Is the RAB BULLET20W flood light suitable for wet locations?
What color temperatures are available for the RAB BULLET20W?
What color temperatures are available for the RAB BULLET20W?
Does the RAB BULLET20W support dimming?
Does the RAB BULLET20W support dimming?
What is the expected lifespan of the RAB BULLET20W flood light?
What is the expected lifespan of the RAB BULLET20W flood light?
