RAB BULLET12B Field Adjustable Flood Light 1324 Lumens 12W Selectable CCT 120-277V Black
Available in stock (100)
About this item
About this item
- Wattage: Field adjustable wattage options of 12W, 9W, and 6W for versatile applications.
- Lumens: Delivers up to 1324 lumens for bright illumination.
- Color Temperature: Selectable CCT of 3000K, 4000K, and 5000K to suit different environments.

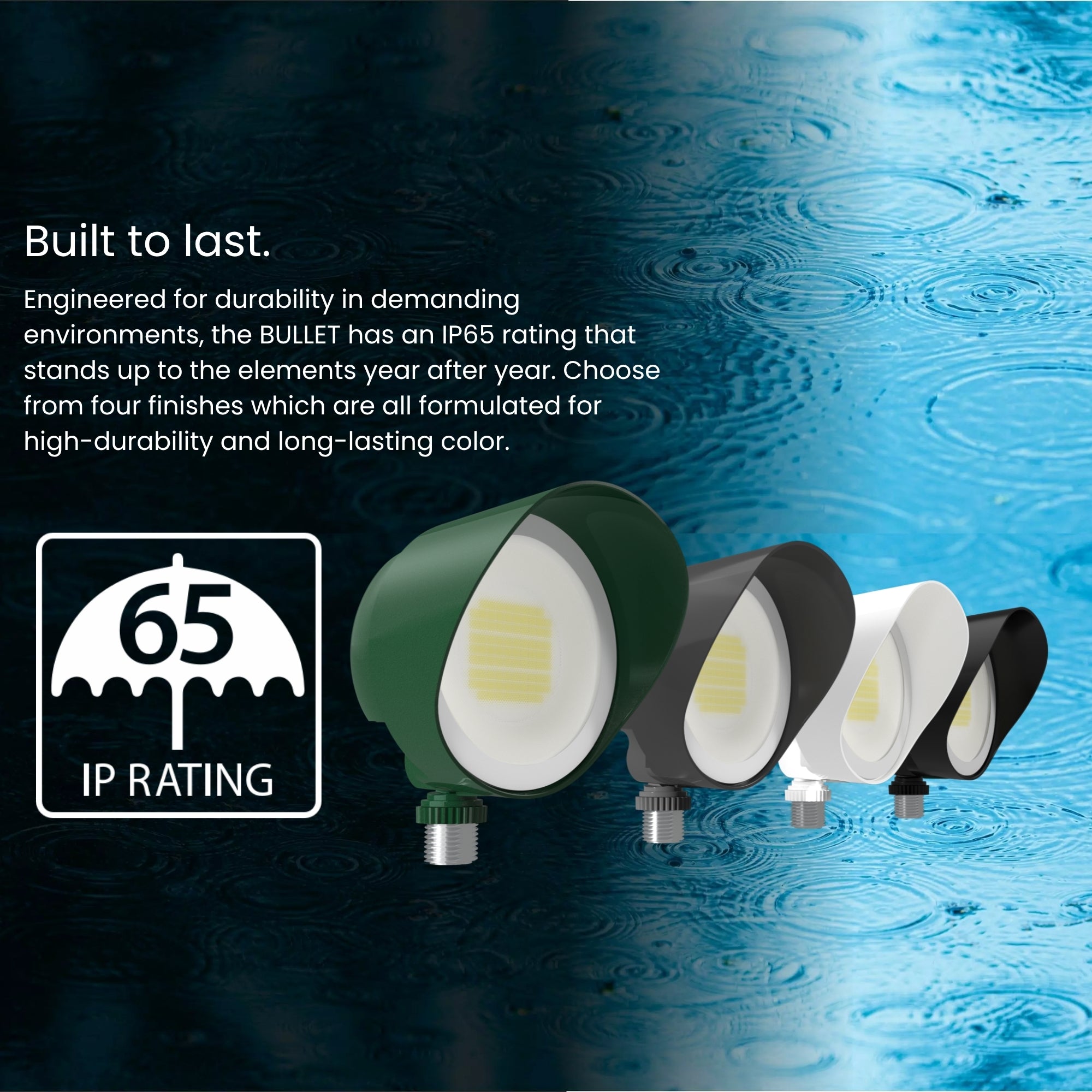

- Ingress Protection: Rated IP65 for protection against dust and water ingress.
- Dimming Capability: Compatible with TRIAC dimmers for adjustable light levels.
We process payments securely and do not store credit card information.
Description
Description
RAB Bullet Field Adjustable Flood Light — 12W Configuration
The RAB BULLET12B is a versatile flood light offering 12W power, delivering up to 1324 lumens with a selectable color temperature of 3000K, 4000K, and 5000K. It operates on a 120-277V input, making it suitable for various applications. This flood light is IP65 rated, ensuring durability in wet locations.
Key Features
- Field Adjustability: Offers adjustable wattage settings of 12W, 9W, and 6W, with a factory default of 12W.
- Selectable CCT: Choose from 3000K, 4000K, and 5000K color temperatures, with a factory default of 4000K.
- Driver: Constant current driver with TRIAC dimming capability down to 10%.
- Surge Protection: Equipped with 1 kV surge protection for enhanced safety.
- Construction: Features a die-cast aluminum housing and a glass lens for robust performance.
- Optics: NEMA 6H x 6V beam spread for wide coverage.
- Compliance: UL listed for wet locations and compliant with the Trade Agreements Act.
- Green Technology: Mercury and UV free, with RoHS-compliant components.
- Warranty: Backed by a 5-year limited warranty covering light output and driver performance.
Typical Applications
- Building facades
- Landscape lighting
- Security lighting
- Signage illumination
- Pathway lighting
Performance & Light Output
The flood light provides a luminous efficacy of 100.2-116.4 lm/W, with a CRI of 82-85, ensuring high-quality light output. It has a long lifespan of 100,000 hours based on IES LM-80 results.
Electrical & Controls
Operates on 120V with a constant current driver. It supports TRIAC dimming down to 10% and has a power factor of 99% at 120V. Surge protection is rated at 1 kV.
Construction & Durability
Constructed with a die-cast aluminum housing and a glass lens, the fixture is IP65 rated for protection against dust and water. It operates in temperatures ranging from -40°F to 104°F.
Installation & Mounting
Includes a heavy-duty mounting arm with an 'O' ring seal and stainless steel screws for secure installation.
What's Included
- Flood light fixture
- Mounting arm
- Installation hardware
Specifications
Specifications

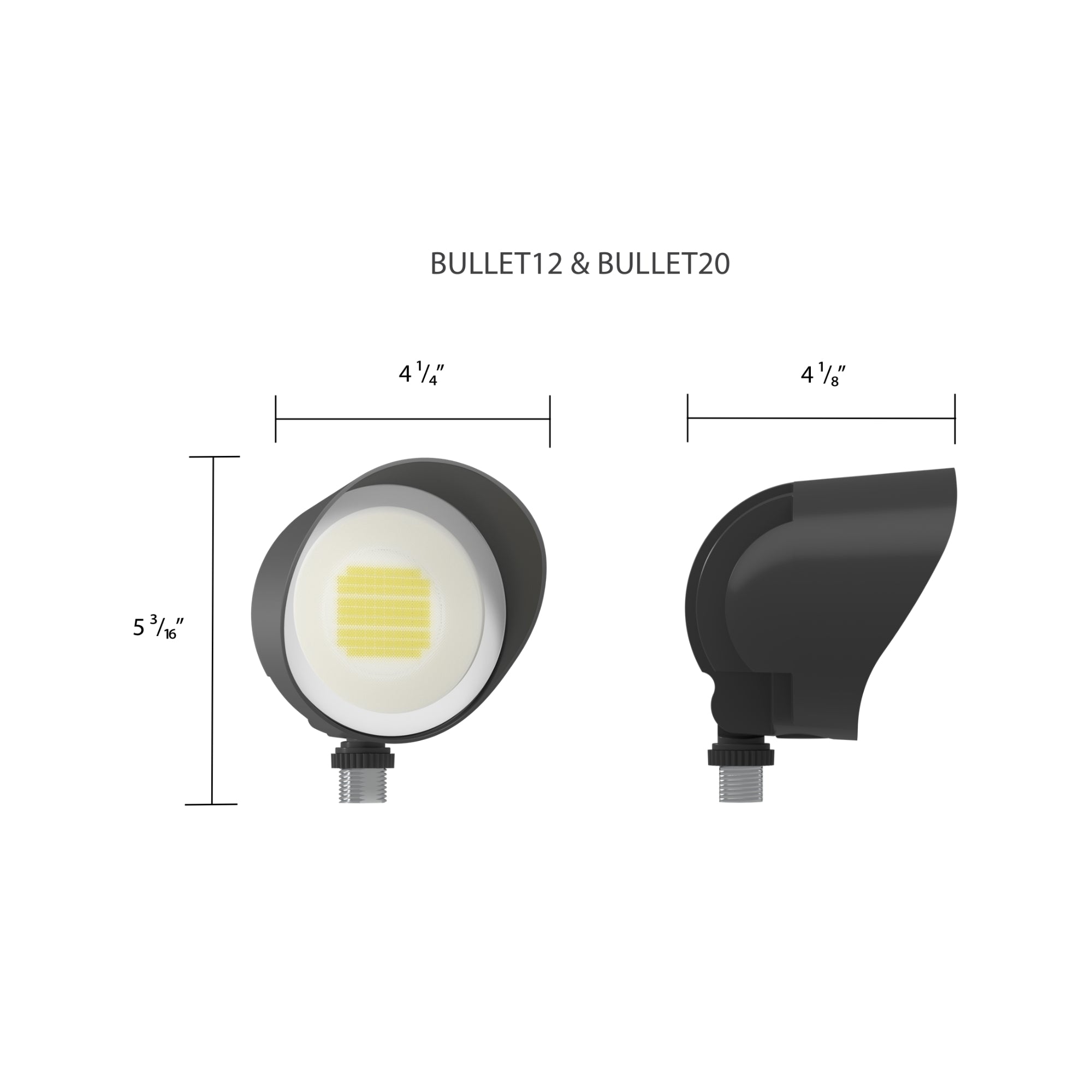

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the RAB BULLET12B flood light?
What is the wattage of the RAB BULLET12B flood light?
Is the RAB BULLET12B flood light dimmable?
Is the RAB BULLET12B flood light dimmable?
What is the IP rating of the RAB BULLET12B flood light?
What is the IP rating of the RAB BULLET12B flood light?
What color temperatures are available for the RAB BULLET12B flood light?
What color temperatures are available for the RAB BULLET12B flood light?
What is the lifespan of the RAB BULLET12B flood light?
What is the lifespan of the RAB BULLET12B flood light?
