RAB BULLET12A Field Adjustable Flood Light 1324 Lumens 12W Selectable CCT 120-277V Bronze
Available in stock (100)
About this item
About this item
- Wattage: The flood light is field adjustable with options of 12W, 9W, and 6W.
- Lumens: Provides a light output range from 636 to 1324 lumens.
- Color Temperature: Selectable CCT options include 3000K, 4000K, and 5000K.
- IP Rating: Rated IP65 for protection against dust and water ingress.
- Dimming: Compatible with TRIAC dimmers, allowing dimming down to 10%.
We process payments securely and do not store credit card information.
Description
Description
RAB Bullet Field Adjustable Flood Light — 12W Configuration
The RAB BULLET12A is a versatile flood light offering 12 watts of power and a maximum of 1324 lumens. It operates on a voltage range of 120-277V and features selectable color temperatures of 3000K, 4000K, and 5000K. This flood light is IP65 rated, making it suitable for wet locations and ensuring durability in various environmental conditions.
Key Features
- Field Adjustability: Offers light output adjustments of 12W, 9W, and 6W with factory default at 12W.
- Selectable CCT: Choose from 3000K, 4000K, or 5000K with a factory default of 4000K.
- Driver: Constant current driver with TRIAC dimming capability down to 10%.
- Construction: Die-cast aluminum housing with a glass lens for durability.
- Surge Protection: Equipped with 1 kV surge protection for enhanced reliability.
- Optics: NEMA beam spread of 6H x 6V for wide coverage.
- Lifespan: Designed for a 100,000-hour lifespan based on IES LM-80 results.
- Compliance: UL listed for wet locations and compliant with the Trade Agreements Act.
- Environmental: RoHS-compliant and free from mercury and UV emissions.
- Mounting: Includes a heavy-duty mounting arm with an 'O' ring seal and stainless steel screws.
Typical Applications
- Building facades
- Parking lots
- Security lighting
- Signage illumination
- Landscape lighting
Performance & Light Output
This flood light delivers between 636 and 1324 lumens with an efficacy range of 100.2 to 116.4 lm/W. It features a CRI of 82-85 and a 100,000-hour L70 lifespan.
Electrical & Controls
Operates on 120-277V with a constant current driver. It supports TRIAC dimming down to 10% and includes surge protection of 1 kV.
Construction & Durability

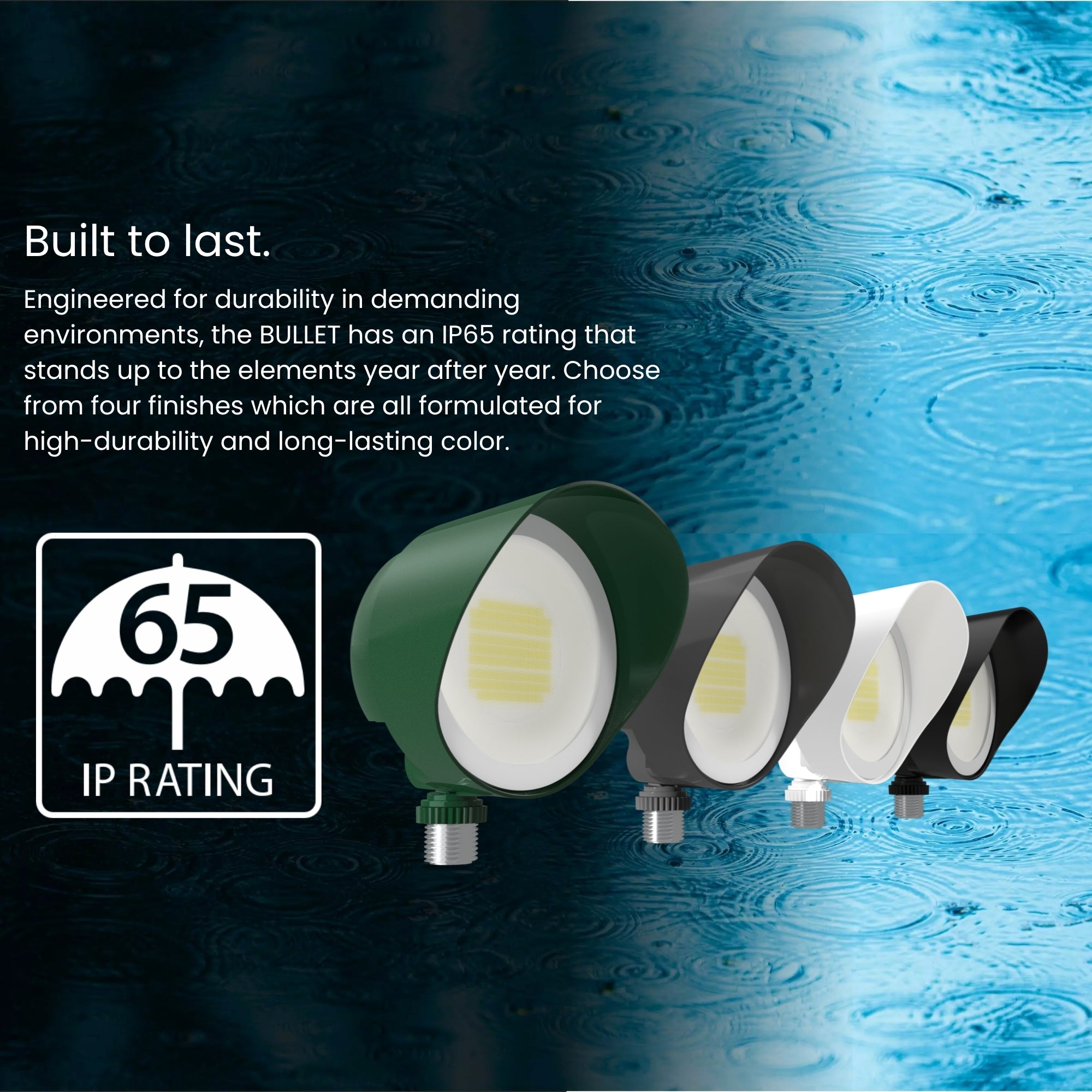

Constructed with a die-cast aluminum housing and glass lens, this fixture is IP65 rated for dust and water protection. It operates in temperatures from -40°F to 104°F.
Installation & Mounting
Features a heavy-duty mounting arm with an 'O' ring seal and stainless steel screws for secure installation.
What's Included
- Flood light fixture
- Mounting arm
- Stainless steel screws
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the RAB BULLET12A flood light?
What is the wattage of the RAB BULLET12A flood light?
Is the RAB BULLET12A flood light dimmable?
Is the RAB BULLET12A flood light dimmable?
What is the IP rating of the RAB BULLET12A flood light?
What is the IP rating of the RAB BULLET12A flood light?
What color temperatures are available for the RAB BULLET12A?
What color temperatures are available for the RAB BULLET12A?
What is the lifespan of the RAB BULLET12A flood light?
What is the lifespan of the RAB BULLET12A flood light?
