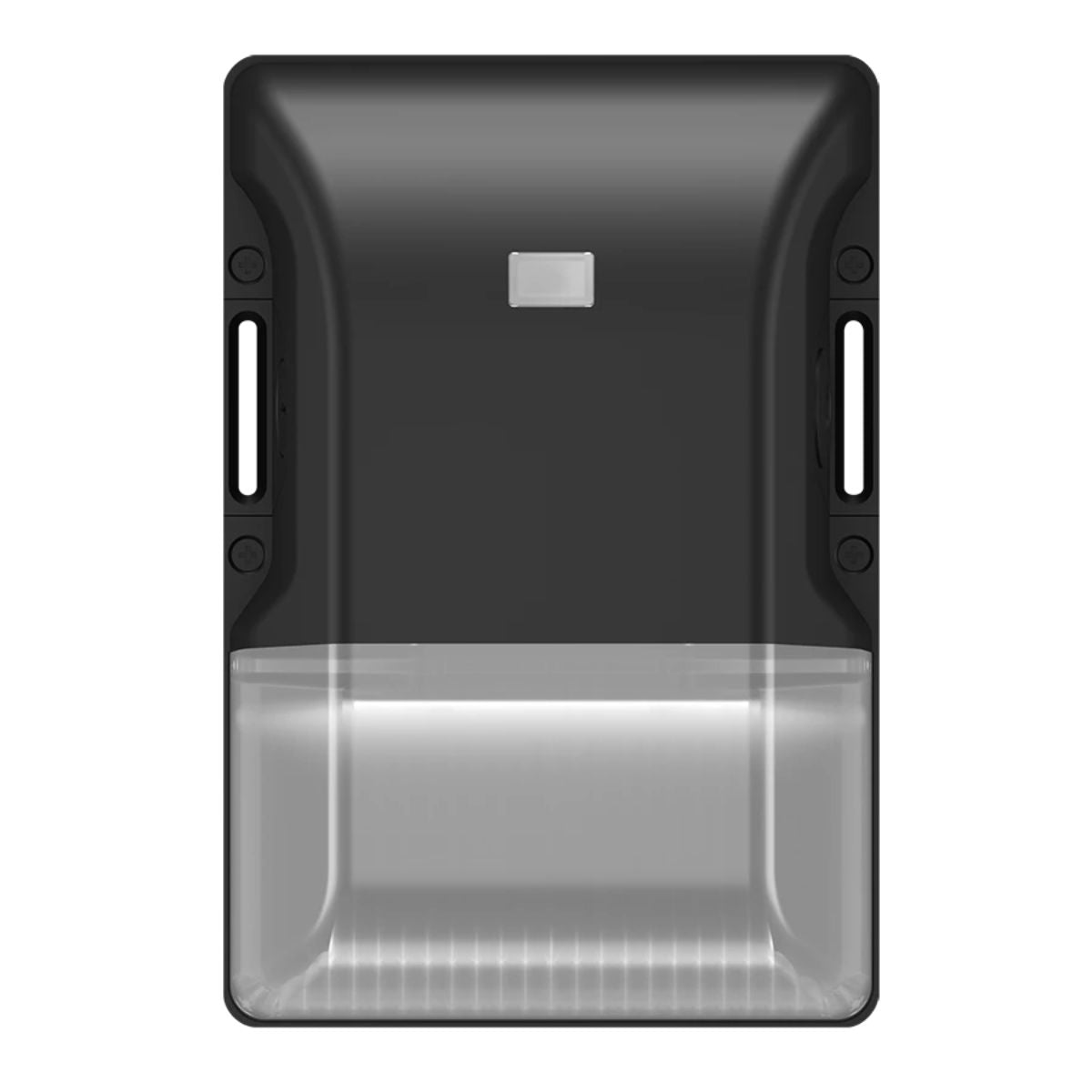

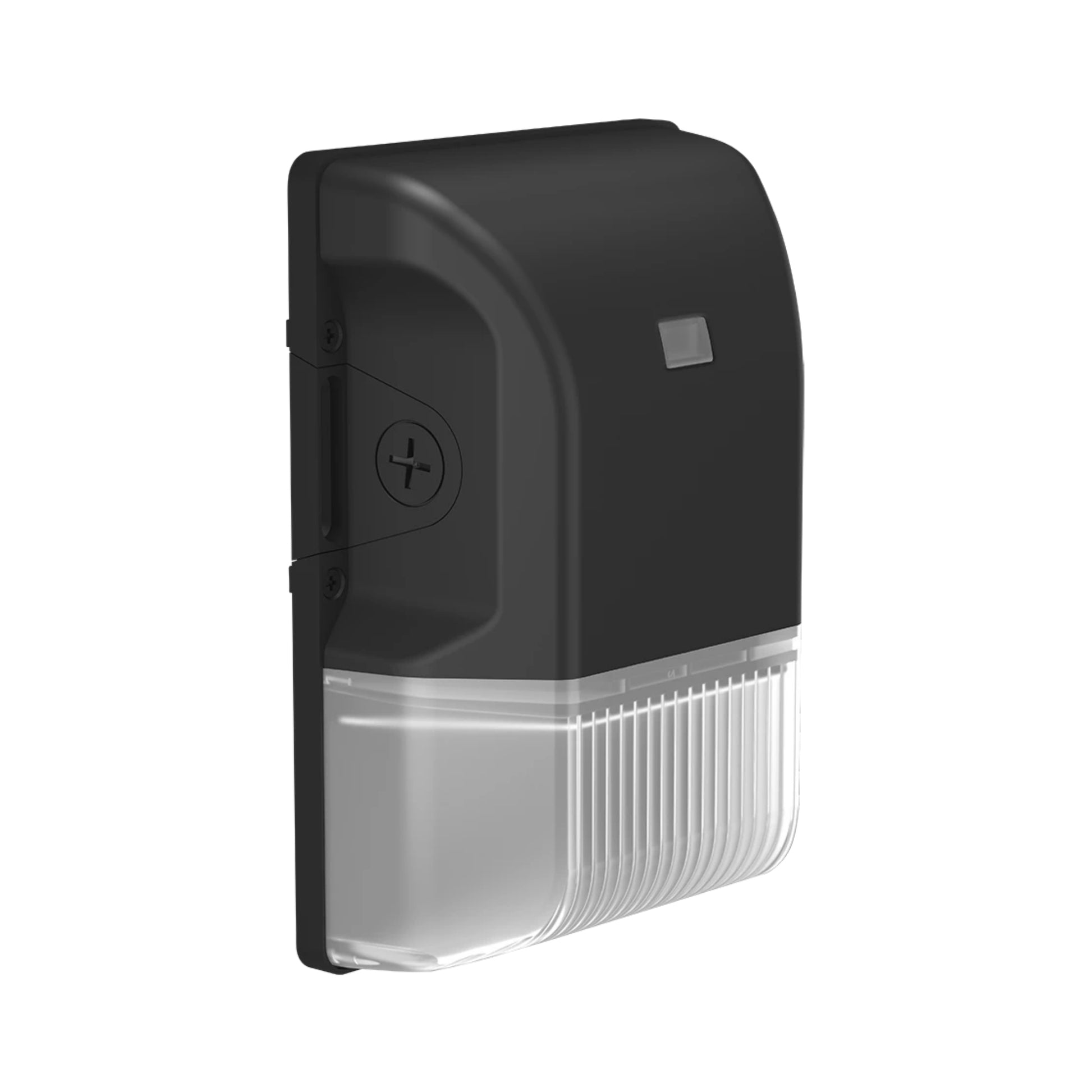

RAB BRISK17FA30 Field-Adjustable Mini LED Wall Pack — 30W — 3000K/4000K/5000K — Bronze

The RAB BRISK17FA30 is a commercial field-adjustable mini LED wall pack engineered to deliver up to 4,362 lumens at up to 147.2 lm/W from a dedicated 30W (29.2W / 29.6W / 30.6W input) driver across switchable 3000K, 4000K, and 5000K color temperatures. Operating on universal 120-277V electrical systems with 0-10V dimming down to 10%, it replaces legacy 100W Metal Halide doorway and perimeter fixtures while qualifying for DLC Premium utility rebates. Built with a weatherproof IP65 precision die-cast aluminum body and UL wet-location listing, this compact architectural luminaire features a slim 3" wall projection depth (5-11/16" W x 8-1/2" H), lightweight 2.3 lb housing, four conduit entry points (one top, two side, one back), and a discreet integrated 120-277V button photocell.

Key Features

  • Nominal Wattage: 30W (29.2W / 29.6W / 30.6W input across 3000K/4000K/5000K)
  • Wattage Equivalency: Equivalent to 100W Metal Halide
  • Maximum Lumen Output: Up to 4,362 lm (3,947 / 4,362 / 4,207 lm)
  • Peak Efficacy: Up to 147.2 lm/W (135.3 / 147.2 / 137.6 lm/W)
  • CRI: 81–83 CRI
  • Field-Adjustable CCT: 3000K / 4000K / 5000K selectable
  • Color Consistency: 7-step MacAdam Ellipse binning per ANSI C78.377-2017
  • Photocell & Controls: Discreet integrated 120-277V button photocell included
  • Dimming: 0-10V continuous dimming down to 10% (requires separate 0-10V DC dimming circuit)
  • Electrical Driver: Constant Current, Class 2, 120-277V AC, 50/60Hz

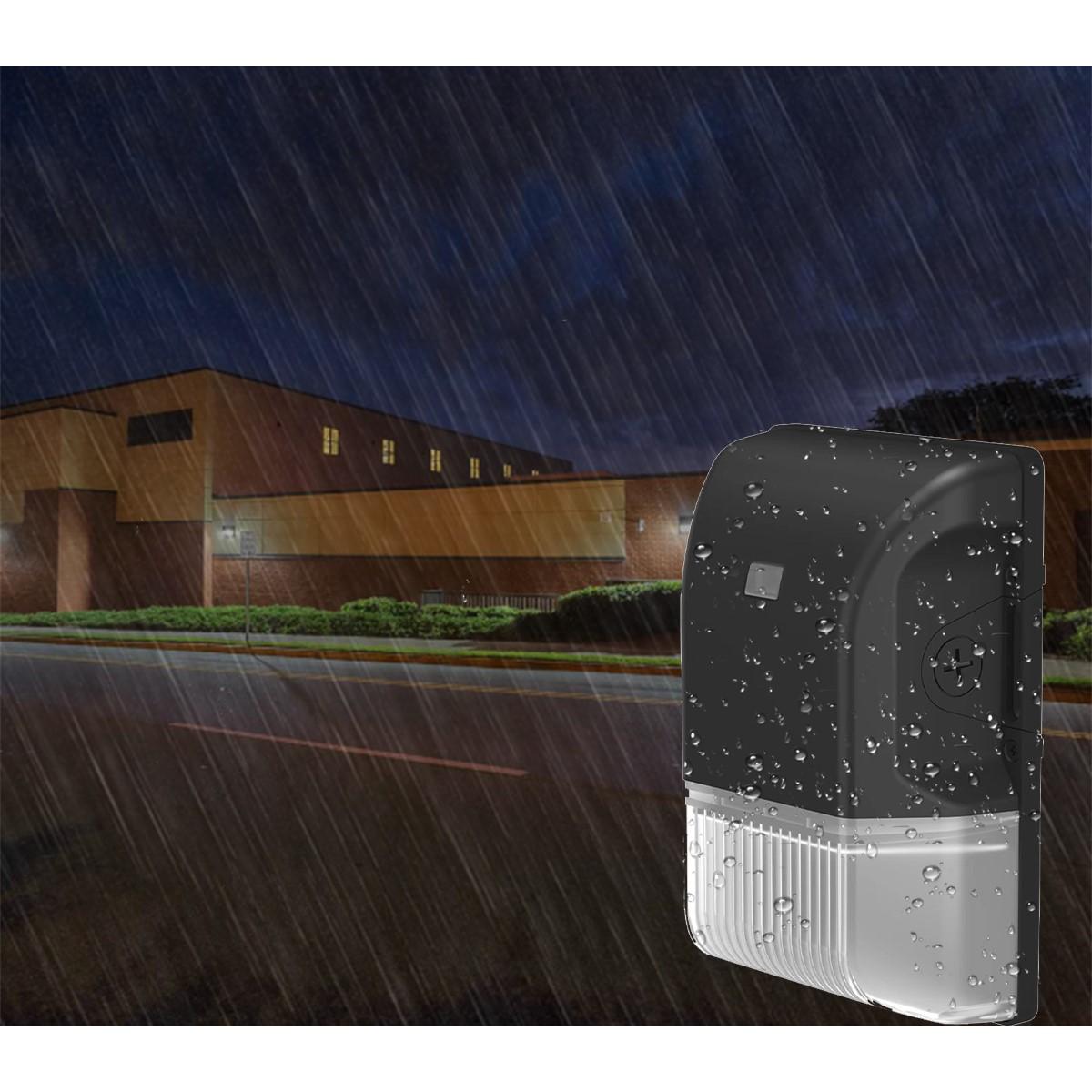

  • Location & Body Rating: UL Listed for wet locations; IP65 rated for dust and water ingress
  • Operating Temperature: -40°F (-40°C) to 113°F (45°C)

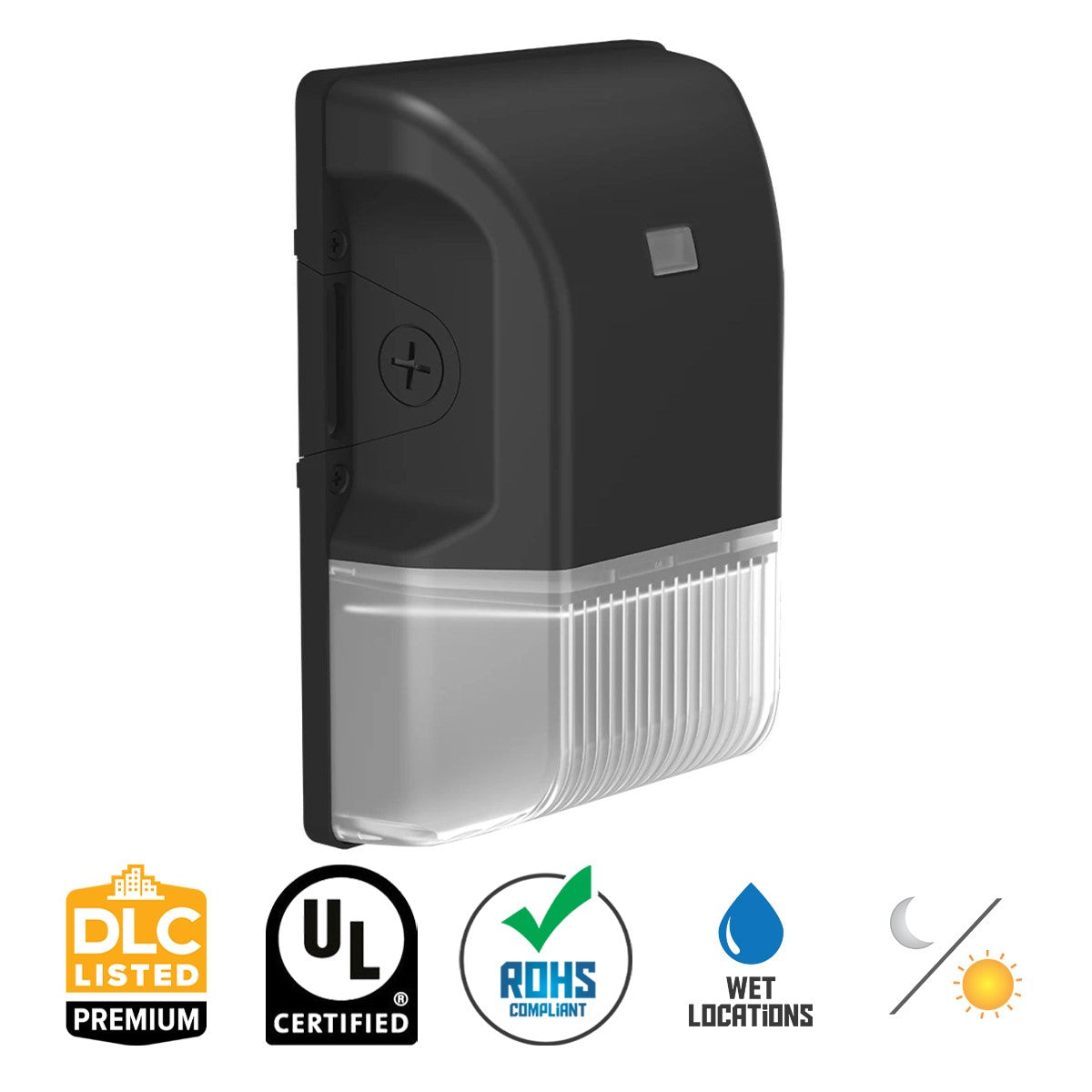

  • Certifications: DLC Premium Listed, UL Listed, IP65 Rated, IESNA LM-79 & LM-80 tested, RoHS Compliant
  • Rated Life: L70 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Warranty: 5-year limited warranty covering light output, driver performance, and paint finish - RAB

Performance & Light Output

Wattage (Input Watts) Selectable CCT Total Lumens Efficacy Legacy Equivalent
30W (29.2W) 3000K 3,947 lm 135.3 lm/W 100W MH
30W (29.6W) 4000K 4,362 lm 147.2 lm/W 100W MH
30W (30.6W) 5000K 4,207 lm 137.6 lm/W 100W MH

Engineered with long-life, high-efficiency, surface-mount LEDs delivering 81–83 CRI across all selectable color temperatures. Rated life of 100,000 hours (L70) based on independent laboratory IESNA LM-79 and LM-80 testing and TM-21 calculations.

Lens & Optics

Engineered with a molded lower prismatic refractor and precision upper die-cast hood that direct wide downward and outward doorway and walkway illumination from a compact 3" profile. Mercury-free and UV-free optical construction prevents ultraviolet degradation while maintaining consistent chromaticity in accordance with ANSI C78.377-2017 Solid State Lighting guidelines.

Smart & Control Features

Engineered for automated dusk-to-dawn operation, field-selectable color tuning, and commercial dimming:

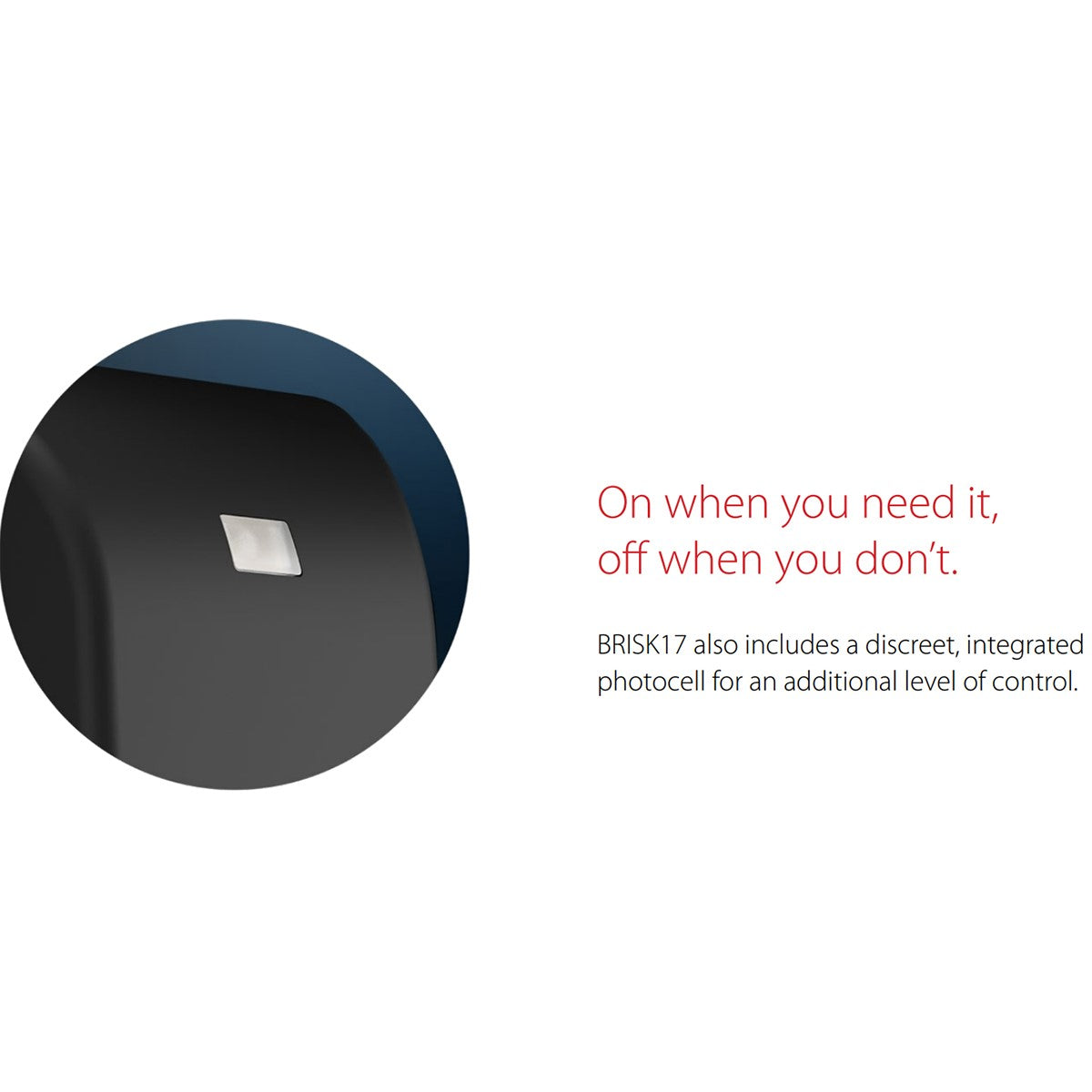

  • Integrated 120-277V Button Photocell: Discreet front-mounted button photocell comes pre-installed for automatic dusk-to-dawn operation across 120V–277V circuits.

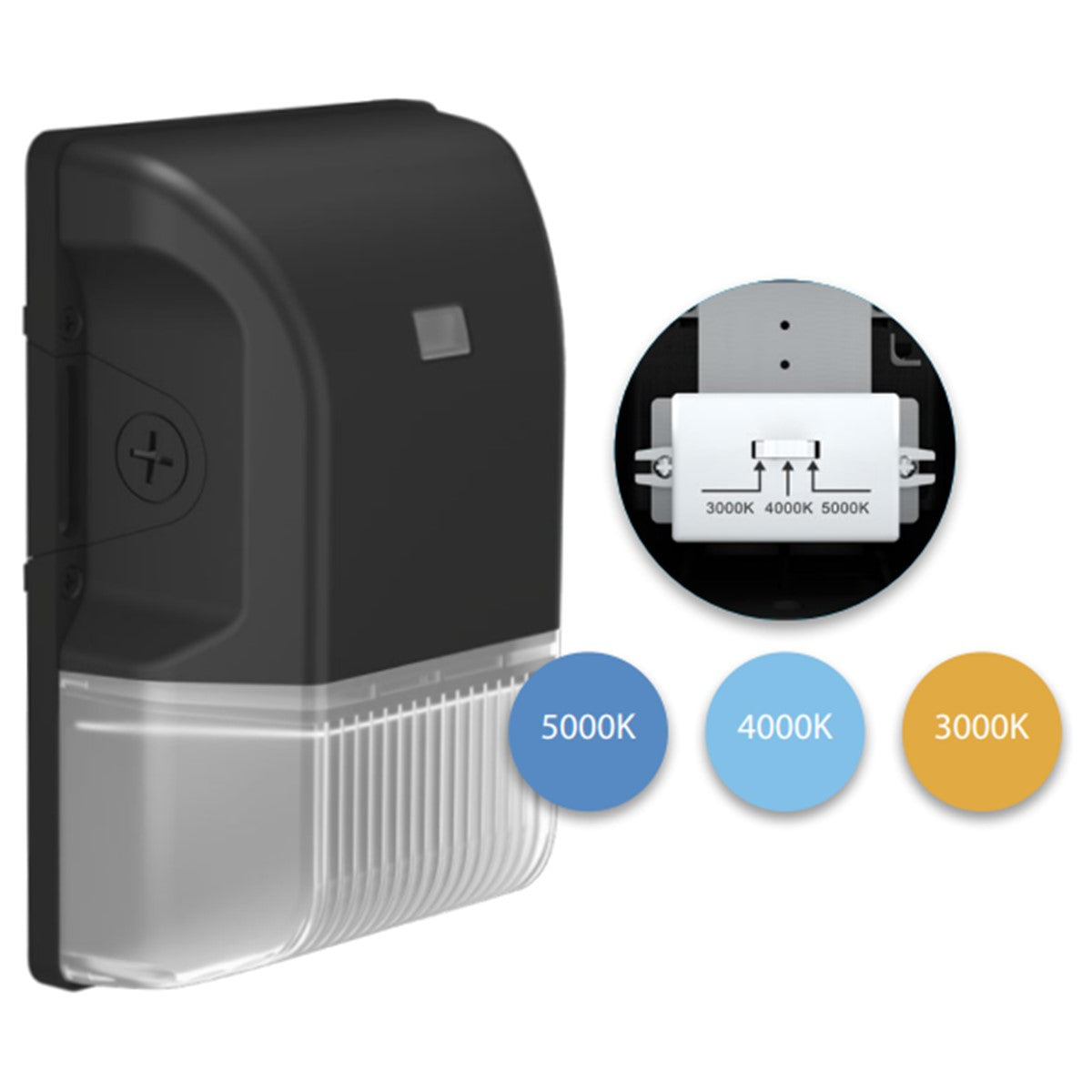

  • Field-Adjustable CCT Selector: Onboard selector lets installers switch between 3000K warm white, 4000K neutral white, and 5000K daylight color temperatures during installation.
  • 0-10V Dimming Down to 10%: Driver includes control wiring for commercial 0-10V DC dimming systems (requires separate 0-10V DC dimming circuit) and dims smoothly down to 10%.

Electrical

Powered by a Class 2 constant current driver operating on universal 120-277V AC at 50/60Hz (29.2W / 29.6W / 30.6W input power). Includes pre-wired 0-10V dimming leads and an integrated 120-277V button photocell.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Nominal Wattage 120V Current (A) 208V Current (A) 240V Current (A) 277V Current (A)
30W 0.26A 0.15A 0.13A 0.12A

Construction

Housing & Thermal: Precision die-cast aluminum body engineered for passive thermal conduction to protect the surface-mount LEDs and Class 2 driver.

Finish: Architectural Bronze finish formulated for high outdoor durability and long-lasting color stability.

Environmental Sealing: IP65 rated for dust and water protection and UL Listed for wet locations. Cold weather starting down to -40°F (-40°C) and maximum ambient operating temperature up to 113°F (45°C) — total ambient operating range: -40°F (-40°C) to 113°F (45°C).

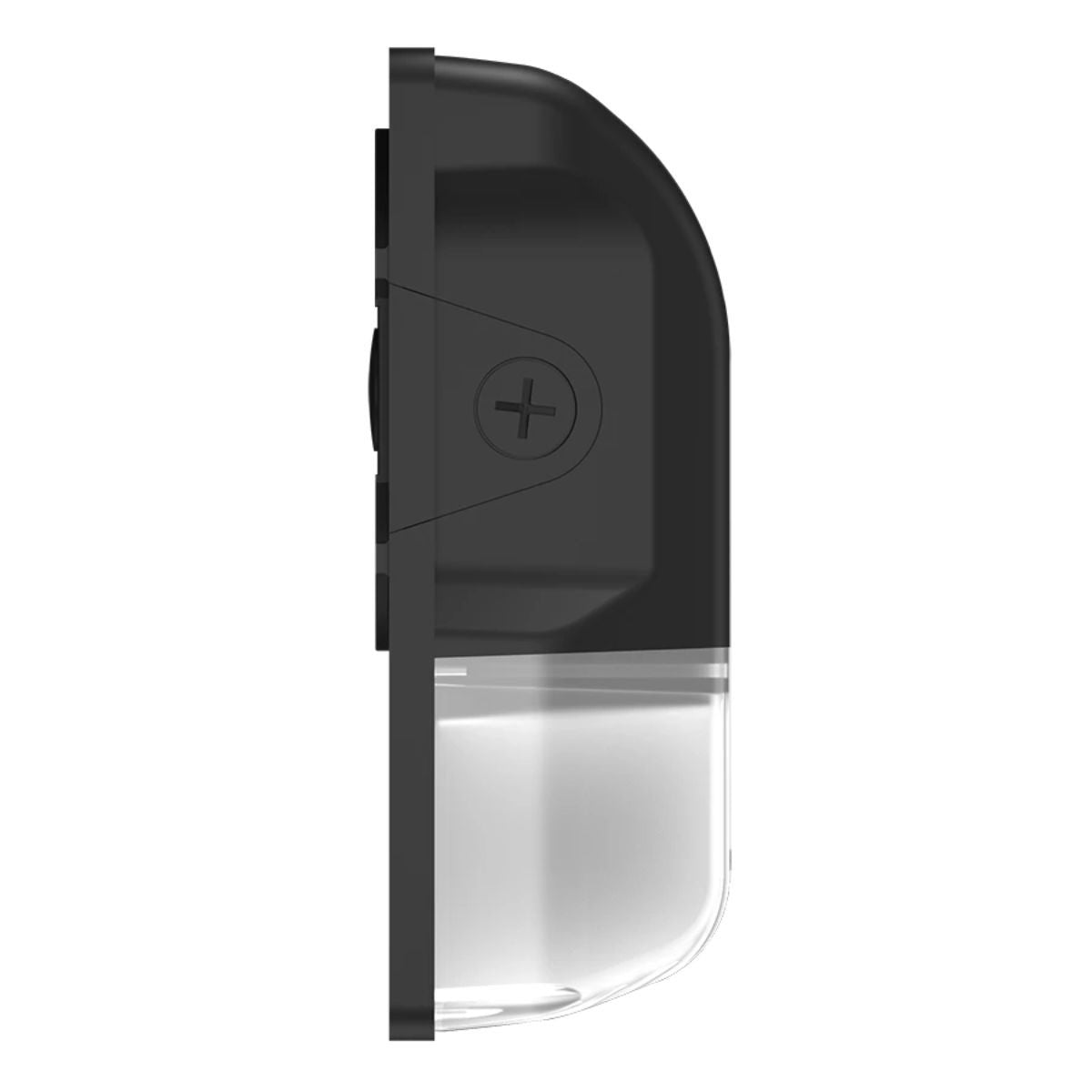

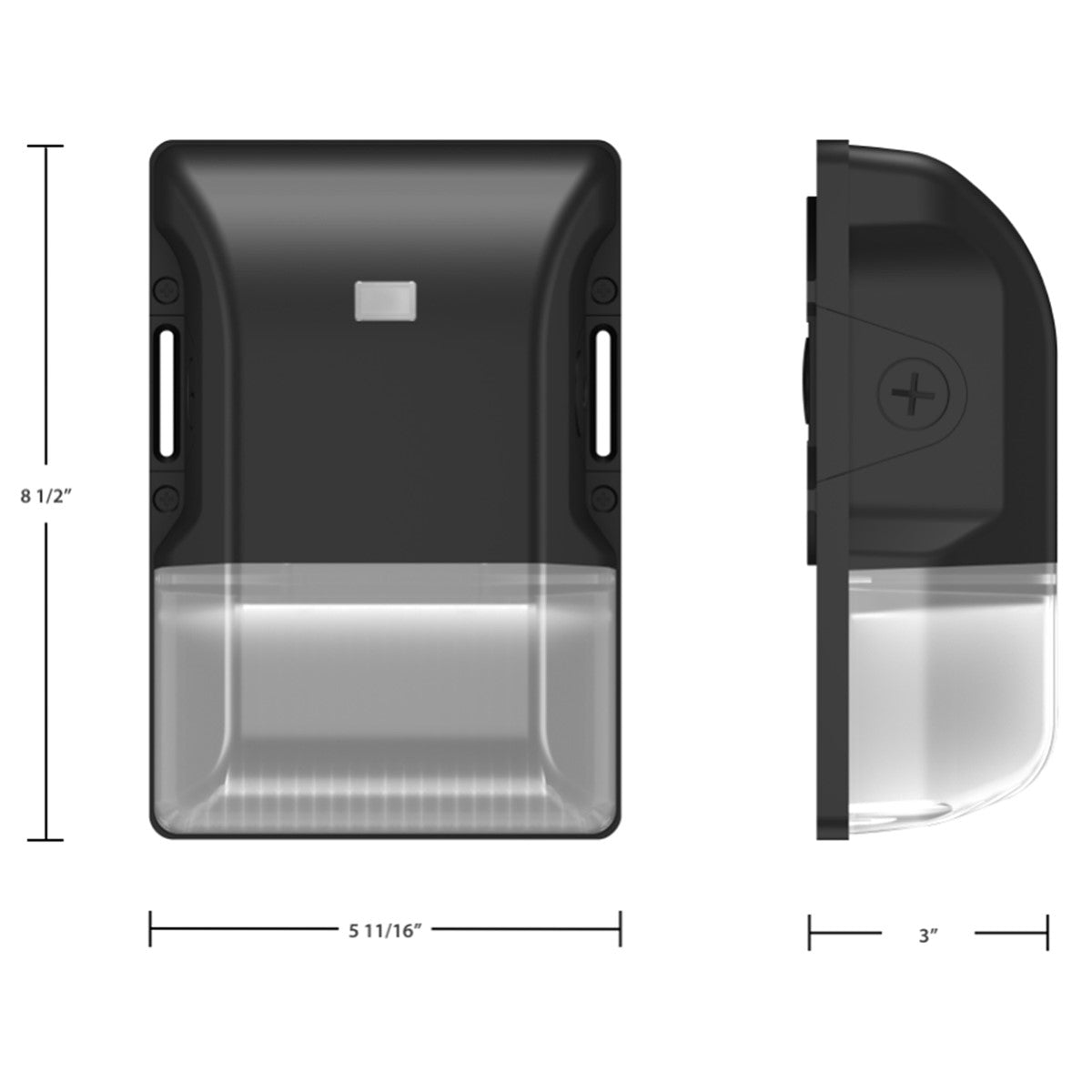

Dimensions & Weight: 8-1/2" H x 5-11/16" W x 3" D. Fixture weight: 2.3 lbs.

Installation & Mounting

Mounting Hardware: Compact, lightweight 2.3 lb heavy-duty die-cast junction box housing projects only 3" from the wall surface (5-11/16" W x 8-1/2" H footprint), making it ideal for tight doorway headers, columns, and pedestrian entryways.

Conduit & Wiring Access: Built-in heavy-duty die-cast junction box features four (4) conduit entries—one top, two side, and one back—to accommodate recessed junction boxes or surface conduit runs without external adapters.

Certifications & Rebates

  • DLC Premium Listed: Listed with the DesignLights Consortium (DLC) for commercial utility rebate eligibility (verify specific SKU BRISK17FA30 qualification on the DLC QPL at designlights.org)
  • UL Listed: Suitable for wet locations per outdoor luminaire safety standards
  • IP65 Rated: Ingress protection rating of IP65 for dust and water
  • IESNA LM-79 & LM-80 Tested: Tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 standards
  • RoHS Compliant: Green technology with mercury-free, UV-free, RoHS-compliant components

Typical Applications

  • Commercial Entryways & Personnel Doors - Compact 5-11/16" W x 8-1/2" H x 3" D die-cast housing replaces 100W Metal Halide doorway lights while delivering up to 4,362 lumens
  • Pedestrian Walkways & Breezeways - Slim 3" wall projection and field-adjustable 3000K, 4000K, and 5000K CCT provide tailored pathway illumination
  • Exterior Stairwells & Balconies - Discreet integrated 120-277V button photocell and 0-10V dimming down to 10% automate dusk-to-dawn security lighting
  • Multi-Family & Retail Perimeters - Four conduit entries (one top, two side, one back) simplify both recessed J-box and surface conduit installations
  • Cold-Weather Commercial Facilities - IP65 weatherproof sealing and -40°F (-40°C) to 113°F (45°C) temperature rating ensure year-round outdoor reliability

What's Included

  • RAB BRISK17FA30 Field-Adjustable Mini LED Wall Pack - Bronze
  • Pre-installed discreet 120-277V button photocell
  • Installation hardware and operation manual

Specifications

Dimensions

Length/Depth
5.69 in
Width/Diameter
3 in
Height
8.5 in
Weight
2.3 lb

Style & Materials

Material
Aluminum
Shape
Mini

Characteristics & Features

Lamp Source
led
Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
80 CRI
Delivered Lumens
4300
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
30W

Item Details

MPN
BRISK17FA30
Brand
RAB Lighting
Family
BRISK 17 Field-Adjustable Wall Pack
UPC
192552030847

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
100,000 Hours
Product Rating
IP65 Rated, Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

How compact is the RAB BRISK17FA30 mini wall pack, and how does it mount to a wall or conduit?

This mini wall pack measures 5-11/16" W x 8-1/2" H x 3" D and weighs just 2.3 lbs in a precision die-cast aluminum housing. Its heavy-duty die-cast junction box includes four conduit entries (one top, two side, and one back) for direct J-box or surface conduit mounting.

What lumen outputs, color temperatures, and HID equivalency does the RAB BRISK17FA30 provide?

This 30W mini wall pack replaces 100W Metal Halide fixtures and delivers 3,947 lm (134.7–135.3 lm/W) at 3000K, 4,362 lm (147.2 lm/W) at 4000K, and 4,207 lm (137.6 lm/W) at 5000K. An onboard field-adjustable selector switches between 3000K, 4000K, and 5000K with 81–83 CRI accuracy.

Does the RAB BRISK17FA30 include a built-in photocell and support 0-10V dimming?

Yes, this luminaire comes pre-installed with a discreet integrated button photocell compatible with 120-277V circuits for automatic dusk-to-dawn operation. Its Class 2 constant current driver (0.26A at 120V; 0.12A at 277V) includes 0-10V control wiring that dims smoothly down to 10%.

What weatherproofing and operating temperature range protect the RAB BRISK17FA30 outdoors?

The precision die-cast aluminum enclosure in bronze finish is IP65 rated against dust and water ingress and UL Listed for wet locations. It features a reliable cold-weather starting temperature of -40°F (-40°C) and operates in ambient temperatures up to 113°F (45°C).

What is the rated LED lifespan, utility rebate status, and warranty coverage for the BRISK17FA30?

The RAB BRISK17FA30 is rated for a 100,000-hour L70 LED lifespan based on independent IESNA LM-80 testing and TM-21 calculations and is DLC Premium listed for utility rebates. It is backed by RAB's 5-year limited warranty covering light output, driver performance, and paint finish.
