RAB BRISK17FA20W BRISK Mini LED Wall Pack 2,921 Lumens 20W Selectable 30K/40K/50K 120-277V Photocell White
Available in stock (200)
About this item
About this item
- Efficient Output: Delivers up to 2,921 lumens at a dedicated 20W output, providing an ultra-efficient, energy-saving replacement for up to 100W traditional metal halide fixtures.

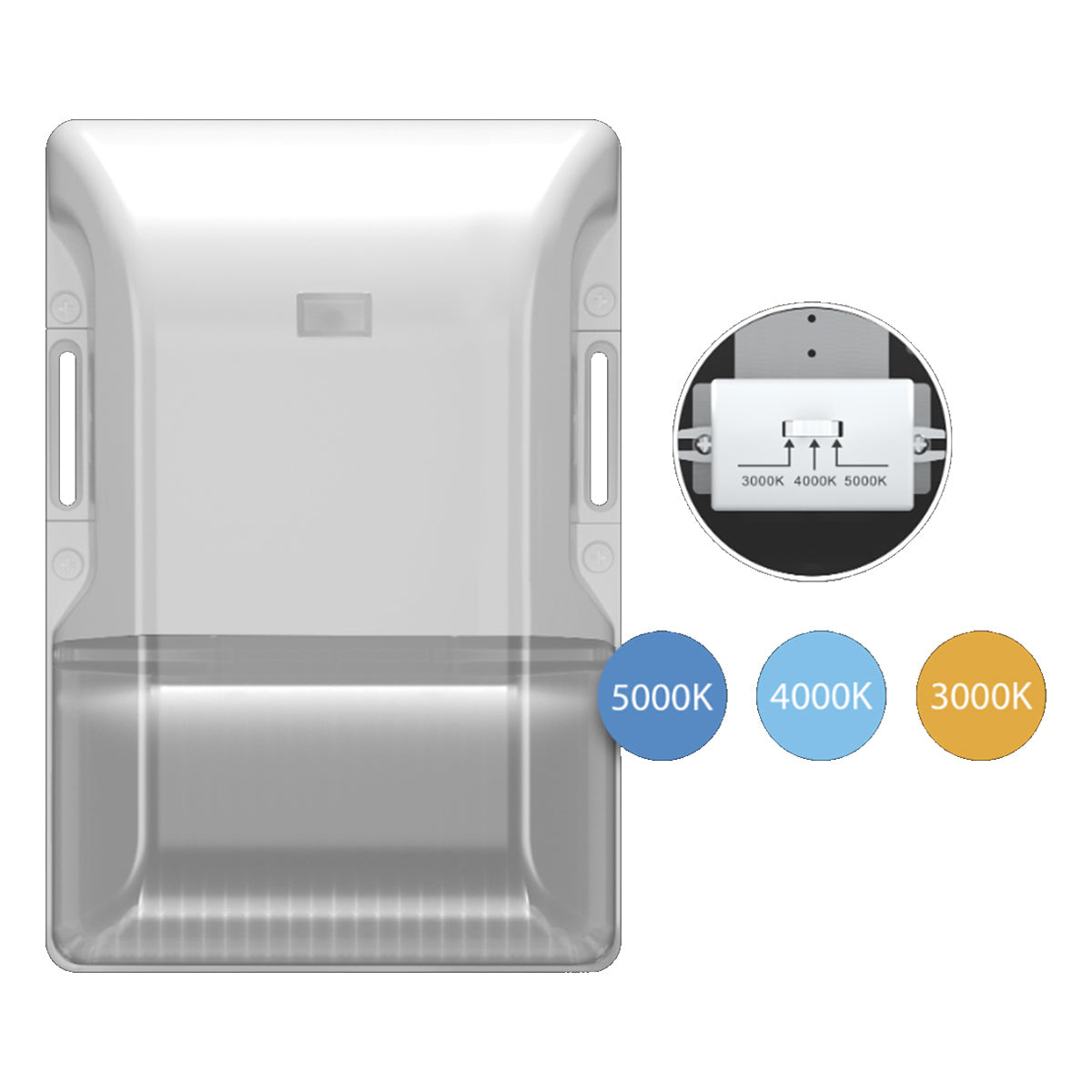

- Selectable CCT: Easily switch between warm 3000K, neutral 4000K, or daylight 5000K color temperatures directly on the fixture during installation to suit your site's aesthetic.
- Integrated Photocell: Comes factory-equipped with a built-in 120-277V button photocell for automated, hands-free dusk-to-dawn operation and maximum energy savings.
- Universal Voltage & Dimming: Operates on a 120–277V constant current driver featuring standard 0–10V dimming capabilities (dims down to 10%).
- Rugged Construction: Features a heavy-duty, precision die-cast aluminum housing finished in white that carries a sealed IP65 wet location rating for reliable outdoor performance.
We process payments securely and do not store credit card information.
Description
Description

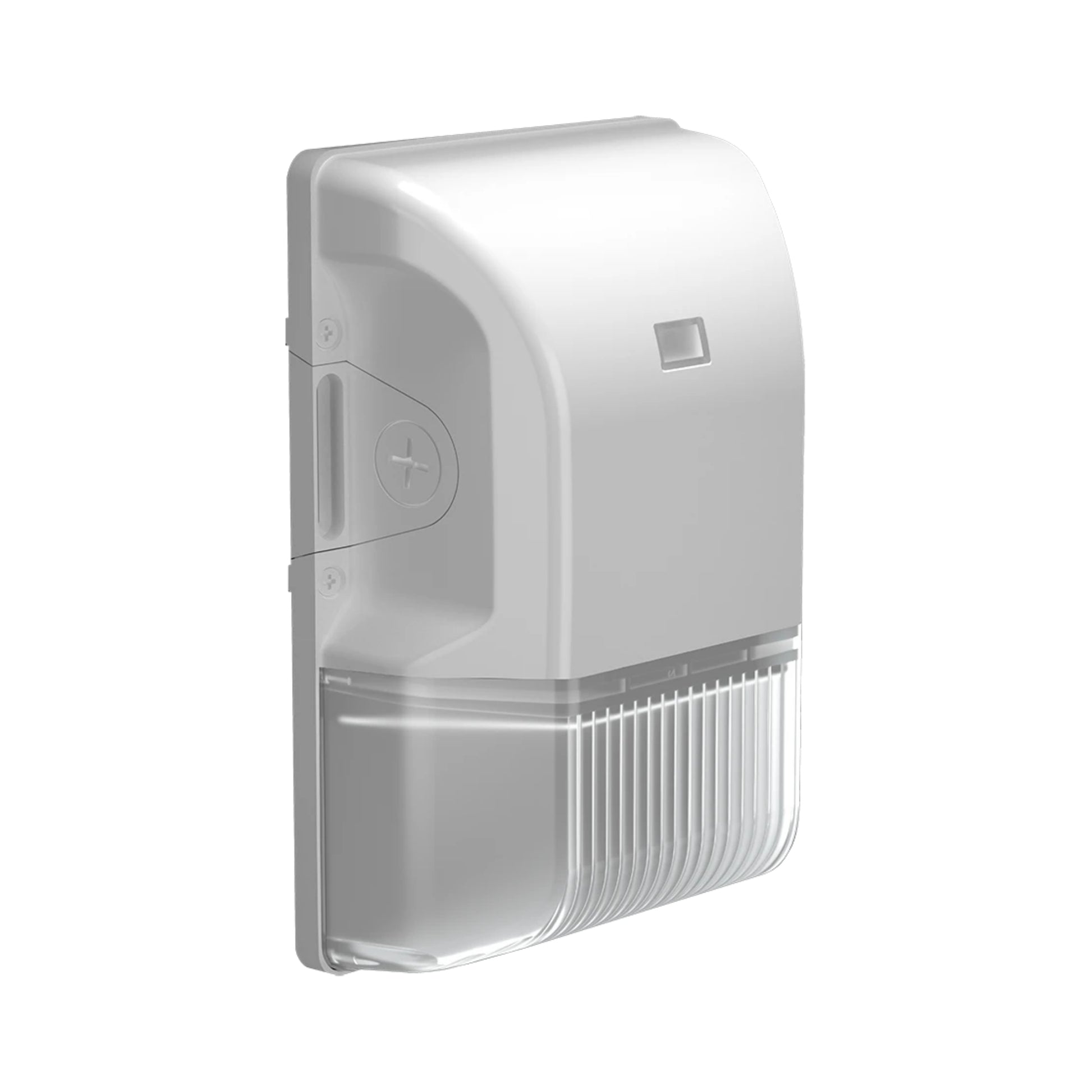

RAB BRISK Mini Field-Adjustable LED Wall Pack — 20W, 120–277V, White
The RAB BRISK17FA20W is a highly versatile and compact LED mini wall pack delivering up to 2,921 lumens at a dedicated 20W output, featuring field-adjustable 3000K/4000K/5000K color temperatures. Operating on a 120–277V universal driver, this luminaire comes standard with an integrated button photocell for automated dusk-to-dawn security lighting. Built with an IP65 Wet Location rating and a durable white finish, it provides an ultra-durable, adaptable lighting solution for building perimeters, entryways, and facade lighting applications.
Key Features
- Wattage: 20W
- Selectable CCT: 3000K / 4000K / 5000K
- Delivered Lumens: 2,600 to 2,921 lumens
- Voltage: 120–277V input
- Dimming: 0–10V dimming (dims down to 10%)
- Controls: Integrated 120-277V button photocell included
- CRI: 80+
- HID Equivalent: Replaces up to 100W Metal Halide
- Environmental Ratings: IP65 Wet Location rated

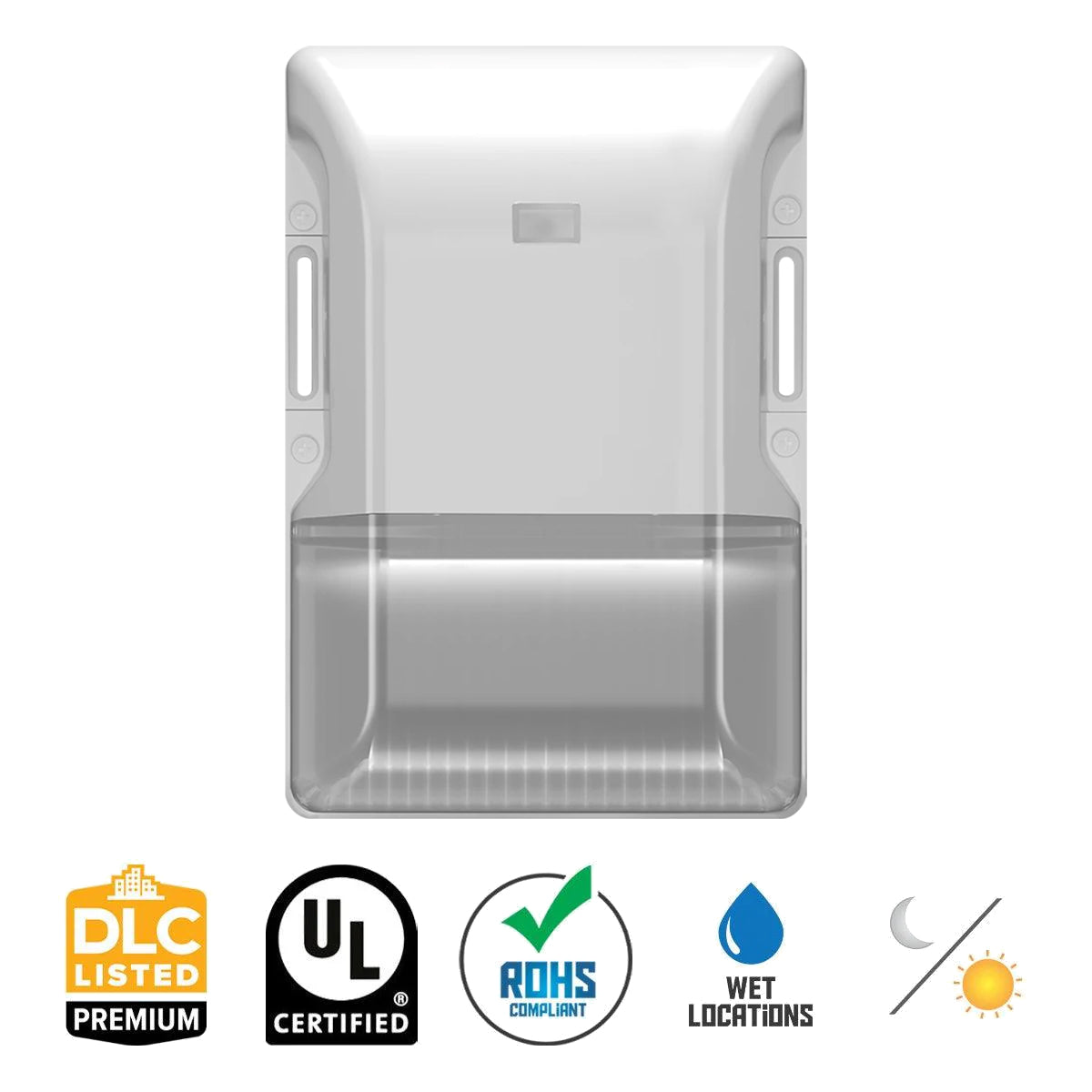

- Certifications: DLC Premium Listed, UL Listed, RoHS Compliant
- Estimated Life: 100,000 hours (L70)
Typical Applications
- Building perimeters and facades
- Security and pathway lighting
- Entryways and man doors
- Commercial and residential exteriors
- Small loading docks and storage areas
Performance & Light Output
This mini wall pack provides efficient forward-throw illumination ranging from 2,600 to 2,921 lumens depending on the selected color temperature, achieving an excellent efficacy of up to 146 lumens per watt. The integrated switch allows installers to easily match existing site lighting by toggling between warm white, cool white, and daylight color temperatures. The high-performance LED light engine delivers consistent color with a CRI over 80 and maintains a highly prolonged rated life of 100,000 hours, virtually eliminating maintenance over the life of the fixture.
Electrical & Controls
This fixture operates on a constant current 120–277V AC driver with standard 0–10V dimming functionality (requires a separate 0-10V DC dimming circuit to operate, dimming down to 10%). To maximize energy savings out of the box, the BRISK17FA20W includes a discreet, integrated button photocell, enabling hands-free dusk-to-dawn operation without the need for external timers or networked controls.
Construction & Durability
Engineered for tough outdoor environments, the luminaire features a heavy-duty, precision die-cast aluminum housing finished in a high-durability white color. It carries an IP65 rating, indicating complete protection against dust and water ingress in wet locations. The fixture operates reliably in extreme temperatures, starting safely in cold environments down to -40°C (-40°F) and handling ambient heat up to 45°C (113°F).
Installation & Mounting
The BRISK series is designed for simple, direct wall mounting. The heavy-duty die-cast junction box features four conduit entries (one top, two side, one back) to easily accommodate various surface wiring or recessed junction box configurations.
What's Included
- RAB BRISK Mini LED Wall Pack Fixture (White)
- Integrated Button Photocell
Specifications
Specifications

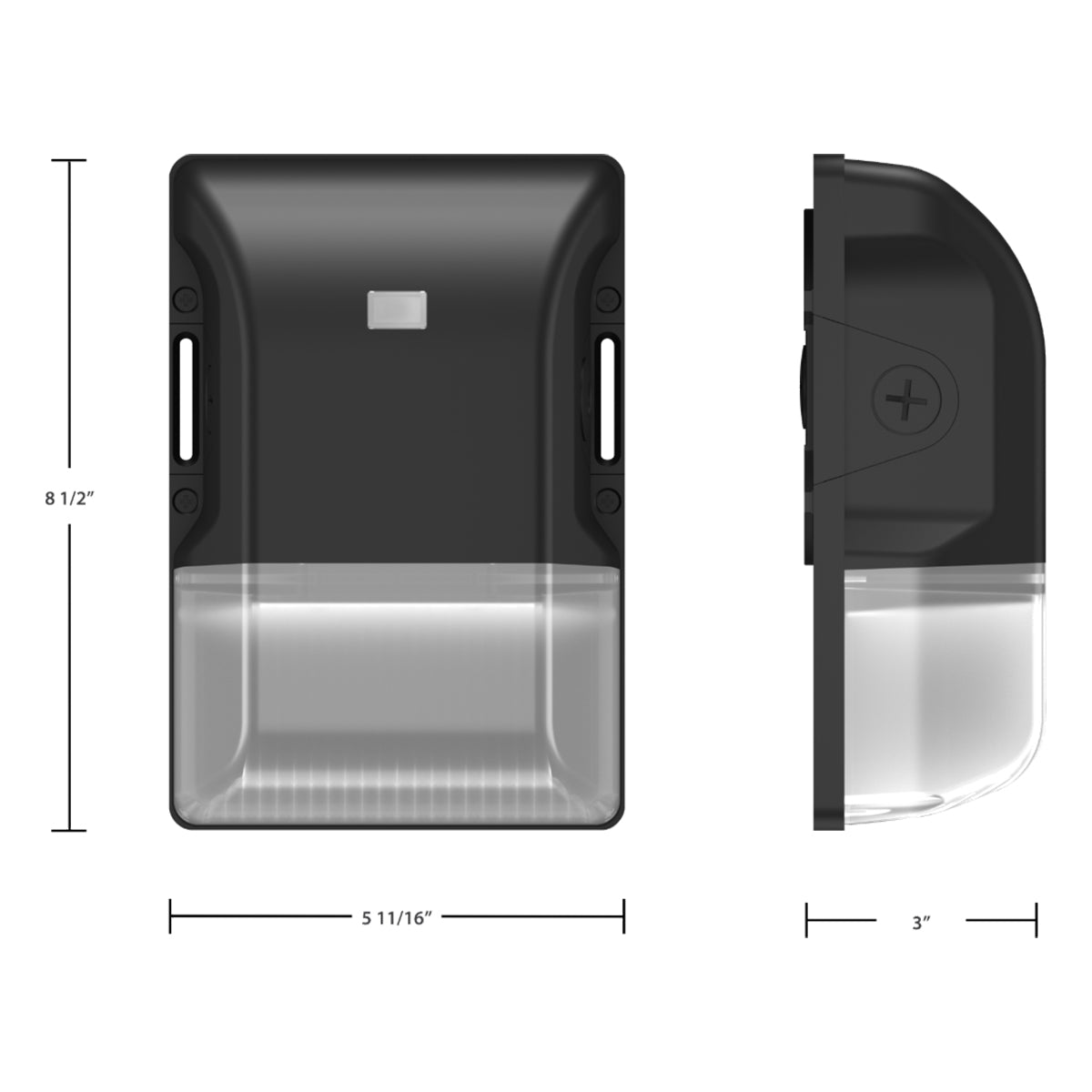

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Yes, the BRISK17FA20W comes standard with an integrated 120-277V button photocell, allowing the fixture to automatically turn on at dusk and off at da
Yes, the BRISK17FA20W comes standard with an integrated 120-277V button photocell, allowing the fixture to automatically turn on at dusk and off at da
Is the RAB BRISK mini suitable for wet and harsh environments?
Is the RAB BRISK mini suitable for wet and harsh environments?
Yes, it is UL Listed for wet locations and carries a sealed IP65 rating for complete protection against dust and water ingress. The rugged precision die-cast aluminum housing is built to withstand extreme outdoor conditions.
Yes, it is UL Listed for wet locations and carries a sealed IP65 rating for complete protection against dust and water ingress. The rugged precision die-cast aluminum housing is built to withstand extreme outdoor conditions.
What is the wattage equivalent for this 20W LED wall pack?
What is the wattage equivalent for this 20W LED wall pack?
This highly efficient 20W LED fixture produces up to 2,921 lumens, making it an excellent energy-saving replacement for traditional metal halide wall packs up to 100W.
This highly efficient 20W LED fixture produces up to 2,921 lumens, making it an excellent energy-saving replacement for traditional metal halide wall packs up to 100W.
