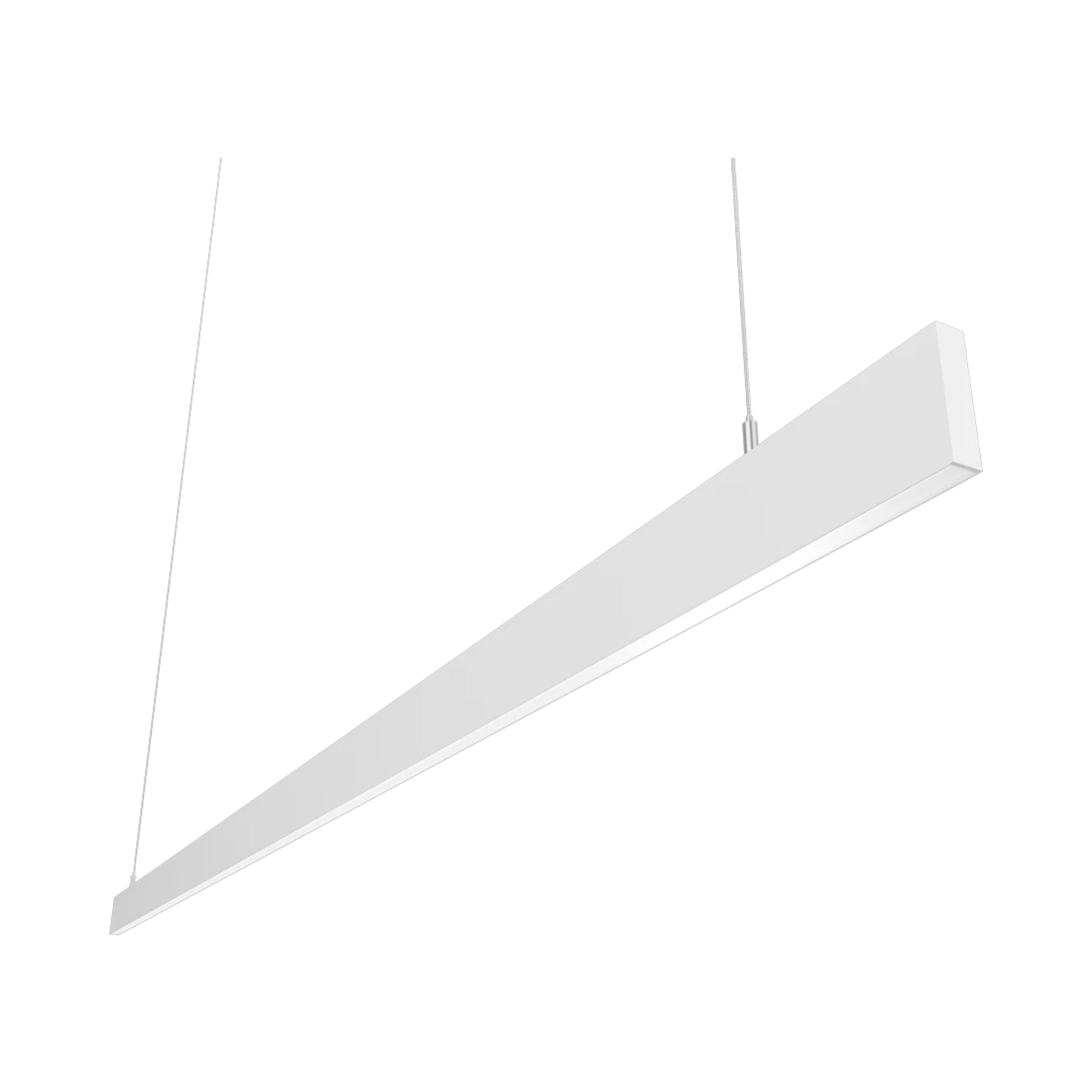

BOA Edge Field Adjustable Linear Light — 80W Configuration

The BOAE8PW is a versatile linear light offering 80W power with a maximum output of 10962 lumens. It operates on a 120-277V input and features selectable CCT options of 3000K, 3500K, and 4000K, making it suitable for various lighting environments. This fixture is damp rated and compliant with UL standards, ensuring reliable performance in diverse settings.

Key Features

• Field Adjustability: Offers adjustable wattage settings of 80/56/48/40/24W to suit different lighting requirements.
• Selectable CCT: Choose from 3000K, 3500K, or 4000K for optimal color temperature.
• High Efficacy: Delivers an efficacy range of 134.7 to 150 lm/W for energy-efficient operation.
• Long Lifespan: Designed for a 100,000-hour lifespan, reducing maintenance needs.
• Dimming Driver: Includes 0-10V dimming control for precise light level adjustments.
• Surge Protection: Equipped with 1 kV L-L and 2 kV L/N-G surge protection for enhanced safety.
• Durable Construction: Features a robust housing made from sheet metal and extruded aluminum.
• Frosted Lens: Comes with a frosted polycarbonate lens for even light distribution.
• Continuous Runs: Supports end-to-end connection for continuous illumination up to 600W.
• Cold Weather Starting: Operates in temperatures as low as -4°F (-20°C).
• Green Technology: Mercury and UV free, complying with RoHS standards.
• Warranty: Backed by a 5-year limited warranty covering light output and driver performance.

Typical Applications

• Commercial Offices
• Retail Spaces
• Educational Facilities
• Healthcare Environments
• Industrial Warehouses
• Hospitality Venues

Performance & Light Output

This linear light offers a lumen output range from 3410 to 10962 lumens with a high efficacy of 134.7 to 150 lm/W. It features a CRI of 94-95, ensuring excellent color rendering, and is designed for a 100,000-hour lifespan.

Electrical & Controls

The fixture operates on a 120-277V input and includes a dimming driver for 0-10V systems, allowing dimming down to 10%. It features surge protection of 1 kV L-L and 2 kV L/N-G.

Construction & Durability

Constructed with sheet metal and extruded aluminum, the fixture includes a frosted polycarbonate lens and is rated for damp locations. It operates in temperatures ranging from -4°F to 104°F.

Installation & Mounting

Comes with 94 inches of aircraft cable and cable grippers for easy installation and adjustment. Supports continuous runs up to 600W.

What's Included

• BOA Edge Field Adjustable Linear Light Fixture
• 94 in. Aircraft Cable
• Cable Grippers
