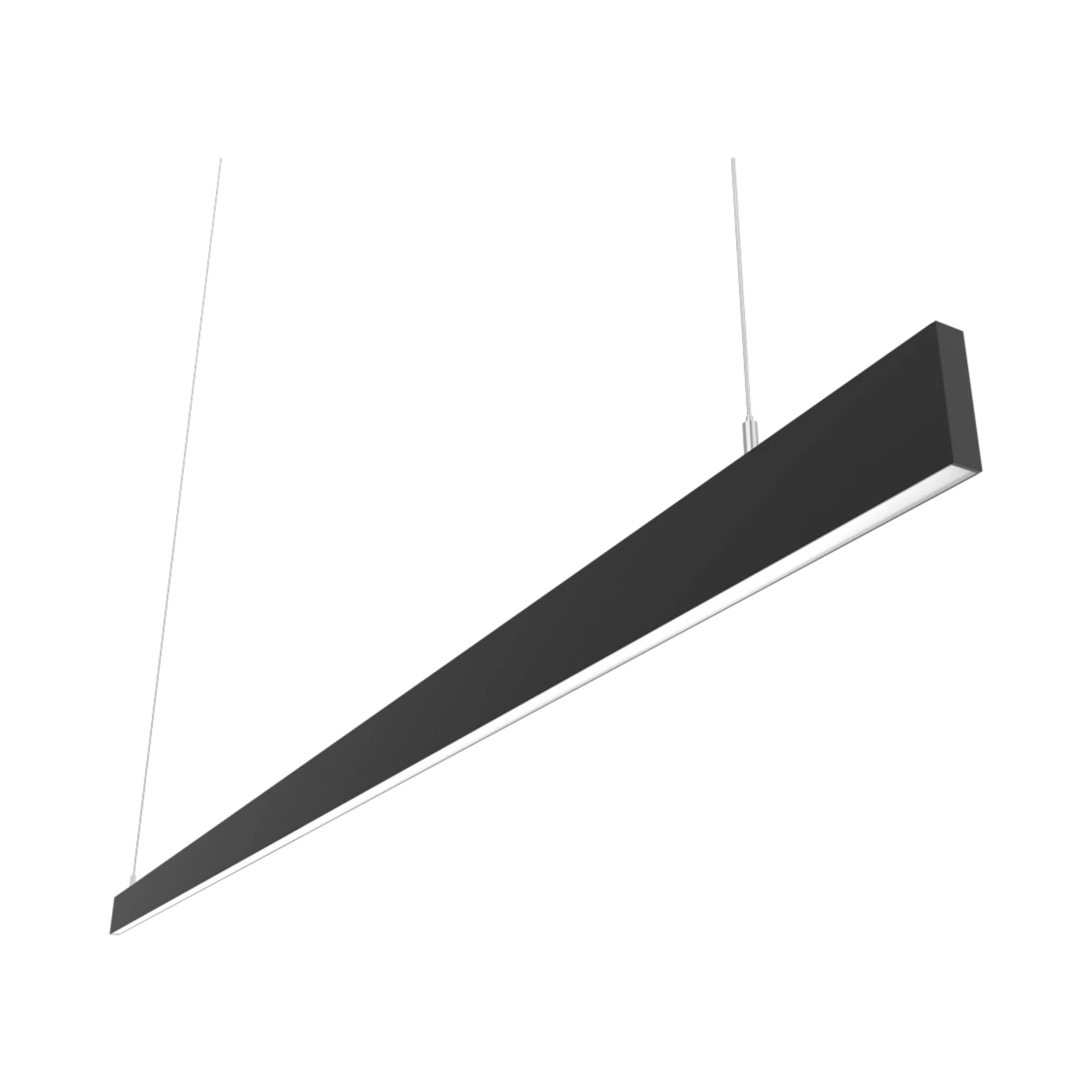

RAB BOA Edge Field Adjustable Linear Light — 80W Configuration

The RAB BOAE8PUB is a linear light fixture offering 80W power, delivering up to 10318 lumens with selectable color temperatures of 3000K, 3500K, and 4000K. It operates on 120-277V and is suitable for damp locations, making it versatile for various applications.

Key Features

• Field Adjustability: Offers adjustable light output with power presets for different lighting needs.
• Color Accuracy: High CRI of 94-95 ensures excellent color rendering.
• Lifespan: Designed for a 100,000-hour LED lifespan based on IES LM-80 results.
• Surge Protection: Equipped with 1 kV L-L and 2 kV L/N-G surge protection.
• Continuous Runs: Supports continuous runs up to 600W for seamless illumination.
• Cold Weather Starting: Operates in temperatures as low as -4°F (-20°C).
• Lens: Features a frosted polycarbonate lens for uniform light distribution.
• Green Technology: Mercury and UV-free, RoHS-compliant components.

Typical Applications

• Retail Spaces
• Offices
• Warehouses
• Educational Facilities
• Healthcare Facilities

Performance & Light Output

This fixture delivers between 9560 and 10318 lumens with an efficacy of 123.5-135.6 lm/W, ensuring high-efficiency lighting. It maintains a CRI of 94-95 for superior color accuracy and has a rated L70 lifespan of 100,000 hours.

Electrical & Controls

The BOAE8PUB operates on 120-277V with a constant current driver. It supports 0-10V dimming, requiring a separate dimming circuit, and includes surge protection for enhanced reliability.

Construction & Durability

Constructed with sheet metal and extruded aluminum, this fixture is designed for durability. It features an IP20 rating, suitable for damp locations, and can operate in temperatures up to 104°F (40°C).

Installation & Mounting

Comes with 94 inches of aircraft cable and cable grippers for easy installation and adjustment. Supports continuous runs for extended lighting applications.

What's Included

• Aircraft Cable
• Cable Grippers
