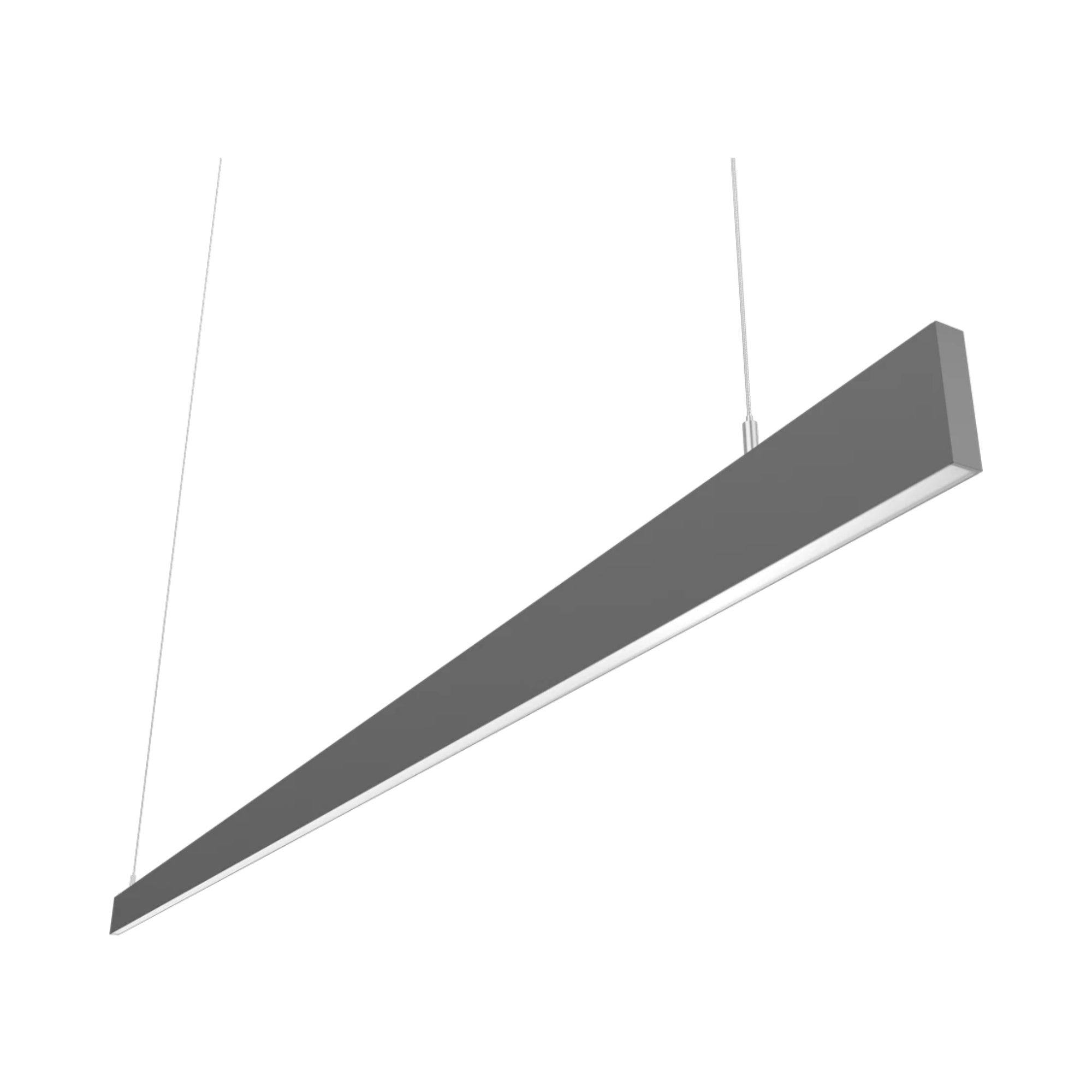

RAB BOAE8PS 8 ft Edge Linear Light 80W 10962 Lumens Selectable CCT 120-277V Silver
In stock
About this item
About this item
- Lumens: Delivers up to 10,962 lumens for bright illumination.
- Wattage: Field adjustable wattage options from 24W to 80W.
- Color Temperature: Selectable CCT of 3000K, 3500K, and 4000K for versatile lighting applications.
- Voltage: Operates on a wide input voltage range of 120-277V.
- Dimming: Compatible with 0-10V dimming systems for adjustable light levels.
We process payments securely and do not store credit card information.
Description
Description
RAB BOA Edge Field Adjustable Linear Light — 80W Configuration
The RAB BOAE8PS is a versatile linear light offering 80W of power with a maximum output of 10,962 lumens. It supports a wide input voltage range of 120-277V and features selectable color temperatures of 3000K, 3500K, and 4000K. This fixture is suitable for damp locations and complies with UL standards.
Key Features
- Field Adjustable Wattage: Choose from 80W, 56W, 48W, 40W, or 24W settings to suit your needs.
- Selectable CCT: Easily switch between 3000K, 3500K, and 4000K color temperatures.
- High Efficacy: Achieves an efficacy of 134.7-150 lm/W for energy-efficient performance.
- Long Lifespan: Designed to last 100,000 hours, reducing maintenance costs.
- Dimmable: Supports 0-10V dimming for customizable lighting.
- Durable Construction: Made with sheet metal and extruded aluminum for longevity.
- Frosted Lens: Features a frosted polycarbonate lens for even light distribution.
- Surge Protection: Includes 1 kV L-L and 2 kV L/N-G surge protection.
- Continuous Runs: Connect multiple fixtures for seamless, continuous illumination.
- Environmentally Friendly: Mercury and UV free, RoHS-compliant components.
Typical Applications
- Warehouses
- Retail Stores
- Office Spaces
- Educational Facilities
- Healthcare Facilities
Performance & Light Output
This fixture provides up to 10,962 lumens with a color rendering index (CRI) of 94-95, ensuring high-quality light output. It maintains consistent color uniformity and is designed for a long lifespan of 100,000 hours.
Electrical & Controls
The BOAE8PS operates on 120-277V and includes a dimming driver compatible with 0-10V systems. It features surge protection and supports continuous runs up to 600W.
Construction & Durability
Constructed with sheet metal and extruded aluminum, this fixture is built to withstand temperatures from -4°F to 104°F. It is IP20 rated for damp locations and includes a frosted polycarbonate lens.
Installation & Mounting
Comes with 94 inches of aircraft cable and cable grippers for easy installation and adjustment. Supports continuous runs for extended lighting applications.
What's Included
- BOAE8PS Linear Light Fixture
- Aircraft Cable with Cable Grippers
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage range for the RAB BOAE8PS?
What is the wattage range for the RAB BOAE8PS?
Is the RAB BOAE8PS dimmable?
Is the RAB BOAE8PS dimmable?
What color temperatures are available for the RAB BOAE8PS?
What color temperatures are available for the RAB BOAE8PS?
Can the RAB BOAE8PS be used in damp locations?
Can the RAB BOAE8PS be used in damp locations?
What is the lifespan of the RAB BOAE8PS?
What is the lifespan of the RAB BOAE8PS?
