RAB BOAE8PB 8 ft Edge Linear Light 80W 10962 Lumens Selectable CCT 120-277V Black
In stock
About this item
About this item
- Lumens: Delivers up to 10962 lumens for high-efficiency lighting.
- Wattage: Field adjustable wattage options from 24W to 80W for tailored energy use.
- CCT: Selectable color temperature of 3000K, 3500K, and 4000K for adaptable ambiance.
- Dimming: Compatible with 0-10V dimming systems for flexible light control.
- Mounting: Includes 94 inches of aircraft cable for pendant mounting with easy adjustment.
We process payments securely and do not store credit card information.
Description
Description

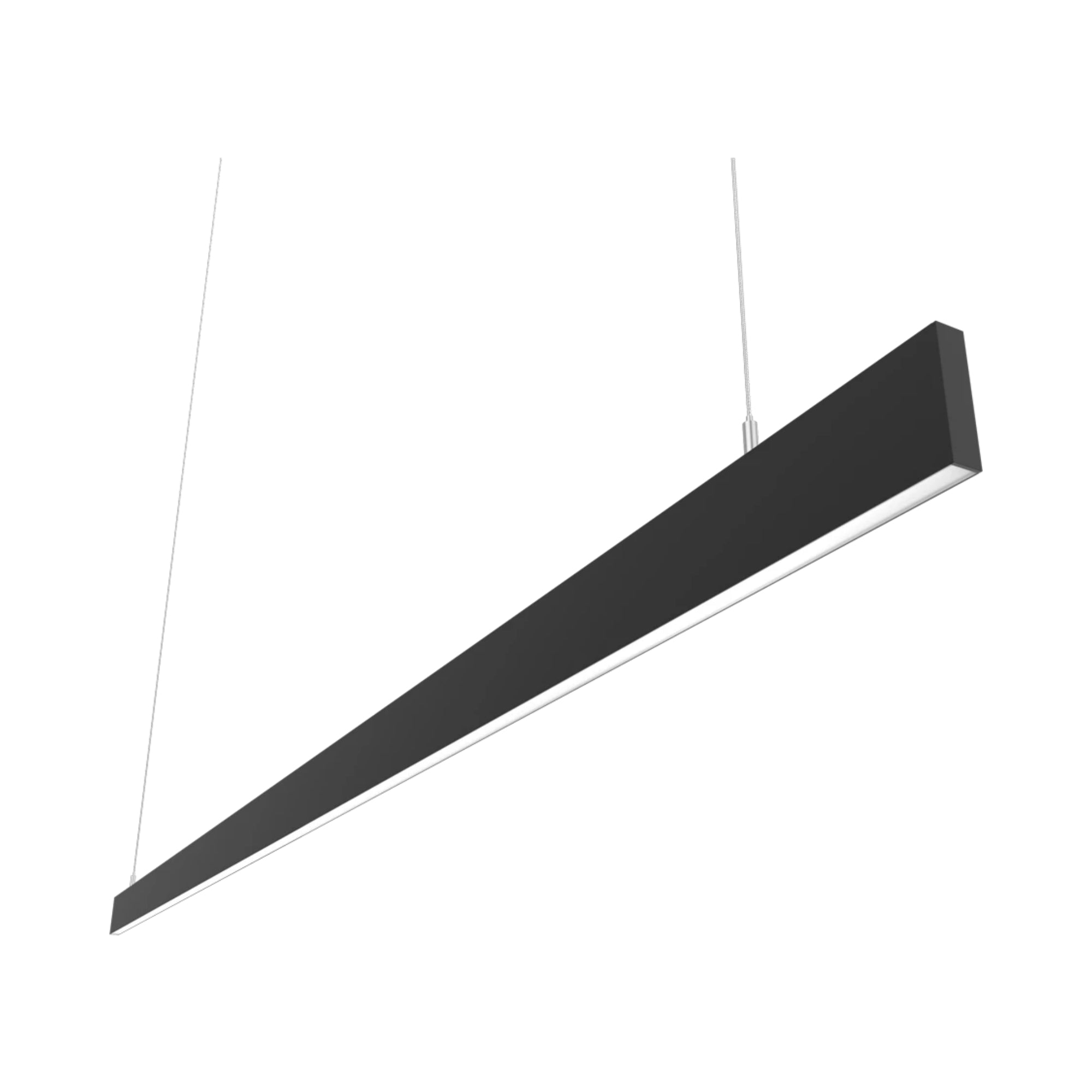

RAB Lighting BOA Edge Field Adjustable Linear Light — 80W Configuration
The RAB Lighting BOAE8PB is an 8-foot linear light offering 80W of power and delivering up to 10962 lumens. It operates on a 120-277V system and features selectable color temperatures of 3000K, 3500K, and 4000K. This fixture is suitable for damp locations and complies with UL standards.
Key Features
- Field Adjustability: Offers adjustable wattage settings of 80/56/48/40/24W, with a factory default of 80W.
- Color Temperature Options: Select from 3000K, 3500K, and 4000K, with a factory default of 3500K.
- High CRI: Provides a color rendering index of 94-95 for superior color accuracy.
- Long Lifespan: Designed for a 100,000-hour LED lifespan based on IES LM-80 results.
- Durable Construction: Features a sheet metal and extruded aluminum housing with a frosted polycarbonate lens.
- Energy Efficient: Achieves efficacy ranging from 134.7 to 150 lm/W.
- Dimming Capability: Includes a dimming driver for 0-10V systems, allowing dimming down to 10%.
- Surge Protection: Equipped with 1 kV L-L and 2 kV L/N-G surge protection.
- Continuous Runs: Supports end-to-end connections for continuous illumination up to 600W.
- Environmentally Friendly: Mercury and UV-free, with RoHS-compliant components.
Typical Applications
- Commercial Offices
- Retail Spaces
- Educational Facilities
- Healthcare Environments
- Hospitality Venues
Performance & Light Output
This fixture provides a high lumen output of up to 10962 lumens with an efficacy of 134.7 to 150 lm/W. It features a CRI of 94-95, ensuring excellent color rendering and uniformity.
Electrical & Controls
Operates on a 120-277V system with a constant current driver. It supports 0-10V dimming and includes surge protection for enhanced reliability.
Construction & Durability
Constructed with sheet metal and extruded aluminum, this fixture includes a frosted polycarbonate lens and is rated for damp locations with an IP20 rating.
Installation & Mounting
Comes with 94 inches of aircraft cable and cable grippers for easy pendant mounting and adjustment. Supports continuous runs up to 600W.
What's Included
- 94 inches of aircraft cable
- Cable grippers
Specifications
