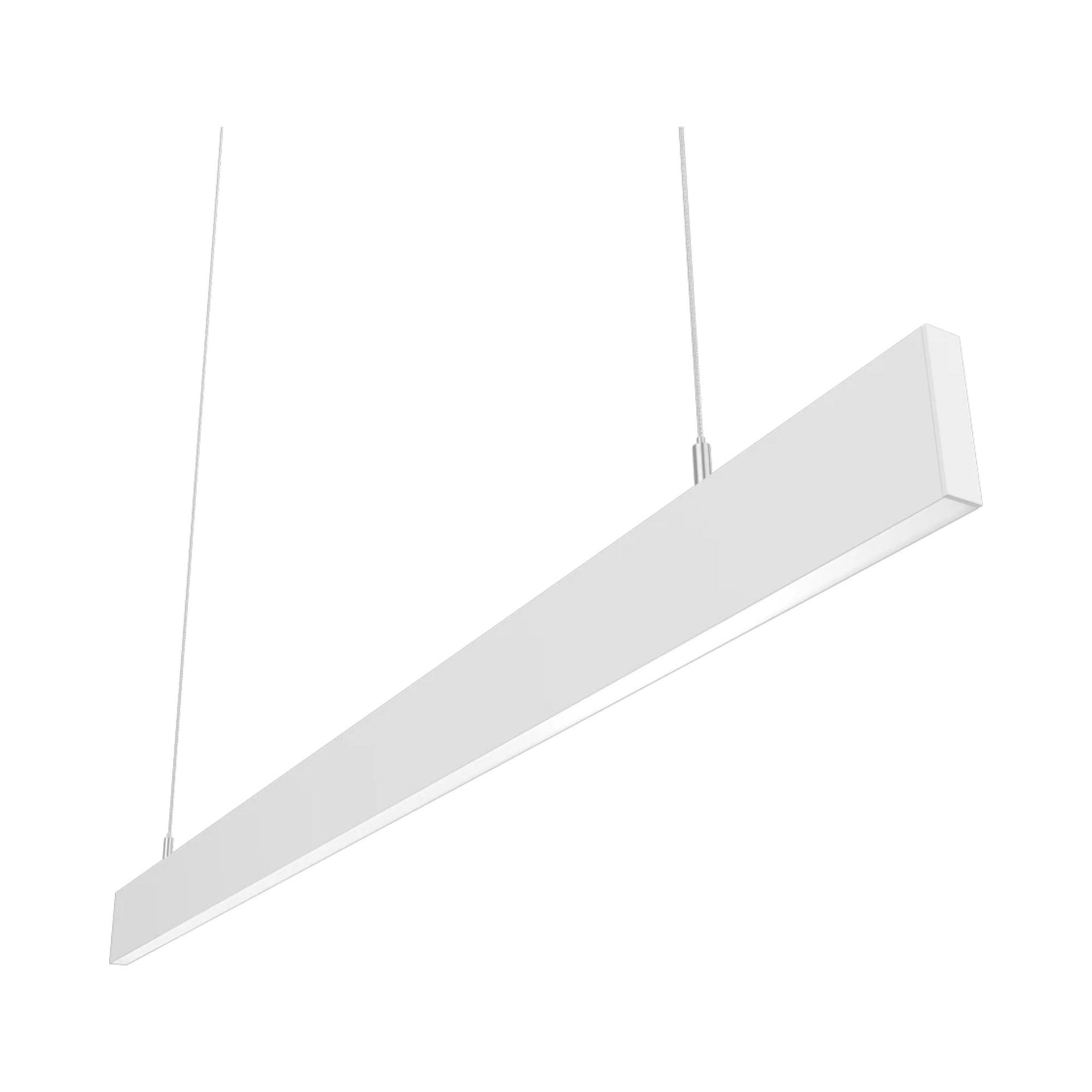

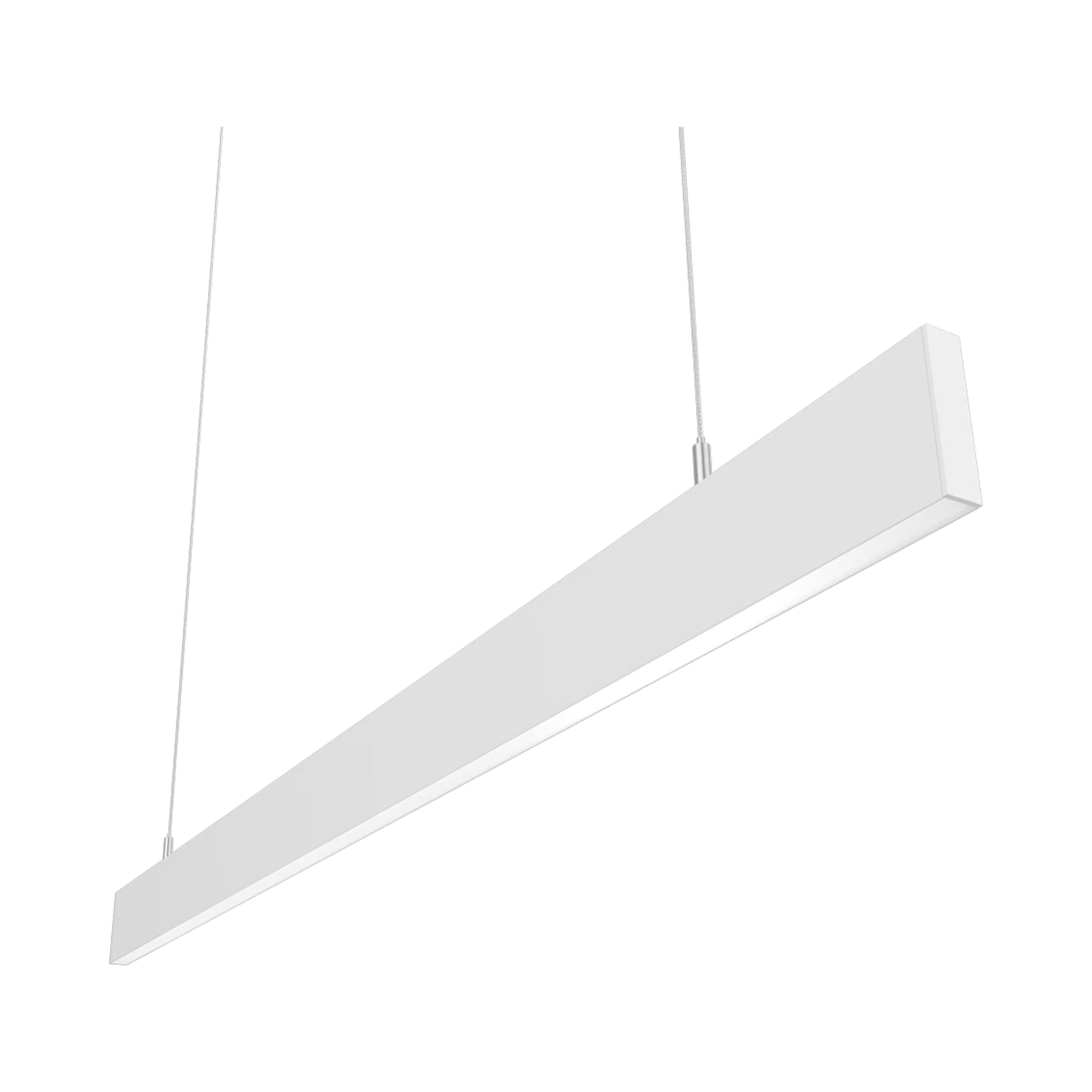

RAB BOAE4PW 4 ft Edge Linear Light 40W 5265 Lumens Selectable CCT 120-277V White
In stock
About this item
About this item
- Lumens: Delivers up to 5265 lumens for bright illumination.
- Wattage: Field adjustable wattage from 40W down to 10W for energy efficiency.
- CCT: Selectable color temperatures of 3000K, 3500K, and 4000K for versatile lighting environments.
- Dimming: Compatible with 0-10V dimming systems, allowing for smooth light level adjustments.
- Durability: Constructed with sheet metal and extruded aluminum, ensuring long-lasting performance.
We process payments securely and do not store credit card information.
Description
Description
RAB BOA Edge Field Adjustable Linear Light — 40W Configuration
The RAB BOAE4PW is a linear light fixture offering 40W power with a maximum output of 5265 lumens. It supports 120-277V input and features selectable color temperatures of 3000K, 3500K, and 4000K. This fixture is ideal for applications requiring adjustable lighting solutions and is UL Listed for damp locations.
Key Features
- Field Adjustability: Offers wattage settings of 40/28/24/20/10W with factory default at 40W.
- Selectable CCT: Choose between 3000K, 3500K, and 4000K for optimal lighting.
- High Efficacy: Achieves 130.5-144 lm/W for energy-efficient performance.
- Long Lifespan: Rated for 100,000 hours, ensuring minimal maintenance.
- Dimming Capability: Supports 0-10V dimming, reducing light levels to 10%.
- Surge Protection: Equipped with 1 kV L-L and 2kV L/N-G surge protection.
- Construction: Built with durable sheet metal and extruded aluminum housing.
- Lens Material: Features a frosted polycarbonate lens for even light distribution.
- Continuous Runs: Connect multiple fixtures for seamless illumination up to 600W.
- Environmentally Friendly: Mercury and UV free, RoHS-compliant components.
Typical Applications
- Offices
- Retail Spaces
- Educational Facilities
- Healthcare Environments
- Commercial Buildings
Performance & Light Output
This fixture provides a luminous output of up to 5265 lumens with an efficacy range of 130.5-144 lm/W. It maintains a high CRI of 94-95, ensuring excellent color rendering.
Electrical & Controls
The BOAE4PW operates on 120-277V and includes a dimming driver for 0-10V systems. It features surge protection and supports continuous runs up to 600W.
Construction & Durability
Constructed from sheet metal and extruded aluminum, this fixture is designed for durability. It is suitable for damp locations and operates in temperatures from -4°F to 104°F.
Installation & Mounting
Comes with 94 inches of aircraft cable and cable grippers for easy installation and adjustment. Supports continuous runs for extended lighting applications.
What's Included
- Aircraft cable with cable grippers
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage range for the RAB BOAE4PW?
What is the wattage range for the RAB BOAE4PW?
Is the RAB BOAE4PW suitable for damp locations?
Is the RAB BOAE4PW suitable for damp locations?
Can the RAB BOAE4PW be dimmed?
Can the RAB BOAE4PW be dimmed?
What color temperatures are available for the RAB BOAE4PW?
What color temperatures are available for the RAB BOAE4PW?
How is the RAB BOAE4PW installed?
How is the RAB BOAE4PW installed?
