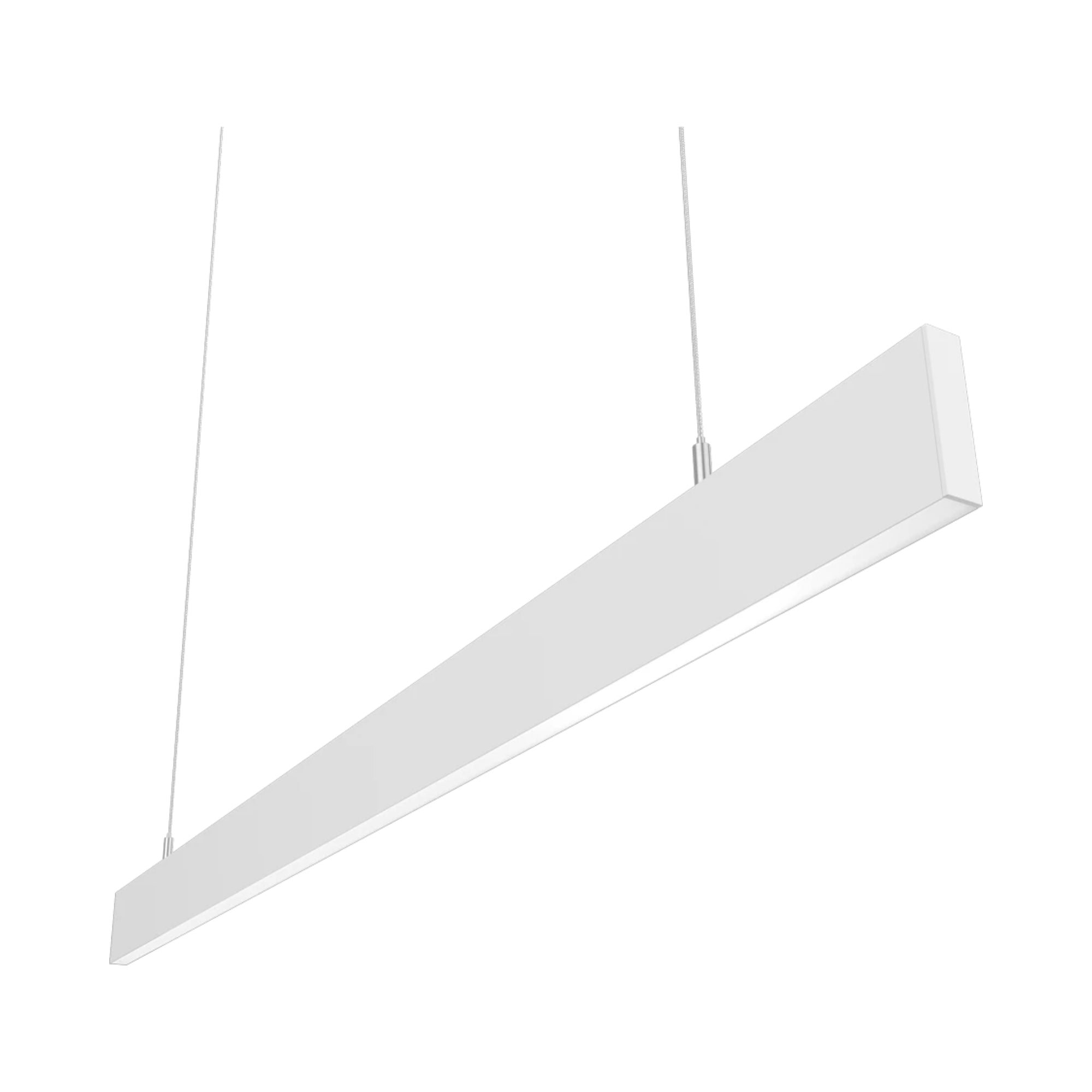

RAB BOAE4PUW 4 ft Edge Linear Light 40W 5661 Lumens Selectable CCT 120-277V White
In stock
About this item
About this item
- Lumens: Delivers between 5139 and 5661 lumens for versatile lighting applications.
- Wattage: Operates at 40W with field adjustable options for energy efficiency.
- Voltage: Compatible with 120-277V systems for broad installation flexibility.
- Dimming: Supports 0-10V dimming for customizable light levels.
- CRI: High color rendering index of 94-95 ensures accurate color representation.
We process payments securely and do not store credit card information.
Description
Description

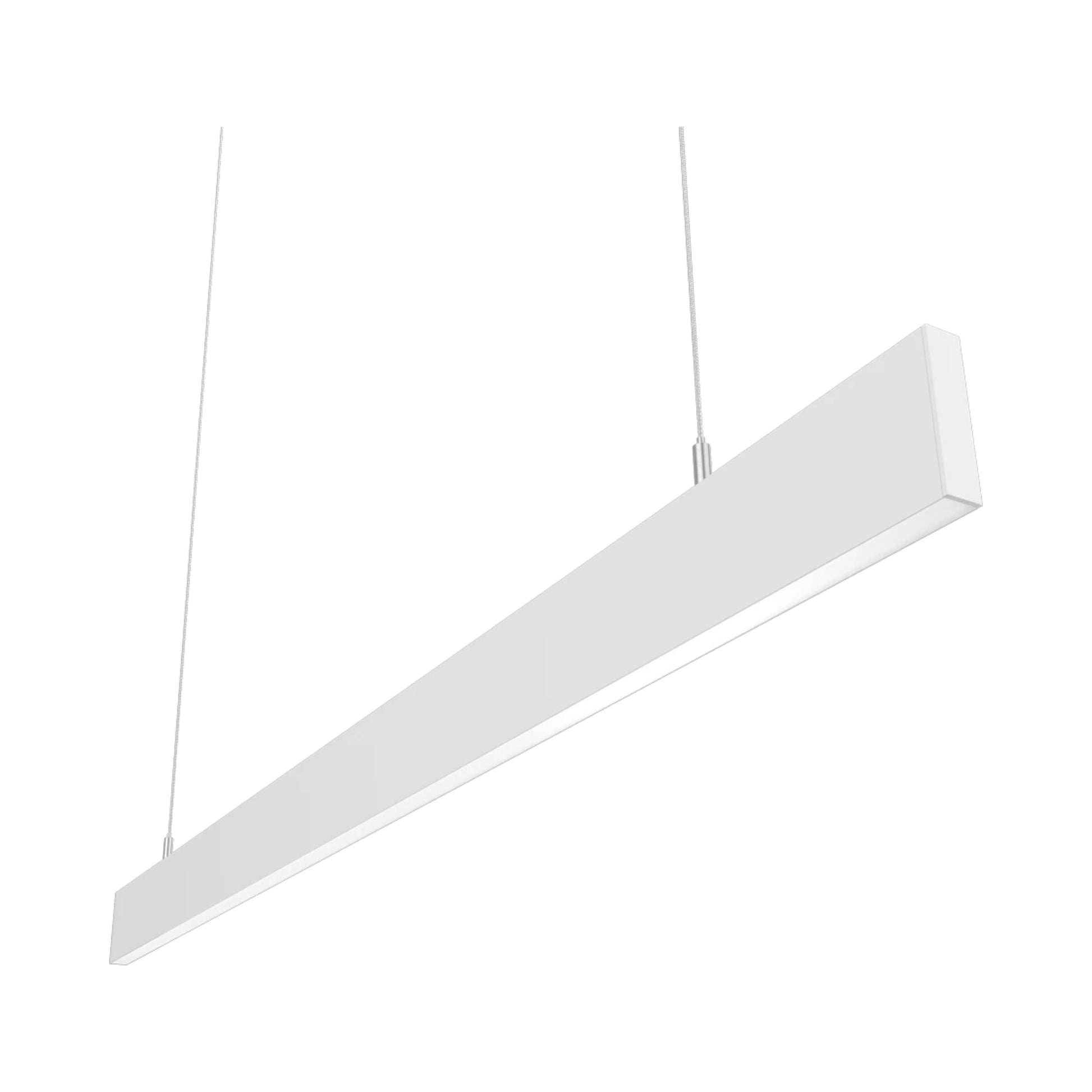

RAB BOA Edge Field Adjustable Linear Light — 40W Configuration
The RAB BOAE4PUW is a linear light fixture offering 40W power and delivering up to 5661 lumens. It supports 120-277V input and features selectable color temperatures of 3000K, 3500K, and 4000K, making it suitable for various lighting environments. This fixture is damp rated and complies with UL standards.
Key Features
- Field Adjustable Wattage: Offers 40W and 20W settings for tailored energy use.
- Selectable CCT: Choose from 3000K, 3500K, or 4000K for desired ambiance.
- High Efficacy: Achieves 128.8-146.7 lm/W for efficient light output.
- Long Lifespan: Rated for 100,000 hours, reducing maintenance needs.
- Surge Protection: Equipped with 1 kV L-L and 2 kV L/N-G protection.
- Continuous Runs: Connect multiple fixtures up to 600W for seamless lighting.
- Durable Construction: Made with sheet metal and extruded aluminum housing.
- Frosted Lens: Features a frosted polycarbonate lens for even light distribution.
- Green Technology: Mercury and UV free, RoHS-compliant components.
- Installation Flexibility: Includes 94 inches of aircraft cable for adjustable mounting.
Typical Applications
- Offices
- Retail Spaces
- Educational Facilities
- Healthcare Environments
- Conference Rooms
Performance & Light Output
This fixture provides a light output of 5139 to 5661 lumens with an efficacy range of 128.8 to 146.7 lm/W. It features a CRI of 94-95, ensuring high-quality color rendering, and is designed for a 100,000-hour lifespan.
Electrical & Controls
The BOAE4PUW operates on 120-277V and includes a dimming driver for 0-10V systems, allowing dimming down to 10%. It also features surge protection for enhanced reliability.
Construction & Durability
Constructed with sheet metal and extruded aluminum, this fixture is designed for durability. It includes a frosted polycarbonate lens and is suitable for environments with temperatures ranging from -4°F to 104°F.
Installation & Mounting
Installation is facilitated by 94 inches of aircraft cable with cable grippers for easy adjustment. It supports continuous runs up to 600W for extended lighting solutions.
What's Included
- 94 inches of aircraft cable
- Cable grippers
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the RAB BOAE4PUW linear light?
What is the wattage of the RAB BOAE4PUW linear light?
Is the RAB BOAE4PUW dimmable?
Is the RAB BOAE4PUW dimmable?
What color temperatures are available for the RAB BOAE4PUW?
What color temperatures are available for the RAB BOAE4PUW?
Can the RAB BOAE4PUW be used in damp locations?
Can the RAB BOAE4PUW be used in damp locations?
What is the lifespan of the RAB BOAE4PUW linear light?
What is the lifespan of the RAB BOAE4PUW linear light?
