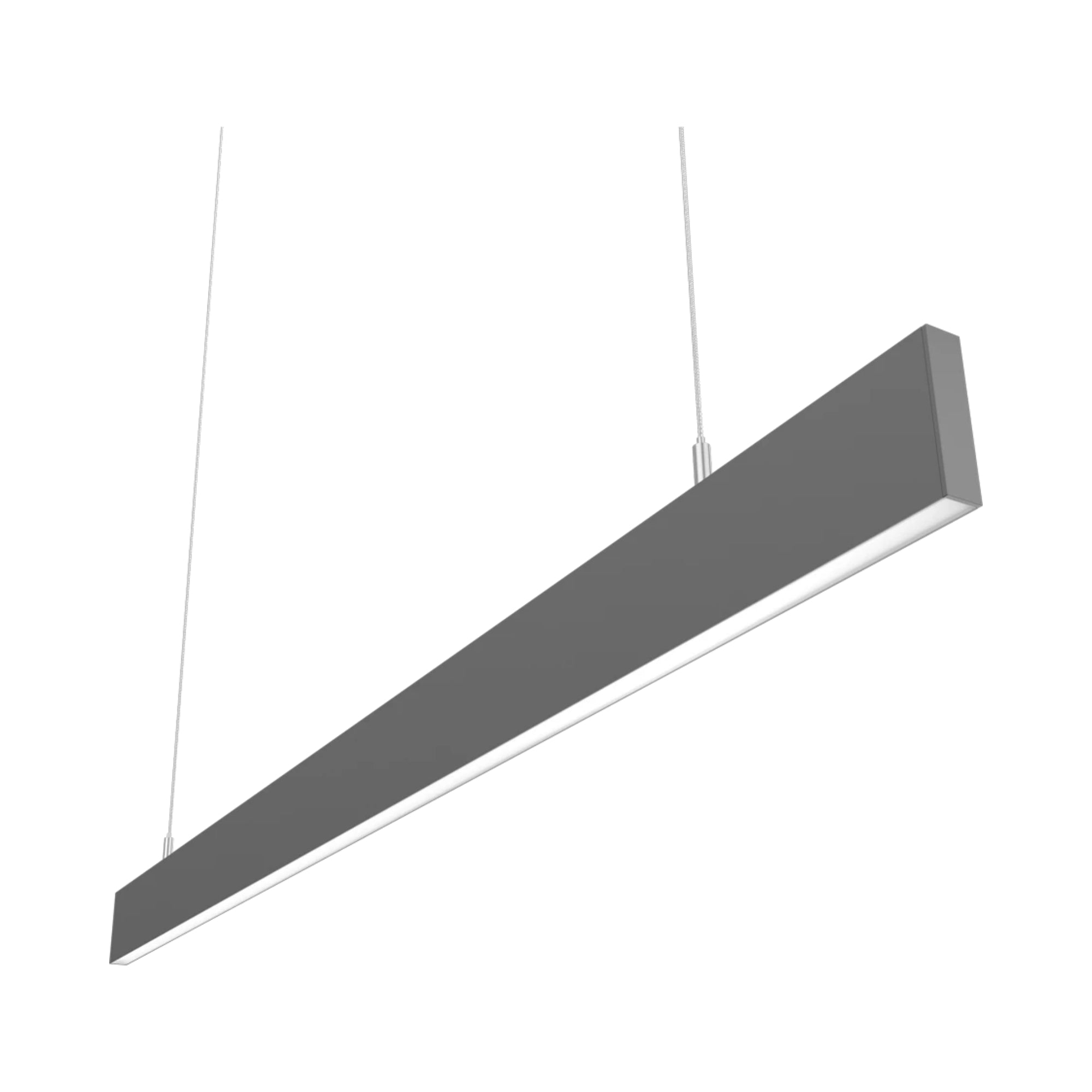

RAB BOAE4PUS 4 ft Edge Linear Light 40W 5661 Lumens Selectable CCT 120-277V Silver
In stock
About this item
About this item
- Lumens: Delivers up to 5661 lumens for optimal illumination.
- Wattage: Operates at 40W with field-adjustable options for flexibility.
- Voltage: Compatible with 120-277V systems for broad application use.
- Dimming: Features 0-10V dimming capability for customizable light levels.
- CRI: High color rendering index of 90+ for accurate color representation.
We process payments securely and do not store credit card information.
Description
Description
BOA Edge Field Adjustable Linear Light — 40W Configuration
The BOA Edge Field Adjustable Linear Light, model BOAE4PUS, is a versatile lighting solution offering 40W power and delivering up to 5661 lumens. It supports 120-277V input and features selectable CCT options of 3000K, 3500K, and 4000K, making it suitable for various environments. This fixture is damp rated and complies with UL standards.
Key Features
- Field Adjustability: Offers adjustable light output with settings of 40W or 20W, and power presets for uplight and downlight configurations.
- Selectable CCT: Choose between 3000K, 3500K, and 4000K color temperatures for tailored lighting.
- High Efficacy: Achieves an efficacy range of 128.8-146.7 lm/W for efficient energy use.
- Long Lifespan: Designed for a 100,000-hour LED lifespan, ensuring long-term performance.
- Construction: Built with sheet metal and extruded aluminum housing for durability.
- Lens Material: Features a frosted polycarbonate lens for even light distribution.
- Dimming Capability: Includes a dimming driver for 0-10V systems, allowing light level adjustments down to 10%.
- Surge Protection: Equipped with 1 kV L-L and 2 kV L/N-G surge protection for enhanced safety.
- Continuous Runs: Supports continuous runs up to 600W for extended installations.
- Compliance: Meets IESNA LM-79 & LM-80 testing standards for quality assurance.
Typical Applications
- Offices
- Retail Spaces
- Educational Facilities
- Healthcare Environments
- Commercial Buildings
Performance & Light Output
This fixture provides a luminous output of up to 5661 lumens with a high efficacy range, ensuring bright and efficient lighting. It maintains a CRI of 90+ for excellent color accuracy and a long lifespan of 100,000 hours.
Electrical & Controls
Operates on a voltage range of 120-277V with a constant current driver. The fixture supports 0-10V dimming, allowing for light level adjustments. It includes surge protection for added reliability.
Construction & Durability
Constructed with durable sheet metal and extruded aluminum, this fixture is designed for longevity. It features a frosted polycarbonate lens and is suitable for damp locations with an IP20 rating.
Installation & Mounting
Comes with 94 inches of aircraft cable and cable grippers for easy installation and adjustment. Supports continuous runs for extended lighting applications.
What's Included
- Aircraft cable with cable grippers
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the BOAE4PUS linear light?
What is the wattage of the BOAE4PUS linear light?
Is the BOAE4PUS linear light dimmable?
Is the BOAE4PUS linear light dimmable?
What color temperatures are available for the BOAE4PUS?
What color temperatures are available for the BOAE4PUS?
What is the lifespan of the BOAE4PUS linear light?
What is the lifespan of the BOAE4PUS linear light?
What is included with the BOAE4PUS linear light for installation?
What is included with the BOAE4PUS linear light for installation?
