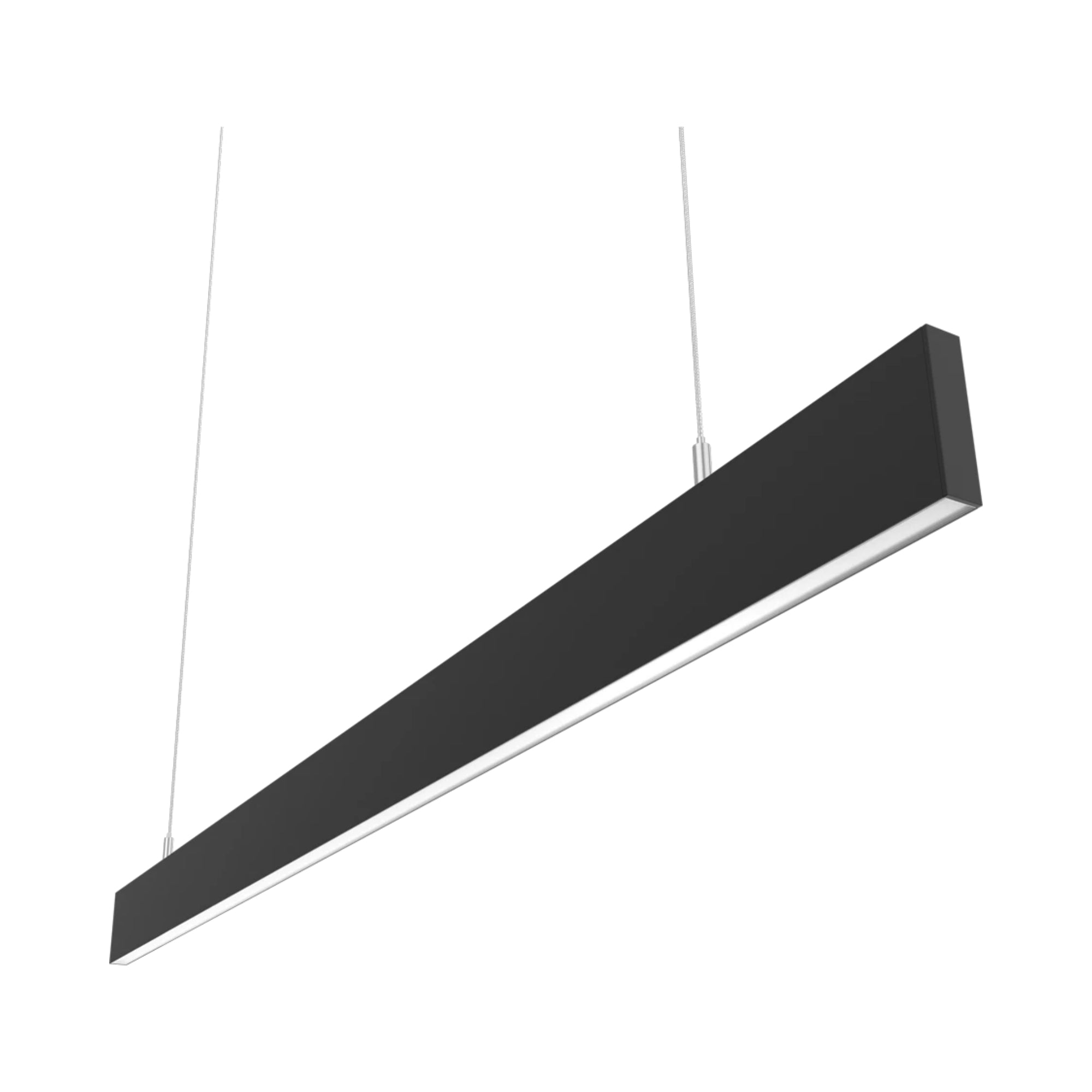

RAB BOAE4PUB 4 ft Edge Linear Light 40W 5661 Lumens Selectable CCT 120-277V Black
In stock
About this item
About this item
- Lumens: Delivers up to 5661 lumens for effective illumination.
- Wattage: Operates at 40W with field-adjustable settings for flexibility.
- Voltage: Compatible with 120-277V systems for broad application.
- Dimming: Supports 0-10V dimming for customizable light levels.
- Color Temperature: Selectable CCT from 3000K to 4000K for varied lighting environments.
We process payments securely and do not store credit card information.
Description
Description
BOA Edge Field Adjustable Linear Light — 40W Configuration
The BOAE4PUB Linear Light offers a versatile lighting solution with 40W power consumption, delivering up to 5661 lumens. It operates on 120-277V and features selectable color temperatures of 3000K, 3500K, and 4000K, making it suitable for various applications. This fixture is damp rated and complies with UL standards.
Key Features
- Field Adjustability: Offers adjustable light output settings with a factory default of 40W.
- Color Temperature Options: Selectable between 3000K, 3500K, and 4000K for tailored lighting.
- High Efficacy: Achieves an efficacy range of 128.8-146.7 lm/W.
- Long Lifespan: Designed for a 100,000-hour LED lifespan based on IES LM-80 results.
- Dimming Capability: Includes 0-10V dimming driver for precise light control.
- Surge Protection: Equipped with 1 kV L-L and 2 kV L/N-G surge protection.
- Durable Construction: Made with sheet metal and extruded aluminum housing.
- Environmentally Friendly: Mercury and UV free, with RoHS-compliant components.
- Continuous Runs: Supports end-to-end connection for continuous illumination up to 600W.
- Warranty: Backed by a 5-year limited warranty covering light output and driver performance.
Typical Applications
- Offices
- Retail Spaces
- Educational Facilities
- Healthcare Environments
- Conference Rooms
Performance & Light Output
This fixture provides up to 5661 lumens with a high color rendering index (CRI) of 94-95, ensuring accurate color representation. It maintains consistent performance with a 100,000-hour lifespan.
Electrical & Controls
Operates on 120-277V with a constant current driver. Features 0-10V dimming capabilities and surge protection for reliable operation.
Construction & Durability
Constructed with durable sheet metal and extruded aluminum, this fixture includes a frosted polycarbonate lens and is rated for damp locations with an IP20 rating.
Installation & Mounting
Comes with 94 inches of aircraft cable and cable grippers for easy installation and adjustment. Supports continuous runs for extended lighting solutions.
What's Included
- Aircraft cable with cable grippers
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the BOAE4PUB Linear Light?
What is the wattage of the BOAE4PUB Linear Light?
Is the BOAE4PUB Linear Light dimmable?
Is the BOAE4PUB Linear Light dimmable?
What color temperatures are available for the BOAE4PUB?
What color temperatures are available for the BOAE4PUB?
What is the lifespan of the BOAE4PUB Linear Light?
What is the lifespan of the BOAE4PUB Linear Light?
Can the BOAE4PUB be used in damp locations?
Can the BOAE4PUB be used in damp locations?
