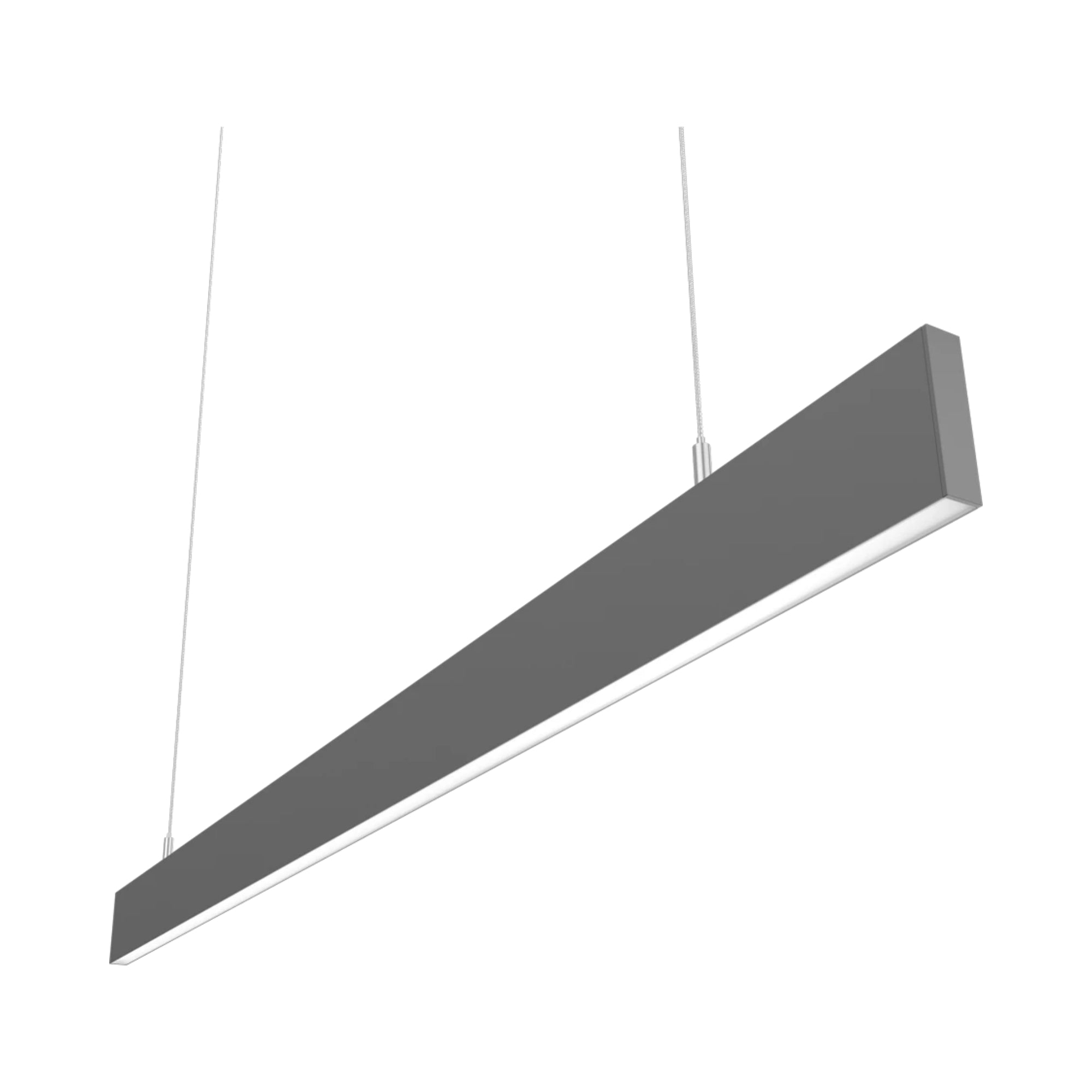

RAB BOAE4PS 4 ft Edge Linear Light 40W 5265 Lumens Selectable CCT 120-277V Silver
In stock
About this item
About this item
- Lumens: Provides up to 5265 lumens for bright illumination.
- Wattage: Field adjustable wattage options from 40W down to 12W.
- Voltage: Operates on a versatile 120-277V input range.
- Dimming: Compatible with 0-10V dimming systems for flexible lighting control.
- CRI: High color rendering index of 94-95 for accurate color representation.
We process payments securely and do not store credit card information.
Description
Description
BOA Edge Field Adjustable Linear Light — 40W Configuration
The BOA Edge Field Adjustable Linear Light, model BOAE4PS, offers a versatile lighting solution with a maximum output of 5265 lumens and selectable color temperatures of 3000K, 3500K, and 4000K. This 40W linear light is designed for use in damp locations and operates on a voltage range of 120-277V.
Key Features
- Field Adjustable Wattage: Easily adjust the wattage from 40W to 12W to suit different lighting needs.
- Selectable CCT: Choose between 3000K, 3500K, and 4000K for the desired ambiance.
- High Efficacy: Achieves an efficacy of 130.5-144 lm/W for energy-efficient performance.
- Long Lifespan: Designed to last up to 100,000 hours, reducing maintenance frequency.
- Dimming Capability: Supports 0-10V dimming, allowing for precise light level adjustments.
- Surge Protection: Equipped with 1 kV L-L and 2 kV L/N-G surge protection for enhanced durability.
- Durable Construction: Features a sheet metal and extruded aluminum housing with a frosted polycarbonate lens.
- Continuous Runs: Connect multiple fixtures end-to-end for seamless illumination up to 600W.
- Environmentally Friendly: Mercury and UV free, complying with RoHS standards.
- Warranty: Backed by a 5-year limited warranty covering light output, driver performance, and paint finish.
Typical Applications
- Retail Spaces
- Offices
- Educational Facilities
- Healthcare Environments
- Hospitality Venues
Performance & Light Output
This fixture delivers up to 5265 lumens with a high efficacy range of 130.5-144 lm/W. It features a CRI of 94-95, ensuring excellent color accuracy and consistency over its 100,000-hour lifespan.
Electrical & Controls
The BOAE4PS operates on 120-277V and includes a dimming driver for 0-10V systems, allowing dimming down to 10%. It also features surge protection for reliable operation.
Construction & Durability
Constructed with a robust sheet metal and extruded aluminum housing, this fixture is designed for durability. It includes a frosted polycarbonate lens and is suitable for use in temperatures ranging from -4°F to 104°F.
Installation & Mounting
Installation is simplified with 94 inches of aircraft cable and cable grippers for easy adjustment. The fixture supports continuous runs up to 600W.
What's Included
- BOA Edge Field Adjustable Linear Light Fixture
- 94 inches of Aircraft Cable
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage range for the BOAE4PS linear light?
What is the wattage range for the BOAE4PS linear light?
Is the BOAE4PS suitable for damp locations?
Is the BOAE4PS suitable for damp locations?
Can the BOAE4PS be dimmed?
Can the BOAE4PS be dimmed?
What is the lifespan of the BOAE4PS linear light?
What is the lifespan of the BOAE4PS linear light?
What color temperatures are available for the BOAE4PS?
What color temperatures are available for the BOAE4PS?
