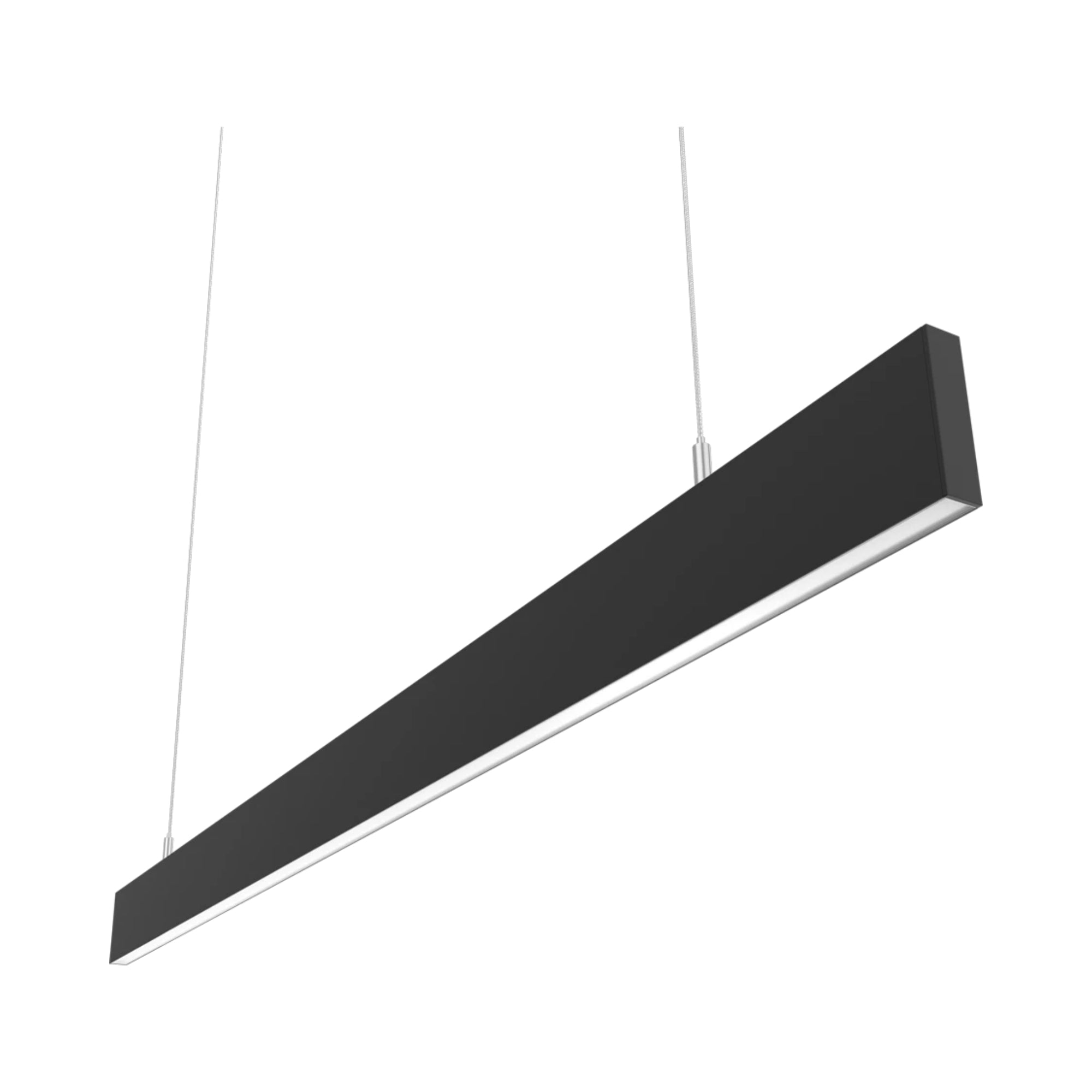

RAB BOAE4PB 4 ft Edge Linear Light 40W 5265 Lumens Selectable CCT 120-277V Black
In stock
About this item
About this item
- Lumens: Delivers up to 5265 lumens for high-efficiency lighting.
- Wattage: Field adjustable from 40W down to 10W for customizable power usage.
- Color Temperature: Selectable CCT options of 3000K, 3500K, and 4000K for varied lighting environments.
- Dimming: Compatible with 0-10V dimming systems, allowing dimming down to 10%.
- Construction: Durable sheet metal and extruded aluminum housing with a frosted polycarbonate lens.
We process payments securely and do not store credit card information.
Description
Description
BOA Edge Field Adjustable Linear Light — 40W Configuration
The BOA Edge Field Adjustable Linear Light, MPN BOAE4PB, is a versatile lighting solution offering 40W power with up to 5265 lumens output. It operates on 120-277V and features selectable CCT options of 3000K, 3500K, and 4000K, making it suitable for various applications. This fixture is damp rated and complies with UL standards.
Key Features
- Field Adjustability: Offers adjustable wattage settings of 40W, 28W, 24W, 20W, and 12W for tailored lighting needs.
- Selectable CCT: Choose between 3000K, 3500K, and 4000K for optimal color temperature settings.
- High CRI: Provides 90+ CRI for excellent color rendering in various environments.
- Long Lifespan: Engineered for a 100,000-hour LED lifespan, ensuring long-term performance.
- Surge Protection: Equipped with 1 kV L-L and 2kV L/N-G surge protection for enhanced reliability.
- Continuous Runs: Capable of connecting multiple fixtures up to 600W for seamless illumination.
- Durable Construction: Features a robust housing made from sheet metal and extruded aluminum.
- Environmental Compliance: Mercury and UV free, with RoHS-compliant components.
- Cold Weather Starting: Operates in temperatures as low as -4°F (-20°C).
- Mounting Flexibility: Includes 94 inches of aircraft cable for easy installation and adjustment.
Typical Applications
- Office Spaces
- Retail Environments
- Educational Facilities
- Healthcare Settings
- Commercial Buildings
Performance & Light Output
This fixture provides a luminous efficacy of 130.5-144 lm/W, with a CRI of 94-95, ensuring high-quality light output. The L70 lifespan is rated at 100,000 hours, offering long-lasting performance.
Electrical & Controls
Designed for 120-277V input, the fixture includes a dimming driver compatible with 0-10V systems, allowing dimming down to 10%. It features surge protection for enhanced durability.
Construction & Durability
The housing is constructed from sheet metal and extruded aluminum, with a frosted polycarbonate lens. It is IP20 rated, suitable for damp locations, and operates in temperatures up to 104°F (40°C).
Installation & Mounting
Comes with 94 inches of aircraft cable and cable grippers for straightforward installation and adjustment. Supports continuous runs up to 600W.
What's Included
- Aircraft Cable (94 inches)
- Cable Grippers
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage range for the BOA BOAE4PB Linear Light?
What is the wattage range for the BOA BOAE4PB Linear Light?
Is the BOA BOAE4PB Linear Light dimmable?
Is the BOA BOAE4PB Linear Light dimmable?
What color temperatures are available for the BOA BOAE4PB?
What color temperatures are available for the BOA BOAE4PB?
How is the BOA BOAE4PB Linear Light mounted?
How is the BOA BOAE4PB Linear Light mounted?
What is the lifespan of the BOA BOAE4PB Linear Light?
What is the lifespan of the BOA BOAE4PB Linear Light?
