RAB BOAE3PW 3 ft Edge Linear Light 30W 4057 Lumens Selectable CCT 120-277V White
In stock
About this item
About this item
- Lumens: Delivers up to 4057 lumens for bright illumination.
- Wattage: Field adjustable wattage options from 9W to 30W for customizable energy use.
- Color Temperature: Selectable CCT of 3000K, 3500K, and 4000K for adaptable lighting environments.
- Dimming: Compatible with 0-10V dimming systems, allowing for precise light control.
- Durability: Constructed with sheet metal and extruded aluminum for robust performance.
We process payments securely and do not store credit card information.
Description
Description

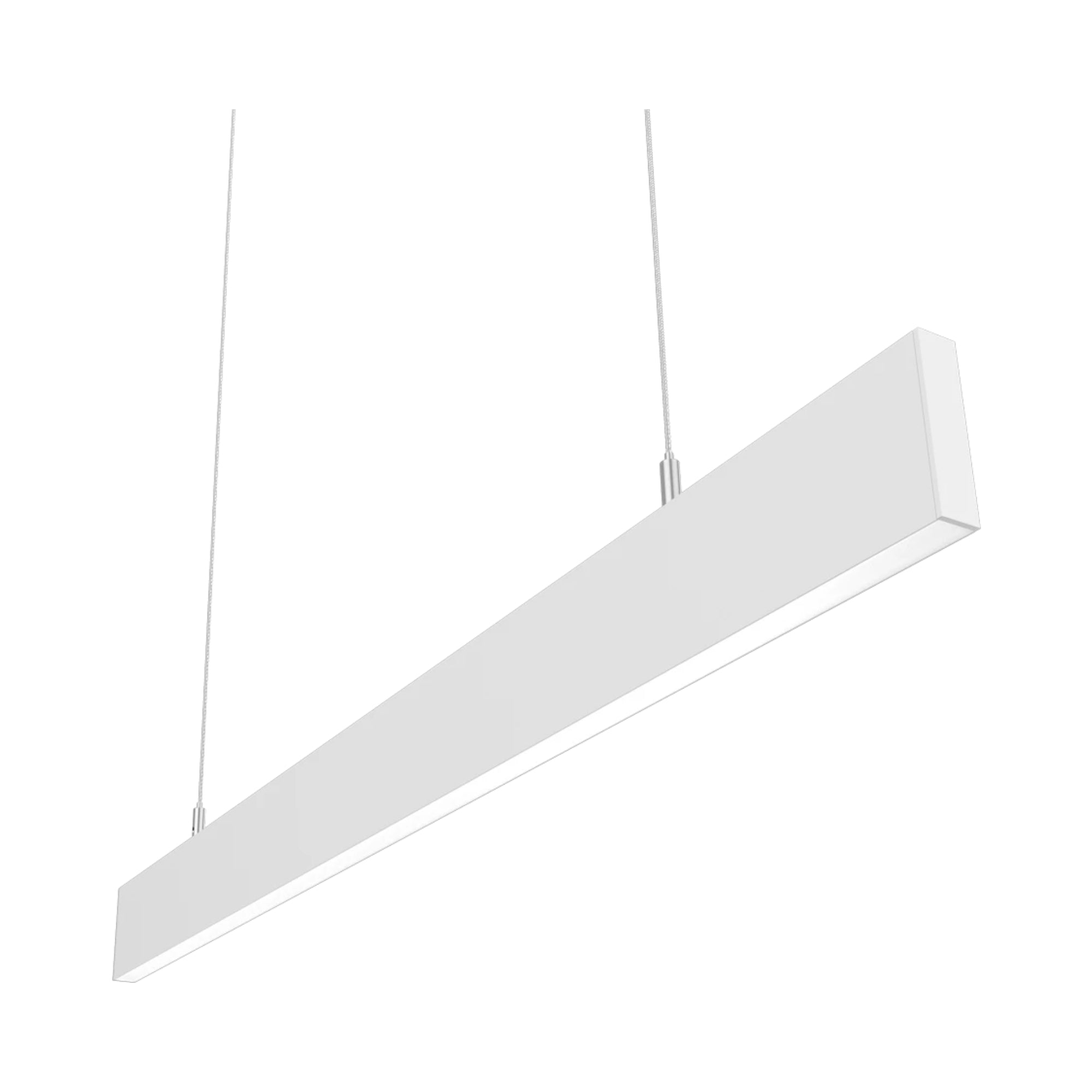

RAB BOA Edge Field Adjustable Linear Light — 30W Configuration
The RAB BOAE3PW is a versatile linear light offering 30W power with a maximum output of 4057 lumens. It supports 120-277V input and features selectable color temperatures of 3000K, 3500K, and 4000K. This fixture is damp rated, making it suitable for various indoor applications.
Key Features
- Field Adjustable Wattage: Easily adjust between 9W, 15W, 18W, 21W, and 30W to suit specific lighting needs.
- Selectable CCT: Choose from 3000K, 3500K, or 4000K to match the desired ambiance.
- High CRI: Offers a color rendering index of 93-95 for accurate color representation.
- Long Lifespan: Designed to last up to 100,000 hours, reducing maintenance frequency.
- Dimming Capability: Supports 0-10V dimming for customizable light levels.
- Surge Protection: Equipped with 1 kV L-L and 2kV L/N-G surge protection for enhanced safety.
- Construction: Built with durable sheet metal and extruded aluminum housing.
- Lens: Features a frosted polycarbonate lens for even light distribution.
- Continuous Runs: Can be connected end-to-end for seamless illumination up to 600W.
- Compliance: UL listed for damp locations and tested to IESNA LM-79 and LM-80 standards.
Typical Applications
- Retail Spaces
- Offices
- Educational Facilities
- Healthcare Environments
- Hospitality Venues
Performance & Light Output
This fixture provides a luminous efficacy of 128-141.1 lm/W, ensuring efficient light output with a high CRI of 93-95. It is designed to maintain performance over a 100,000-hour lifespan.
Electrical & Controls
The BOAE3PW operates on a 120-277V input and includes a dimming driver compatible with 0-10V systems, allowing for smooth dimming down to 10%. It also features surge protection for reliable operation.
Construction & Durability
Constructed from sheet metal and extruded aluminum, this fixture is built to withstand demanding environments. It includes a frosted polycarbonate lens and is rated for operation in temperatures ranging from -4°F to 104°F.
Installation & Mounting
Comes with 94 inches of aircraft cable and cable grippers for easy installation and adjustment. Supports continuous runs up to 600W for extended lighting applications.
What's Included
- 94 inches of aircraft cable with cable grippers
