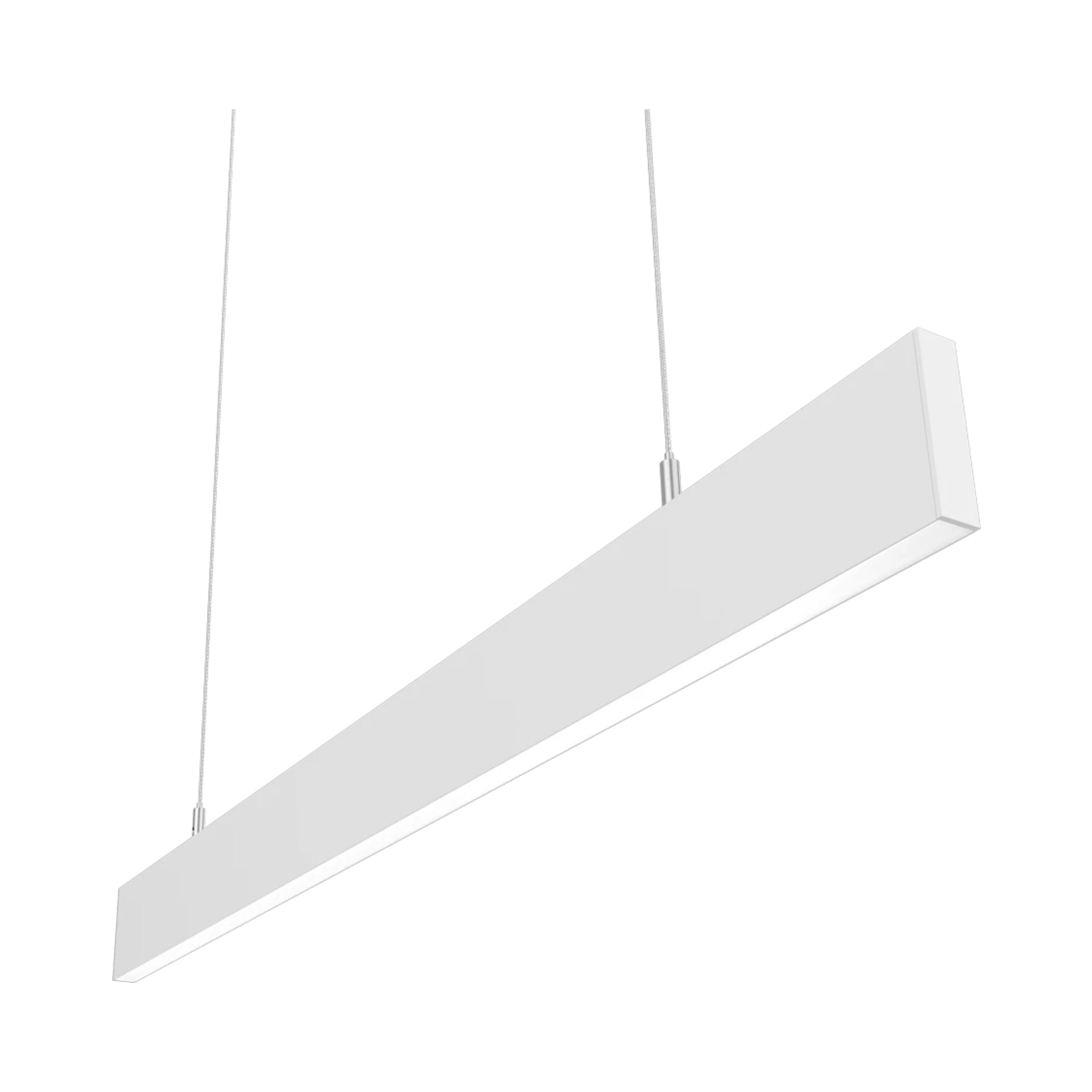

RAB BOAE3PUW 3 ft Edge Linear Light 30W 4214 Lumens Selectable CCT 120-277V White
In stock
About this item
About this item
- Lumens: Provides up to 4214 lumens for optimal illumination in various settings.
- Wattage: Operates at 30 watts with field adjustable options for versatile lighting needs.
- Voltage: Compatible with 120-277V systems, ensuring broad installation flexibility.
- Dimming: Includes 0-10V dimming capability for customizable light levels.
- Color Temperature: Offers selectable CCT of 3000K, 3500K, and 4000K for tailored ambiance.
We process payments securely and do not store credit card information.
Description
Description
RAB BOA Edge Field Adjustable Linear Light — 30W Configuration
The RAB BOAE3PUW is a linear light fixture delivering 4214 lumens at 30 watts, suitable for 120-277V systems. This fixture features selectable CCT options of 3000K, 3500K, and 4000K, making it adaptable for various lighting environments. It is damp rated and compliant with UL standards, ensuring reliable performance in suitable locations.
Key Features
- Field Adjustability: Offers power presets including 30W and 15W for flexible light output.
- Color Temperature Selectable: Factory default set to 4000K, adjustable to 3000K or 3500K.
- High CRI: Provides 94-95 CRI for excellent color rendering in applications.
- Long Lifespan: Rated for 100,000 hours based on IES LM-80 and TM-21 standards.
- Surge Protection: Equipped with 1 kV L-L and 2 kV L/N-G surge protection.
- Construction: Built with sheet metal and extruded aluminum for durability.
- Lens: Features a frosted polycarbonate lens for even light distribution.
- Continuous Runs: Can connect multiple fixtures up to 600W for seamless illumination.
- Green Technology: Mercury and UV free, with RoHS-compliant components.
- Warranty: Backed by a 5-year limited warranty covering light output and driver performance.
Typical Applications
- Offices
- Retail Spaces
- Educational Facilities
- Healthcare Environments
- Hospitality Venues
Performance & Light Output
This fixture delivers between 3916 and 4214 lumens with an efficacy of 131.9 to 145.8 lm/W, ensuring efficient light output with a high CRI of 94-95 for accurate color representation.
Electrical & Controls
Designed for 120-277V systems, it includes a dimming driver for 0-10V dimming, allowing light levels to be adjusted down to 10%. Surge protection is included for enhanced reliability.
Construction & Durability
The housing is constructed from sheet metal and extruded aluminum, with an IP20 rating suitable for damp locations. The fixture operates in temperatures ranging from -4°F to 104°F.
Installation & Mounting
Comes with 94 inches of aircraft cable and cable grippers for easy installation and adjustment. Supports continuous runs up to 600W.
What's Included
- Aircraft cable with cable grippers
