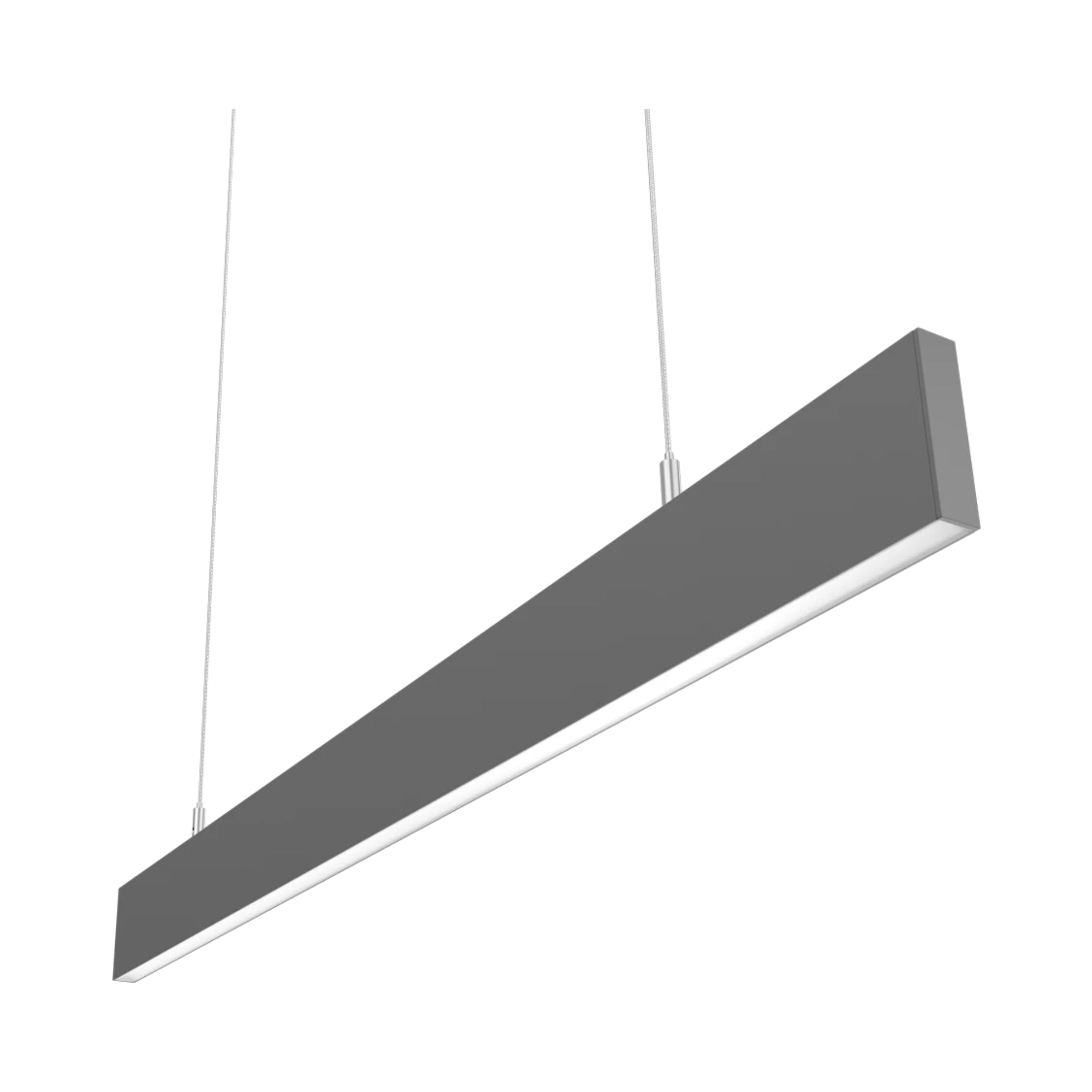

RAB BOAE3PUS 3 ft Edge Linear Light 30W 4214 Lumens Selectable CCT 120-277V Silver
In stock
About this item
About this item
- Lumens: Delivers between 3916 to 4214 lumens for optimal illumination.
- Wattage: Operates at 30W with field adjustable settings for flexibility.
- Color Temperature: Selectable CCT options of 3000K, 3500K, and 4000K for varied lighting environments.
- Dimming Capability: Compatible with 0-10V dimming systems, allowing dimming down to 10%.
- Durability: Constructed with sheet metal and extruded aluminum for long-lasting use.
We process payments securely and do not store credit card information.
Description
Description
RAB BOA Edge Field Adjustable Linear Light — 30W Configuration
The RAB BOAE3PUS is a versatile linear light offering 30W power consumption, delivering up to 4214 lumens with selectable color temperatures of 3000K, 3500K, and 4000K. It operates on 120-277V input, making it suitable for various lighting applications. This fixture is damp rated and complies with UL standards, ensuring reliability and safety.
Key Features
- Field Adjustability: Offers 30/15W power settings with multiple light output presets for customized lighting.
- Color Temperature Selectable: Factory default set to 4000K, adjustable to 3000K or 3500K as needed.
- High Efficacy: Achieves an efficacy range of 131.9-145.8 lm/W for energy-efficient performance.
- Long Lifespan: Designed for a 100,000-hour LED lifespan based on IES LM-80 results.
- Surge Protection: Equipped with 1 kV L-L and 2 kV L/N-G surge protection for enhanced durability.
- Construction: Features a robust housing made from sheet metal and extruded aluminum.
- Lens Material: Utilizes a frosted polycarbonate lens for even light distribution.
- Environmentally Friendly: Mercury and UV-free, with RoHS-compliant components.
- Continuous Runs: Capable of connecting multiple fixtures up to 600W for continuous illumination.
- Mounting: Includes 94 inches of aircraft cable with cable grippers for easy installation.
Typical Applications
- Office Spaces
- Retail Environments
- Educational Facilities
- Healthcare Settings
- Hospitality Venues
Performance & Light Output
This fixture provides a light output of 3916 to 4214 lumens with a high color rendering index (CRI) of 94-95, ensuring accurate color representation. Its efficacy ranges from 131.9 to 145.8 lm/W, making it an energy-efficient choice for various applications.
Electrical & Controls
The BOAE3PUS operates on a voltage range of 120-277V and includes a dimming driver compatible with 0-10V dimming systems, allowing for dimming down to 10%. It also features surge protection for added reliability.
Construction & Durability
Constructed from sheet metal and extruded aluminum, this fixture is designed for durability. It includes a frosted polycarbonate lens and is suitable for use in environments with temperatures ranging from -4°F to 104°F.
Installation & Mounting
The fixture comes with 94 inches of aircraft cable and cable grippers, facilitating easy installation and adjustment. It supports continuous runs for extended lighting applications.
What's Included
- Aircraft Cable
- Cable Grippers
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the RAB BOAE3PUS linear light?
What is the wattage of the RAB BOAE3PUS linear light?
Is the RAB BOAE3PUS dimmable?
Is the RAB BOAE3PUS dimmable?
What color temperatures are available for the RAB BOAE3PUS?
What color temperatures are available for the RAB BOAE3PUS?
What is the lumen output of the RAB BOAE3PUS?
What is the lumen output of the RAB BOAE3PUS?
What is the lifespan of the RAB BOAE3PUS LED fixture?
What is the lifespan of the RAB BOAE3PUS LED fixture?
