RAB BOAE3PUB 3 ft Edge Linear Light 30W 4214 Lumens Selectable CCT 120-277V Black
In stock
About this item
About this item
- Lumens: Delivers between 3916 and 4214 lumens for efficient lighting.
- Wattage: Operates at 30W with field adjustability for versatile applications.
- Voltage: Compatible with 120-277V systems, ensuring broad installation compatibility.
- Dimming: Features 0-10V dimming capability, allowing for precise light level control.
- CRI: Offers a high color rendering index of 94-95 for accurate color representation.
We process payments securely and do not store credit card information.
Description
Description

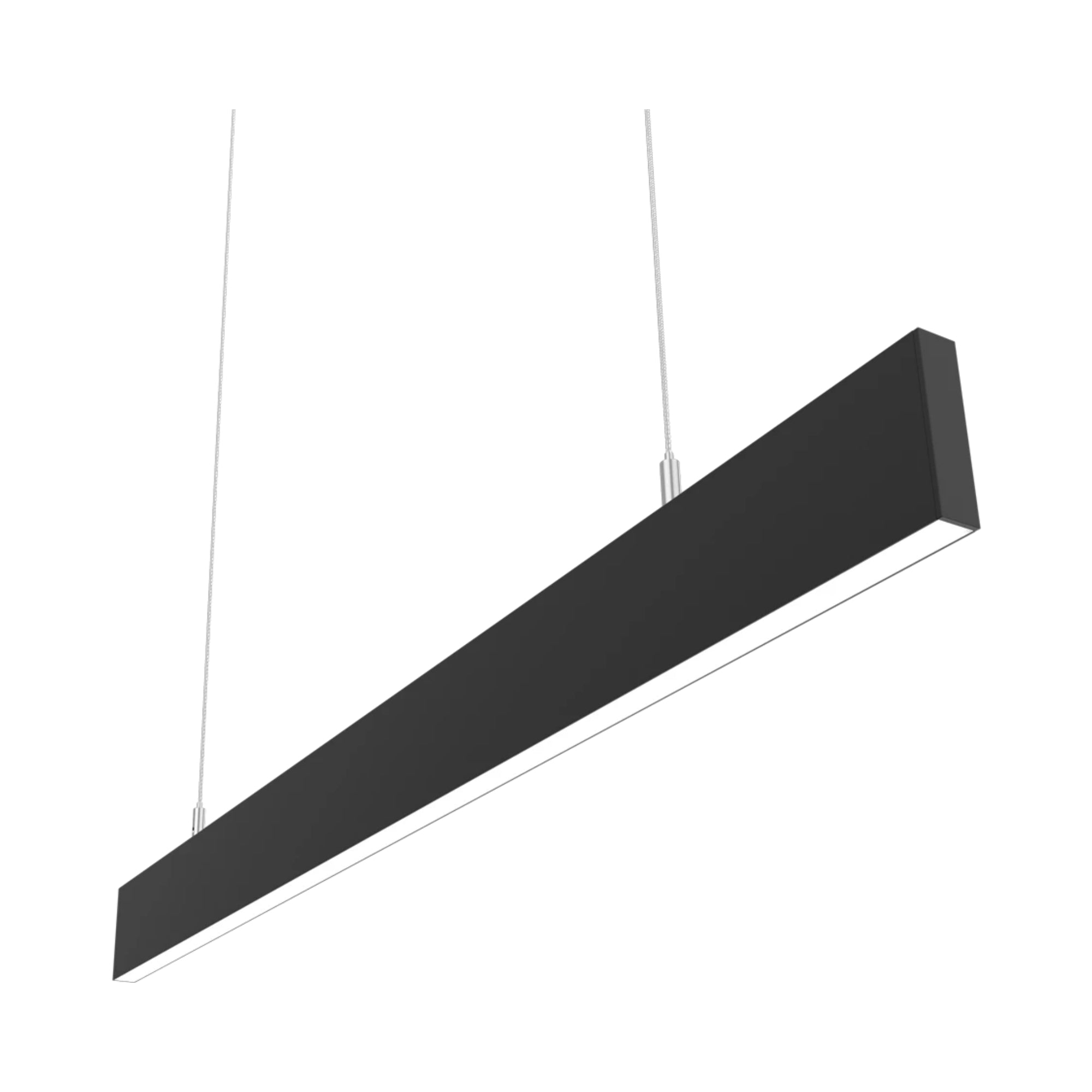

RAB BOA Edge Linear Light — 30W Configuration
The RAB BOAE3PUB is a versatile linear light offering 30W power consumption, delivering up to 4214 lumens with selectable color temperatures of 3000K, 3500K, and 4000K. Designed for use with 120-277V systems, this fixture is suitable for damp locations and complies with UL standards.
Key Features
- Field Adjustability: Offers adjustable wattage settings of 30W and 15W for tailored light output.
- Color Temperature: Selectable CCT options of 3000K, 3500K, and 4000K to suit various environments.
- Dimming Capability: Equipped with a 0-10V dimming driver for smooth light level adjustments.
- Surge Protection: Built-in surge protection of 1 kV L-L and 2 kV L/N-G for enhanced reliability.
- Long Lifespan: Engineered for a 100,000-hour LED lifespan, ensuring long-term performance.
- Construction: Constructed with sheet metal and extruded aluminum for durability.
- Lens Material: Features a frosted polycarbonate lens for uniform light distribution.
- Environmental Rating: IP20 rated, suitable for indoor use in damp conditions.
- Continuous Runs: Capable of connecting multiple fixtures for continuous illumination up to 600W.
- Warranty: Backed by a 5-year limited warranty covering light output and driver performance.
Typical Applications
- Offices
- Retail Spaces
- Educational Facilities
- Healthcare Environments
- Hospitality Venues
Performance & Light Output
This fixture provides a luminous efficacy ranging from 131.9 to 145.8 lm/W, with a CRI of 94-95, ensuring high-quality light output and color accuracy. The L70 lifespan is rated at 100,000 hours.
Electrical & Controls
Designed for 120-277V input, the fixture includes a dimming driver compatible with 0-10V systems, allowing dimming down to 10%. Surge protection is integrated for enhanced safety.
Construction & Durability
The housing is made from sheet metal and extruded aluminum, with a frosted polycarbonate lens. It is IP20 rated, suitable for damp locations, and operates in temperatures from -4°F to 104°F.
Installation & Mounting
Comes with 94 inches of aircraft cable and cable grippers for easy installation and adjustment. Supports continuous runs up to 600W.
What's Included
- Linear Light Fixture
- Aircraft Cable
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the RAB BOAE3PUB Linear Light?
What is the wattage of the RAB BOAE3PUB Linear Light?
Is the RAB BOAE3PUB Linear Light dimmable?
Is the RAB BOAE3PUB Linear Light dimmable?
What color temperatures are available for this linear light?
What color temperatures are available for this linear light?
What is the lifespan of the RAB BOAE3PUB Linear Light?
What is the lifespan of the RAB BOAE3PUB Linear Light?
Can the RAB BOAE3PUB be used in damp locations?
Can the RAB BOAE3PUB be used in damp locations?
