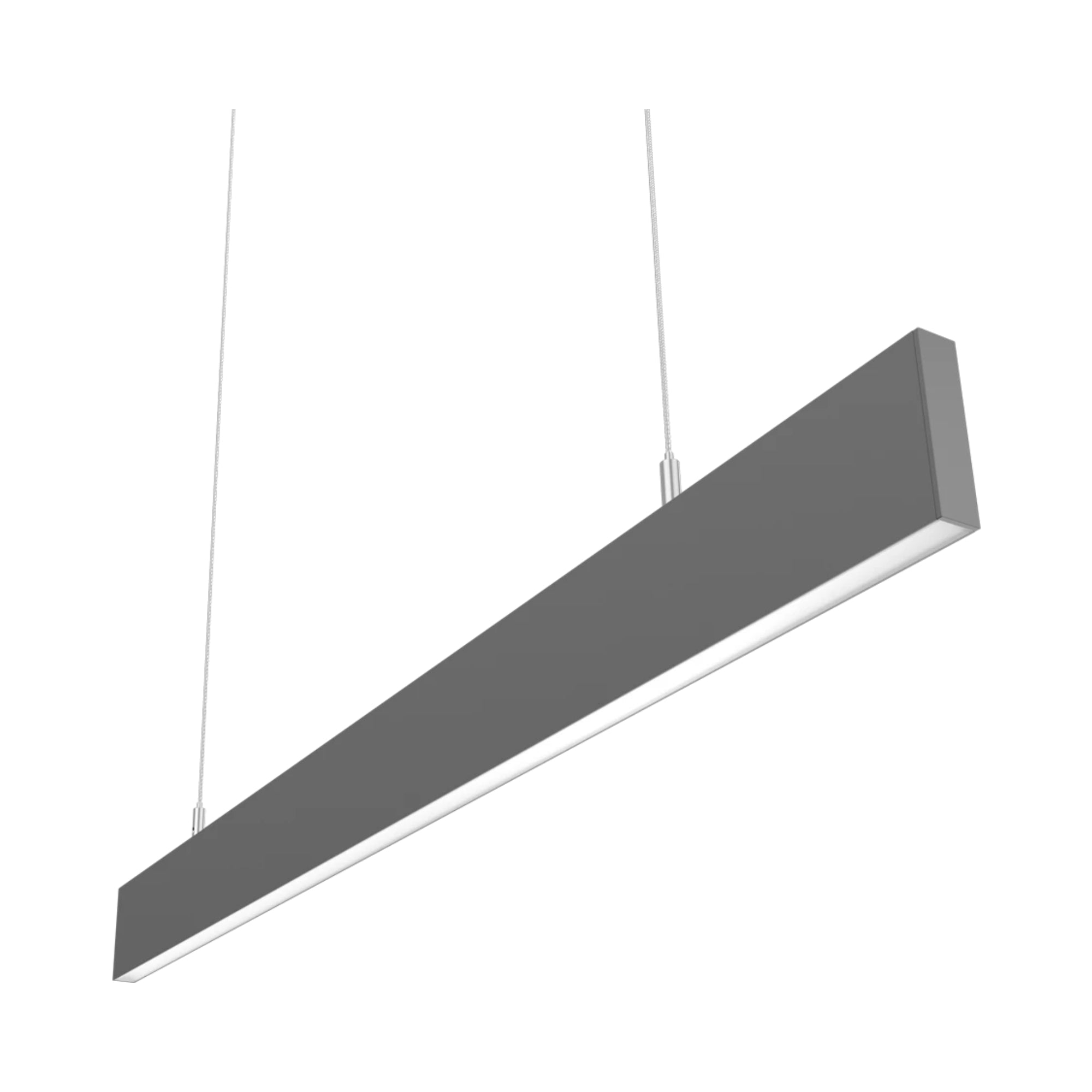

RAB BOAE3P Edge Field-Adjustable 3ft Linear Light — 30W/21W/18W/15W/9W Selectable — 3000K/3500K/4000K — Silver

The RAB BOAE3PS is a commercial 3ft Linear Light engineered to deliver up to 4,057 lumens with field-adjustable 30W/21W/18W/15W/9W power settings and switchable 3000K/3500K/4000K color temperatures. Operating on 120–277V electrical systems with 0–10V continuous dimming down to 10%, this super-slim luminaire delivers high color rendering at 90 CRI for architectural indoor commercial environments. Built with a UL Listed damp location rating and an IP20 ingress rating, it features continuous-run quick-link joiner capability and standard pendant aircraft cable mounting with an extruded aluminum and sheet metal housing and frosted polycarbonate flat lens.

Key Features

• Selectable Wattage: 30W/21W/18W/15W/9W — field-adjustable via onboard slide switch (default: 100% power)
• Peak Efficacy: 141.1 lm/W for high-efficiency commercial operation
• Maximum Lumen Output: 4,057 lm at 30W setting
• CRI: High color accuracy with 90 CRI minimum (typical 93–95 CRI across all settings)
• Selectable CCT: 3000K / 3500K / 4000K — field-adjustable via onboard slide switch (default: 3500K)
• Lens & Optics: Polycarbonate frosted flat lens paired with polyethylene terephthalate (PET) reflector for uniform direct illumination
• Dimming: 0–10V continuous dimming standard, dims down to 10%
• Voltage: Universal 120–277V AC, 50/60Hz constant current Class 2 driver
• Location Rating: UL Listed for damp locations; IP20 ingress protection rating
• Operating Temperature: -4°F (-20°C) to 104°F (40°C) ambient range (cold weather starting down to -4°F / -20°C)
• Certifications: UL Listed, RoHS compliant, Mercury and UV free
• Rated Life: 100,000 hours (L70) based on IES LM-80 results and TM-21 calculations
• Warranty: 5-year limited warranty — RAB
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Form Factor & Mounting: Super-slim architectural housing with standard 94" adjustable aircraft cable pendant mount and tool-free quick-link continuous run capability

Performance & Light Output

At 30W: 3,947 lm (3000K / 130.7 lm/W), 4,031 lm (3500K / 138.0 lm/W), 4,057 lm (4000K / 134.8 lm/W).
At 21W: 2,815 lm (3000K / 133.4 lm/W), 2,875 lm (3500K / 140.9 lm/W), 2,893 lm (4000K / 137.8 lm/W).
At 18W: 2,501 lm (3000K / 133.7 lm/W), 2,554 lm (3500K / 141.1 lm/W), 2,570 lm (4000K / 138.2 lm/W).
At 15W: 2,048 lm (3000K / 133.0 lm/W), 2,091 lm (3500K / 140.3 lm/W), 2,105 lm (4000K / 137.6 lm/W).
At 9W: 1,280 lm (3000K / 128.0 lm/W), 1,307 lm (3500K / 134.7 lm/W), 1,316 lm (4000K / 131.6 lm/W).

CRI >90 (typical 93–95) across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing.

Form Factor & Design Profile

The RAB BOA Edge 3ft linear fixture features a super-slim profile engineered from extruded aluminum and heavy-gauge sheet metal, providing exceptional rigidity and passive thermal management. Designed for seamless modern architectural interiors, the luminaire includes tool-free quick-link connectors that allow fixtures to join into long, uninterrupted continuous rows without visible seams or light gaps. Its low-profile 3/4" body height and 3-1/8" width integrate elegantly into open ceilings, modern offices, educational facilities, and commercial corridors.

Smart & Control Features

The RAB BOAE3PS linear luminaire features flexible control integration supporting standalone architectural dimming and modular wireless automation:

• 0–10V Continuous Dimming (Standard): Dims smoothly down to 10% on standard 0–10V low-voltage control circuits. Compatible with commercial architectural dimmers and centralized building automation systems (BAS).
• Lightcloud Blue Wireless Control (Accessory): Compatible with field-installable Lightcloud Blue sensor modules for Bluetooth mesh group control, automated scheduling, daylight harvesting, and motion detection without requiring an external gateway or hub.

Compatible plug-and-play sensor modules include BOAE-PIR/S (PIR sensor module, silver), BOAE-MVS/S (microwave sensor module, silver), BOAE-LCBS/S (Lightcloud Blue PIR sensor module, silver), and BOAE-LCBS/MVS/S (Lightcloud Blue microwave sensor module, silver) — sold separately.

Electrical

Powered by a Class 2 constant current driver operating on 120–277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.90 (99.4% at 120V, 90.4% at 277V) and Total Harmonic Distortion (THD) <4.2% at 120V, 10.3% at 277V. Integrated 1kV (L-L) and 2kV (L/N-G) surge protection safeguards internal electronics against transient voltage spikes. Includes pre-wired 0–10V dimming leads.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Thermal: Precision formed sheet metal and extruded aluminum housing engineered for passive thermal dissipation and structural rigidity.

Lens & Optics: Polycarbonate frosted flat lens paired with a high-reflectance polyethylene terephthalate (PET) reflector for uniform beam distribution.

Finish: Durable silver powder-coat finish formulated for high resistance against corrosion, scratching, and color fading.

Environmental Sealing: UL Listed damp location rating; IP20 ingress protection rating for dust defense in indoor environments. Operating ambient temperature range: -4°F (-20°C) to 104°F (40°C).

Dimensions & Weight: 35.69" L × 3.13" W × 0.75" H (suspension point span: 23.19"). Fixture weight: 2.31 lbs.

Installation & Mounting

Standard Mounting: Standard pendant aircraft cable suspension mounting. Includes 94" of aircraft cable with adjustable cable grippers for field leveling and height positioning.

Continuous Run Mounting: Compatible with tool-free quick-link connectors and modular illuminated connector patterns (L, T, V, X, and Y configurations) for continuous architectural row layouts.

Accessories (Sold Separately):

• Surface & Wall Mount Kit: BOAE-SM (UPC 192552055482) — Ceiling and wall mounting bracket kit
• Recessed Mount Kit (3ft): BOAE-RMK3 (UPC 192552055406) — 3ft recessed mounting kit (white)
• T-Grid Clips: BOAE-TG (UPC 192552055499) — 9/16" T-grid clips (2 pcs/set)
• Continuous Roll Lens: BOAE-RT (UPC 192552055475) — 82ft rolling lens for seamless continuous pendant and recessed runs
• Illuminated Connectors (Silver): BOAE-L/S (L connector), BOAE-S/S (1ft straight module), BOAE-T/S (T connector), BOAE-V/S (V connector), BOAE-X/S (X connector), BOAE-Y/S (Y connector)
• Sensors & Controls (Silver): BOAE-PIR/S (PIR sensor), BOAE-MVS/S (microwave sensor), BOAE-LCBS/S (Lightcloud Blue PIR sensor), BOAE-LCBS/MVS/S (Lightcloud Blue microwave sensor)

Certifications & Rebates

• UL Listed: Certified to UL standards for damp locations.
• Ingress Protection: IP20 rated for protection against solid objects and dust in indoor spaces.
• RoHS & Green Tech: RoHS compliant components; 100% mercury-free and UV-free solid-state construction.
• IES Testing: Photometric and lumen maintenance performance independently tested in accordance with IESNA LM-79 and LM-80 standards.

Typical Applications

• Commercial Offices & Conference Rooms — Super-slim profile and high 90 CRI deliver modern architectural aesthetics and glare-free task lighting.
• Educational Facilities & Classrooms — Selectable settings allow tailored illumination levels and color balance across instructional spaces.
• Architectural Retail Spaces — High color rendering index (93–95 CRI) provides vivid merchandise presentation and accurate color representation.
• Hospitality & Lobbies — Pendant mounting with 94" adjustable aircraft cables creates clean floating lines of light in reception areas.
• Corridors & Open Circulation Areas — Tool-free quick-link continuous runs deliver seamless uninterrupted linear lighting without dark spots.

What's Included

• RAB BOAE3PS Edge Field-Adjustable 3ft Linear Light — Silver
• Standard pendant mounting kit with 94" aircraft cable and adjustable cable grippers
• Installation and operation manual
