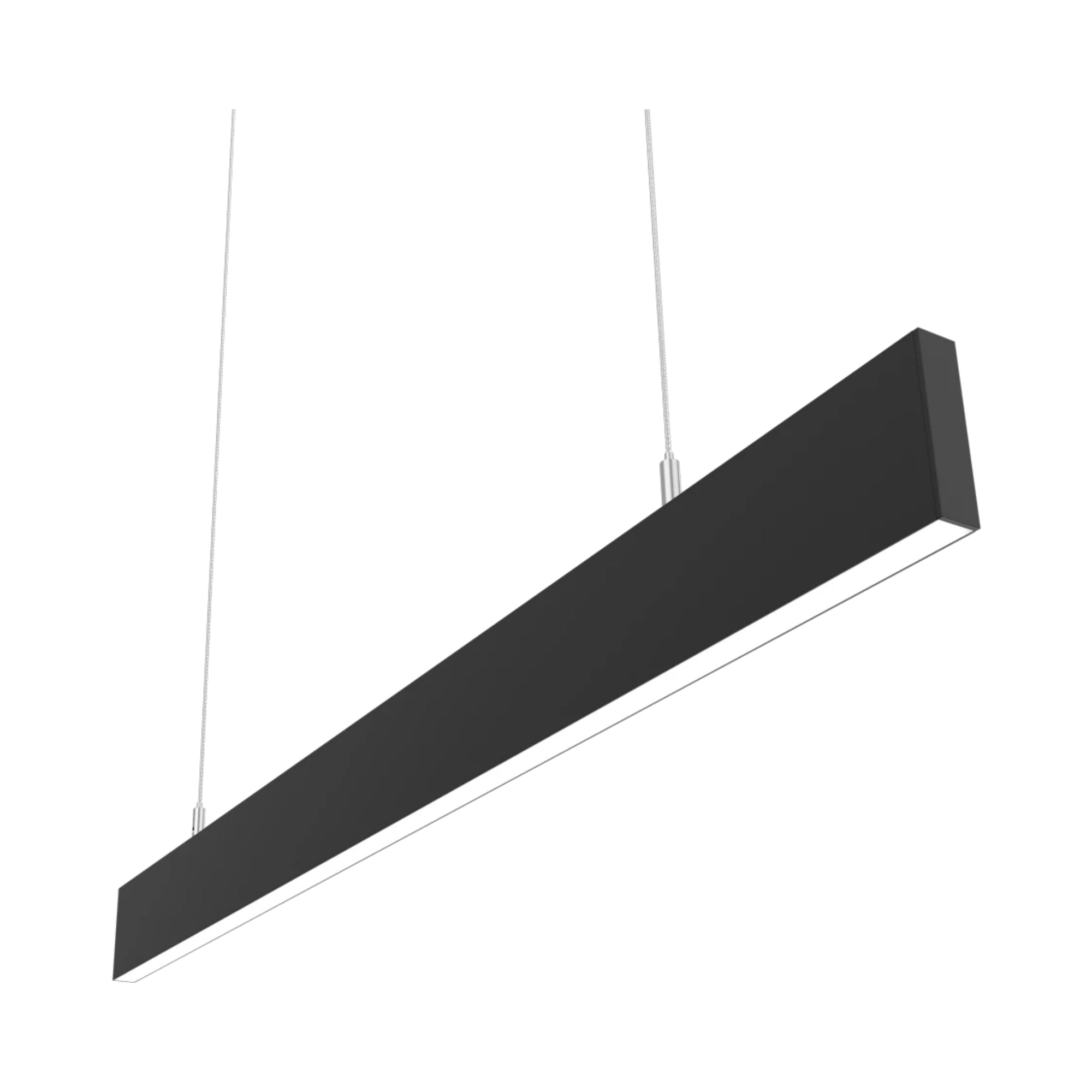

RAB BOAE3PB 3 ft Edge Linear Light 30W 4057 Lumens Selectable CCT 120-277V Black
In stock
About this item
About this item
- Lumens: Delivers up to 4057 lumens for optimal illumination in various settings.
- Wattage: Field adjustable wattage from 9W to 30W for customizable energy consumption.
- Voltage: Operates on a versatile 120-277V input, suitable for multiple applications.
- Dimmable: Supports 0-10V dimming, allowing for precise light level adjustments.
- Color Temperature: Selectable CCT options of 3000K, 3500K, and 4000K for tailored ambiance.
We process payments securely and do not store credit card information.
Description
Description
BOA Edge Field Adjustable Linear Light — 30W Configuration
The BOA Edge BOAE3PB is a versatile linear light offering 30W power, delivering up to 4057 lumens with selectable color temperatures of 3000K, 3500K, and 4000K. It operates on 120-277V and is suitable for damp locations, making it ideal for various indoor applications.
Key Features
- Field Adjustability: Offers adjustable wattage settings of 30/21/18/15/9W for flexible energy use.
- Color Temperature Options: Selectable CCT of 3000K, 3500K, and 4000K to match different lighting needs.
- High CRI: Provides a color rendering index of 93-95 for accurate color representation.
- Long Lifespan: Designed for 100,000 hours of operation, ensuring longevity and reliability.
- Dimming Capability: Compatible with 0-10V dimming systems for adjustable brightness levels.
- Surge Protection: Equipped with 1 kV L-L and 2 kV L/N-G surge protection for enhanced safety.
- Durable Construction: Made with sheet metal and extruded aluminum housing for robust performance.
- IP Rating: Rated IP20, suitable for indoor use in damp environments.
- Continuous Runs: Can be connected end-to-end for continuous illumination up to 600W.
- Green Technology: Mercury and UV free, complying with RoHS standards.
Typical Applications
- Offices
- Retail Spaces
- Educational Facilities
- Healthcare Environments
- Hospitality Venues
Performance & Light Output
This fixture provides a high efficacy range of 128-141.1 lm/W, ensuring efficient light output with a CRI of 93-95. It is designed for a long lifespan of 100,000 hours, maintaining consistent performance over time.
Electrical & Controls
The BOAE3PB operates on a wide voltage range of 120-277V and includes a dimming driver for 0-10V systems, allowing for light level customization. It features surge protection for added electrical safety.
Construction & Durability
Constructed with durable sheet metal and extruded aluminum, this fixture is designed to withstand up to 104°F (40°C) ambient temperatures. It includes a frosted polycarbonate lens and is IP20 rated for indoor use.
Installation & Mounting
Comes with 94 inches of aircraft cable and cable grippers for easy installation and adjustment. Supports continuous runs for extended lighting applications.
What's Included
- Aircraft cable with cable grippers
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
