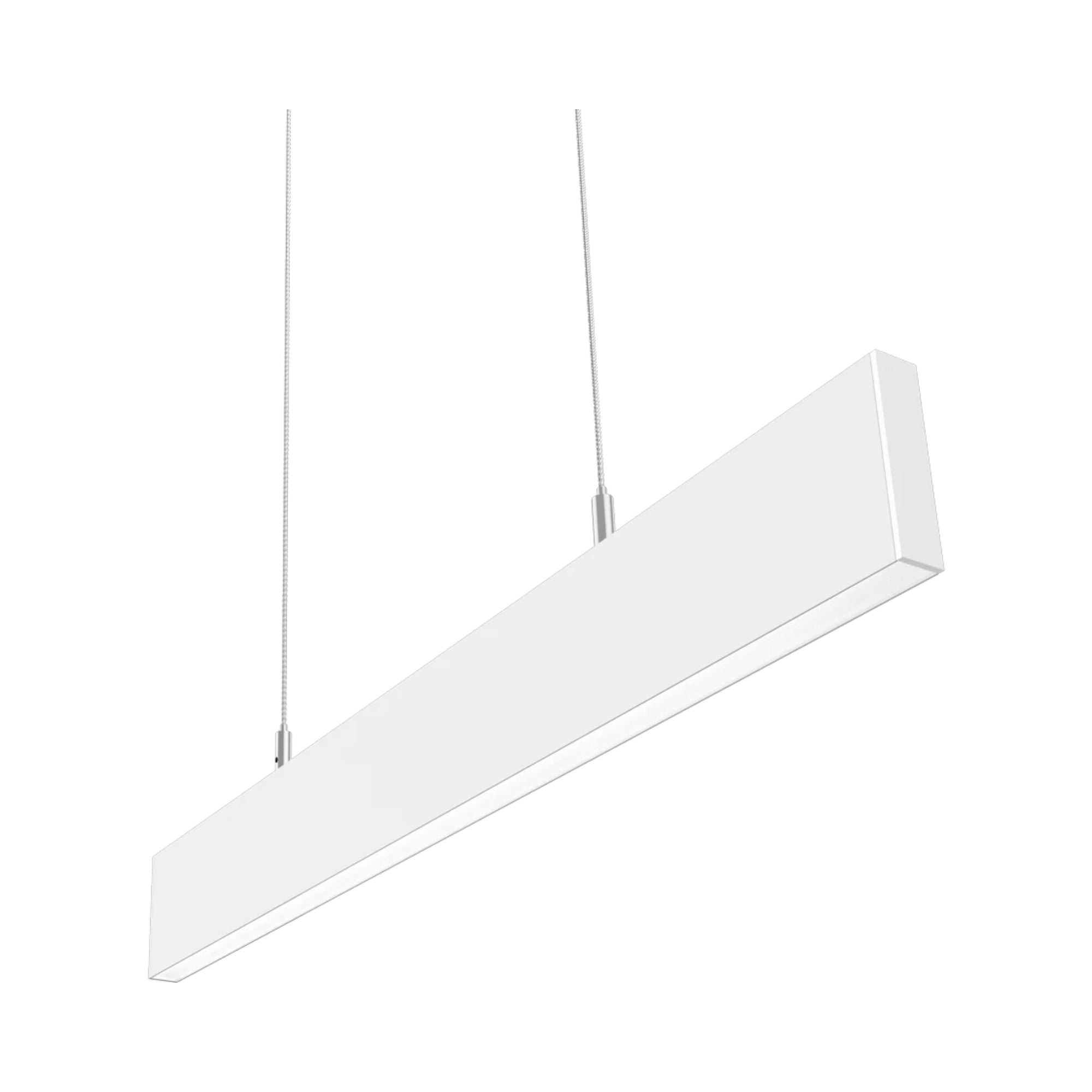

RAB BOAE2PW 2 ft Edge Linear Light 20W 2647 Lumens Selectable CCT 120-277V White
In stock
About this item
About this item
- Lumens: Delivers up to 2647 lumens for bright illumination.
- Wattage: Field adjustable wattage options from 6W to 20W.
- Color Temperature: Selectable CCT of 3000K, 3500K, and 4000K for versatile lighting.
- Dimming: Compatible with 0-10V dimming systems for customizable light levels.
- Durability: Constructed with sheet metal and extruded aluminum for long-lasting use.
We process payments securely and do not store credit card information.
Description
Description
RAB BOA Edge Field Adjustable Linear Light — 20W Configuration
The RAB BOAE2PW is a linear light fixture offering 20W power consumption, delivering up to 2647 lumens with selectable color temperatures of 3000K, 3500K, and 4000K. It operates on a 120-277V input, making it suitable for various lighting applications. This fixture is damp rated and compliant with UL standards.
Key Features
- Field Adjustability: Offers adjustable wattage settings of 20/14/12/10/6W for tailored light output.
- Selectable CCT: Choose between 3000K, 3500K, and 4000K to suit different environments.
- High CRI: Provides a color rendering index of 93-95 for accurate color representation.
- Long Lifespan: Designed to last 100,000 hours based on IES LM-80 and TM-21 standards.
- IP20 Rated: Suitable for indoor use in damp locations.
- Surge Protection: Equipped with 1 kV L-L and 2 kV L/N-G surge protection.
- Dimming Capability: Supports 0-10V dimming down to 10% for flexible lighting control.
- Continuous Runs: Can be connected in series up to 600W for extended illumination.
- Construction: Built with durable sheet metal and extruded aluminum housing.
- Lens: Features a frosted polycarbonate lens for even light distribution.
Typical Applications
- Offices
- Retail Spaces
- Educational Facilities
- Healthcare Environments
- Hospitality Venues
Performance & Light Output
This fixture provides up to 2647 lumens with an efficacy range of 111.7-132.7 lm/W. It maintains a high CRI of 93-95, ensuring excellent color accuracy and consistency.
Electrical & Controls
The BOAE2PW operates on a 120-277V input and includes a dimming driver compatible with 0-10V systems. It features surge protection of 1 kV L-L and 2 kV L/N-G.
Construction & Durability
Constructed with sheet metal and extruded aluminum, this fixture is designed for durability. It includes a frosted polycarbonate lens and is IP20 rated for damp locations.
Installation & Mounting
Comes with 94 inches of aircraft cable and cable grippers for easy installation and adjustment. Supports continuous runs up to 600W.
What's Included
- BOAE2PW Linear Light Fixture
- 94 in. Aircraft Cable
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage range for the RAB BOAE2PW linear light?
What is the wattage range for the RAB BOAE2PW linear light?
Is the RAB BOAE2PW suitable for damp locations?
Is the RAB BOAE2PW suitable for damp locations?
Can the RAB BOAE2PW be dimmed?
Can the RAB BOAE2PW be dimmed?
What is the lifespan of the RAB BOAE2PW linear light?
What is the lifespan of the RAB BOAE2PW linear light?
What mounting options are available for the RAB BOAE2PW?
What mounting options are available for the RAB BOAE2PW?
