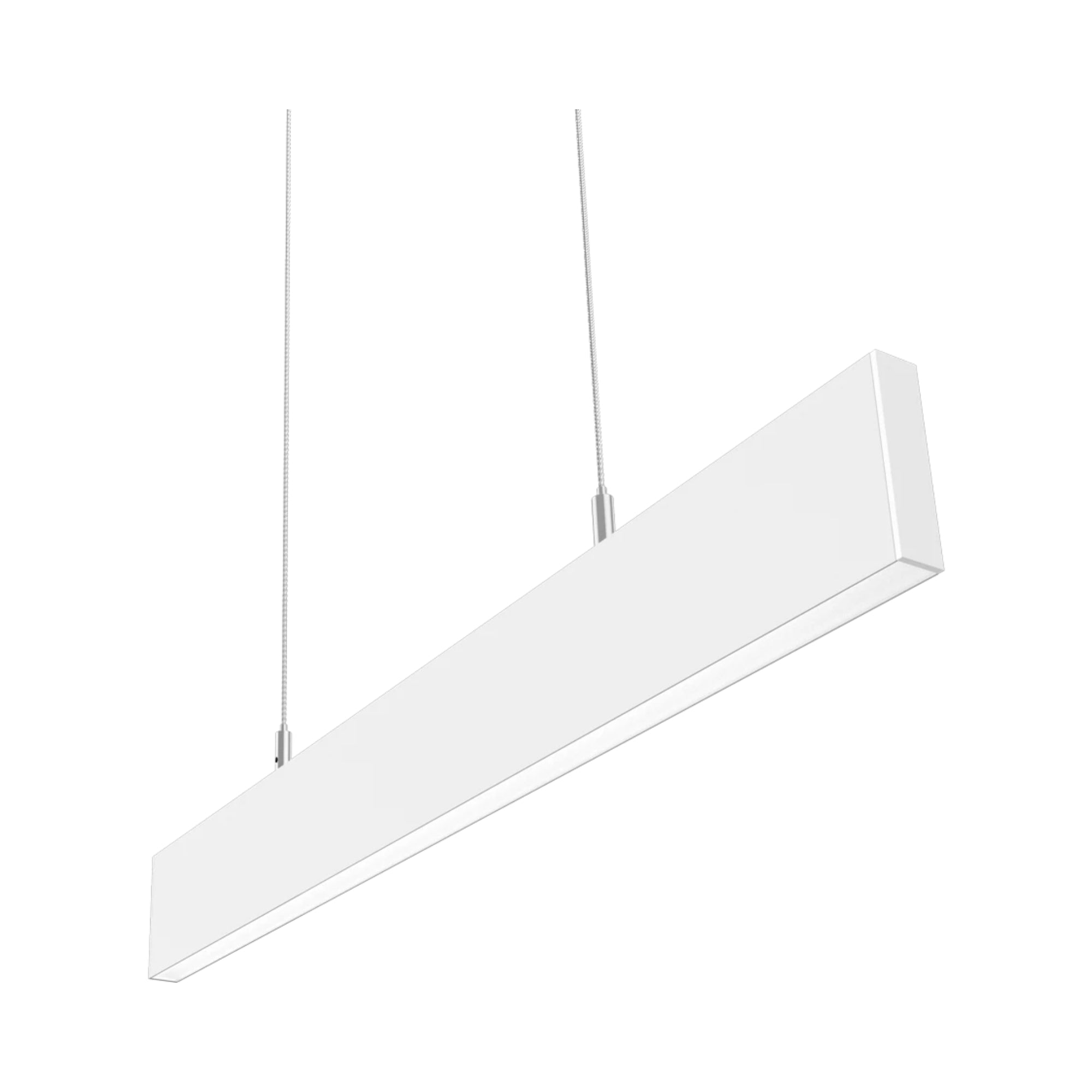

RAB BOAE2PUW 2 ft Edge Linear Light 20W 2783 Lumens Selectable CCT 120-277V White
In stock
About this item
About this item
- Lumens: Delivers up to 2783 lumens for efficient illumination.
- Wattage: Operates at 20 watts with field-adjustable output for flexibility.
- Color Temperature: Selectable CCT options of 3000K, 3500K, and 4000K for varied lighting needs.
- Dimming: Compatible with 0-10V dimming systems, allowing for precise light control.
- Voltage: Supports a wide input voltage range of 120-277V for diverse installations.
We process payments securely and do not store credit card information.
Description
Description
BOA Edge Field Adjustable Linear Light — 20W Configuration
The BOA Edge Field Adjustable Linear Light, MPN BOAE2PUW, is a versatile lighting solution offering 20 watts of power and up to 2783 lumens. It supports 120-277V input and features selectable CCT options of 3000K, 3500K, and 4000K, making it suitable for various lighting applications. This fixture is damp rated and UL listed, ensuring compliance with industry standards.
Key Features
- Field Adjustability: Offers adjustable light output with five power presets for customized illumination.
- Color Accuracy: High CRI of 93-94 ensures excellent color rendering for accurate visual representation.
- Lifespan: Designed for longevity with a 100,000-hour LED lifespan based on IES LM-80 results.
- Construction: Built with sheet metal and extruded aluminum for durability and a frosted polycarbonate lens for even light distribution.
- Surge Protection: Equipped with 1 kV L-L and 2 kV L/N-G surge protection for enhanced reliability.
- Continuous Runs: Capable of connecting multiple fixtures up to 600W for seamless continuous illumination.
- Green Technology: Mercury and UV free, complying with RoHS standards for environmental safety.
- Mounting: Includes 94 inches of aircraft cable with cable grippers for easy installation and adjustment.
Typical Applications
- Offices
- Retail Spaces
- Educational Facilities
- Healthcare Environments
- Hospitality Venues
Performance & Light Output
This fixture provides up to 2783 lumens with an efficacy of 131.8-142.7 lm/W, ensuring high efficiency. It maintains a high CRI of 93-94 for superior color rendering and has a long lifespan of 100,000 hours.
Electrical & Controls
The BOA Edge Linear Light operates on 120-277V and includes a dimming driver compatible with 0-10V systems, allowing dimming down to 10%. It features surge protection for added safety.
Construction & Durability
Constructed with durable sheet metal and extruded aluminum, this fixture is designed to withstand various conditions. It includes a frosted polycarbonate lens and is suitable for use in temperatures ranging from -4°F to 104°F.
Installation & Mounting
Installation is facilitated by 94 inches of aircraft cable with cable grippers, allowing for easy adjustment. It supports continuous runs for extended lighting applications.
What's Included
- Aircraft cable with cable grippers
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the BOA BOAE2PUW Linear Light?
What is the wattage of the BOA BOAE2PUW Linear Light?
Is the BOA BOAE2PUW Linear Light dimmable?
Is the BOA BOAE2PUW Linear Light dimmable?
What color temperatures are available for the BOA BOAE2PUW?
What color temperatures are available for the BOA BOAE2PUW?
What is the lifespan of the BOA BOAE2PUW Linear Light?
What is the lifespan of the BOA BOAE2PUW Linear Light?
How is the BOA BOAE2PUW Linear Light installed?
How is the BOA BOAE2PUW Linear Light installed?
