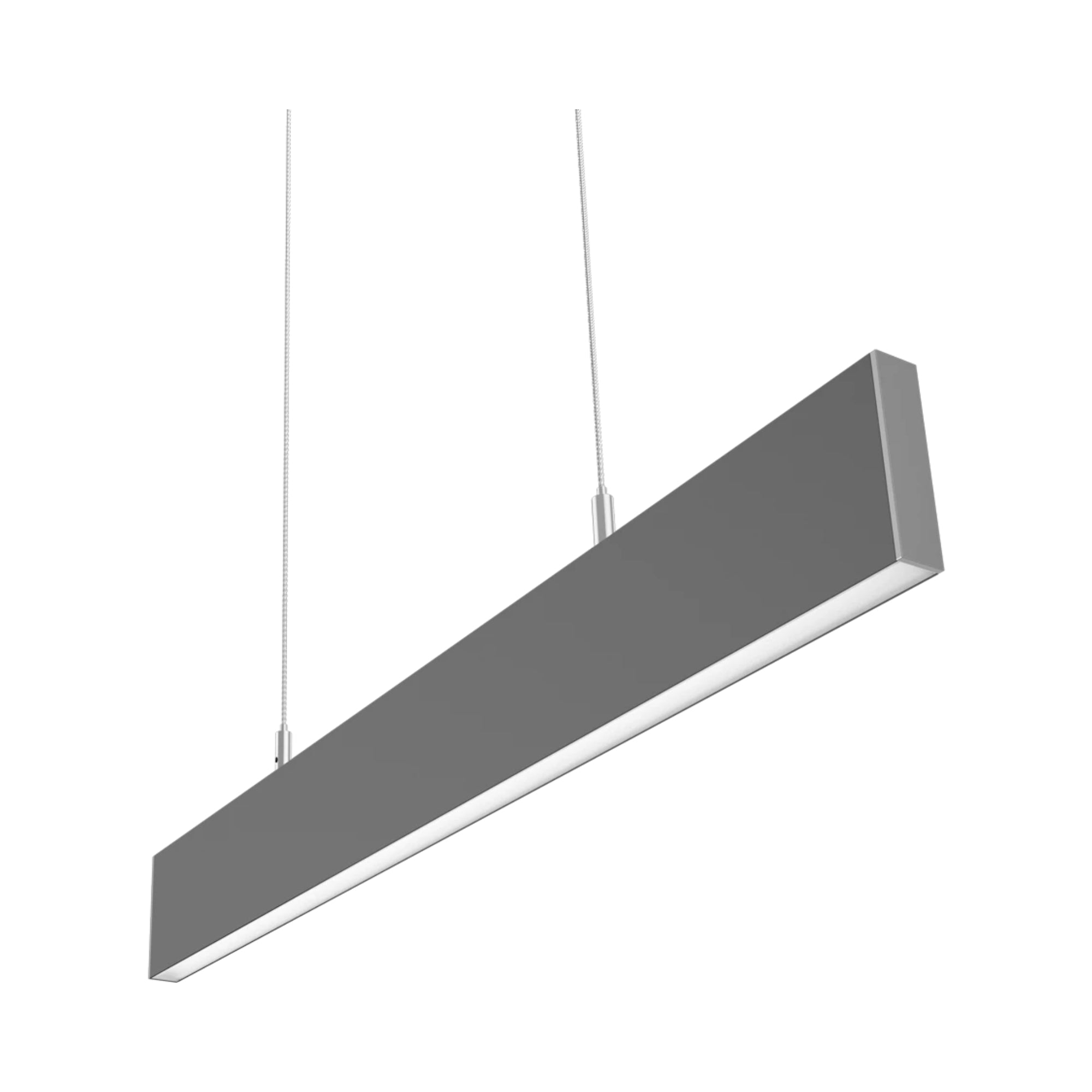

RAB BOAE2PUS 2 ft Edge Linear Light 20W 2783 Lumens Selectable CCT 120-277V Silver
In stock
About this item
About this item
- Lumens: Delivers up to 2783 lumens for efficient lighting.
- Wattage: Operates at 20 watts, adjustable for energy savings.
- Voltage: Compatible with 120-277V systems for flexible installation.
- Dimmable: Features 0-10V dimming for customizable light levels.
- CRI: High color rendering index of 90+ for accurate color representation.
We process payments securely and do not store credit card information.
Description
Description
RAB BOA Edge Field Adjustable Linear Light — 20W Configuration
The RAB BOAE2PUS is a versatile linear light offering 2783 lumens with a selectable 3000K, 3500K, or 4000K CCT. Operating at 20 watts and supporting 120-277V input, this fixture is ideal for various lighting applications. It is UL Listed for damp locations and features a 5-year warranty.
Key Features
- Field Adjustability: Offers selectable wattage and CCT for tailored lighting solutions.
- Driver Info: Constant current driver with 0-10V dimming capability.
- Surge Protection: Equipped with 1 kV L-L and 2 kV L/N-G surge protection.
- LED Lifespan: Rated for 100,000 hours based on IES LM-80 results.
- Construction: Made from sheet metal and extruded aluminum for durability.
- Lens: Frosted polycarbonate lens for even light distribution.
- Mounting: Includes 94 inches of aircraft cable for easy installation.
- Continuous Runs: Connect multiple fixtures up to 600W for seamless illumination.
- Green Technology: Mercury and UV free, RoHS-compliant components.
- Temperature Range: Operates in temperatures from -4°F to 104°F.
Typical Applications
- Office Spaces
- Retail Environments
- Educational Facilities
- Healthcare Settings
- Hospitality Venues
Performance & Light Output
This fixture provides a luminous efficacy of 131.8-142.7 lm/W and a CRI of 93-94, ensuring high-quality light output with excellent color accuracy. The L70 lifespan is rated at 100,000 hours.
Electrical & Controls
Designed for 120-277V systems, the fixture includes a dimming driver for 0-10V dimming, allowing for light level adjustments down to 10%. It also features surge protection for enhanced reliability.
Construction & Durability
Constructed with a robust housing of sheet metal and extruded aluminum, the fixture is suitable for damp locations and features an IP20 rating. It is designed to operate in ambient temperatures up to 104°F.
Installation & Mounting
The fixture comes with 94 inches of aircraft cable and cable grippers for straightforward installation and adjustment. It supports continuous runs for extended lighting applications.
What's Included
- Aircraft Cable
- Cable Grippers
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the RAB BOAE2PUS Linear Light?
What is the wattage of the RAB BOAE2PUS Linear Light?
Is the RAB BOAE2PUS suitable for damp locations?
Is the RAB BOAE2PUS suitable for damp locations?
Does the RAB BOAE2PUS support dimming?
Does the RAB BOAE2PUS support dimming?
What is the lifespan of the LEDs in the RAB BOAE2PUS?
What is the lifespan of the LEDs in the RAB BOAE2PUS?
Can the RAB BOAE2PUS be used in continuous runs?
Can the RAB BOAE2PUS be used in continuous runs?
