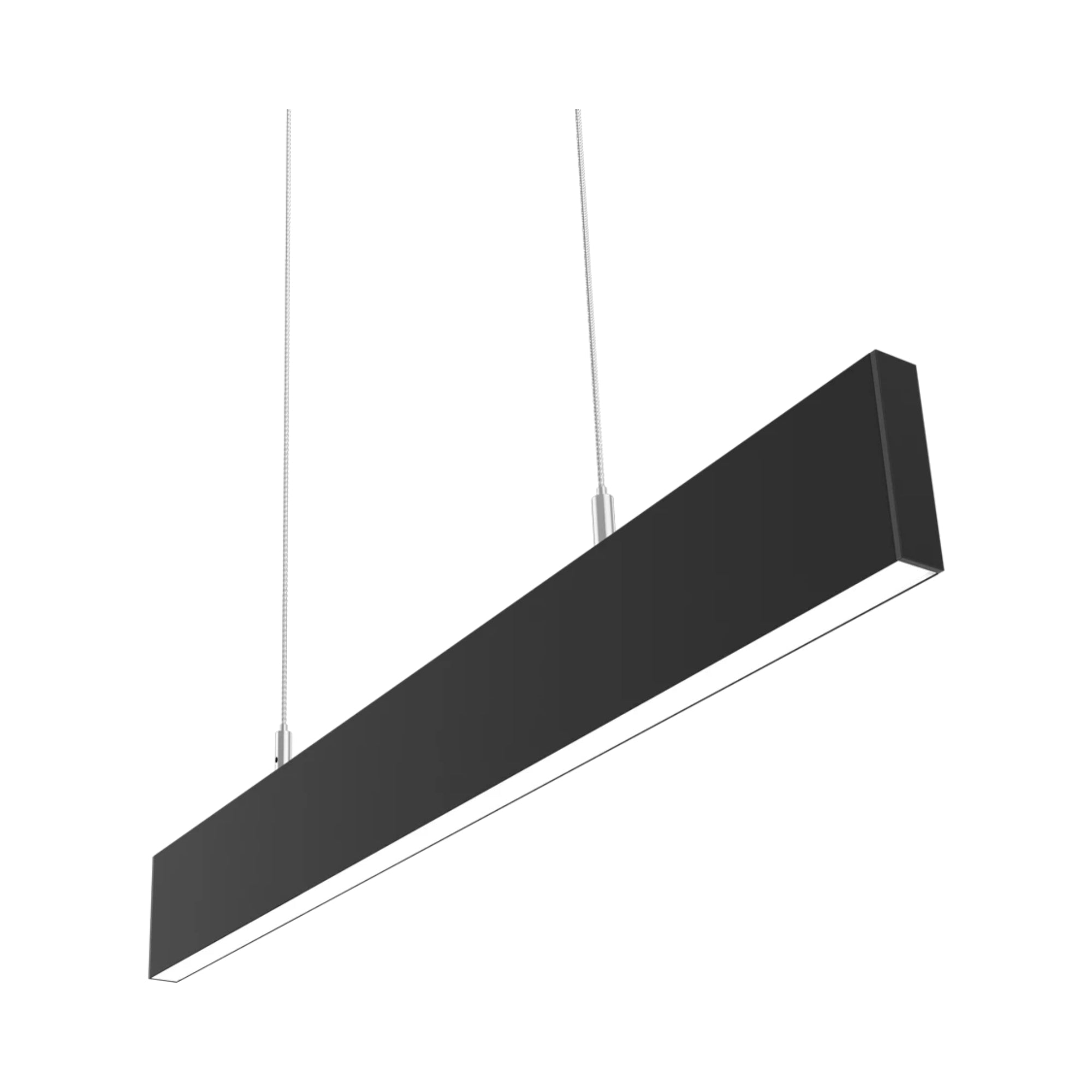

RAB BOAE2PUB 2 ft Edge Linear Light 20W 2783 Lumens Selectable CCT 120-277V Black
In stock
About this item
About this item
- Lumens: Delivers up to 2783 lumens for effective illumination.
- Wattage: Operates at 20 watts with field-adjustable light output options.
- Color Temperature: Features selectable CCT of 3000K, 3500K, and 4000K for versatile lighting needs.
- Dimming: Includes 0-10V dimming capability, allowing for precise light level control.
- Mounting: Comes with 94 inches of aircraft cable for flexible installation.
We process payments securely and do not store credit card information.
Description
Description
RAB BOA Edge Field Adjustable Linear Light — 20W Configuration
The RAB BOAE2PUB is a linear light fixture offering 20 watts of power and delivering up to 2783 lumens. It operates on 120-277V and features selectable color temperatures of 3000K, 3500K, and 4000K. This fixture is suitable for damp locations and complies with UL standards.
Key Features
- Field Adjustability: Offers field-adjustable light output with multiple power presets for uplight and downlight configurations.
- Color Accuracy: Provides a high CRI of 93-94 for excellent color rendering.
- Lifespan: Designed with a 100,000-hour LED lifespan for long-term reliability.
- Surge Protection: Equipped with 1 kV L-L and 2 kV L/N-G surge protection.
- Construction: Built with sheet metal and extruded aluminum housing for durability.
- Lens: Features a frosted polycarbonate lens for even light distribution.
- Continuous Runs: Capable of connecting multiple fixtures for continuous illumination up to 600W.
- Green Technology: Mercury and UV-free, complying with RoHS standards.
- Cold Weather Starting: Operates in temperatures as low as -4°F (-20°C).
- Warranty: Backed by a 5-year limited warranty covering light output and driver performance.
Typical Applications
- Offices
- Retail Spaces
- Educational Facilities
- Healthcare Environments
- Hospitality Venues
Performance & Light Output
This fixture delivers between 2656 and 2783 lumens with an efficacy of 131.8 to 142.7 lm/W, ensuring efficient lighting with a high CRI for accurate color representation.
Electrical & Controls
Operates on a voltage range of 120-277V with a constant current driver. Supports 0-10V dimming down to 10% and includes surge protection.
Construction & Durability
Constructed with durable materials including a frosted polycarbonate lens and aluminum housing. Rated for damp locations with an IP20 rating.
Installation & Mounting
Includes 94 inches of aircraft cable with cable grippers for easy installation and adjustment. Supports continuous runs for extended lighting solutions.
What's Included
- 94 inches of aircraft cable
- Cable grippers
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the RAB BOAE2PUB linear light?
What is the wattage of the RAB BOAE2PUB linear light?
Is the RAB BOAE2PUB suitable for damp locations?
Is the RAB BOAE2PUB suitable for damp locations?
What color temperatures are available for the RAB BOAE2PUB?
What color temperatures are available for the RAB BOAE2PUB?
Does the RAB BOAE2PUB support dimming?
Does the RAB BOAE2PUB support dimming?
What is the lifespan of the RAB BOAE2PUB LED fixture?
What is the lifespan of the RAB BOAE2PUB LED fixture?
