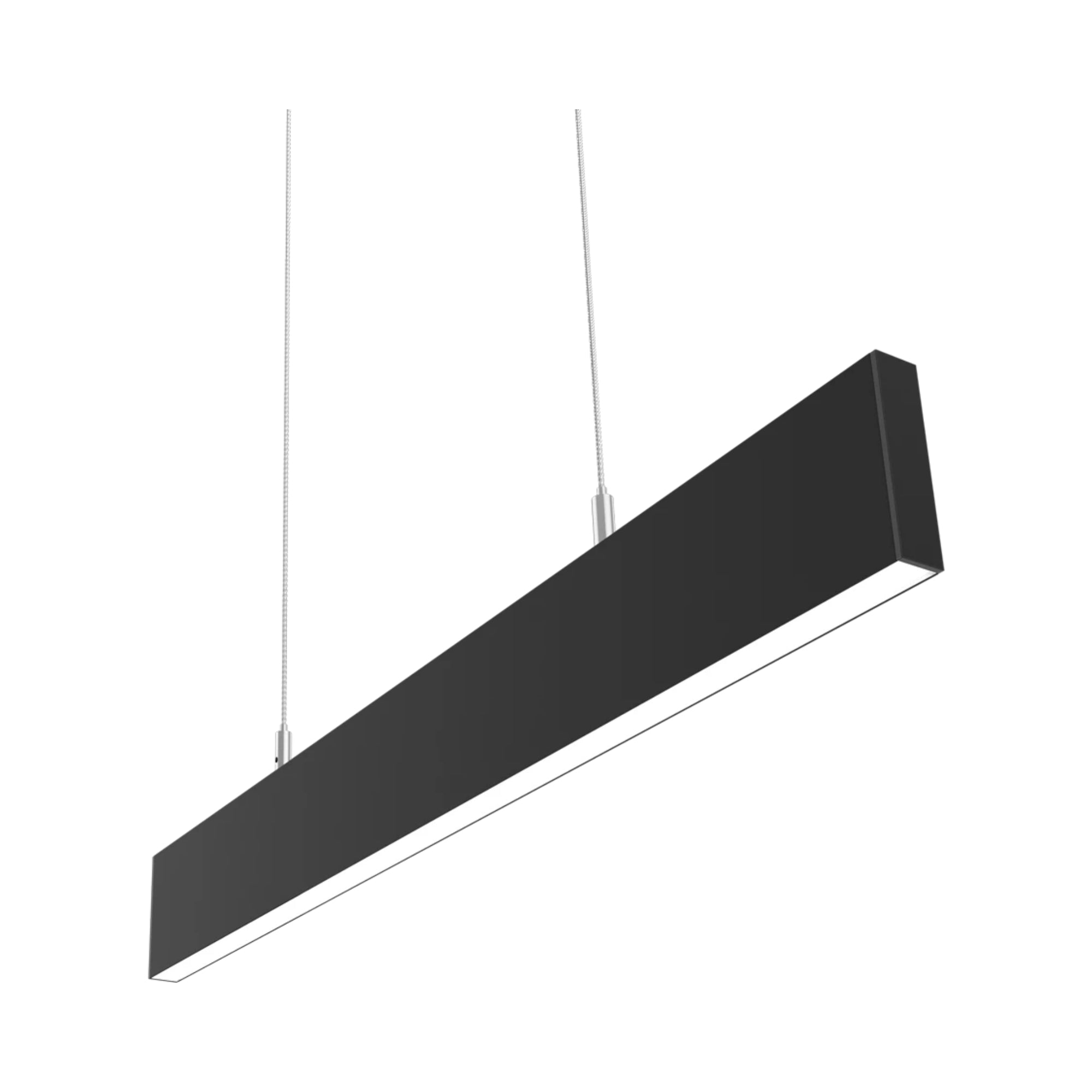

BOA Edge Field Adjustable Linear Light — 20W Configuration

The BOA Edge BOAE2PB is a versatile linear light offering 20W power, delivering up to 2647 lumens with selectable 3000K, 3500K, and 4000K color temperatures. Designed for 120-277V input, this fixture is ideal for various lighting applications, ensuring compliance with UL standards for damp locations.

Key Features

• Field Adjustability: Offers adjustable wattage settings of 20/14/12/10/6W to meet diverse lighting needs.
• Color Temperature Options: Select from 3000K, 3500K, and 4000K for tailored ambiance.
• High Efficacy: Achieves an efficacy range of 111.7-132.7 lm/W for energy-efficient performance.
• Long Lifespan: Engineered for a 100,000-hour LED lifespan, ensuring longevity and reliability.
• Dimming Capability: Integrates with 0-10V dimming systems, supporting dimming down to 10%.
• Surge Protection: Equipped with 1 kV L-L and 2kV L/N-G surge protection for enhanced safety.
• Construction: Built with durable sheet metal and extruded aluminum housing.
• Lens Material: Features a frosted polycarbonate lens for uniform light distribution.
• Continuous Runs: Capable of connecting multiple fixtures for continuous illumination up to 600W.
• Environmental Compliance: RoHS-compliant and free from mercury and UV emissions.

Typical Applications

• Offices
• Retail Spaces
• Educational Facilities
• Healthcare Environments
• Hospitality Venues

Performance & Light Output

This fixture provides a high lumen output of up to 2647 lumens with a CRI of 93-95, ensuring excellent color rendering. The efficacy ranges from 111.7 to 132.7 lm/W, supporting energy-efficient lighting solutions.

Electrical & Controls

Designed for 120-277V input, the BOAE2PB includes a constant current driver with 0-10V dimming capability. It supports dimming down to 10% and includes surge protection for enhanced reliability.

Construction & Durability

Constructed with sheet metal and extruded aluminum, this fixture is built to withstand up to 104°F (40°C) ambient temperatures. The IP20 rating ensures suitability for damp locations.

Installation & Mounting

Comes with 94 inches of aircraft cable and cable grippers for easy installation and adjustment. Supports continuous runs for extended lighting applications.

What's Included

• BOA Edge Field Adjustable Linear Light Fixture
• 94 inches of Aircraft Cable
