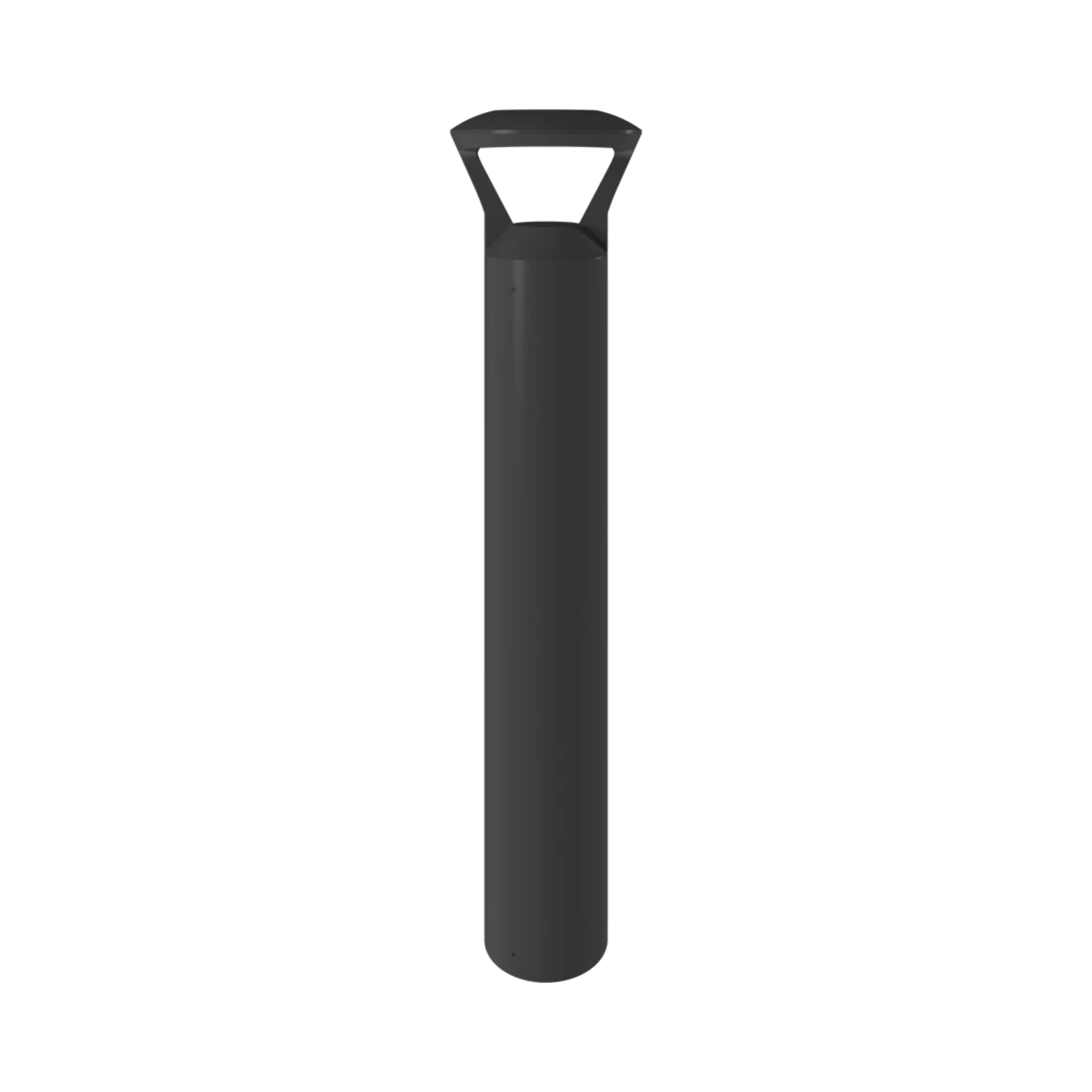

RAB B17 Y-Hat Round Bollard — 24W Selectable Configuration

The RAB B17H is a versatile field-adjustable bollard engineered to provide secure pathway illumination for commercial outdoor landscapes. Operating at a selectable 14W, 19W, or 24W to produce up to 3,591 lumens, this fixture utilizes a universal 120-277V input. Designed for ultimate application flexibility, it features adjustable color temperatures and an integrated photocell to meet precise compliance standards across diverse pedestrian walkways and plazas.

Key Features

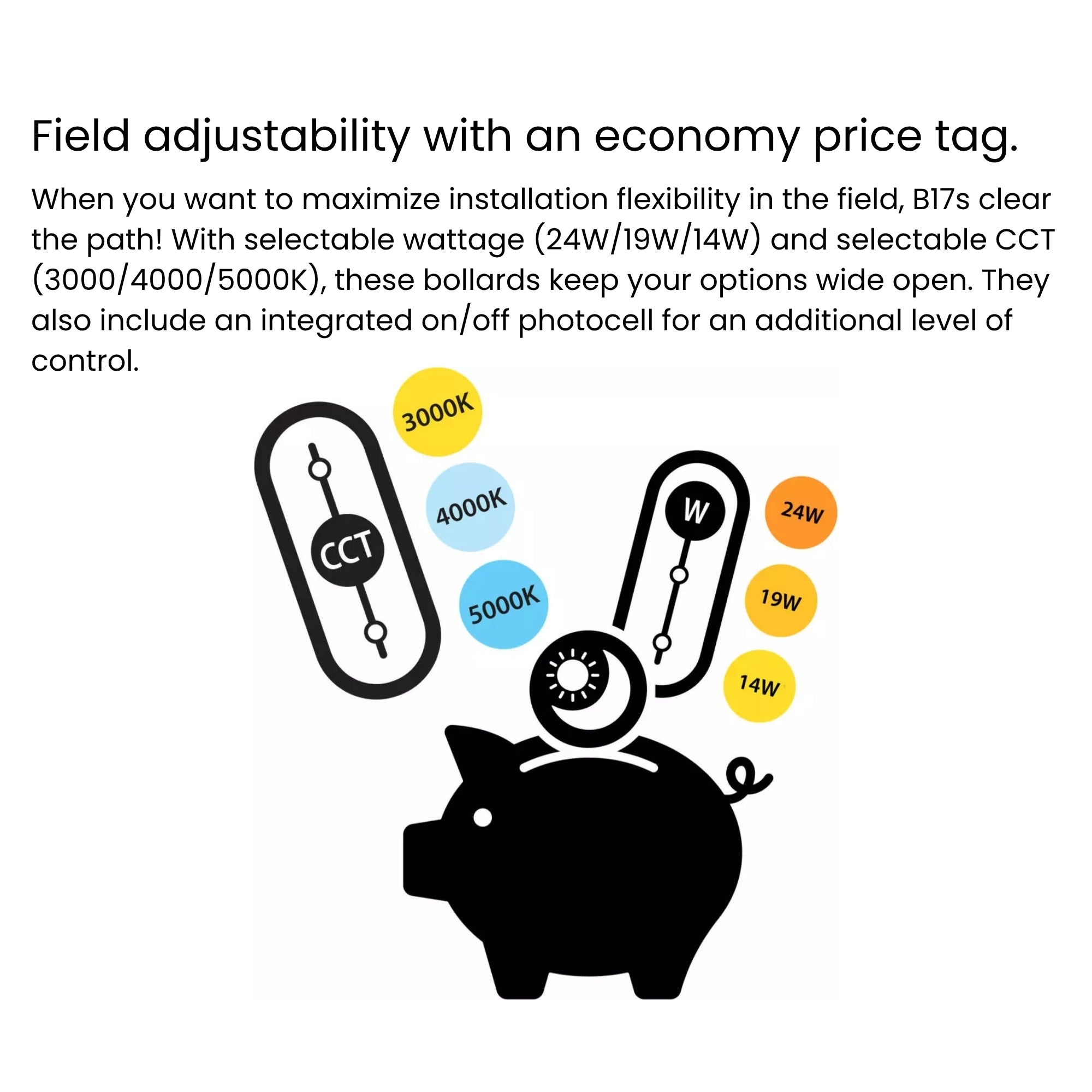

• Power Consumption: Field-adjustable between 14W, 19W, and 24W (default 24W).
• Color Temperature: Selectable 3000K, 4000K, and 5000K (default 4000K).
• Lumen Output: Scales up to 3,591 lumens at the maximum wattage setting.
• Input Voltage: Universal 120-277V 50/60Hz operation.
• Dimming Protocol: Standard 0-10V continuous dimming down to 10%.
• Integrated Controls: Built-in on/off photocell with a dedicated disable switch.
• Environmental Ratings: IP65 rated for complete protection against dust and water ingress.
• Optical Distribution: 360-degree uniform circular light pattern.
• Lifespan: 50,000-hour rated LED operational life.
• Operating Temperature: Reliable performance in extreme cold down to -40°F (-40°C).

Typical Applications

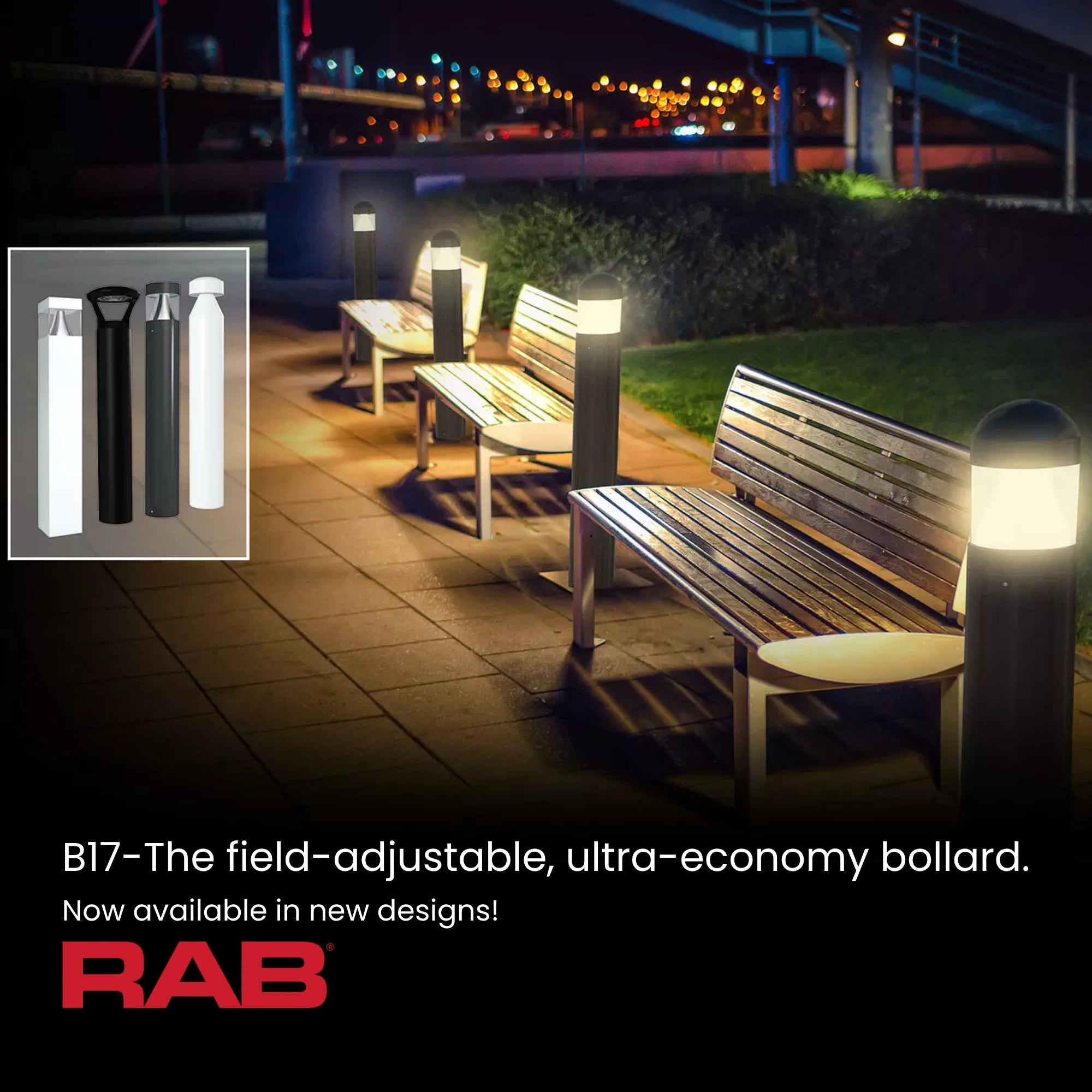

• Corporate campus pedestrian pathways and walkways.
• Municipal parks and open public plazas.
• Commercial building perimeters and entrances.
• Retail center exterior promenades.
• Healthcare facility and hospital grounds.

Performance & Light Output

Engineered for exceptional adaptability, this Y-Hat round bollard provides scalable illumination up to 3,591 lumens with a high efficacy reaching up to 154.1 lm/W. The integrated optic system provides a uniform 360-degree circular light distribution, ensuring wide and even coverage across pathways without producing harsh upward glare. With selectable 3000K, 4000K, and 5000K color temperatures and a dependable 70+ CRI, it guarantees high-visibility lighting tailored to the specific outdoor environment. The advanced surface-mount LEDs maintain consistent lumen output, offering a 50,000-hour rated lifespan.

Electrical & Controls

The luminaire is equipped with a high-performance 120-277V universal driver that provides reliable constant-current power regulation across standard commercial grids. It features standard 0-10V dimming capability, allowing it to dim down to 10% when paired with compatible energy management systems. For advanced automated lighting control, this fixture comes standard with an integrated on/off dusk-to-dawn photocell, which can be easily disabled via a field-adjustable switch if centralized control is preferred.

Construction & Durability

Housed in a rugged aluminum enclosure with a durable bronze finish, this bollard is built to withstand rigorous outdoor environments and impacts. The internal optical and electrical components are sealed behind a protective lens, earning an IP65 rating for total protection against heavy dust ingress and low-pressure water jets. Designed for all-season reliability, the luminaire functions flawlessly in extreme ambient operating temperatures dropping as low as -40°F (-40°C).

Installation & Mounting

This 42-inch model is designed for secure, permanent installation on concrete pads and standard outdoor structural bases. It includes a heavy-duty mounting baseplate, concealed anchor bolts, and all necessary installation hardware to ensure a rigid, flush-mount attachment. The external switches for wattage, CCT, and the photocell are easily accessible, allowing installers to tweak the fixture on-site without any complex internal wiring adjustments.

What's Included

• RAB Field-Adjustable LED Bollard
• Mounting Baseplate
• Anchor Bolts and Installation Hardware
