RAB Aura AURA-S16 16 in LED Decorative Flush Mount — 25/20/15W / 2700K-5000K

The RAB Aura AURA-S16 is a 16 in round integrated LED decorative surface mount with a white housing and white reflector. Field-adjustable wattage up to 25W and five selectable color temperatures let one fixture match every room, while the integrated reflector delivers smooth, diffused light with minimal glare. Its low-profile architectural look suits contemporary commercial, hospitality, residential and retail environments.

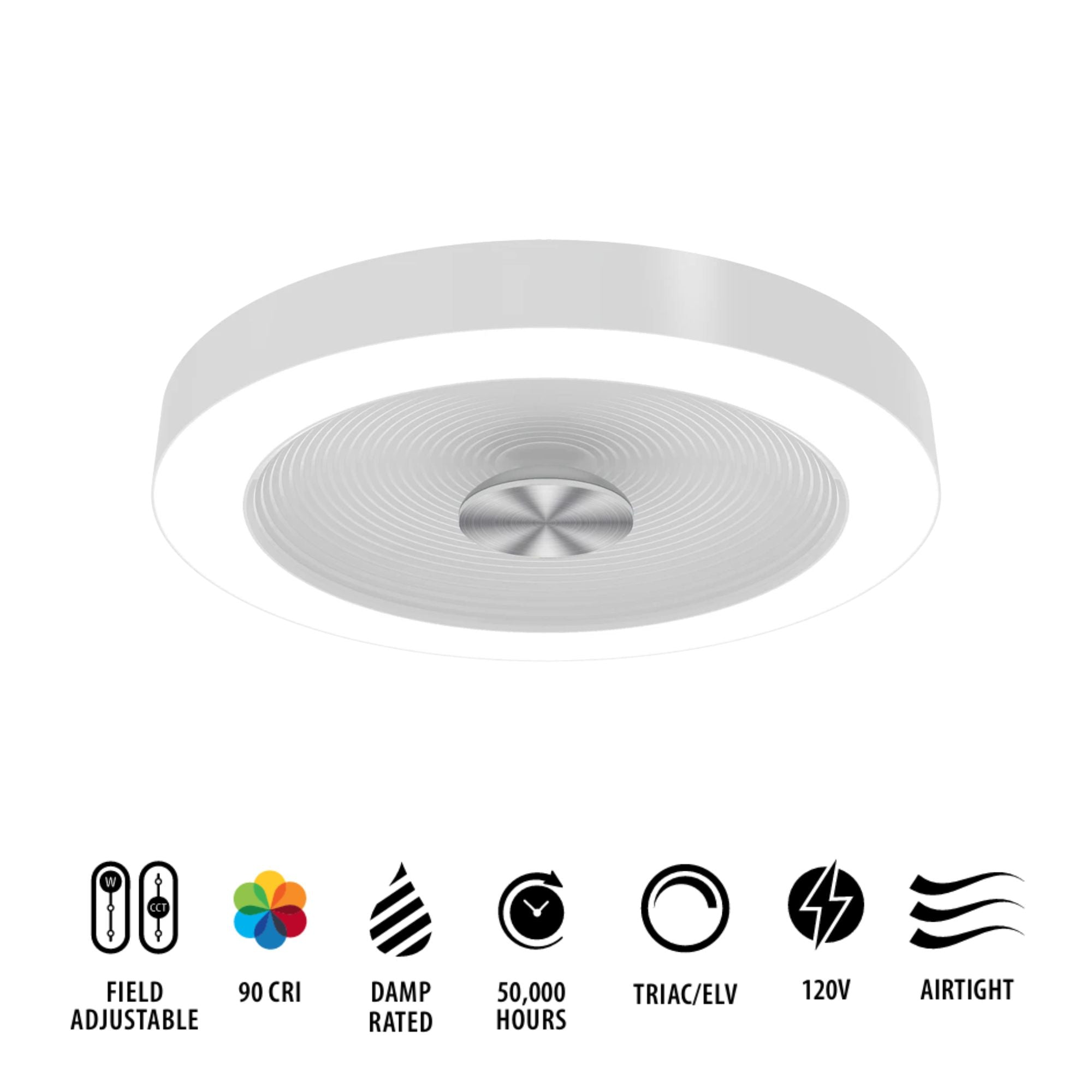

Key Features

• Selectable Wattage: Field-adjustable 25W, 20W or 15W, replacing a 60W incandescent
• Lumen Output: 1,350, 1,200 or 800 nominal lumens at 55 lm/W
• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K via dip switch, 3000K default
• Color Quality: 90 CRI with R9 greater than 0 and 6-step MacAdam Ellipse binning for consistent fixture-to-fixture color
• Beam Angle: Wide 120° (±10°) distribution for even ambient coverage
• Dimming: Dims down to 10% on compatible TRIAC/ELV dimmers
• Driver: Constant Current, Class 2, 120V 50/60Hz, 240mA
• Integrated Reflector: Ribbed reflector design enhances visual comfort while minimizing glare
• AirTight Housing: Certified AirTight per ASTM E283
• Lifespan: 50,000-hour L70 rating based on IES LM-70; color shift warrantied to no more than 200K over 5 years
• Certifications: ETL Listed, California Title 24 JA8 Compliant, FCC Part 15 Compliant, RoHS Compliant
• Warranty: 5-year limited warranty covering light output, driver performance and paint finish

Construction & Design

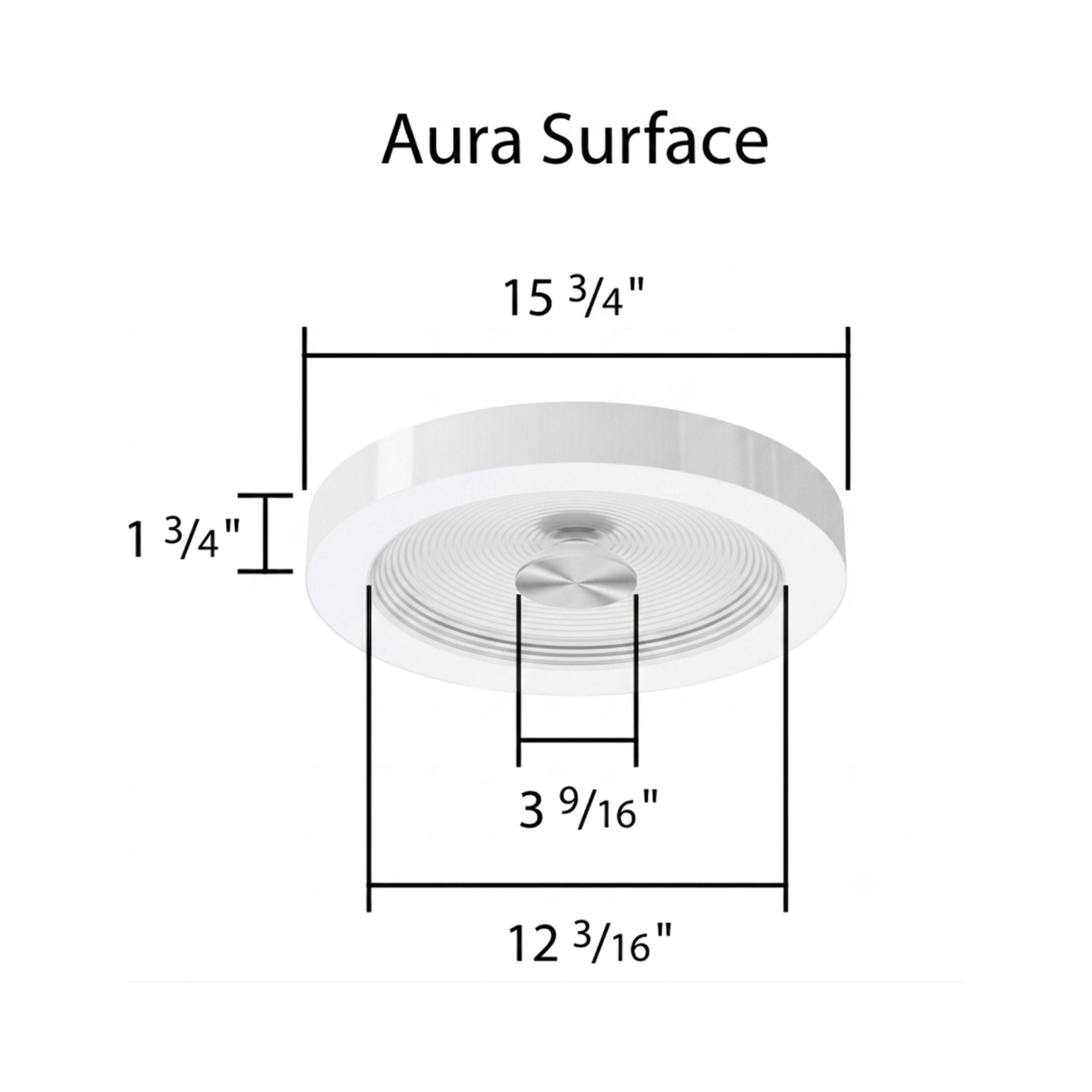

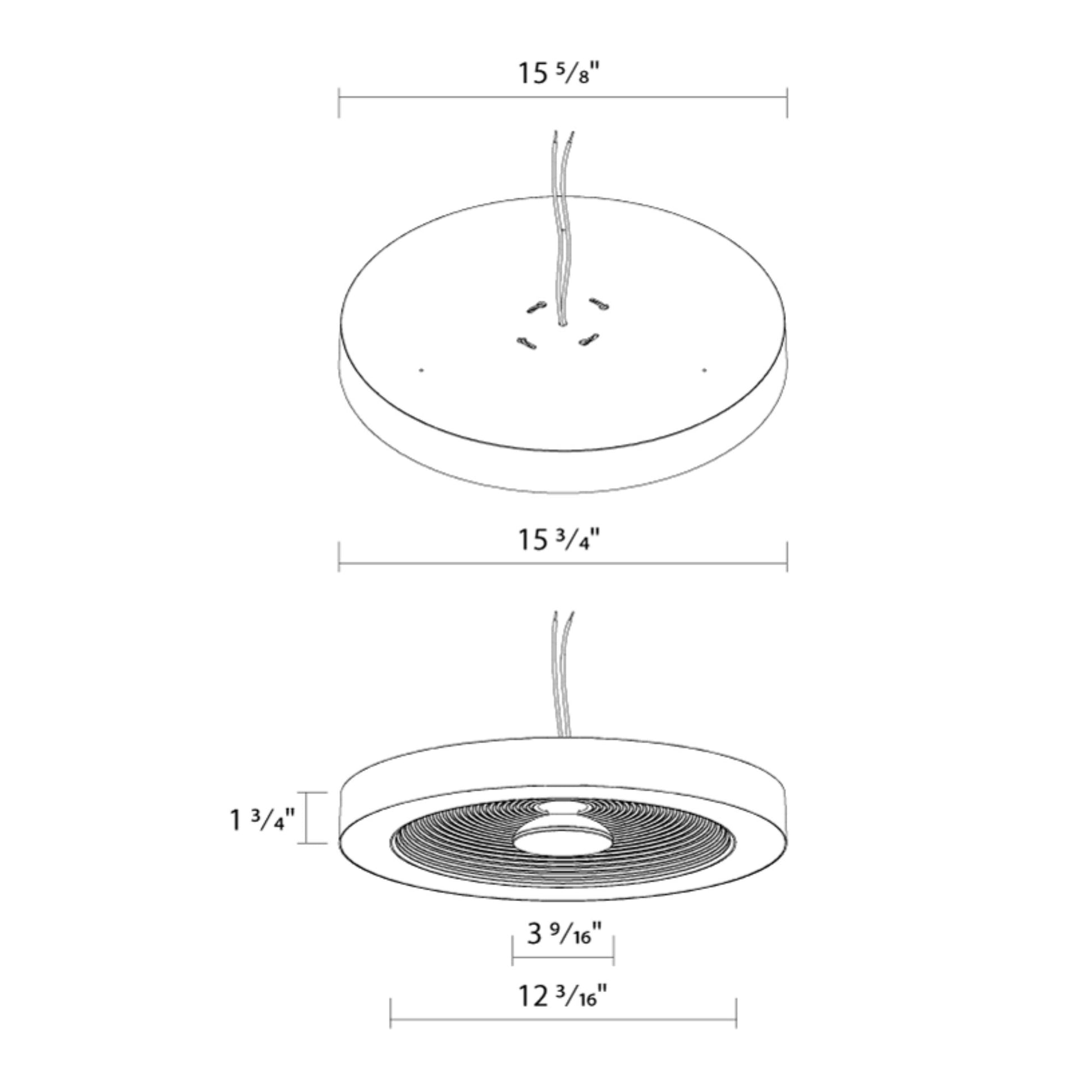

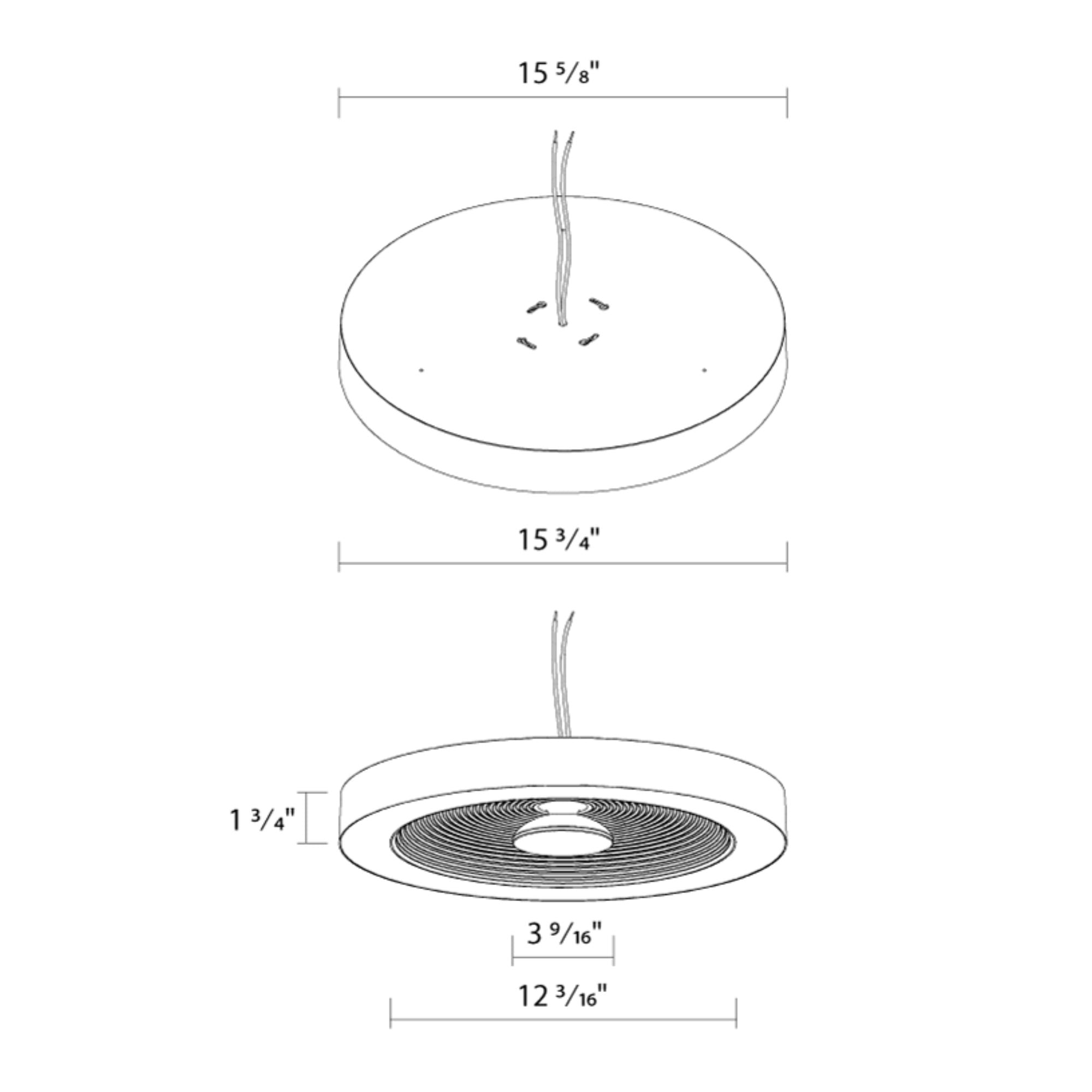

The Aura is built with a durable metal enclosure in a clean round 16 in profile, finished in a white housing with a matching white reflector for a bright, minimalist look. The fixture weighs 3.0 lbs and is suitable for indoor dry locations.

Light Output & Performance

Delivers up to 1,350 lumens at 25W, with 1,200 lumen and 800 lumen settings for lower-output spaces. A 120° beam and 90 CRI provide soft, even, color-accurate light, backed by a 50,000-hour L70 rated life.

Electrical & Installation

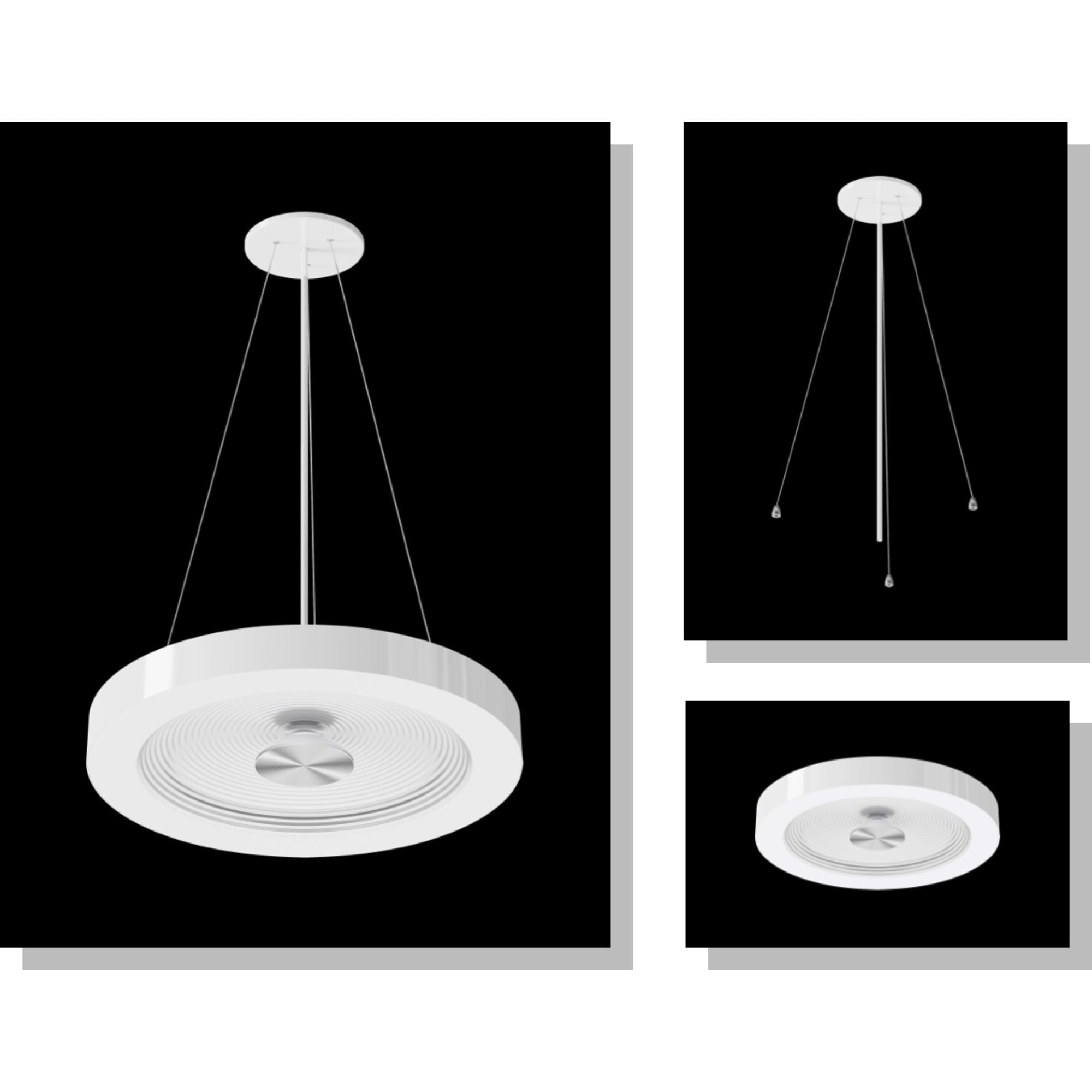

The AURA-S16 operates on 120V and installs as a surface mount directly to the ceiling, with a pendant mount option using an accessory stem sold separately. Wattage and color temperature are set in the field via dip switch, and the fixture dims smoothly to 10% on compatible TRIAC/ELV dimmers. Operating temperature range is -4°F to 113°F (-20°C to 45°C).

Compatible Accessories

• AURA-STEM: Aura pendant mount stem, white
• AURA-STEMB: Aura pendant mount stem, black

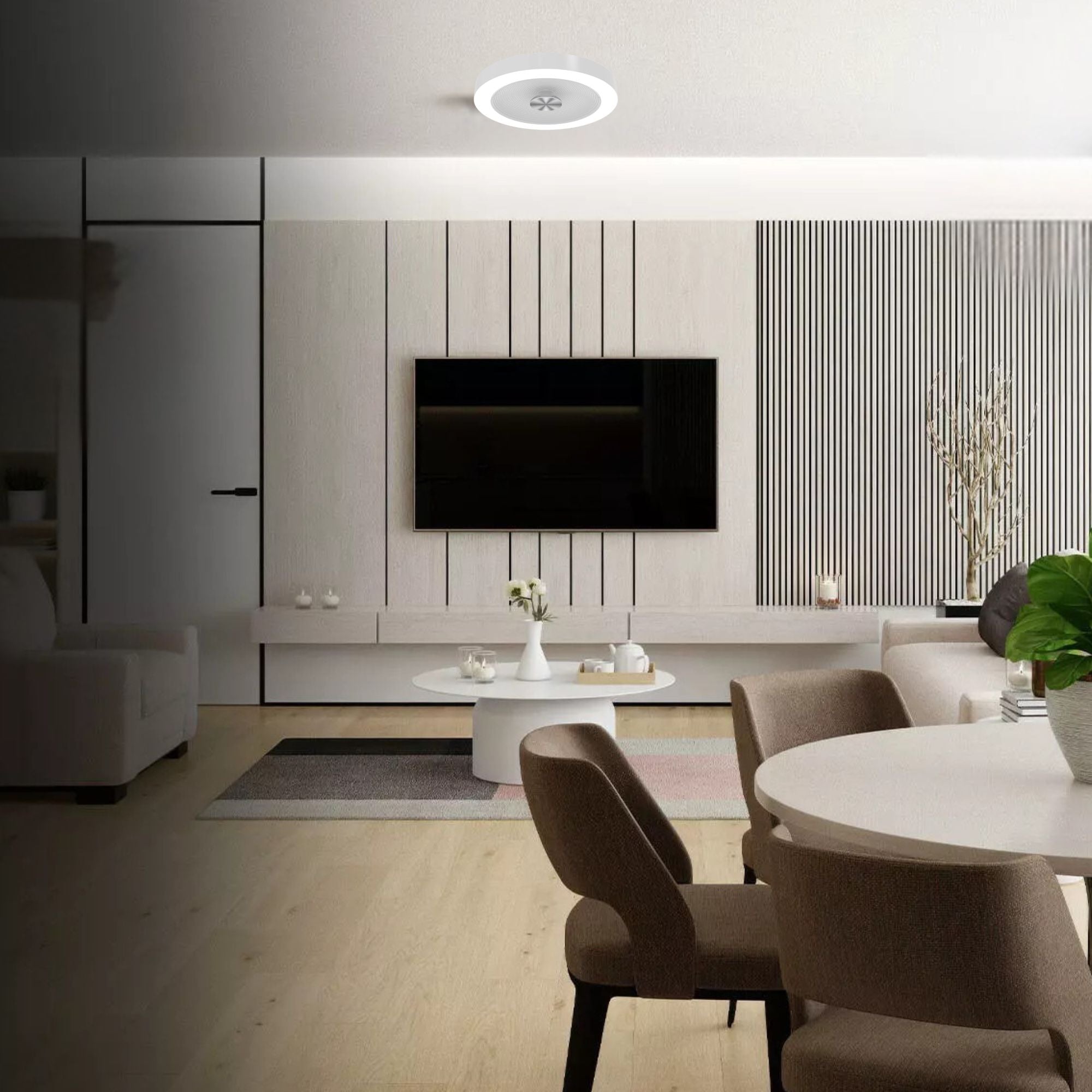

Typical Applications

• Residential kitchens, bedrooms and hallways
• Hotel rooms, lobbies and corridors
• Retail stores and boutiques
• Commercial offices and conference rooms

What's Included

• (1) RAB Aura AURA-S16 16 in LED decorative surface mount, white housing with white reflector
