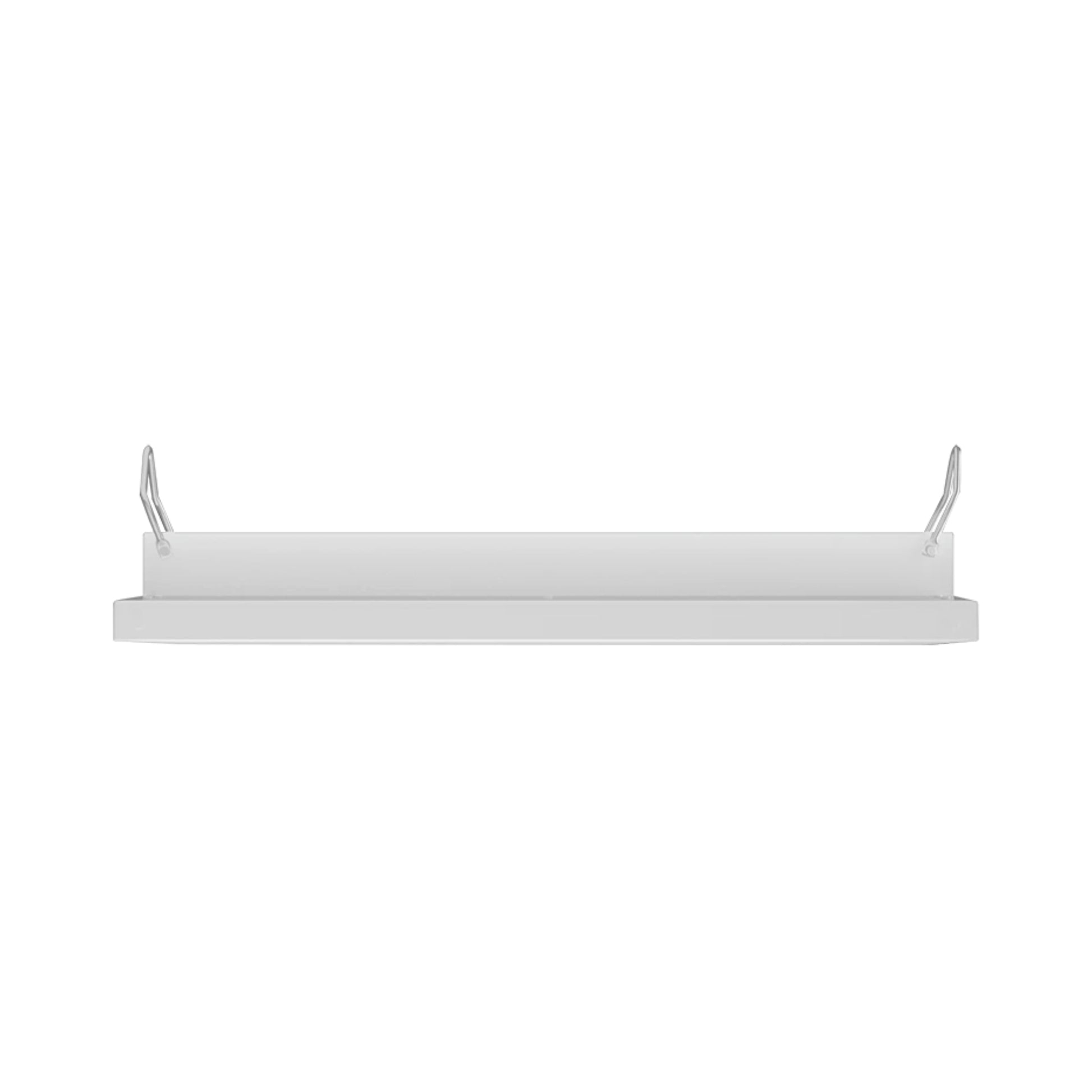

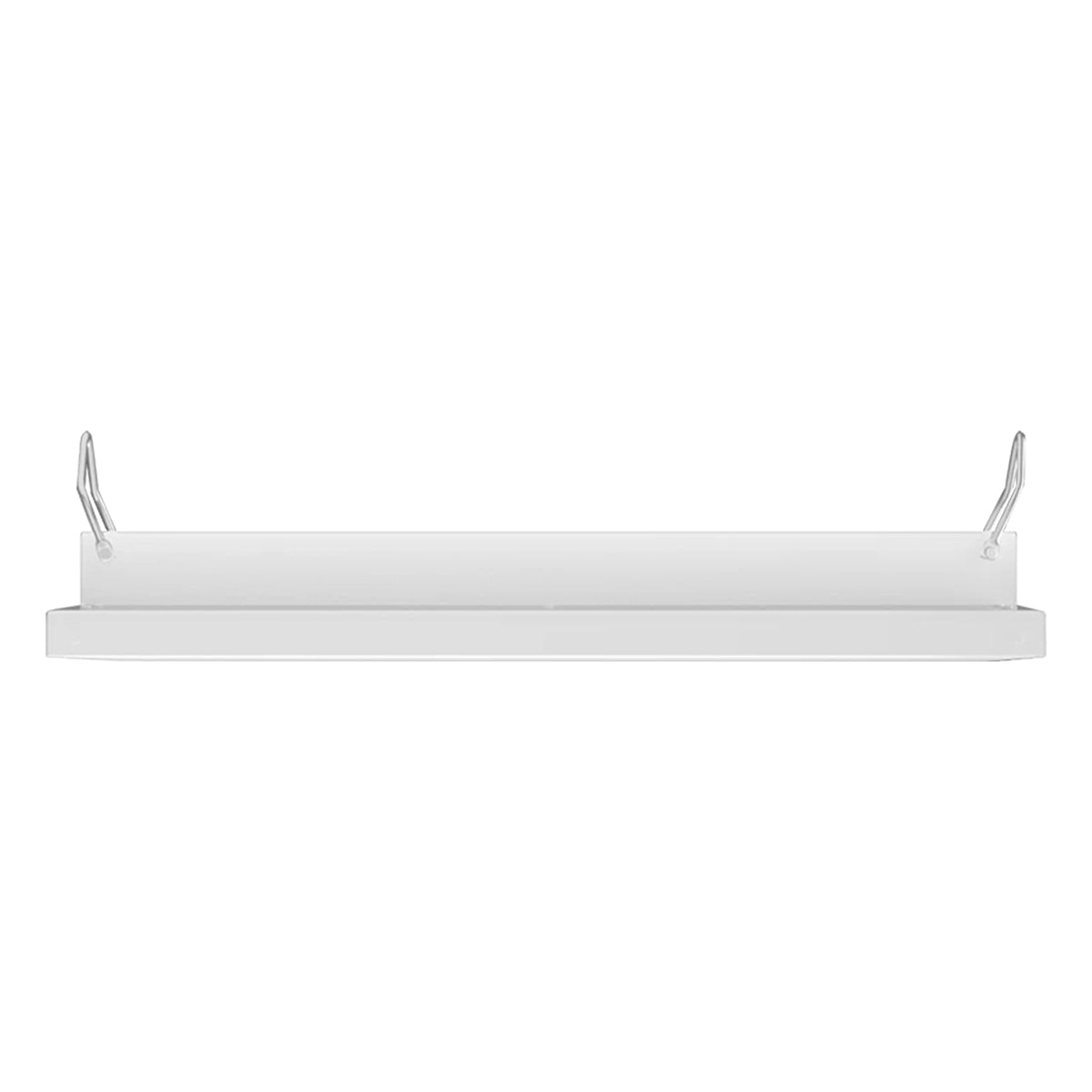

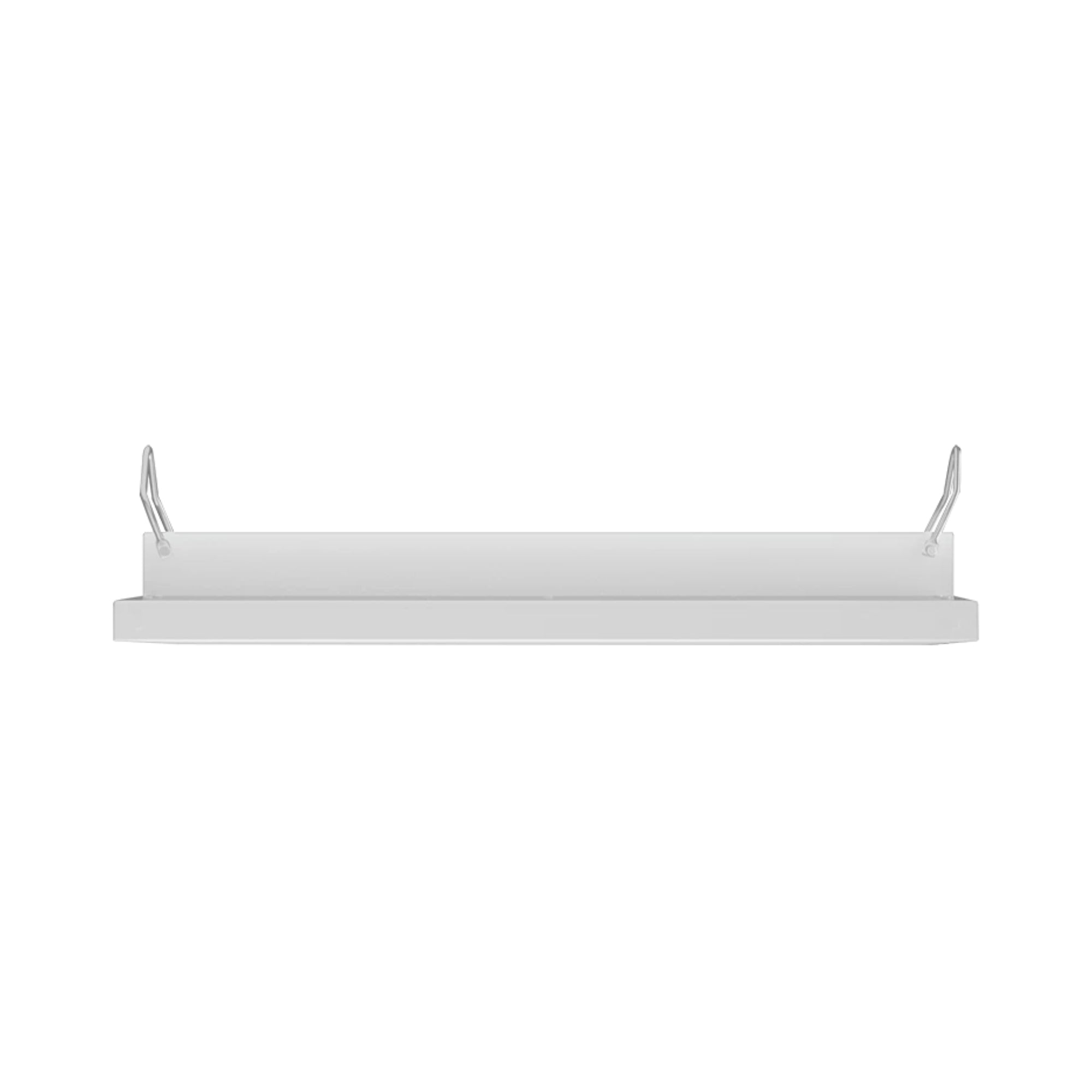

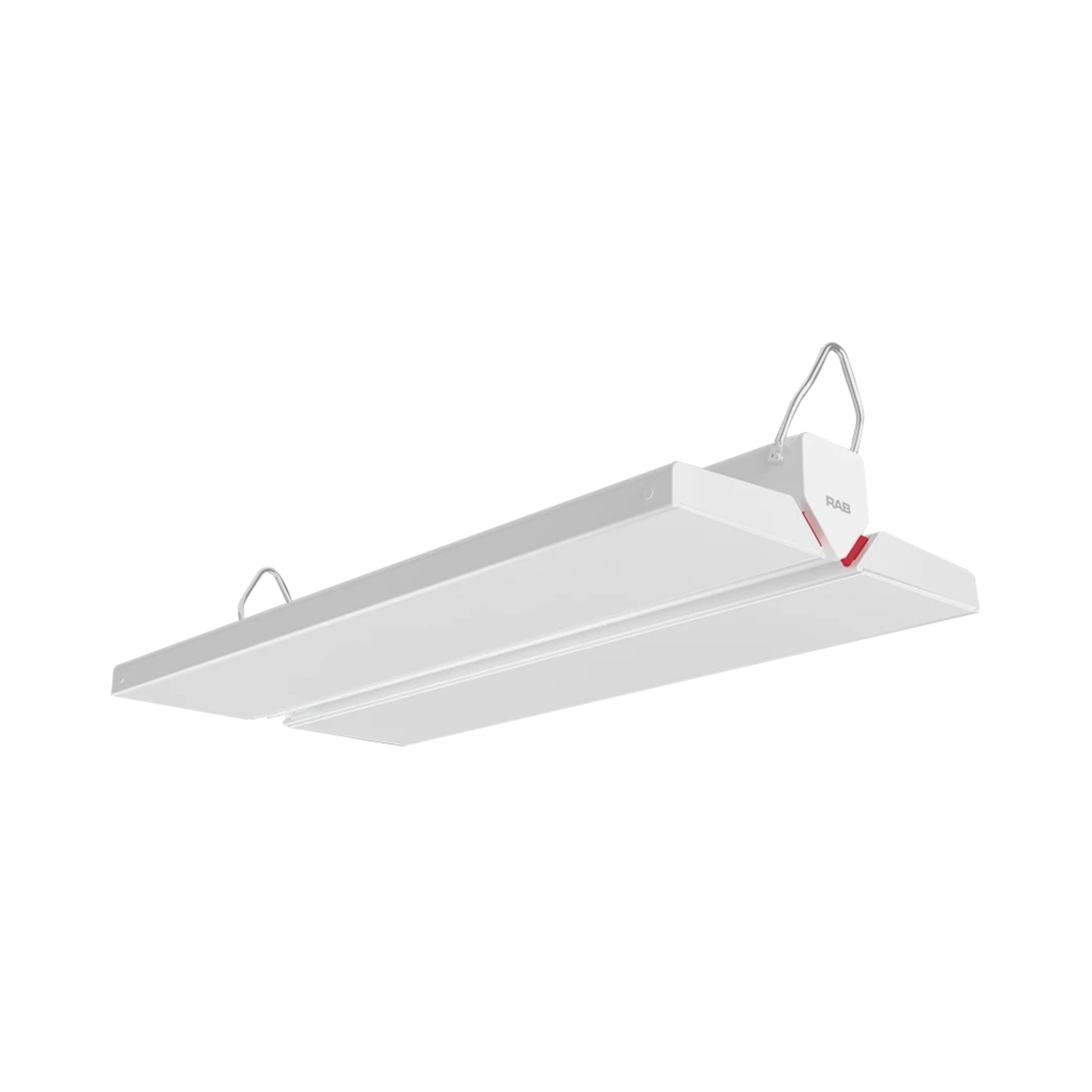

The RAB ARXS AEROBAY is the compact 1.5 ft model in RAB’s field-adjustable AEROBAY linear high bay family — engineered for lower-ceiling bays, supplemental illumination, and space-constrained installations requiring full field-adjustability in a minimal footprint. Three selectable wattage steps (95W / 71W / 48W) and selectable CCT (4000K / 5000K) are adjustable on-site before installation. Delivers up to 13,085 lumens at 120–277V / 4000K / 95W with a peak efficacy of 158.6 lm/W at 71W / 4000K / 480V. CRI 85 (4000K) | CRI 83 (5000K). Available in 120–277V (DLC ID: S-19PC63) and 480V (DLC ID: S-RX31PQ). UL listed for wet locations. DLC Premium listed on both voltage variants. Rated life 100,000 hours. Backed by RAB’s 5-year no-compromise warranty.

Key Features

• Field-Selectable Wattage: 95W / 71W / 48W — selectable on-site
• Field-Selectable CCT: 4000K / 5000K — CCT Adjustable
• Maximum Lumen Output: 13,085 lm at 95W / 4000K / 120–277V | 13,706 lm at 95W / 4000K / 480V
• Peak Efficacy: 155.8 lm/W at 71W / 4000K / 120–277V | 158.6 lm/W at 71W / 4000K / 480V
• CRI: 85 (4000K) | 83 (5000K)
• Dimming: 0–10V dimmable driver standard (120–277V and 480V)
• Voltage: 120–277V or 480V — select at time of order
• Location Rating: UL listed for wet locations
• Max Ambient Temperature: 50°C (122°F)

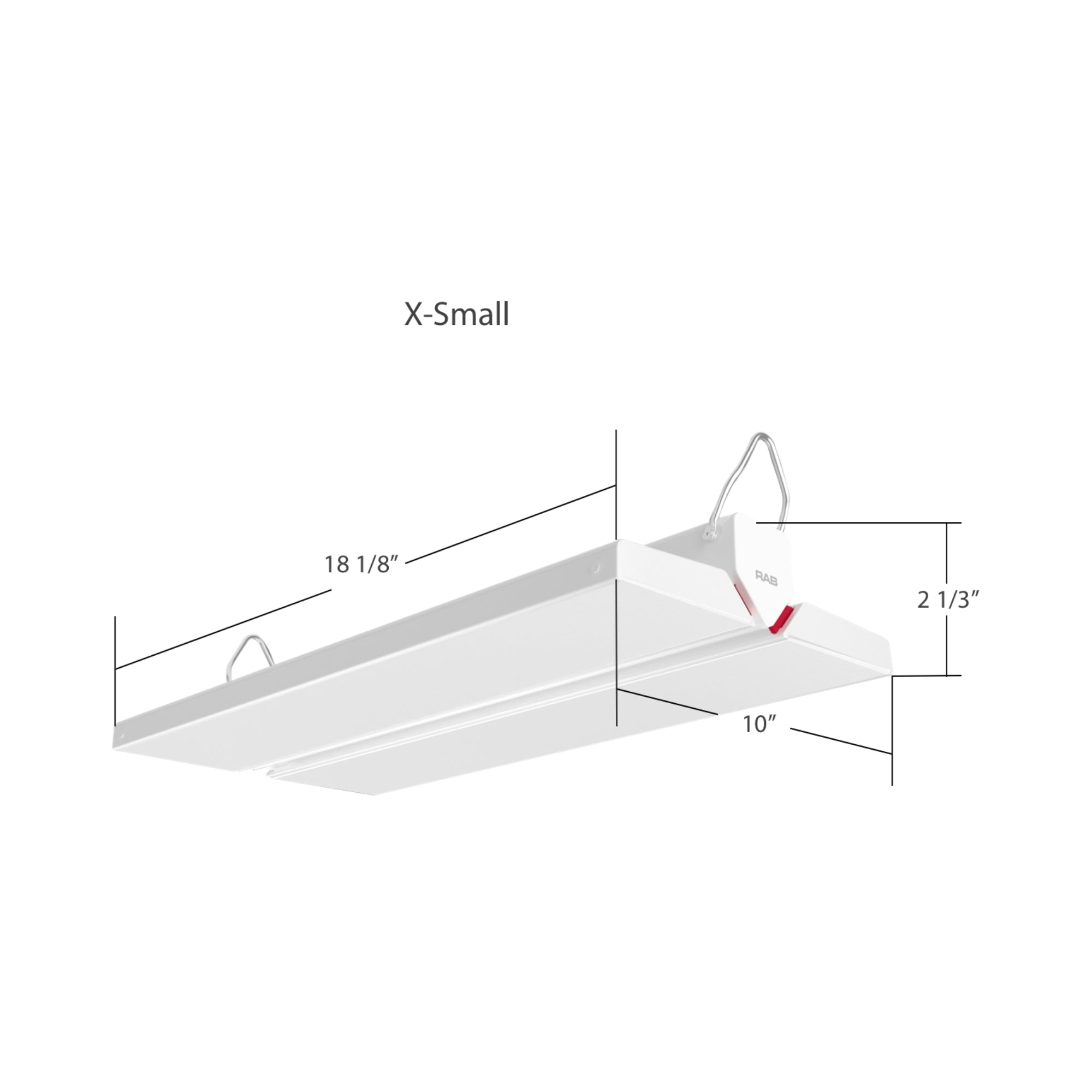

• Size: 1.5 ft — 18" × 10" × 2-1/2"
• Weight: 5.1 lbs (both voltage variants)
• Rated Life: 100,000 hours (IES LM-80 / TM-21)
• DLC Premium: S-19PC63 (120–277V) | S-RX31PQ (480V) — both qualify for utility rebate programs
• Green Technology: Mercury and UV free, RoHS-compliant
• BAA: Available upon request — contact customer service
• Warranty: 5-year no-compromise warranty (light output, color stability, driver performance, paint finish, labor)

Performance & Light Output

At 95W / 4000K: 120–277V — 13,085 lm / 151.1 lm/W (86.6W input) | 480V — 13,706 lm / 155.9 lm/W (87.9W input). At 95W / 5000K: 120–277V — 13,030 lm / 144.5 lm/W (90.2W input) | 480V — 13,575 lm / 149.7 lm/W (90.7W input). At 71W / 4000K: 120–277V — 9,424 lm / 155.8 lm/W (60.5W input) | 480V — 10,406 lm / 158.6 lm/W (65.6W input). At 71W / 5000K: 120–277V — 9,509 lm / 152.4 lm/W (62.4W input) | 480V — 10,449 lm / 154.6 lm/W (67.6W input). At 48W / 4000K: 120–277V — 6,415 lm / 152.7 lm/W (42.0W input) | 480V — 6,973 lm / 159.2 lm/W (44.9W input). At 48W / 5000K: 120–277V — 6,532 lm / 151.9 lm/W (43.0W input) | 480V — 7,090 lm / 157.9 lm/W (43.8W input). Rated life 100,000 hours per IES LM-80 / TM-21 projections.

Smart & Control Features

The RAB ARXS AEROBAY is available with optional Lightcloud Blue (LC Blue) controls and occupancy sensors via suffix ordering — specify at time of order:

• ARXS/LCBS/MVS: Lightcloud Blue enabled + Microwave Occupancy Sensor
• ARXS/LCBS: Lightcloud Blue enabled + Passive Infrared Sensor
• ARXS/E: Battery Backup — 120–277V only
• ARXS/LCBS/MVS/E: LC Blue + MVS + Battery Backup — 120–277V only
• ARXS/LCBS/E: LC Blue + PIR + Battery Backup — 120–277V only

Lightcloud Blue features: vacancy/occupancy modes, dimming profiles, daylight sensing (150–1500 lux threshold), occupancy timeout (1–240 minutes), vacant dim level settings. Battery backup options not available on 480V variant. Standard fixture ships without controls; 0–10V dimming wiring included on all variants.

Electrical

0–10V dimming standard on both voltage variants. 120–277V AC or 480V AC. Input watts at 95W setting: 86.6W (120–277V / 4000K) | 90.2W (120–277V / 5000K) | 87.9W (480V / 4000K) | 90.7W (480V / 5000K). Mercury and UV free, RoHS-compliant. Green Technology.

Construction

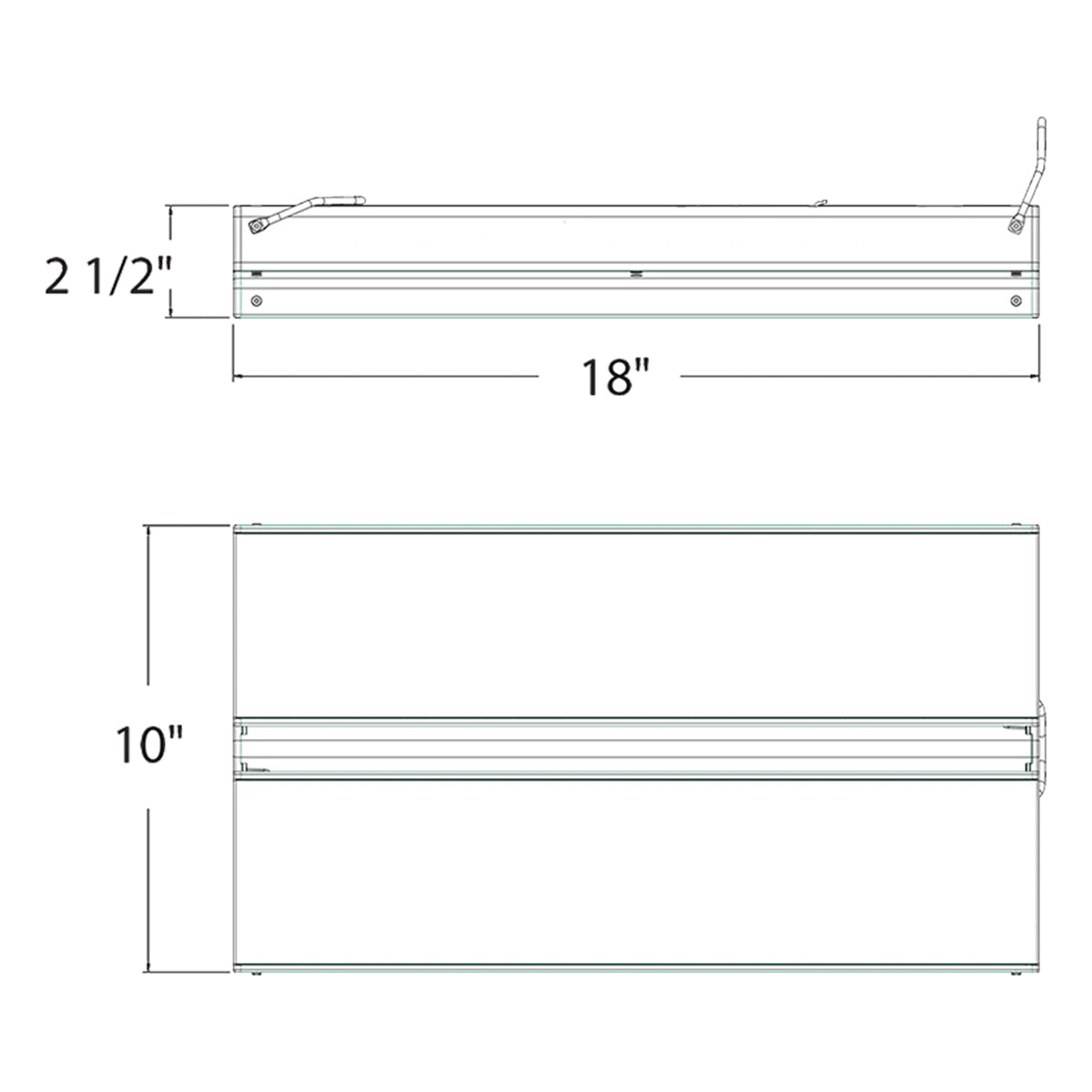

Die-cast aluminum housing. Finish formulated for high durability and long-lasting color. Dimensions: 18" × 10" × 2-1/2". Weight: 5.1 lbs (both voltage variants).

Installation & Mounting

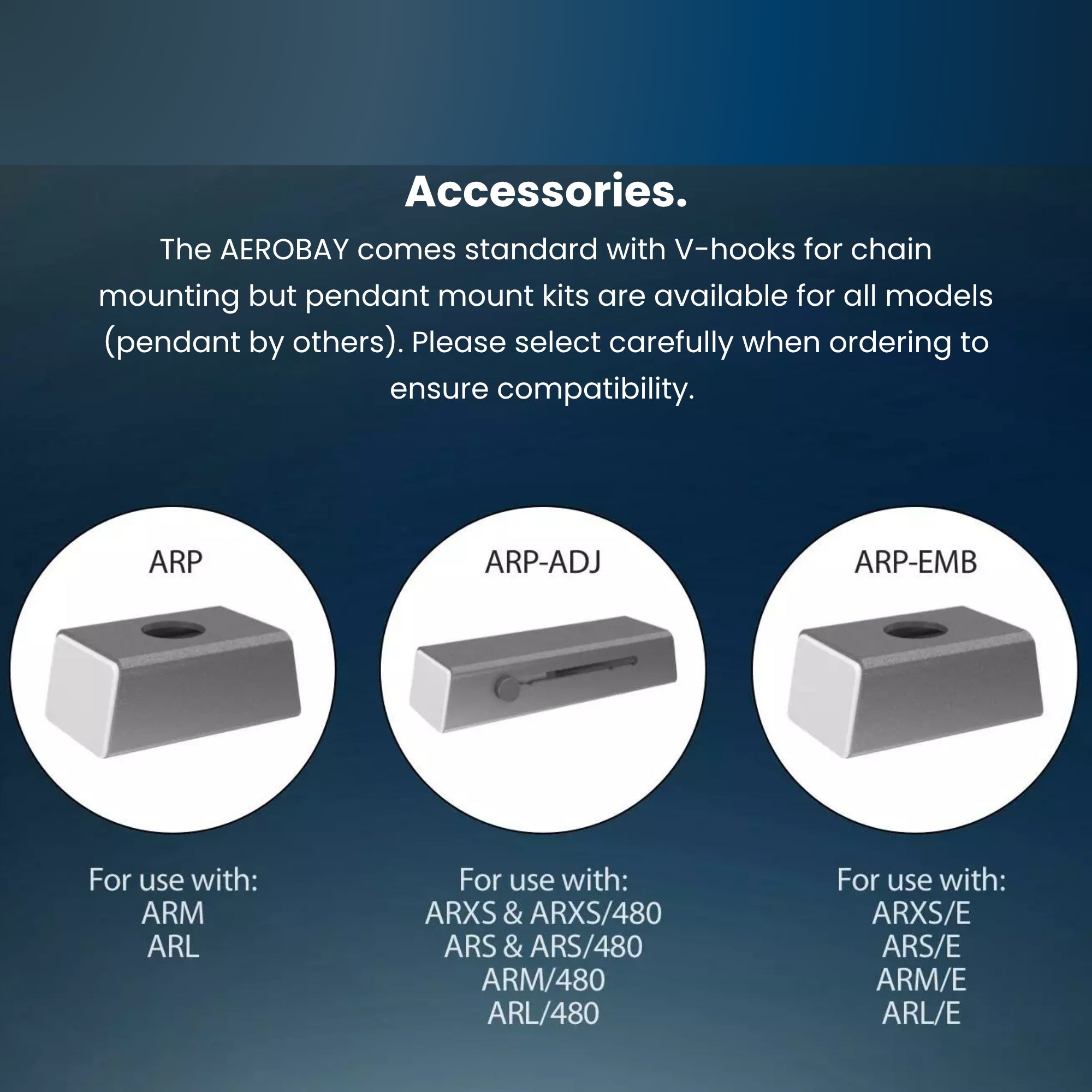

Standard mounting hardware included. Pendant mounting supported via optional accessories:

• ARP: AEROBAY Pendant Kit — sold separately
• ARP-ADJ: AEROBAY Adjustable Pendant Kit — sold separately
• ARP-EMB: AEROBAY Pendant Kit for EMB — sold separately

Certifications & Rebates

UL listed for wet locations. DLC Premium listed — DLC ID S-19PC63 (120–277V) | DLC ID S-RX31PQ (480V). Both voltage variants eligible for utility rebate programs in most U.S. states and Canadian provinces. Verify eligibility at designlights.org. RoHS compliant. BAA-compliant version available upon request.

Typical Applications

• Low-Bay & Supplemental Lighting: 1.5 ft compact form factor fills coverage gaps in areas where full-size linear high bays are over-specified or physically constrained
• Warehouses & Distribution Centers: Selectable wattage right-sizes output for ceiling height without restocking multiple SKUs
• Manufacturing & Light Industrial: Field-adjustable CCT and wattage adapt to changing process requirements without fixture replacement
• Retail & Commercial High Bays: 4000K / 5000K CCT selection and CRI 85 deliver high-quality illumination for merchandise display and task areas
• Covered Outdoor & Wet-Location Areas: UL wet location rating supports use in covered outdoor bays, loading docks, and open-sided facilities

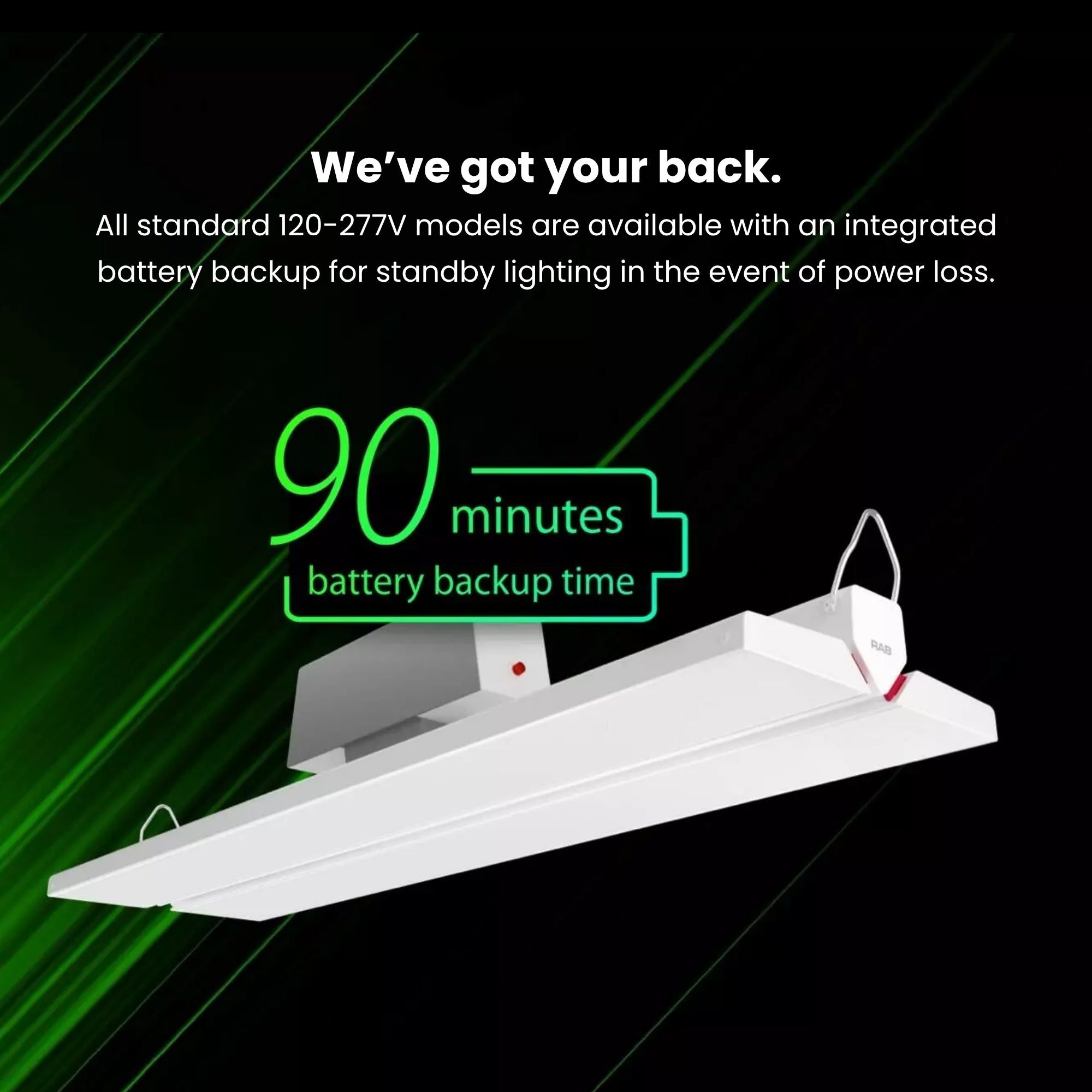

• Facilities Requiring Emergency Egress: /E battery backup option (120–277V) maintains illumination for 90 minutes during power outages

What's Included

• RAB ARXS AEROBAY Linear High Bay with integrated LED engine and driver
• Standard mounting hardware
