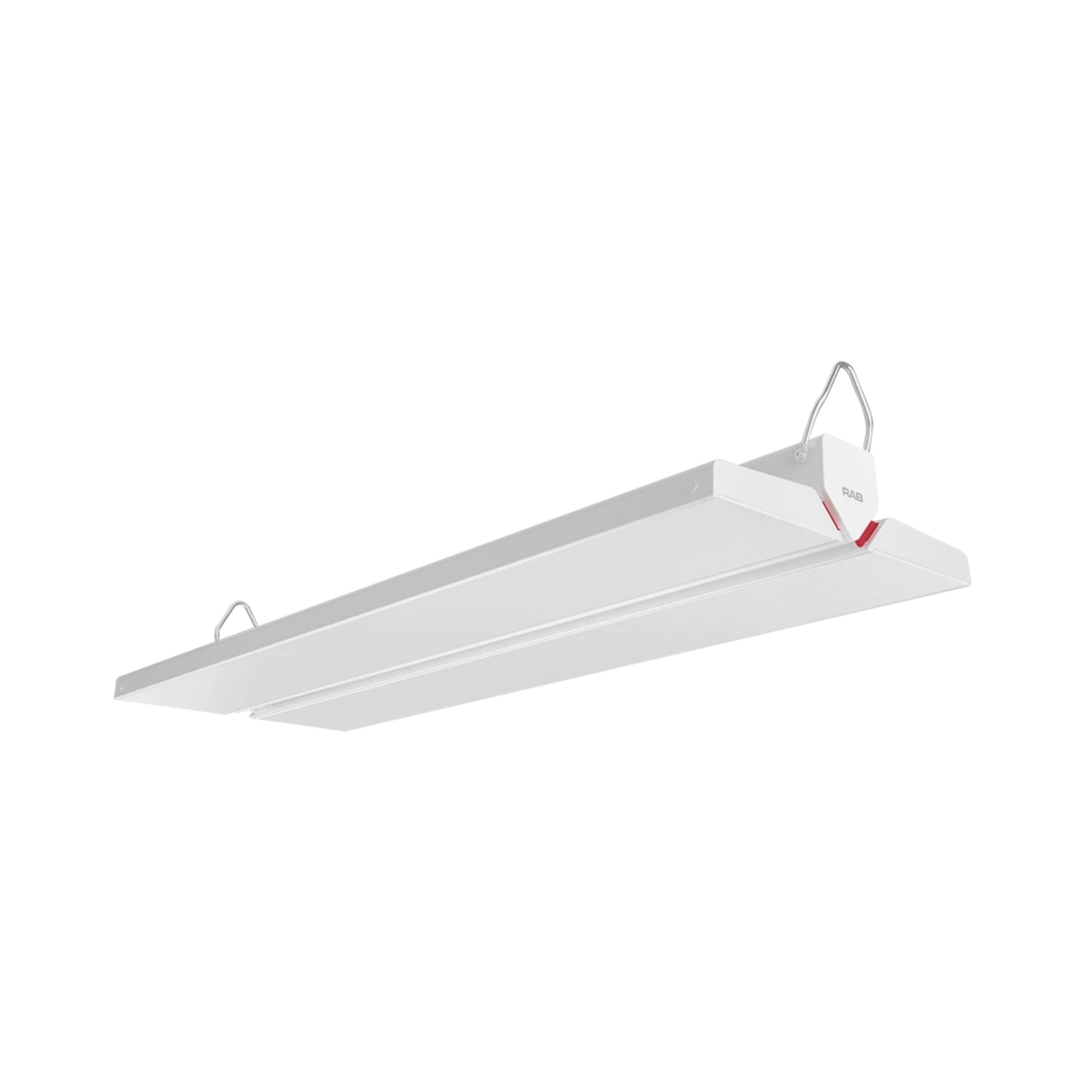

RAB ARS AEROBAY Field-Adjustable Linear High Bay — 160/120/80W Selectable — 4000K/5000K — White

The RAB ARS is a commercial AEROBAY linear high bay engineered to deliver up to 22,991 lumens with field-adjustable 160W / 120W / 80W power settings and switchable 4000K / 5000K color temperatures. Operating on 120-277V electrical systems with 0–10V continuous dimming, this luminaire provides energy-efficient replacement for conventional high-intensity discharge and fluorescent fixtures. Built with a damp location rating and UL Listing, it is qualified for commercial utility rebates under DLC Premium standards.

Key Features

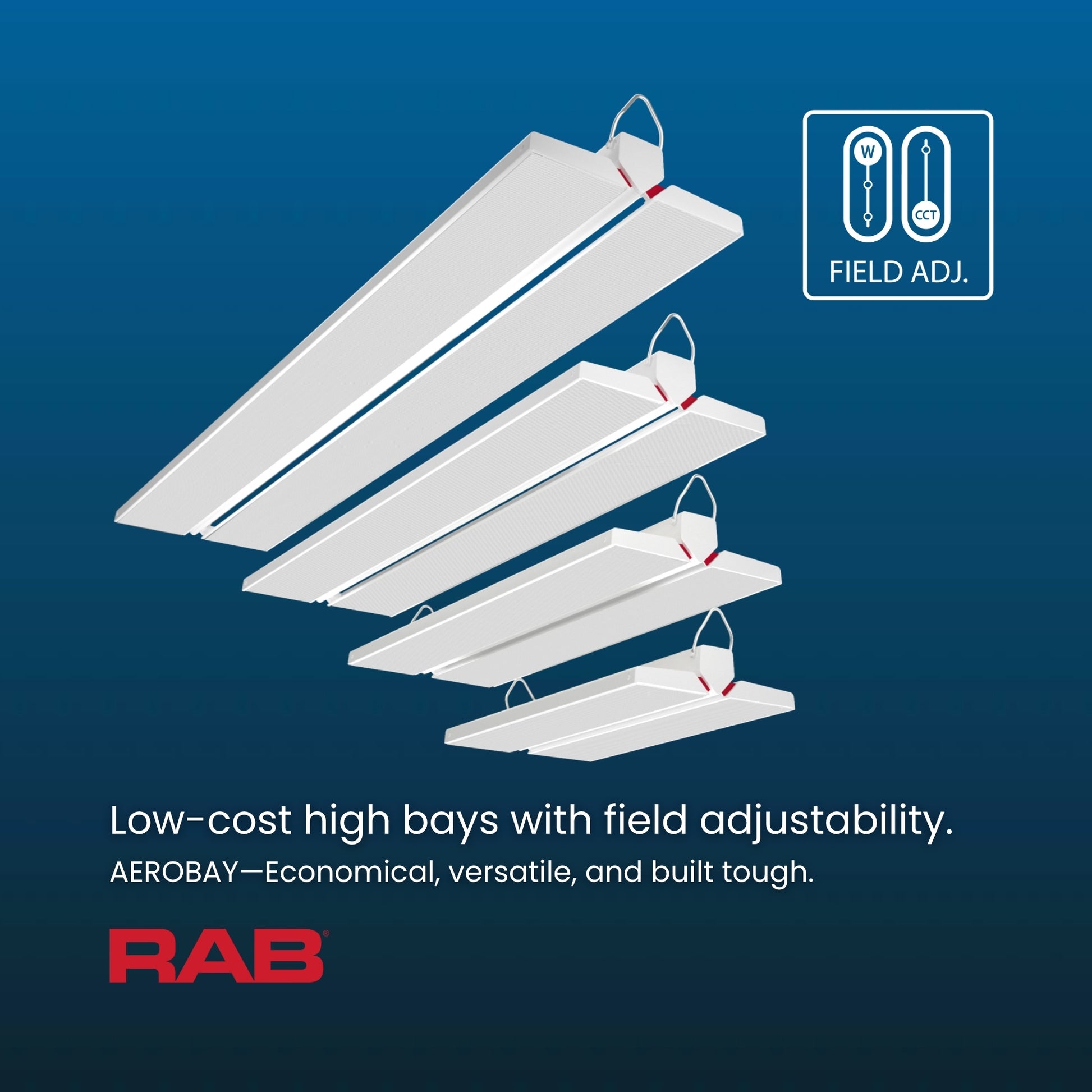

• Selectable Wattage: 160W / 120W / 80W — field-adjustable via onboard switch
• Wattage Equivalency: Replaces conventional HID and fluorescent fixtures for direct energy savings
• Maximum Lumen Output: 22,991 lm at 160W
• Peak Efficacy: 164.7 lm/W for high-efficiency commercial operation
• CRI: >83 color rendering across all settings
• Color Consistency: Meets ANSI C78.377-2017 specifications for consistent fixture-to-fixture color
• Selectable CCT: 4000K / 5000K — field-adjustable via onboard switch
• Dimming: 0–10V continuous dimming standard (dims down to 10%)
• Voltage: Universal 120-277V AC, 50/60Hz constant current driver
• Location Rating: UL Listed for damp locations
• Operating Temperature: −4°F (−20°C) to 122°F (50°C) ambient range
• Certifications: DLC Premium, UL Listed, RoHS Compliant, BAA Compliant (upon request)
• Rated Life: L70 100,000 hours per IES TM-21 standards
• Warranty: 5-year, no-compromise warranty — RAB

Performance & Light Output

At 160W: 22,991 lm (4000K / 153.8 lm/W), 22,545 lm (5000K / 143.6 lm/W).

At 120W: 18,023 lm (4000K / 159.5 lm/W), 17,939 lm (5000K / 152.5 lm/W).

At 80W: 11,855 lm (4000K / 164.7 lm/W), 11,972 lm (5000K / 161.8 lm/W).

CRI >83 across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing. Delivers direct energy reduction compared to traditional high-intensity discharge systems.

Smart & Control Features

The AEROBAY supports advanced automated facility lighting control via the Lightcloud Blue ecosystem:

• 0–10V Continuous Dimming (Standard): Standard dimming control compatible with commercial 0–10V dimmers.

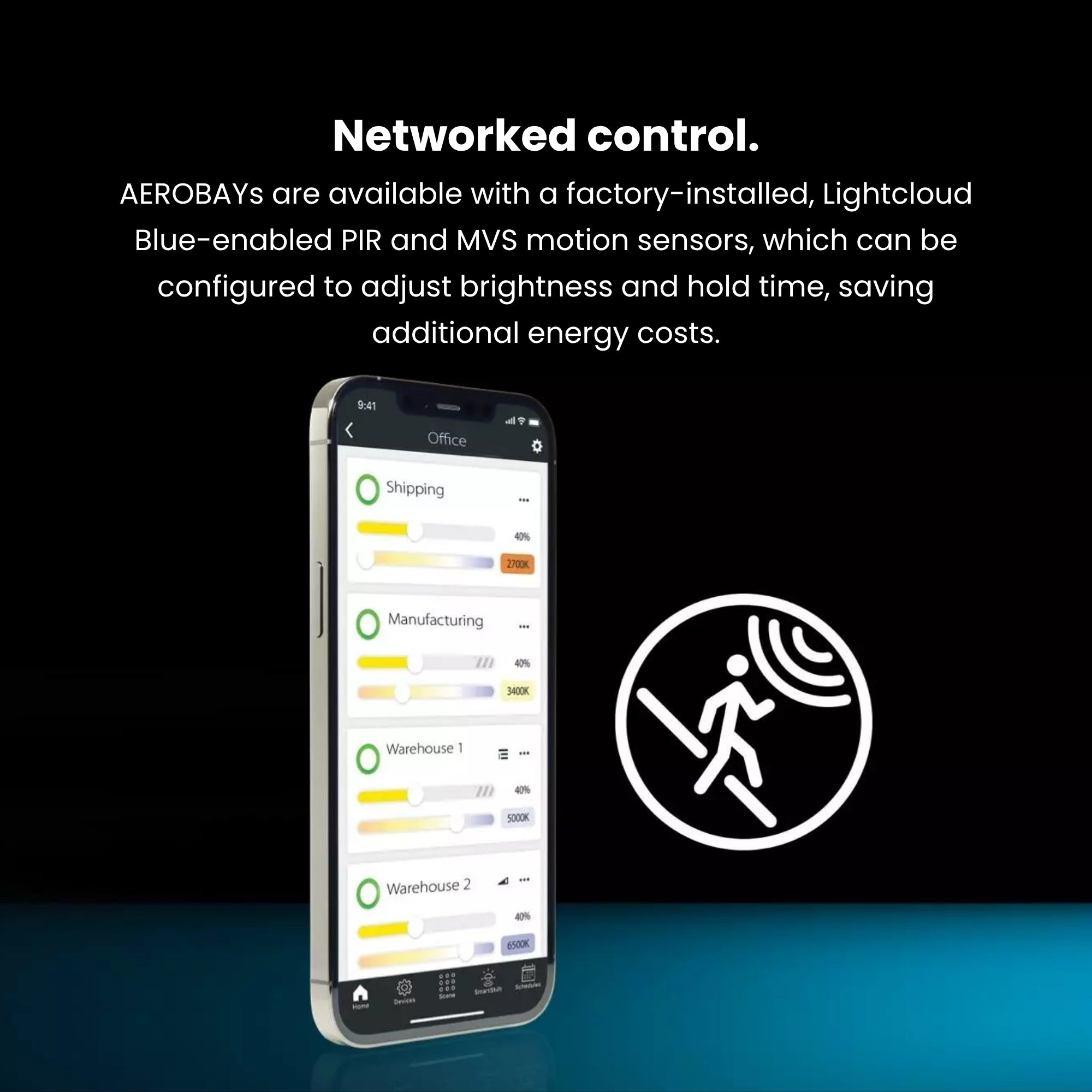

• Lightcloud Blue Installed (Accessory): Optional factory-installed Bluetooth Mesh controller provides Luminaire-Level Lighting Control (LLLC) including wireless switching, high-end trim configuration, and occupancy sensing. Utilizes a secure Bluetooth Mesh network eliminating the need for a gateway or hub.

Electrical

Powered by a constant current driver operating on 120-277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.90 and Total Harmonic Distortion (THD) <11%. Integrated 6kV surge protection protects internal electronics against transient voltage spikes. Includes pre-wired 0–10V dimming leads. RoHS compliant.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Thermal: Aluminum housing engineered to function as a high-efficiency passive heatsink, dissipating heat away from LED arrays and internal driver circuits to preserve lumen maintenance across the 100,000-hour rated lifespan.

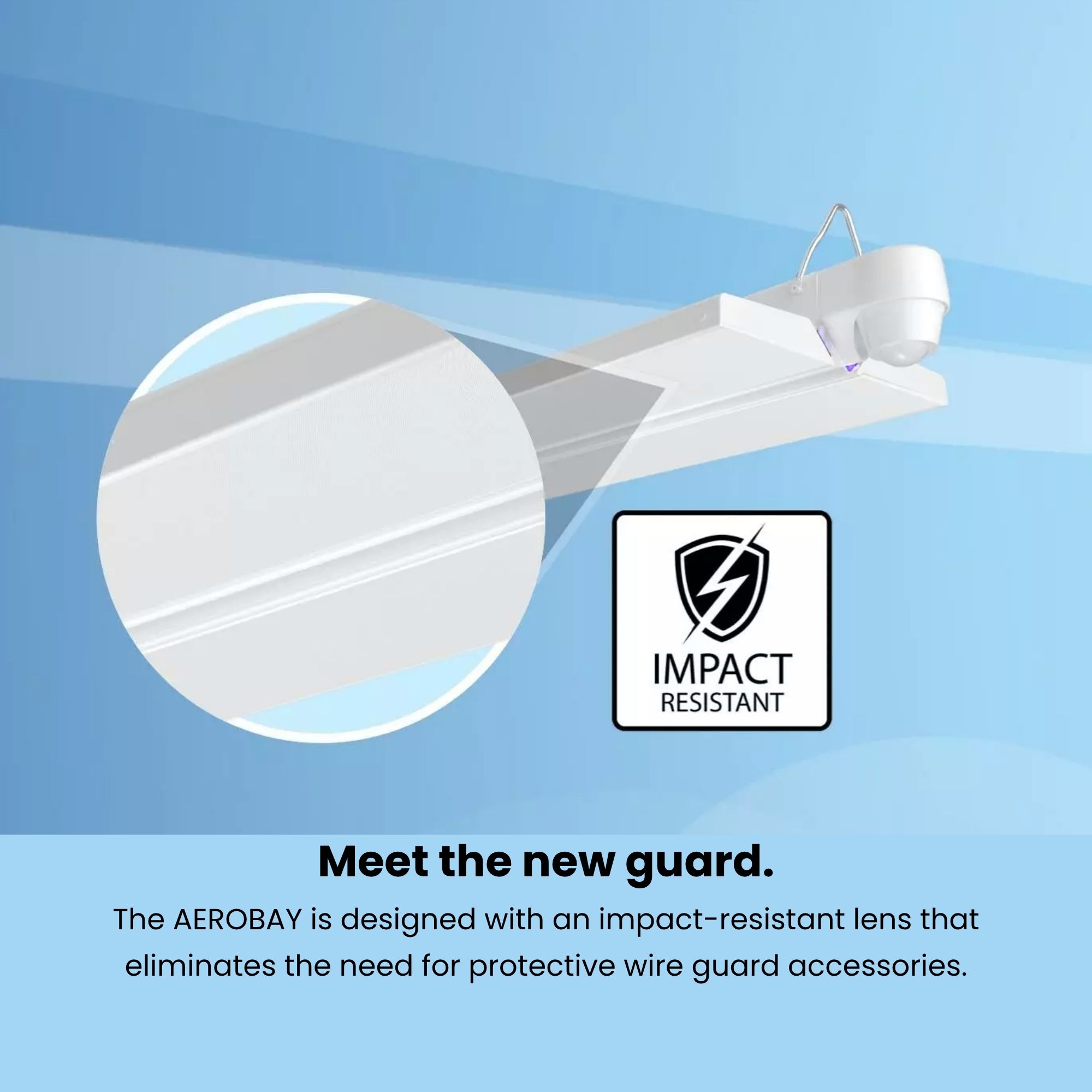

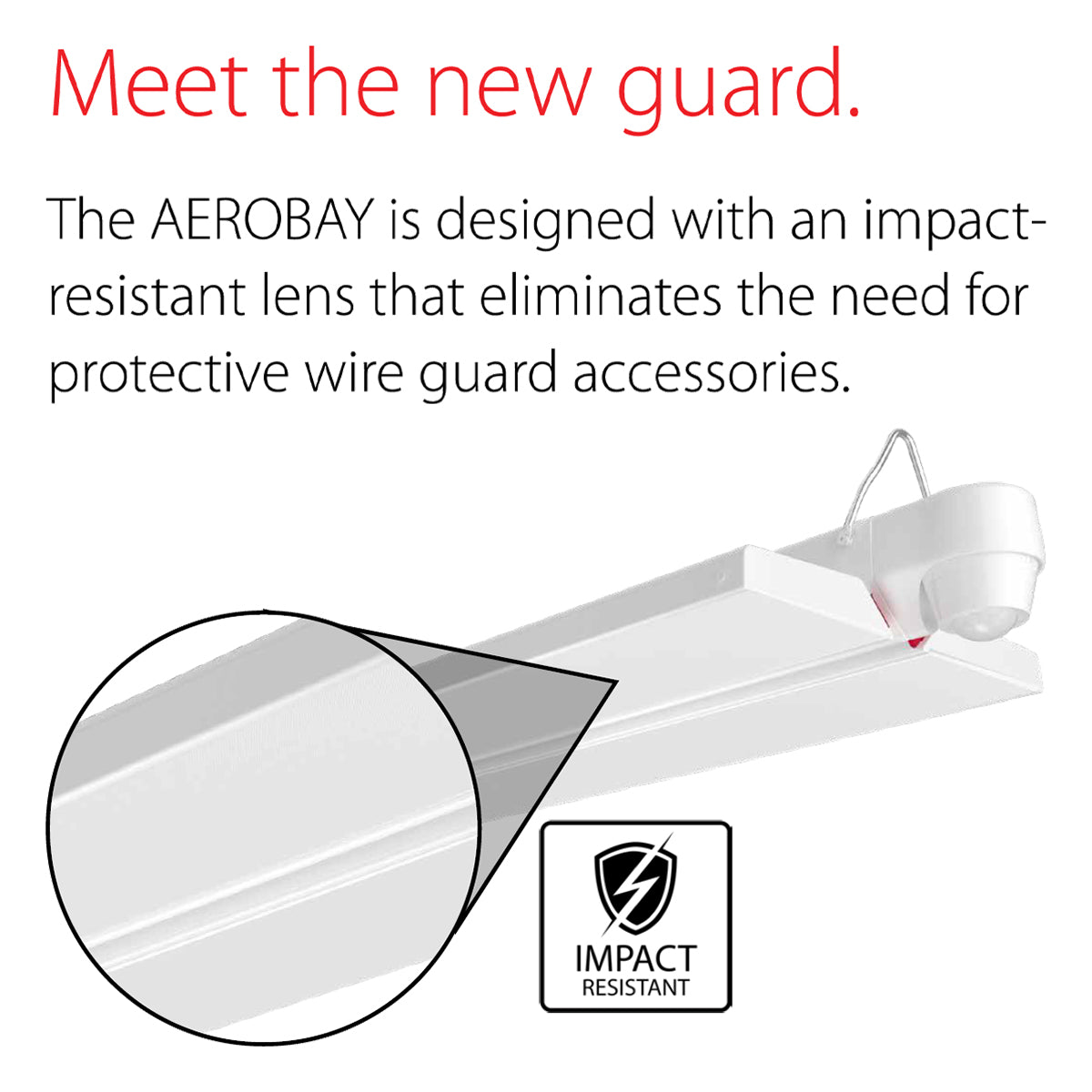

Lens & Optics: Features a durable polycarbonate lens and Polyethylene Terephthalate (PET) reflector.

Finish: Commercial finish in White formulated for high durability and long lasting color.

Environmental Sealing: UL Listed for damp locations. Ambient operating temperature range: −4°F (−20°C) to 122°F (50°C).

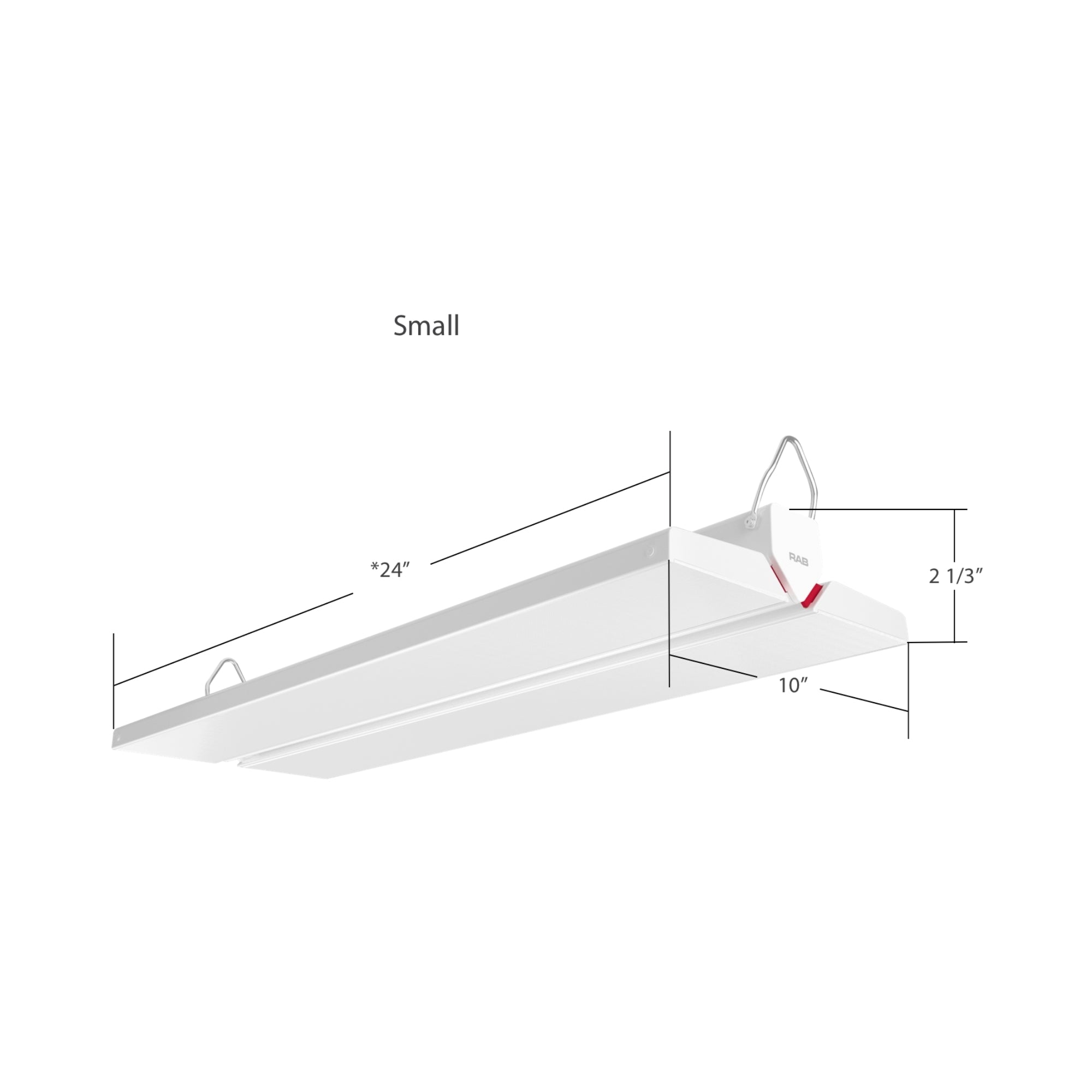

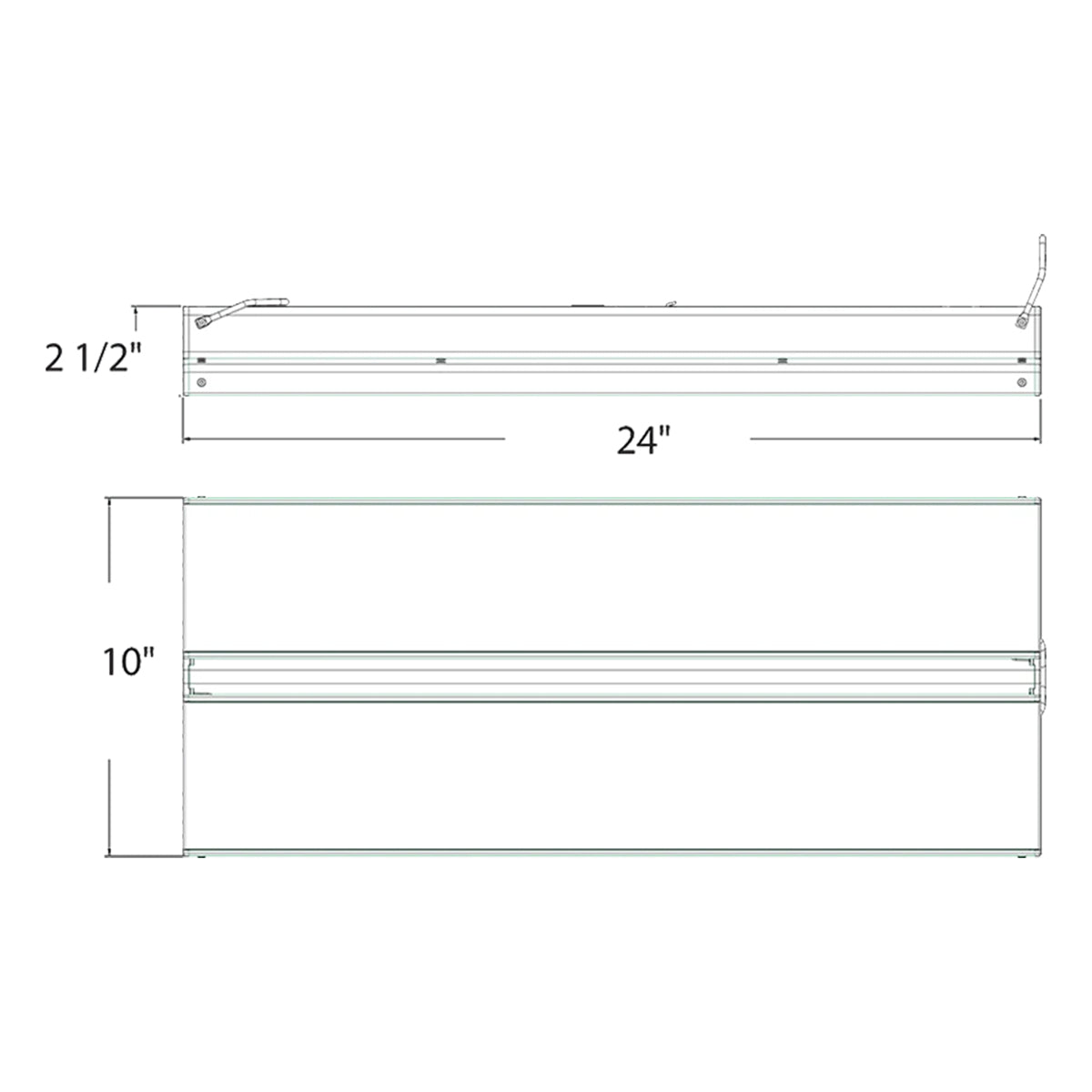

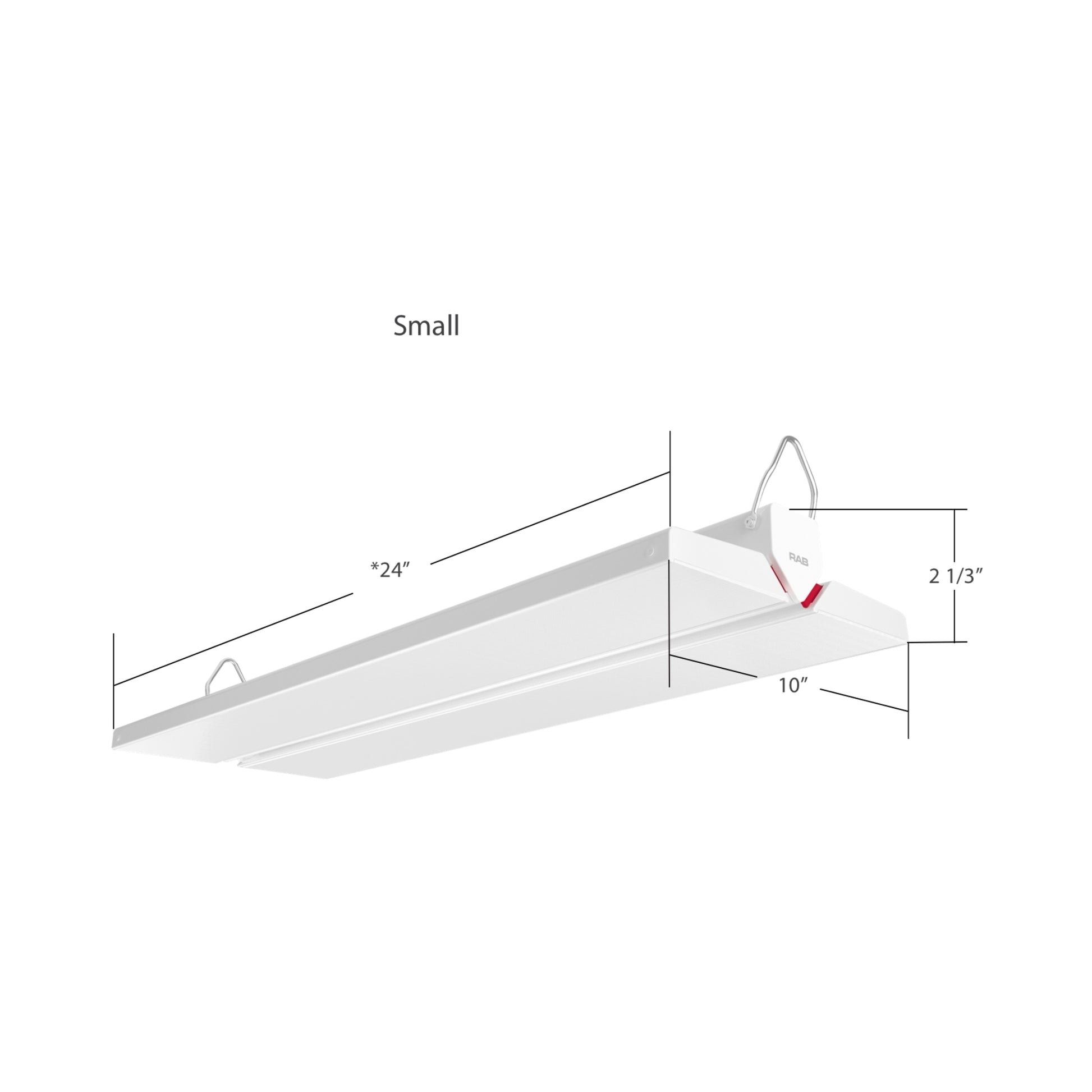

Dimensions & Weight: 24.00" L × 10.00" W × 2.50" H. Fixture weight: 6.6 lbs.

Installation & Mounting

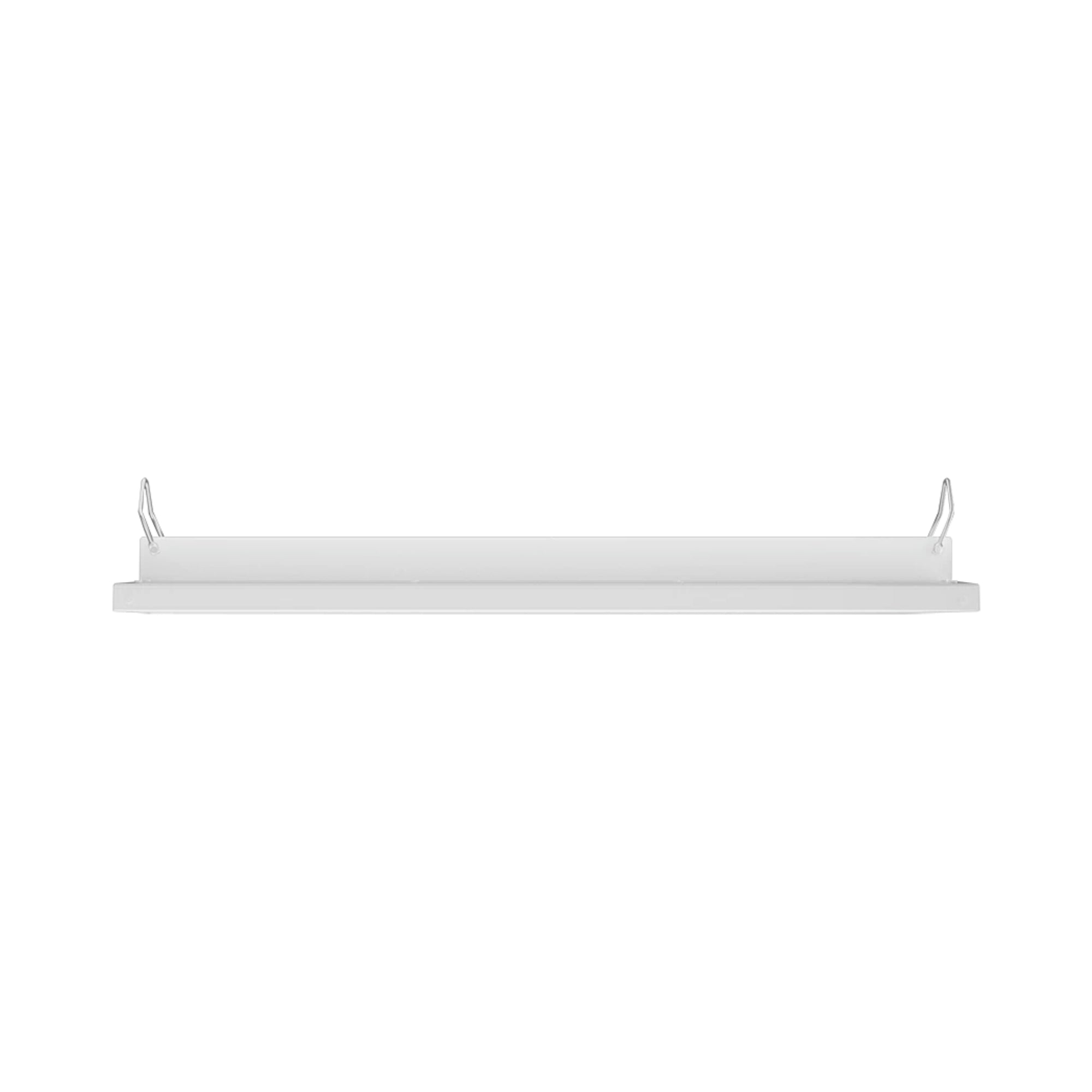

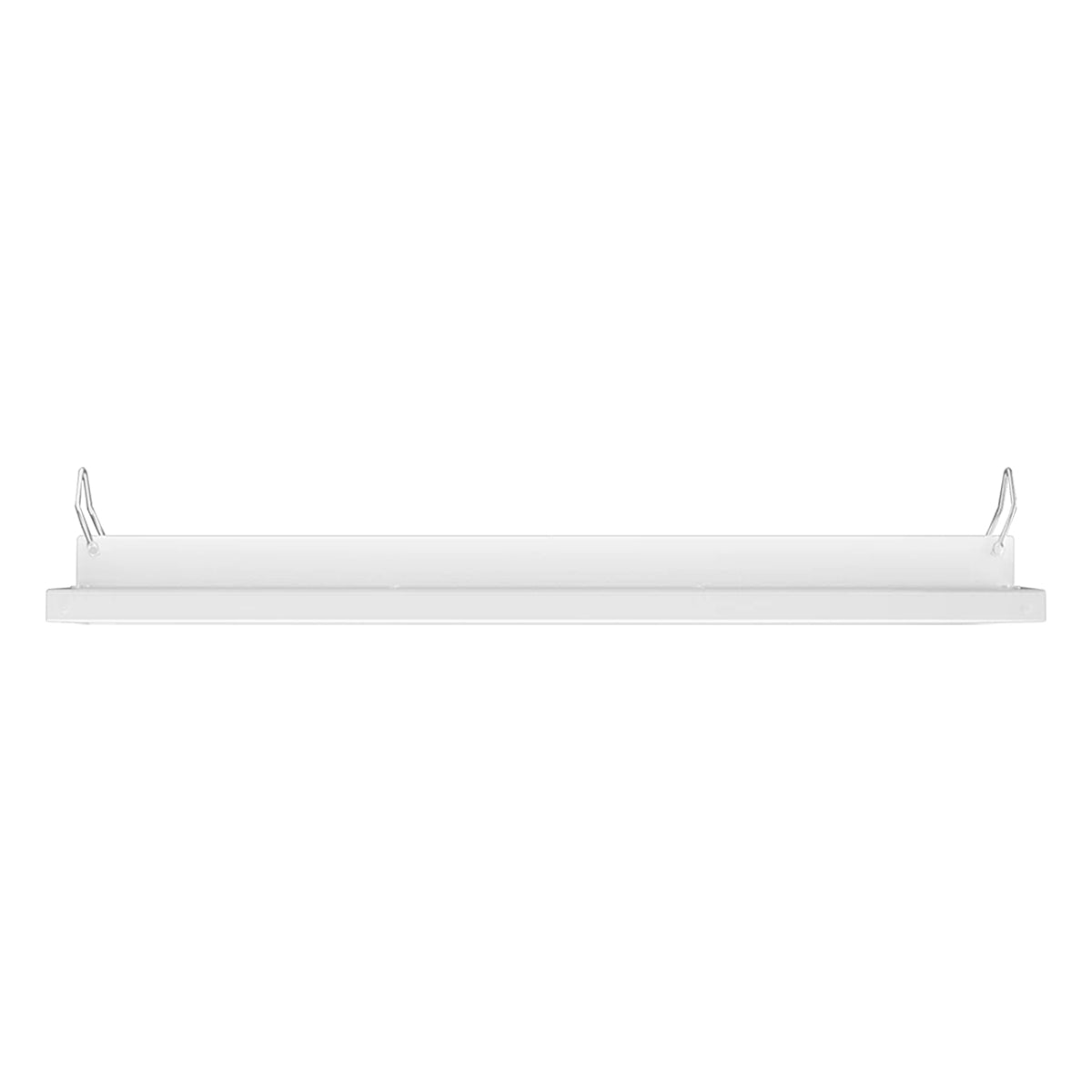

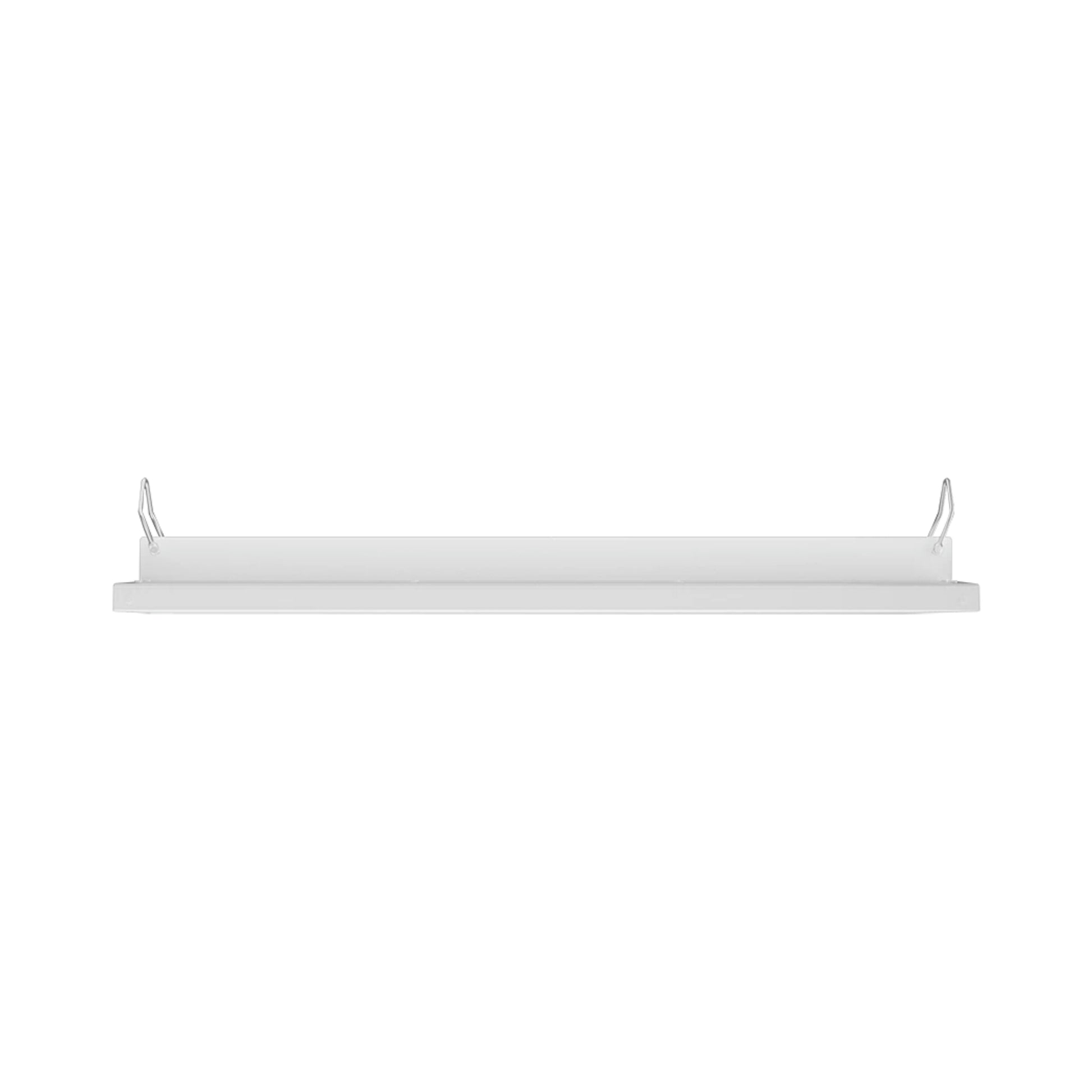

Standard Hardware: Ships standard with V-hooks for chain mounting and supports direct surface mounting installation.

Mounting Options: Compatible with rigid pendant mounting via dedicated AEROBAY Pendant Kits (sold separately).

Accessories (Sold Separately):

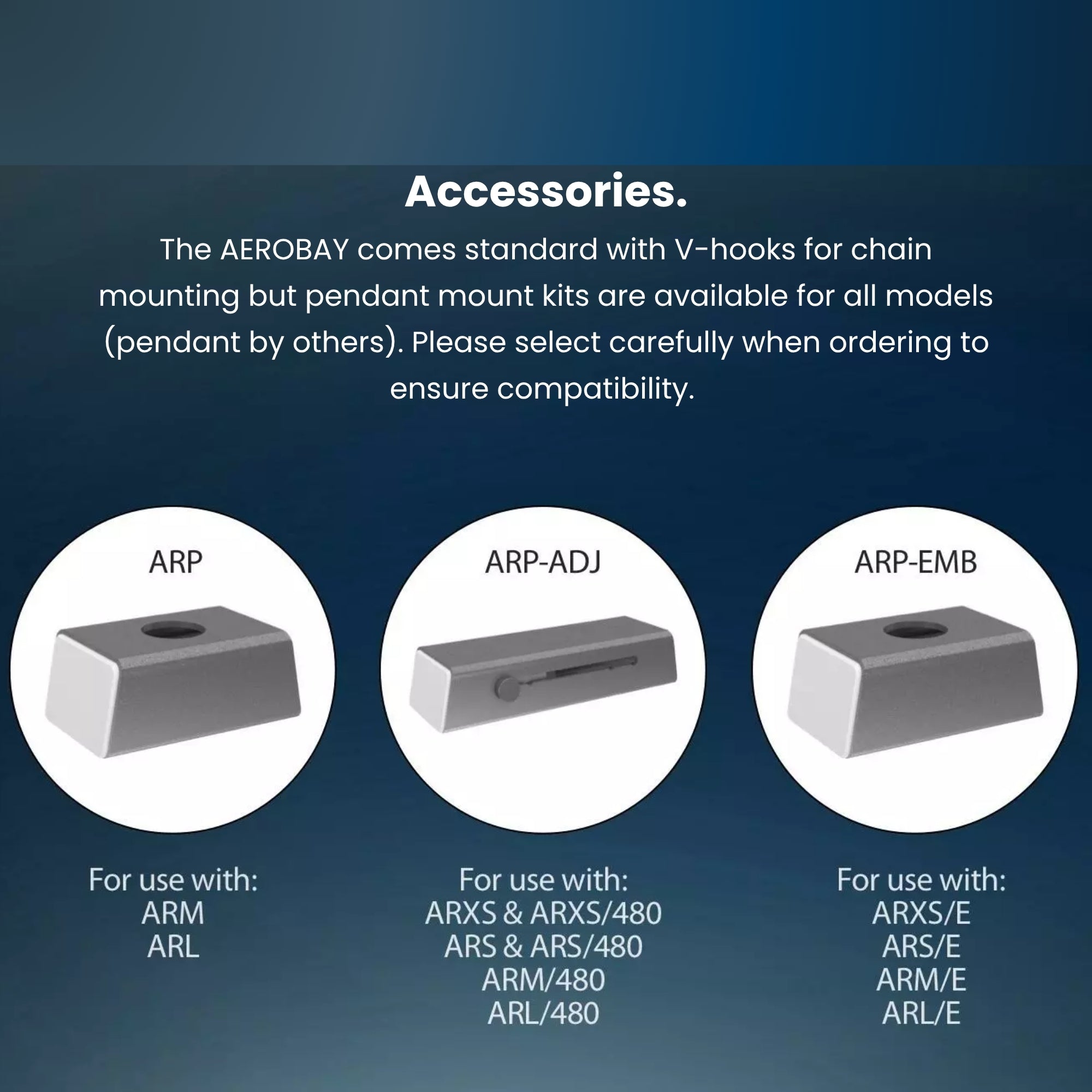

• Mounting Brackets: ARP (AEROBAY Pendant Kit) | ARP-ADJ (AEROBAY Adjustable Pendant Kit) | ARP-EMB (AEROBAY Pendant Kit for EMB)

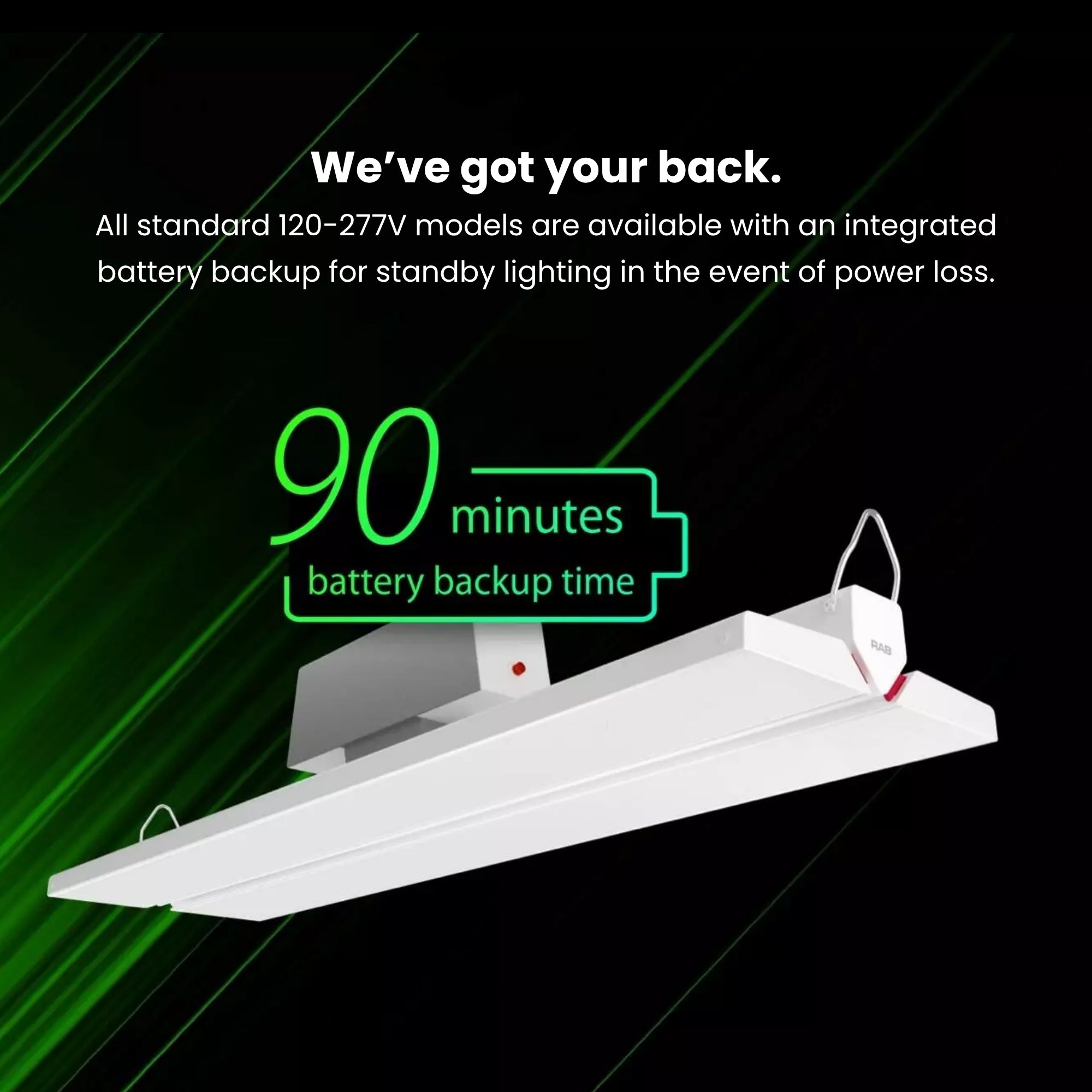

• Emergency Battery Backup: Available as factory-installed option
• Sensors & Controls: Lightcloud Blue integrated sensors available as factory-installed option

Certifications & Rebates

• DLC Premium: Qualifies for commercial lighting utility rebate programs nationwide (DLC ID: S-M11HJ7)
• UL Listed: Certified for damp locations per UL standards for commercial luminaires
• RoHS Compliant: Manufactured free of lead, mercury, and hazardous heavy metals
• BAA Compliant: Available as compliant with the Buy American Act upon request

Typical Applications

• Open Warehouse & Distribution Floors — linear form factor provides broad, uniform footcandle distribution across large racking aisles and open spaces
• Unconditioned Warehouses & Cold Storage — −4°F (−20°C) minimum ambient temperature rating supports reliable ignition in cold environments
• Precision Assembly & Inspection Areas — field-adjustable 4000K/5000K CCT allows illumination tuning for visual task accuracy

What's Included

• RAB ARS AEROBAY Linear LED High Bay — White
• V-hooks for chain mounting
• Installation and operation instructions
