RAB ARM AEROBAY Field-Adjustable Linear High Bay — 275W / 206W / 138W Selectable — 4000K / 5000K — White
Available in stock (100)
About this item
About this item
- 38,786 lm at 275W — Full Field Adjustment in 3 ft: Three selectable wattage steps (138W / 206W / 275W) and 4000K / 5000K CCT — six output configurations from a single 36" SKU for ceiling heights of 25–40 ft.
- 120–277V or 480V — DLC Premium on Both Variants: 120–277V (S-PD76PN) and 480V (S-J35C7K) both DLC Premium listed and rebate-eligible. The 480V option eliminates step-down transformers for large 480V industrial facilities.
- CRI 85 at 4000K — 100,000-Hour Rated Life: High color rendering at a 100,000-hour IES LM-80 / TM-21 validated lifespan — reducing re-lamp and maintenance labor costs over the fixture’s lifetime.
- UL Wet Location Rated — Indoor and Covered Outdoor Ready: UL listed for wet locations makes the ARM suitable for covered outdoor areas, loading docks, and open-sided industrial facilities.
- Lightcloud Blue + Battery Backup Ready — /LCBS/MVS, /LCBS, /E Suffix Options: LC Blue enables daylight sensing, occupancy timeout, and wireless group control. Battery backup (/E) available on 120–277V variant only — specify suffix at time of order.
We process payments securely and do not store credit card information.
Description
Description

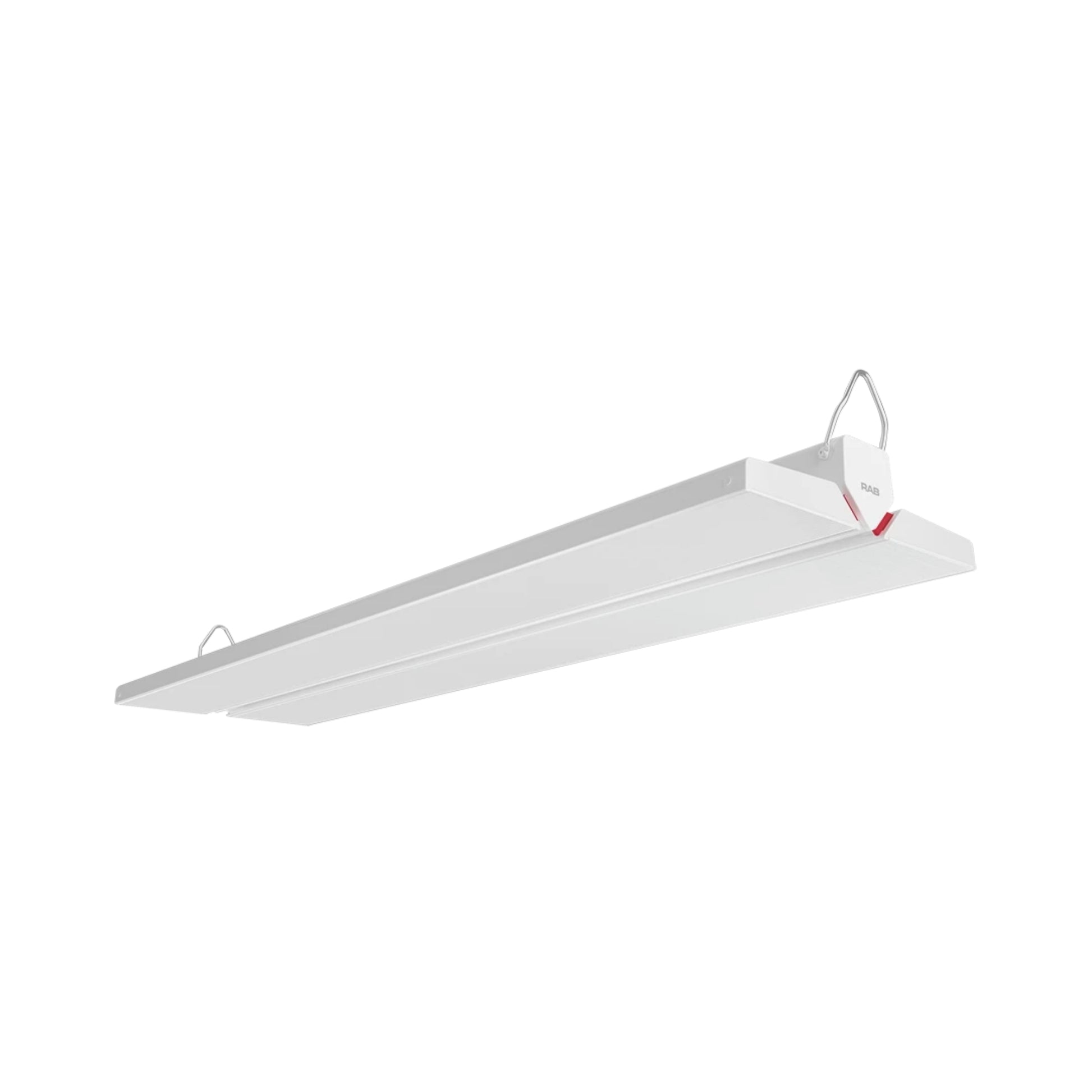

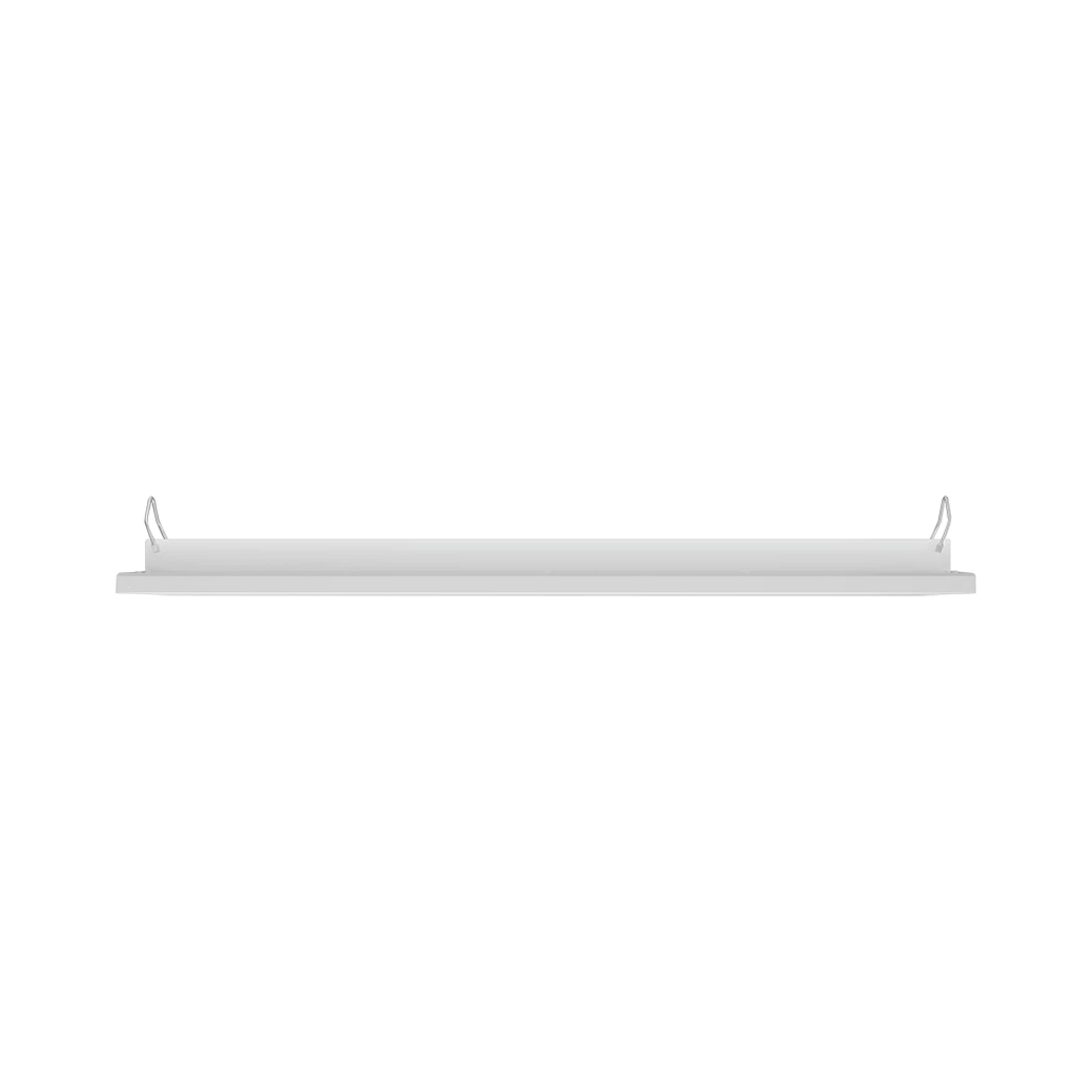

The RAB ARM AEROBAY is the 3 ft high-output model in RAB’s field-adjustable AEROBAY linear high bay family — engineered for large warehouses, manufacturing plants, and tall-ceiling industrial facilities requiring maximum lumen delivery with complete field-adjustability. Three selectable wattage steps (275W / 206W / 138W) and selectable CCT (4000K / 5000K) are adjustable on-site before installation. Delivers up to 38,786 lumens at 120–277V / 4000K / 275W, and up to 38,398 lumens at 480V / 4000K / 275W. Peak efficacy: 161.9 lm/W at 138W / 4000K / 120–277V. CRI 85 (4000K) | CRI 83 (5000K). Available in 120–277V (DLC ID: S-PD76PN) and 480V (DLC ID: S-J35C7K). UL listed for wet locations. DLC Premium listed on both voltage variants. Rated life 100,000 hours. Backed by RAB’s 5-year no-compromise warranty.
Key Features
- Field-Selectable Wattage: 275W / 206W / 138W — selectable on-site
- Field-Selectable CCT: 4000K / 5000K — CCT Adjustable
- Maximum Lumen Output: 38,786 lm at 275W / 4000K / 120–277V | 38,398 lm at 275W / 4000K / 480V
- Peak Efficacy: 161.9 lm/W at 138W / 4000K / 120–277V | 155.3 lm/W at 138W / 4000K / 480V
- CRI: 85 (4000K) | 83 (5000K)
- Dimming: 0–10V dimmable driver standard (120–277V and 480V)
- Voltage: 120–277V or 480V — select at time of order
- Location Rating: UL listed for wet locations
- Max Ambient Temperature: 50°C (122°F)

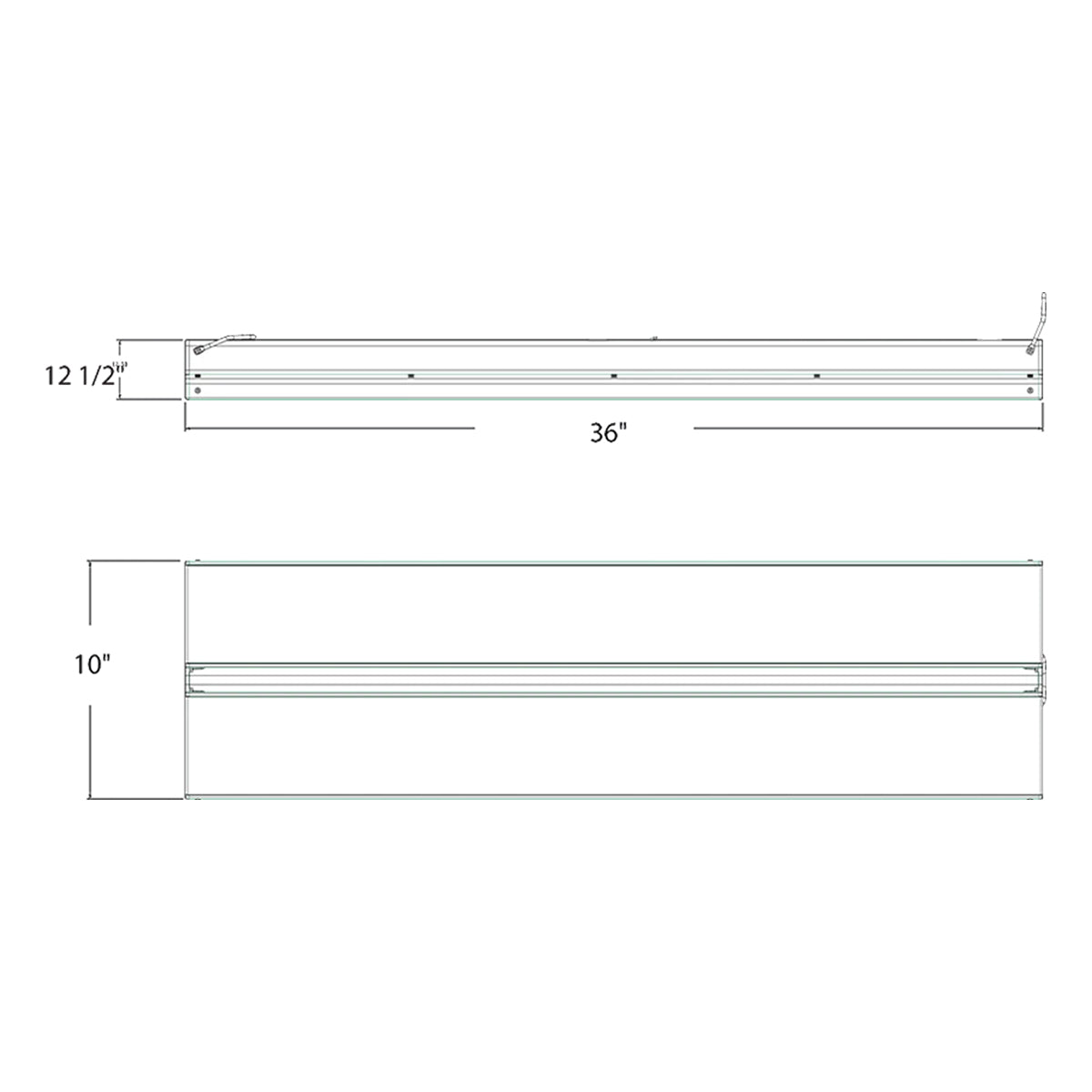

- Size: 3 ft — 36" × 10" × 2-1/2"
- Weight: 9.5 lbs (120–277V) | 10.8 lbs (480V)
- Rated Life: 100,000 hours (IES LM-80 / TM-21)
- DLC Premium: S-PD76PN (120–277V) | S-J35C7K (480V) — both qualify for utility rebate programs
- Green Technology: Mercury and UV free, RoHS-compliant
- BAA: Available upon request — contact customer service
- Warranty: 5-year no-compromise warranty (light output, color stability, driver performance, paint finish, labor)
Performance & Light Output
At 275W / 4000K: 120–277V — 38,786 lm / 150.2 lm/W (258.3W input) | 480V — 38,398 lm / 149.5 lm/W (256.8W input). At 275W / 5000K: 120–277V — 37,788 lm / 139.3 lm/W (271.2W input) | 480V — 37,554 lm / 140.4 lm/W (167.5W input). At 206W / 4000K: 120–277V — 29,640 lm / 156.5 lm/W (189.4W input) | 480V — 29,545 lm / 153.2 lm/W (192.8W input). At 206W / 5000K: 120–277V — 29,411 lm / 149.4 lm/W (196.9W input) | 480V — 29,433 lm / 147.5 lm/W (199.6W input). At 138W / 4000K: 120–277V — 20,673 lm / 161.9 lm/W (127.7W input) | 480V — 20,045 lm / 155.3 lm/W (129.1W input). At 138W / 5000K: 120–277V — 20,861 lm / 158.4 lm/W (131.7W input) | 480V — 20,297 lm / 153.1 lm/W (132.6W input). Rated life 100,000 hours per IES LM-80 / TM-21 projections.
Smart & Control Features
The RAB ARM AEROBAY is available with optional Lightcloud Blue (LC Blue) controls and occupancy sensors via suffix ordering — specify at time of order:
- ARM/LCBS/MVS: Lightcloud Blue enabled + Microwave Occupancy Sensor
- ARM/LCBS: Lightcloud Blue enabled + Passive Infrared Sensor
- ARM/E: Battery Backup — 120–277V only
- ARM/LCBS/MVS/E: LC Blue + MVS + Battery Backup — 120–277V only
- ARM/LCBS/E: LC Blue + PIR + Battery Backup — 120–277V only
Lightcloud Blue features: vacancy/occupancy modes, dimming profiles, daylight sensing (150–1500 lux threshold), occupancy timeout (1–240 minutes), vacant dim level settings. Battery backup options not available on 480V variant. Standard fixture ships without controls; 0–10V dimming wiring included on all variants.
Electrical
0–10V dimming standard on both voltage variants. 120–277V AC or 480V AC. Input watts at 275W setting: 258.3W (120–277V / 4000K) | 271.2W (120–277V / 5000K) | 256.8W (480V / 4000K) | 167.5W (480V / 5000K). Mercury and UV free, RoHS-compliant. Green Technology.
Construction

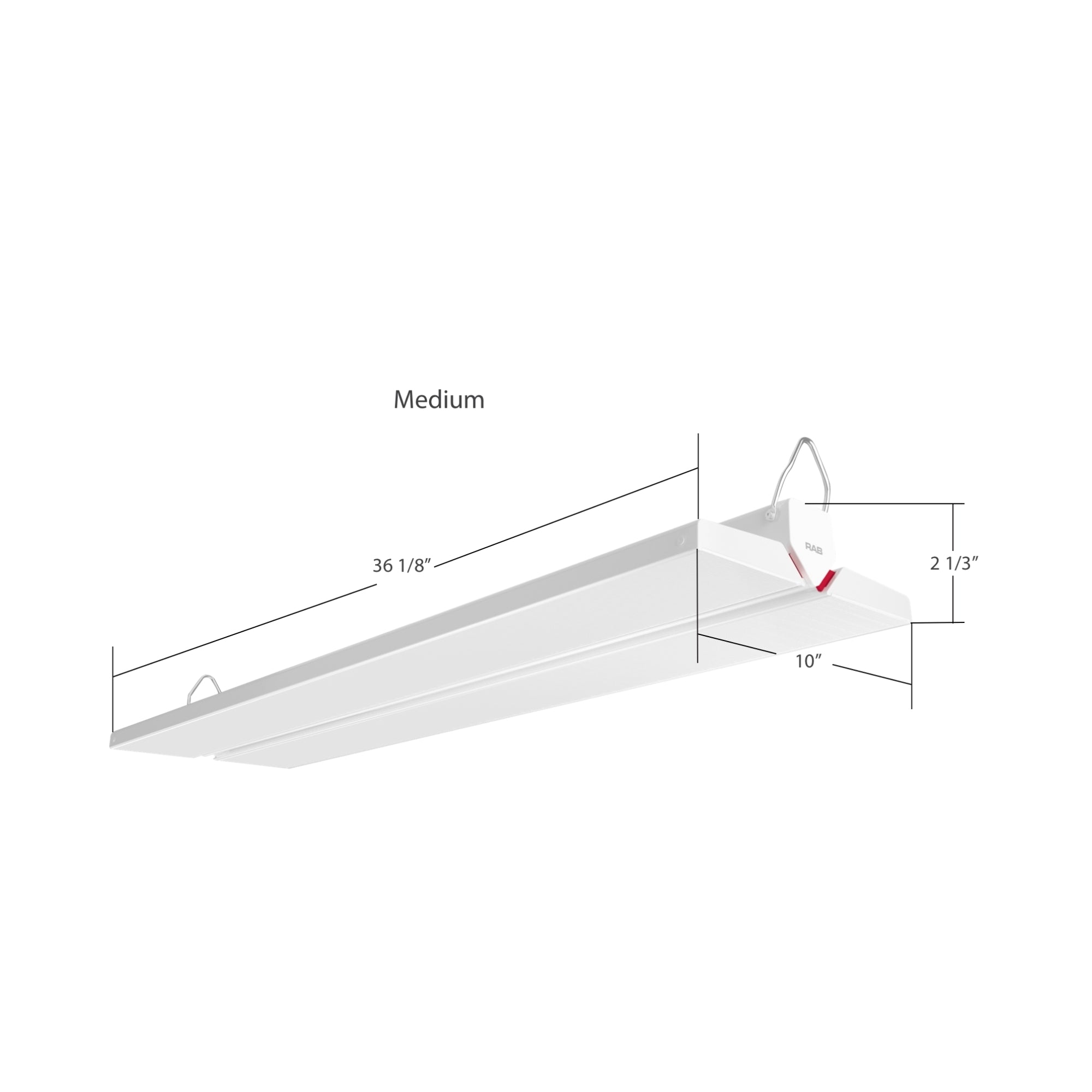

Die-cast aluminum housing. Finish formulated for high durability and long-lasting color. Dimensions: 36" × 10" × 2-1/2". Weight: 9.5 lbs (120–277V) | 10.8 lbs (480V).
Installation & Mounting

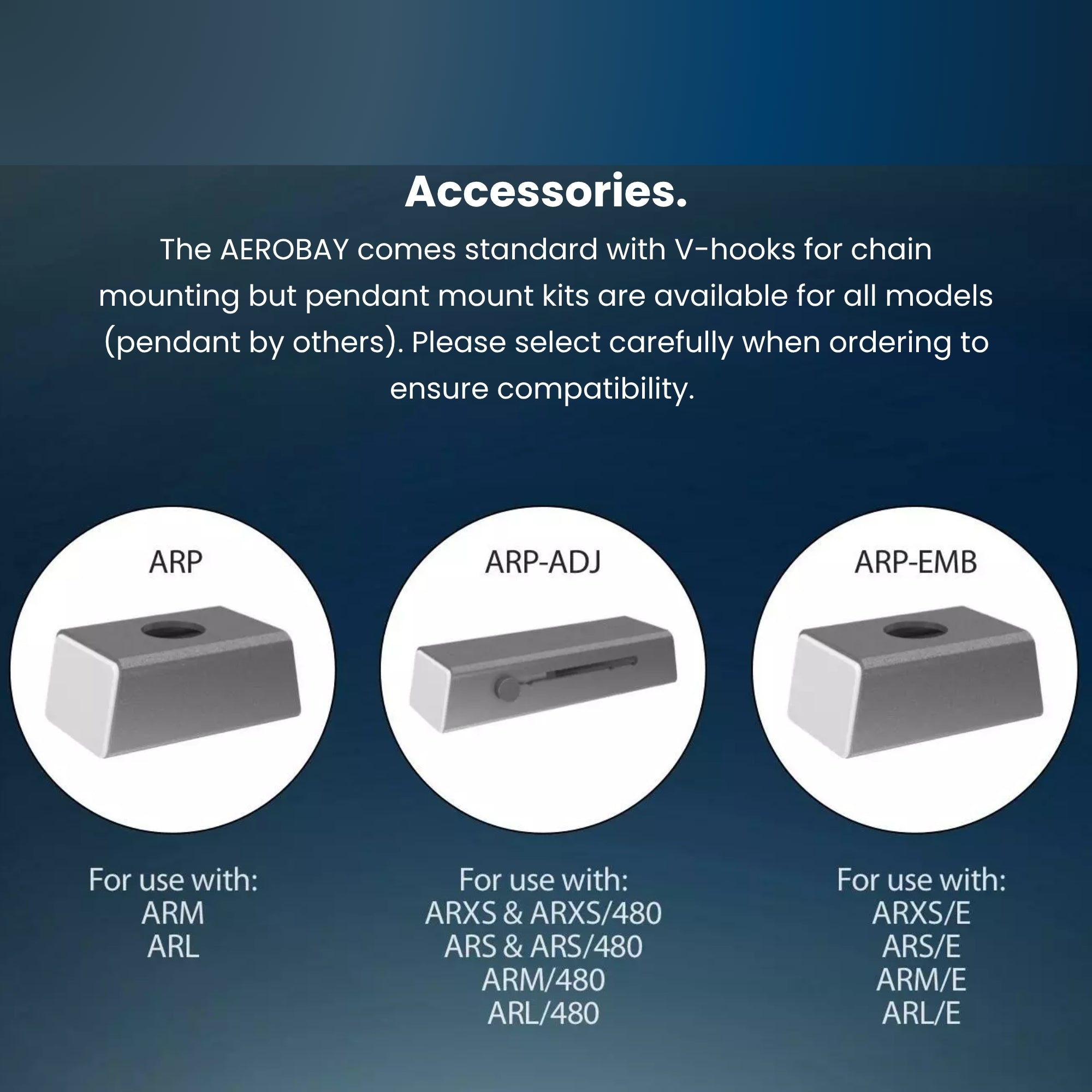

Standard mounting hardware included. Pendant mounting supported via optional accessories:
- ARP: AEROBAY Pendant Kit — sold separately
- ARP-ADJ: AEROBAY Adjustable Pendant Kit — sold separately
- ARP-EMB: AEROBAY Pendant Kit for EMB — sold separately
Certifications & Rebates
UL listed for wet locations. DLC Premium listed — DLC ID S-PD76PN (120–277V) | DLC ID S-J35C7K (480V). Both voltage variants eligible for utility rebate programs in most U.S. states and Canadian provinces. Verify eligibility at designlights.org. RoHS compliant. BAA-compliant version available upon request.
Typical Applications
- High-Ceiling Warehouses & Distribution Centers: 38,786 lm at 275W with selectable wattage covers tall racking and wide bays in large-footprint facilities at 25–40 ft ceiling heights
- Large Manufacturing & Industrial Facilities: 3 ft linear form factor provides uniform row illumination across wide production floors; field CCT selection adapts to inspection and process needs
- Large Industrial Facilities with 480V Distribution: 480V variant (S-J35C7K) eliminates step-down transformers for high-voltage panel installations
- Retail & Commercial High Bays: CRI 85 and 4000K / 5000K CCT selection deliver quality illumination for large-footprint merchandise areas
- Covered Outdoor & Wet-Location Areas: UL wet location rating supports covered outdoor bays, loading docks, and open-sided facilities
- Facilities Requiring Emergency Egress: /E battery backup option (120–277V) maintains illumination for 90 minutes during power outages
What's Included
- RAB ARM AEROBAY Linear High Bay with integrated LED engine and driver
- Standard mounting hardware
