RAB Lighting ARC LED Track Head

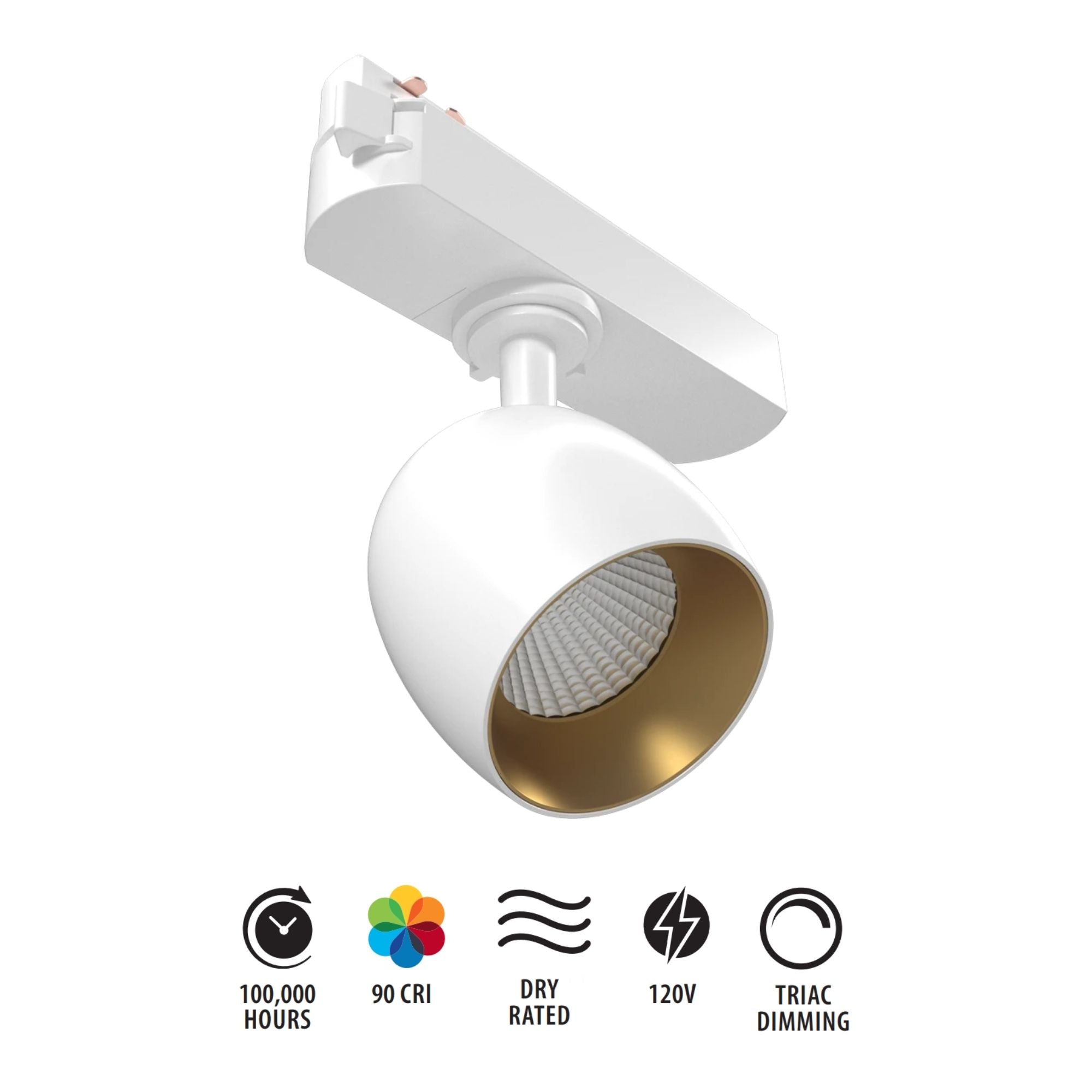

The RAB Lighting ARC integrated LED track head uses H-Type track mounting and combines a white aluminum housing with a gold polycarbonate reflector. Its 10W COB LED delivers 837 lumens at 3000K with 93 CRI. A 36° beam, 360° rotation and up to 40° tilt help direct light onto merchandise, artwork and interior focal points. Fixture input power is 10.2W.

Key Features

• Track Compatibility: H-Type track mounting.
• Integrated Light Source: COB LED with a constant-current Class 2 driver.
• Power: 10W LED rating and 10.2W fixture input power.
• Electrical Supply: 120V, 60Hz operation.
• Light Output: 837 lumens through 36° optics.
• Color Quality: 3000K warm white light with 93 CRI.

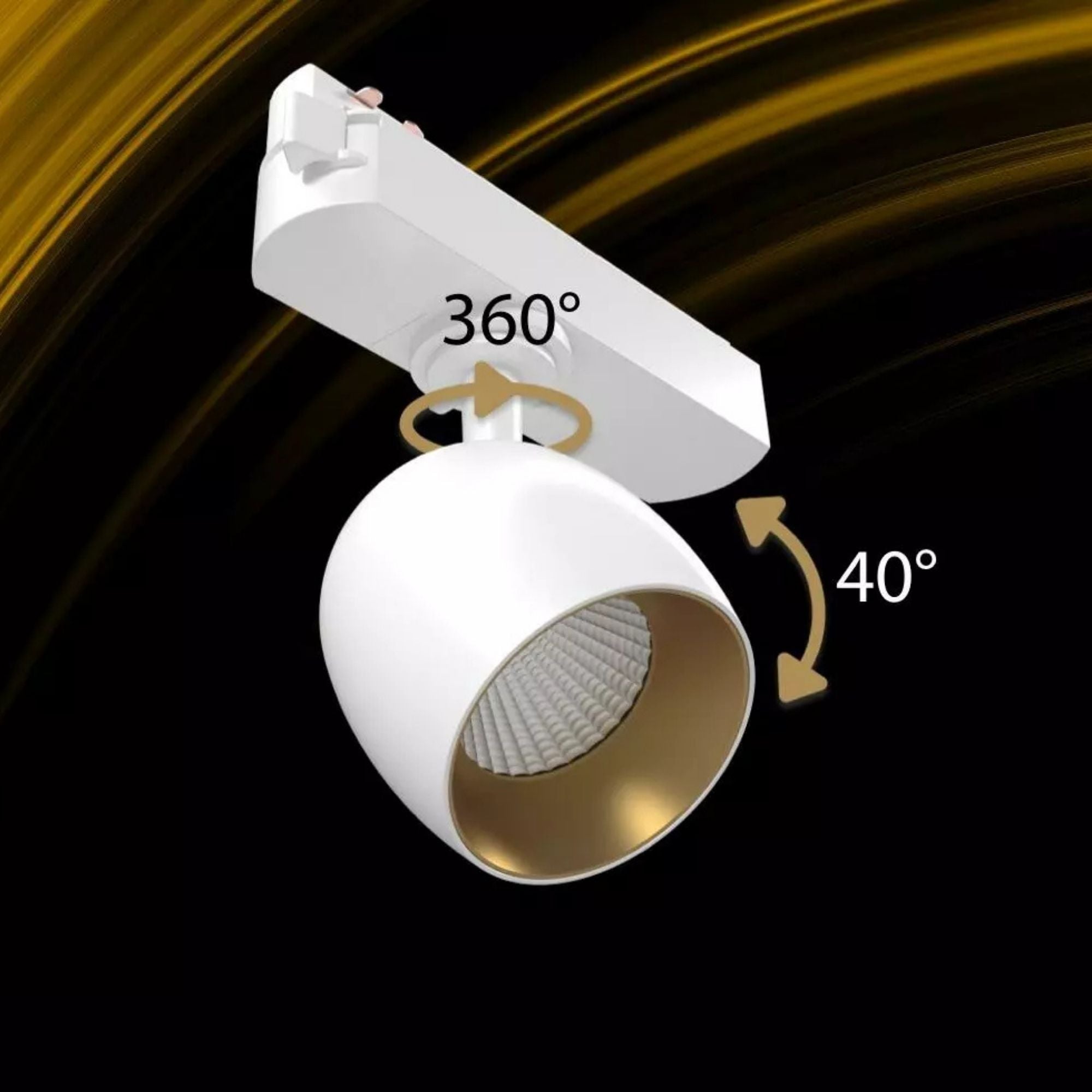

• Mechanical Aiming: Full 360° rotation and up to 40° tilt.
• Dimming: Dimmable down to 10% on compatible TRIAC dimming systems.
• Construction: White aluminum housing with a gold polycarbonate reflector.
• LED Life: 100,000-hour LED lifespan based on LM-80 results and TM-21 calculations.
• Listing: UL Listed for dry locations with an IP20 rating.
• Warranty: RAB 5-year limited warranty covering light output, driver performance and paint finish, subject to warranty terms.

Construction & Design

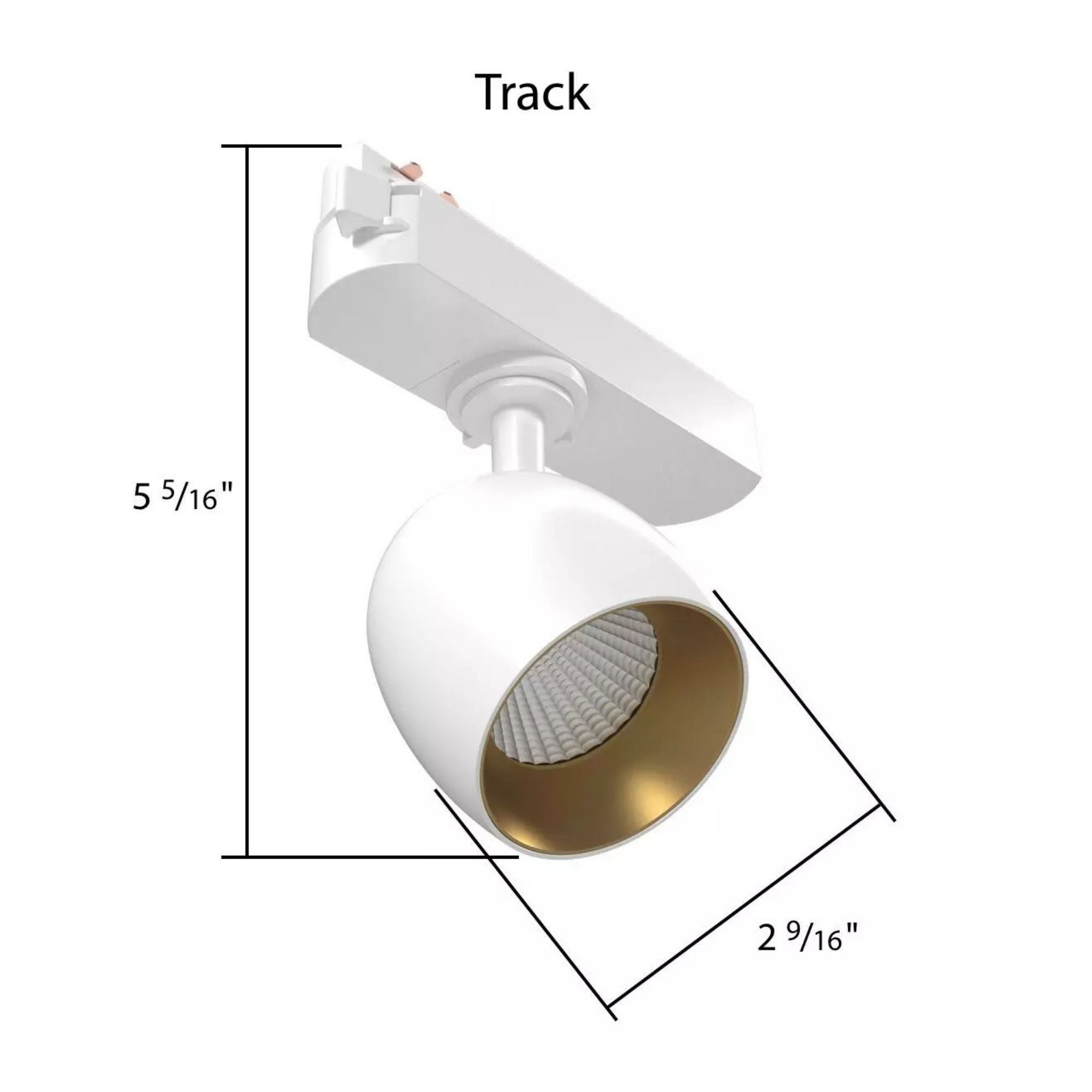

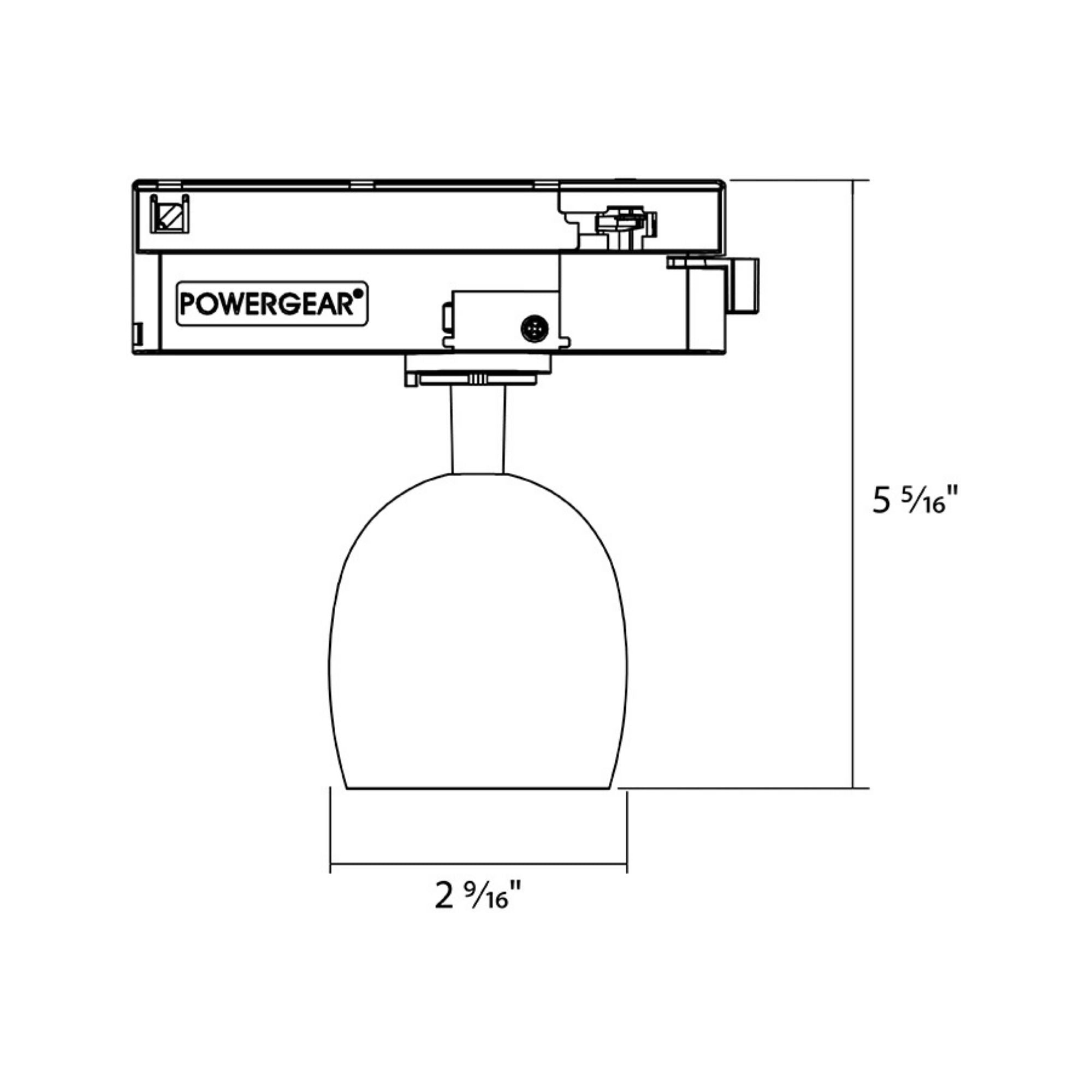

The white aluminum housing features a gold polycarbonate reflector. Overall height is 5 5/16 in, and head width is 2 9/16 in. The fixture weighs 0.7 lb. The head rotates through 360° and tilts up to 40° to direct its 36° beam.

Light Output & Performance

The integrated COB LED produces 837 lumens at 3000K with 93 CRI. Its 36° optics provide focused accent illumination, while mechanical aiming directs the beam toward the subject. The LED has a 100,000-hour rated lifespan.

Electrical & Installation

RAB Lighting ARC uses H-Type track mounting and operates at 120V, 60Hz. Its constant-current Class 2 driver powers the integrated COB LED, so a separate lamp is not required. The LED is rated at 10W, while fixture input power is 10.2W. Compatible 120V TRIAC dimming systems support dimming down to 10%. Install in dry locations. Minimum starting temperature is -4°F (-20°C), and maximum ambient temperature is 104°F (40°C).

Compatible Accessories

Matching white RAB H-Type track components, sold separately.

• Track Rails: TK2 (2 ft), TK4 (4 ft), TK6 (6 ft) and TK8 (8 ft).
• Power Feeds: TK-EF top-access end feed, TK-JB junction-box end feed with cover and TK-FC floating canopy feed.
• Joiners: TK-I linear, TK-L L-shaped, TK-T T-shaped and TK-X X-shaped.
• End Cap: TK-EC finishes exposed track ends.

Typical Applications

• Retail merchandise displays.
• Artwork accent lighting.
• Hospitality focal points.
• Residential decorative accents.

What's Included

• RAB Lighting ARC white LED track head with gold reflector, integrated COB LED and constant-current Class 2 driver.
