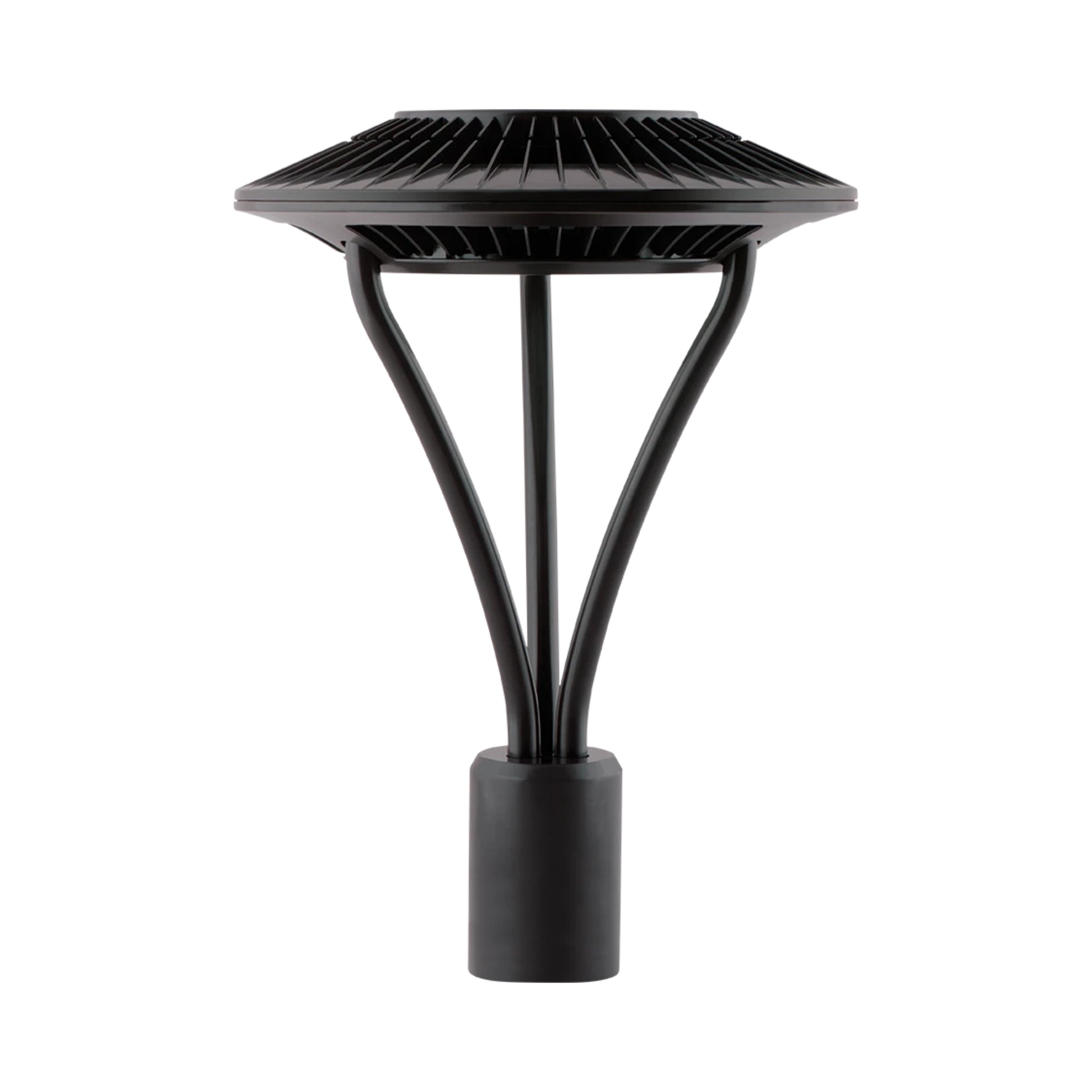

RAB ALED5T52N Post Top Area Light — 52W, 120-277V Type V

The RAB ALED5T52N is a high-output LED pole top area light delivering 6,978 lumens at 52W. Operating on a universal 120-277V driver, the fixture features a 4000K (Neutral) color temperature and a Type V circular distribution for uniform 360-degree coverage. Rated IP66 and UL Wet Location, it is engineered for durable outdoor performance in commercial parking lots and corporate parks.

Key Features

• Fixed Output: Single 52W power setting for consistent performance.
• 4000K Neutral CCT: 4000K color temperature for balanced outdoor visibility.
• Type V Distribution: Wide 360-degree circular pattern ideal for open areas.
• High Efficacy: Delivers 132.2 lm/W for efficient energy use.
• IP66 Rated: Superior protection against dust and high-pressure water ingress.
• Universal Voltage: Standard 120-277V commercial-grade driver.
• Surge Protection: Integrated 6kV protection for electrical stability.
• Thermal Management: Integrated "Air-Flow" fins designed for maximum heat dissipation.
• Tenon Compatibility: Fits standard 2-3/8" and 3" tenons.
• DLC Listed: Qualified for energy utility rebate programs.

Typical Applications

• Commercial Parking Lots
• Corporate and Industrial Parks
• Retail Shopping Centers
• Educational Campuses
• Municipal Walkways and Plazas
• Hospitality Perimeter Lighting

Performance & Light Output

This fixture provides a total output of 6,978 lumens with a high efficacy of 132.2 lm/W. It features a 70 CRI for balanced color rendering and is L70 rated for a 100,000-hour lifespan. The Type V circular optics provide a wide, uniform 360-degree pattern, making it ideal for large outdoor areas requiring broad light coverage.

Electrical & Controls

Operating on 120-277V at 50/60Hz, the system utilizes a constant current Class 2 driver with 6kV surge protection. It maintains electrical stability with a power factor of 99.9% at 120V and a low THD of 3.27%. While the standard model is non-dimming, optional 0-10V dimming configurations are available for advanced control strategies.

Construction & Durability

The die-cast aluminum housing includes integrated "Air-Flow" fins for optimal cooling and thermal performance. It is IP66 rated for superior environmental sealing and UL Listed for Wet Locations. The fixture features a durable bronze finish and is RoHS compliant, operating in ambient temperatures up to 40°C.

Installation & Mounting

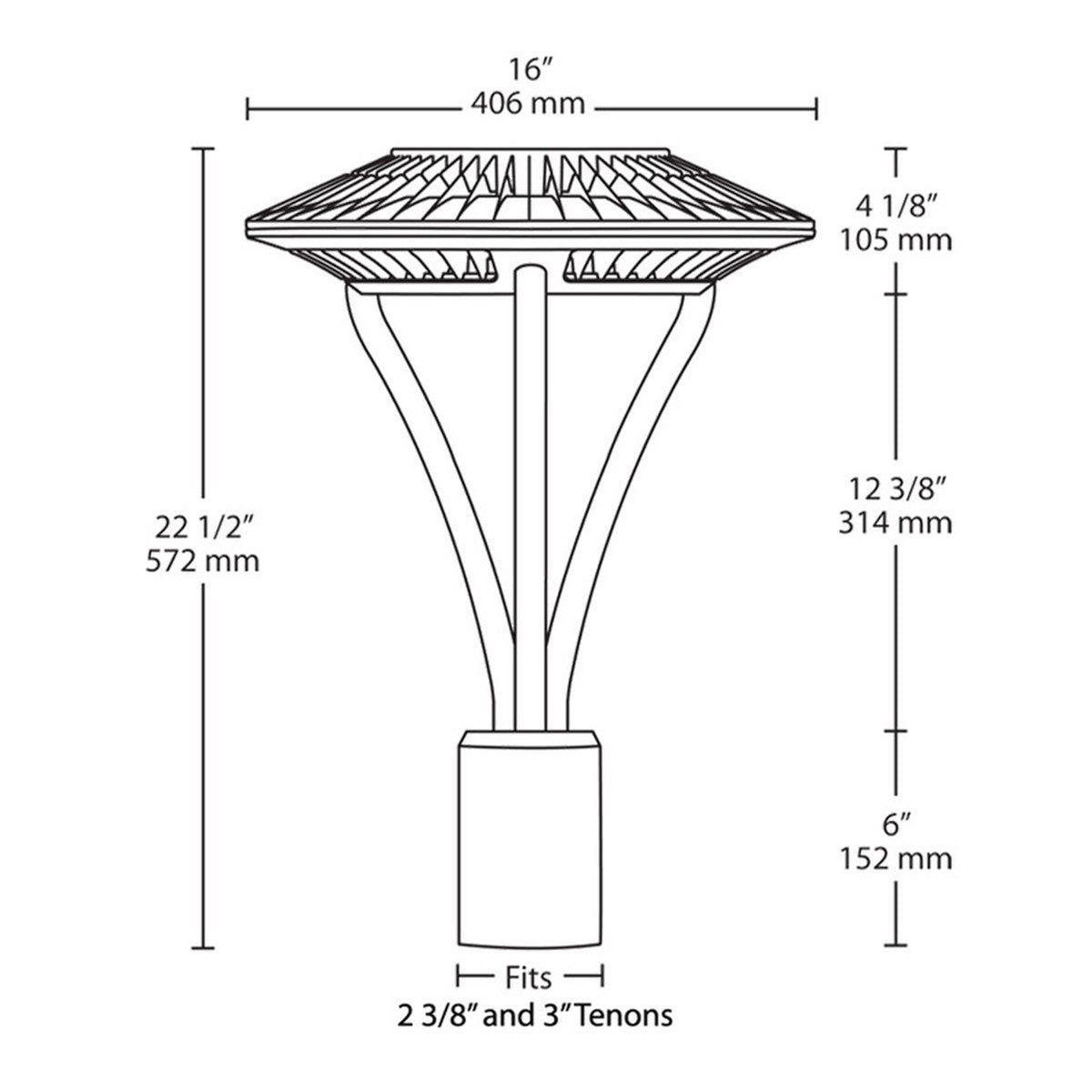

The ALED5T52N is designed for pole-top mounting and is compatible with standard 2-3/8" and 3" tenons. The aerodynamic design features an Effective Projected Area (EPA) of 1.2. Mounting hardware is engineered to ensure a secure, weather-tight attachment during field installation on square or round poles.

What’s Included

• LED Post Top Area Light Fixture
• Integrated Mounting Hardware for 2-3/8" and 3" Tenons
• Instruction Manual
