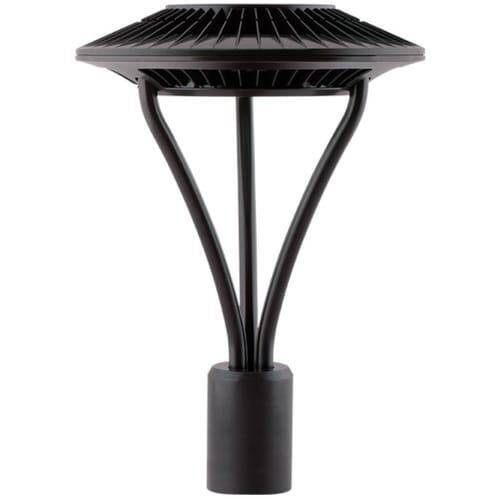

RAB ALED5T52 Post Top Area Light — 52W, 120-277V Type V

The RAB ALED5T52 is a high-output LED pole top area light delivering6,567 lumens at 52W. Operating on a universal 120-277V driver, the fixture features a 5000K color temperature and a Type V circular distribution for uniform 360-degree coverage. Rated IP66 and UL Wet Location, it is engineered for durable outdoor performance in commercial parking lots and corporate parks.

Key Features

• Fixed Output: Single 52W power setting for consistent performance
• 5000K Color Temperature: Cool white light for enhanced outdoor visibility
• Type V Distribution: Wide 360-degree pattern ideal for open areas
• High Efficacy: Delivers 123.9 lm/W for efficient energy use
• IP66 Rated: Superior protection against dust and high-pressure water ingress
• Universal Voltage: Standard 120-277V commercial-grade driver
• Surge Protection: Integrated 6kV protection for electrical stability
• Thermal Management: "Air-Flow" fins designed for maximum heat dissipation
• Tenon Compatibility: Fits standard 2-3/8" and 3" tenons
• DLC Listed: Qualified for energy utility rebate programs

Typical Applications

• Commercial Parking Lots
• Corporate and Industrial Parks
• Retail Shopping Centers
• Educational Campuses
• Municipal Walkways and Plazas
• Hospitality Perimeter Lighting

Performance & Light Output

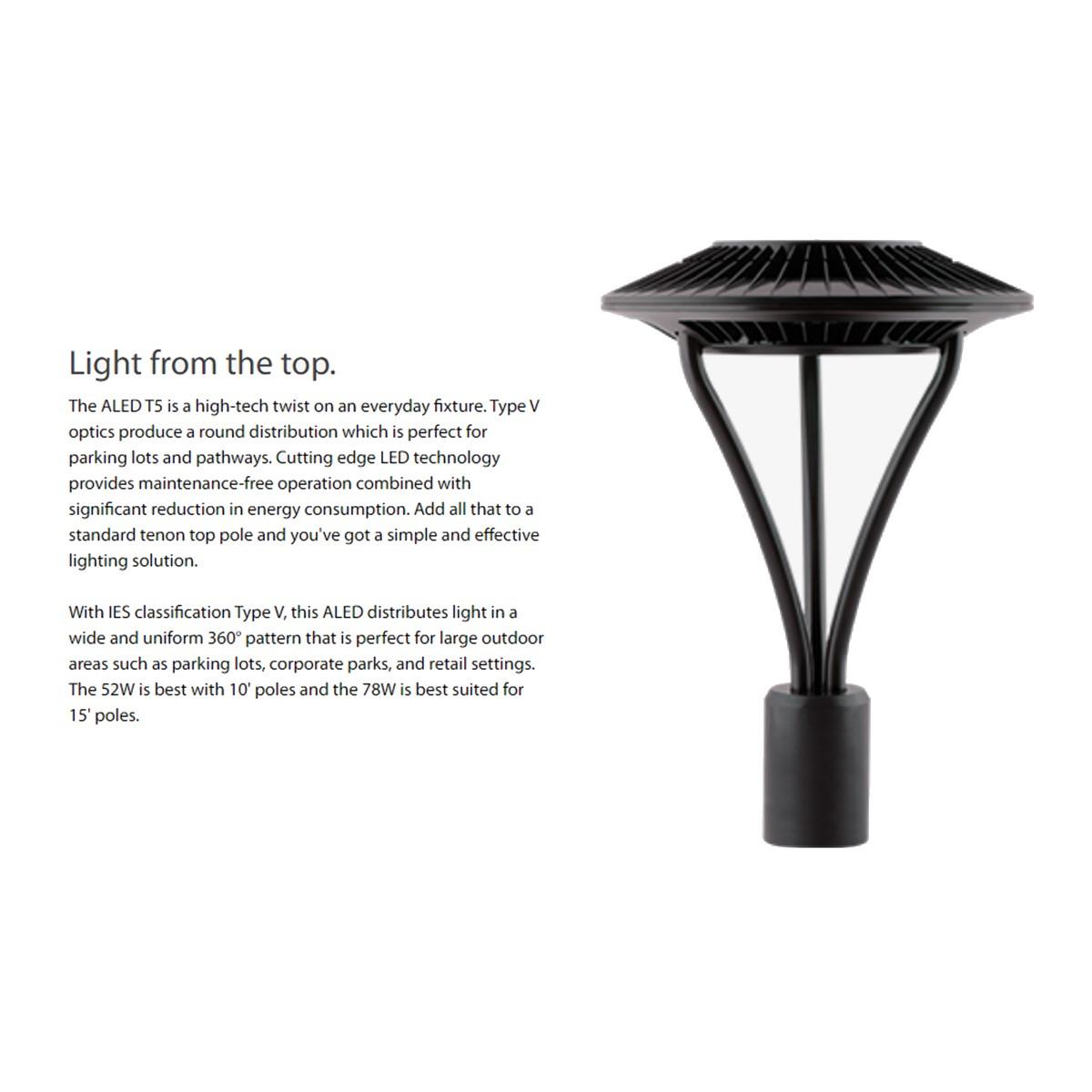

This fixture provides a total output of 6,567 lumens with a high efficacy of 123.9 lm/W. It features a 70 CRI for balanced color rendering and is L70 rated for a 100,000-hour lifespan. The Type V circular optics provide a wide, uniform 360-degree pattern, making it ideal for large outdoor areas requiring broad light coverage.

Electrical & Controls

Operating on 120-277V at 50/60Hz, the system utilizes a constant current Class 2 driver with 6kV surge protection. It maintains electrical stability with a power factor of 99.9% at 120V and a low THD of 3.27%. While the standard model is non-dimming, optional 0-10V dimming configurations are available for advanced control strategies.

Construction & Durability

The die-cast aluminum housing includes integrated "Air-Flow" fins for optimal cooling and thermal performance. It is IP66 rated for superior environmental sealing and UL Listed for Wet Locations. The fixture features a durable bronze finish and is RoHS compliant, operating in ambient temperatures up to 40°C.

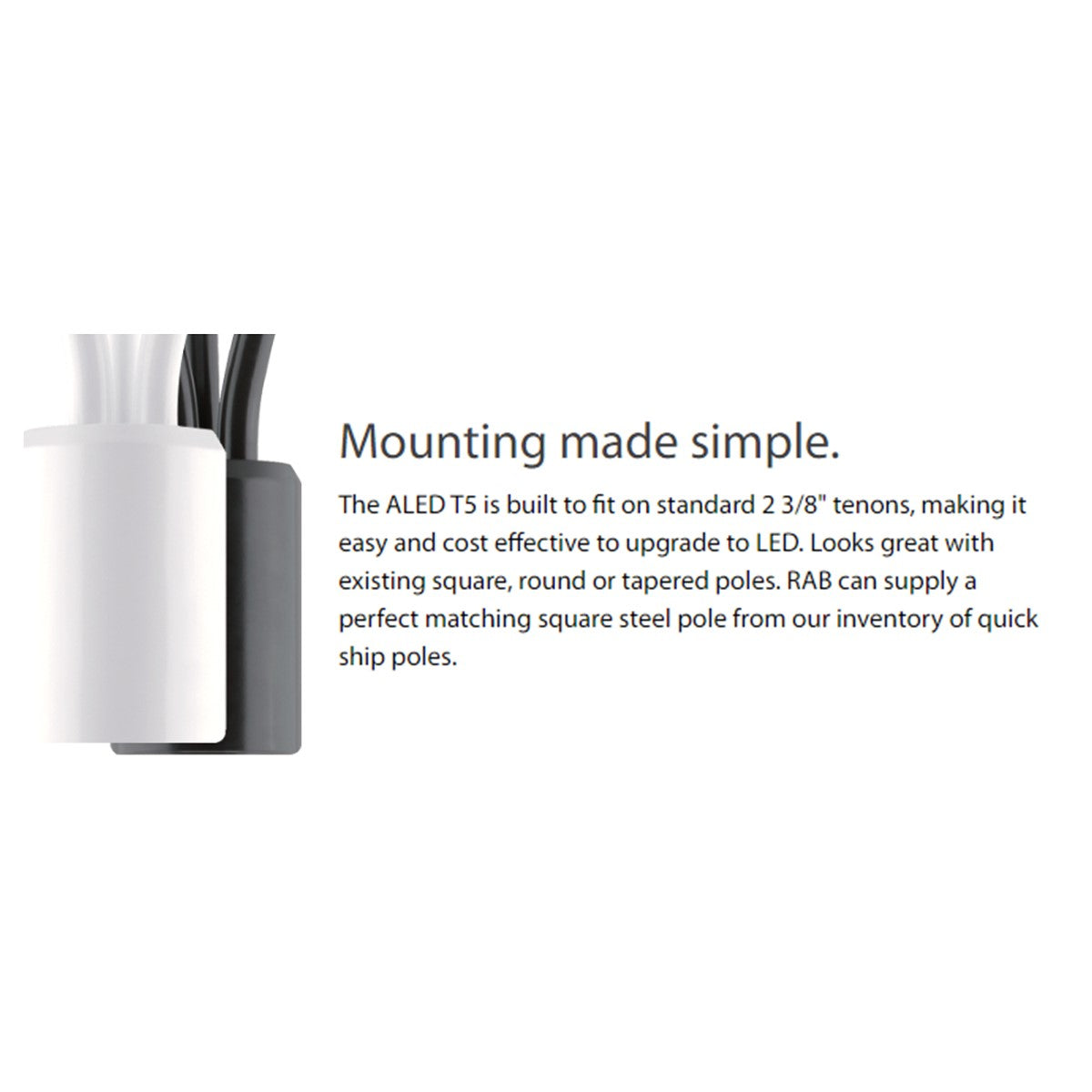

Installation & Mounting

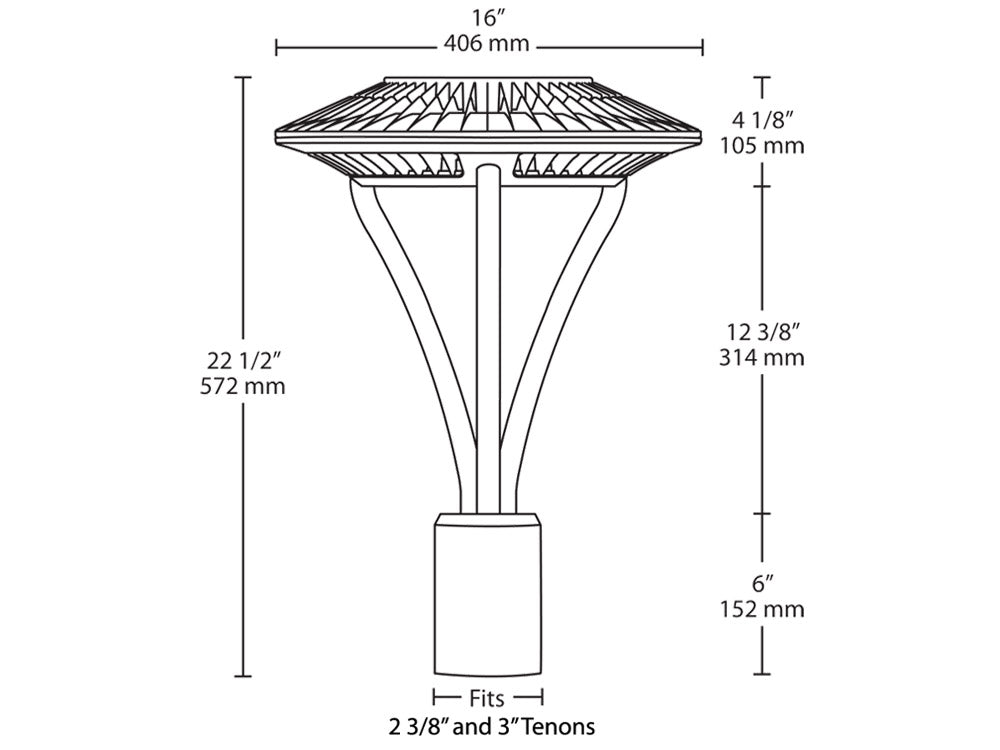

The ALED5T52 is designed for pole-top mounting and is compatible with standard 2-3/8" and 3" tenons. The aerodynamic design features an Effective Projected Area (EPA) of 1.2 for the fixture and mount. Mounting hardware is engineered to ensure a secure, weather-tight attachment during field installation on square or round poles.

What’s Included

• LED Post Top Area Light Fixture
• Integrated Mounting Hardware for 2-3/8" and 3" Tenons
• Instruction Manual
