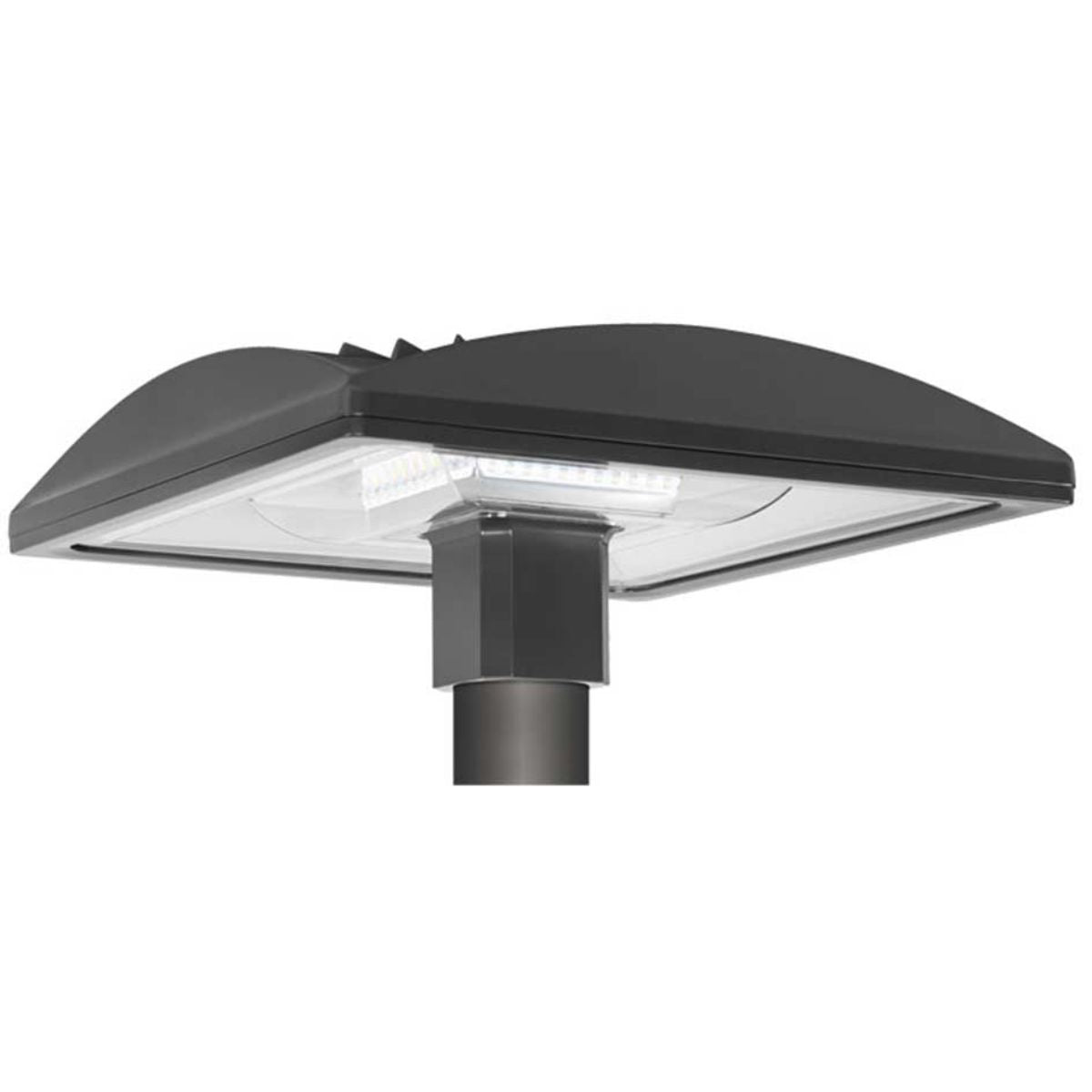

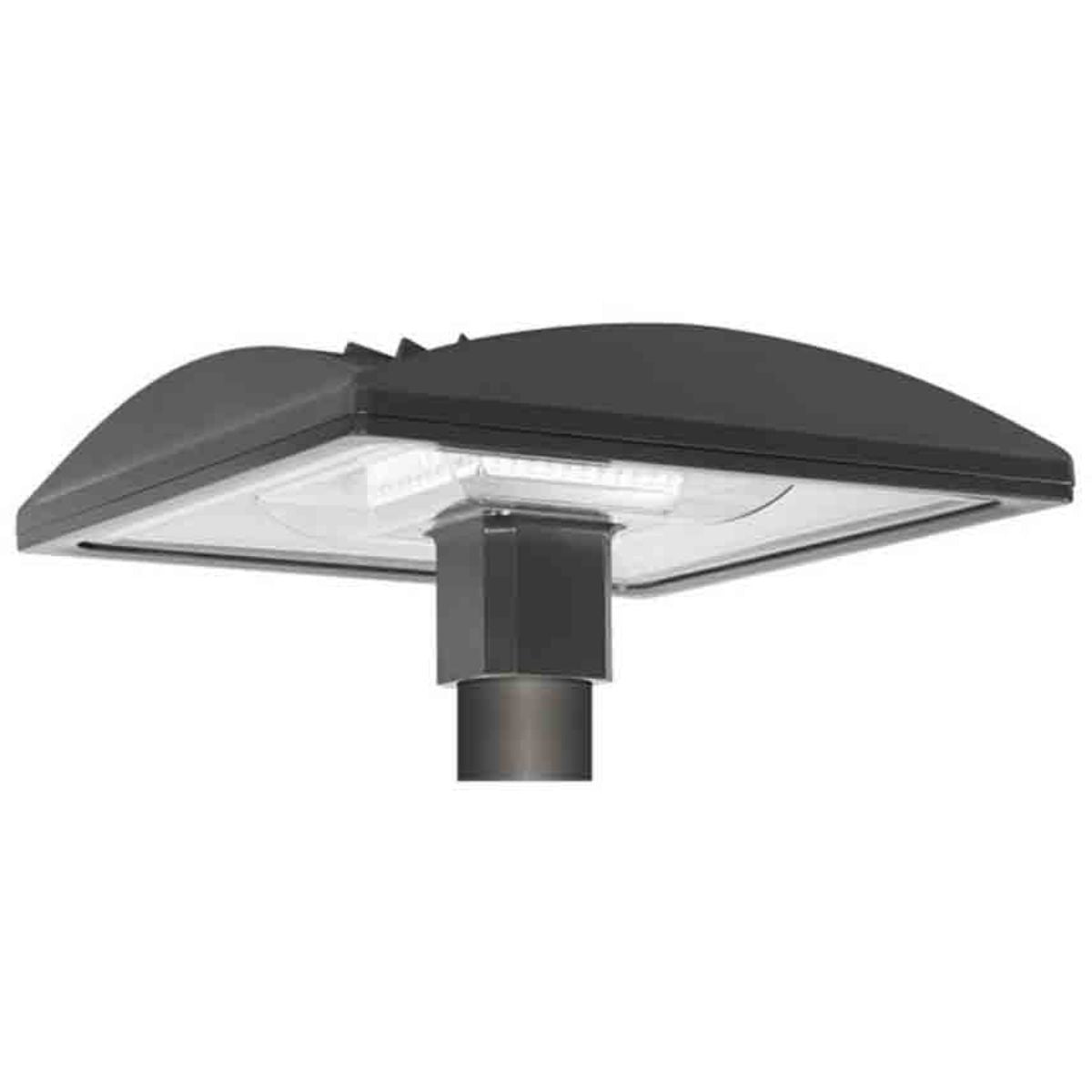

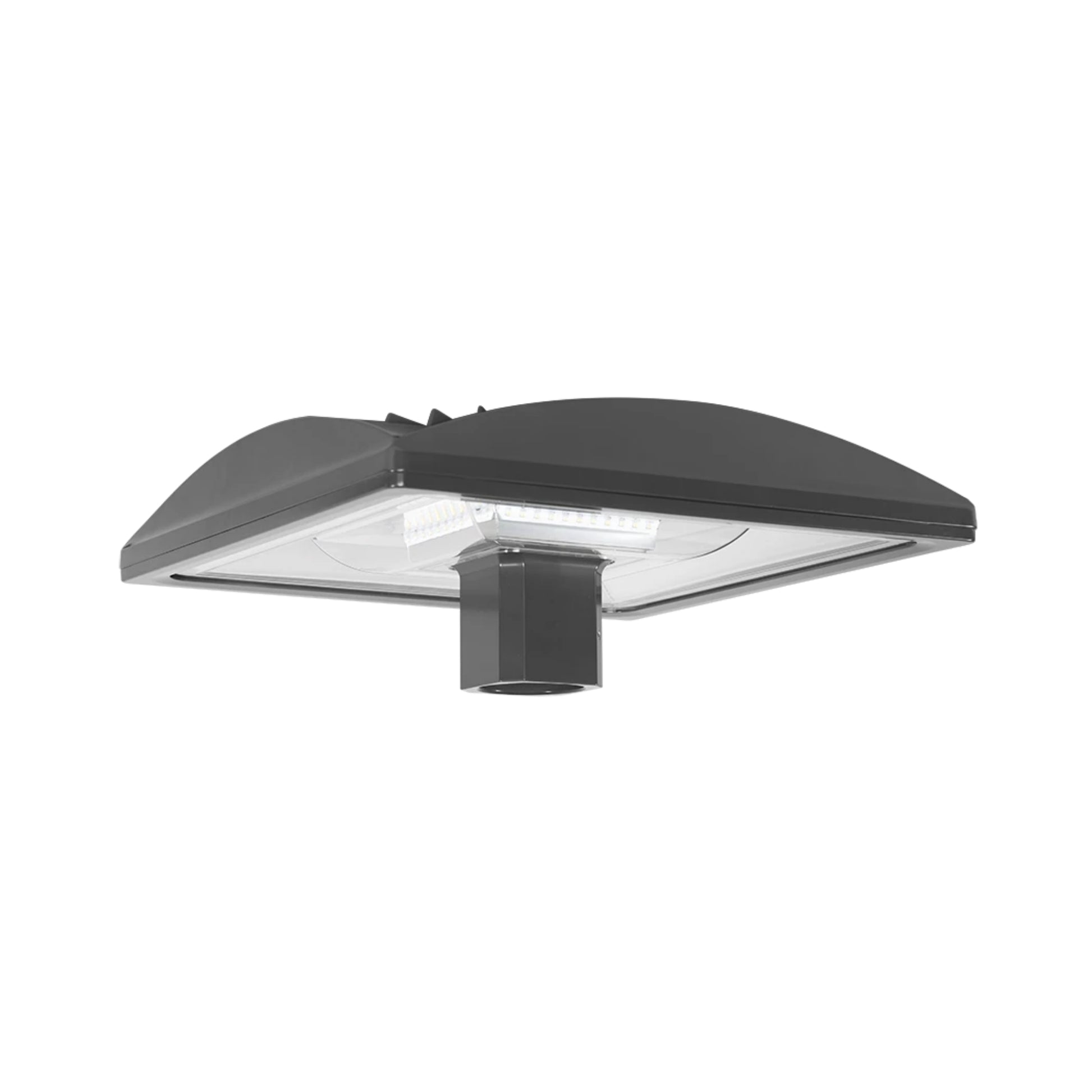

RAB ALED5S150/D10 LED Post Top Area Light — 150W, 120-277V Type V Square

The RAB ALED5S150/D10 is a high-performance LED post top light delivering 17,403 lumens at 150W. Featuring a 5000K color temperature and Type V square distribution, it provides uniform 360-degree coverage for parking lots and pathways. This bronze fixture includes a 0-10V dimming driver and is DLC Premium listed. Built with die-cast aluminum, it is UL Listed for wet locations with a 100,000-hour lifespan at Bees Lighting.

Key Features

• Fixed Output: High-efficacy 150W performance for consistent site lighting.
• 5000K Color Temp: Cool white light for enhanced outdoor visibility.
• Type V Square Distribution: Precision optics for uniform area coverage.
• High Efficacy: Delivers 123.1 lm/W for significant energy savings.
• DLC Premium Listed: Qualifies for the highest tier of utility rebates.
• UL Listed: Suitable for wet locations and outdoor commercial use.
• 0-10V Dimming: Driver supports flexible light level control down to 10%.
• 100,000-Hour Lifespan: Long-life LEDs based on IES LM-80 results.
• Die-Cast Aluminum: Rugged housing finished in a durable bronze powder coat.
• Universal Voltage: Compatible with standard 120-277V commercial electrical systems.

Typical Applications

• Commercial Parking Lots
• Corporate and Industrial Parks
• Retail Shopping Centers
• Pedestrian Pathways and Walkways
• Municipal Plazas and Public Grounds
• Educational and Healthcare Facility Perimeters

Performance & Light Output

The ALED5S150/D10 provides a total output of 17,403 lumens with an efficacy of 123.1 lm/W. It features a 73 CRI for balanced color accuracy and is L70 rated for a 100,000-hour lifespan based on IES LM-80 testing. The precision Type V square optics are designed for large outdoor areas requiring uniform 360-degree illumination from a single post-top position.

Electrical & Controls

Operating on 120-277V at 50/60Hz, the system utilizes a constant current driver with integrated 0-10V dimming. It maintains high electrical stability with a power factor of 99.9% at 120V. The driver is compatible with standard control strategies, allowing for integration with sensors or 7-pin receptacles for advanced site management.

Construction & Durability

Constructed with a die-cast aluminum housing, the fixture is engineered for optimal thermal management to protect the LEDs. It is UL Listed for Wet Locations and utilizes high-quality gaskets for superior environmental sealing. Finished in a durable bronze polyester powder coat, this rugged 33.1 lb unit is built for long-term reliability in harsh outdoor environments.

Installation & Mounting

This post top area light is designed for secure mounting to standard poles in commercial site applications. The square optical design allows for precise positioning to maximize uniform light distribution over the target zone while reducing dark spots. All hardware is engineered to maintain a weather-tight UL Wet Location rated connection during field installation.

What’s Included

• ALED5S150/D10 LED Area Light Fixture
• 0-10V Dimming Driver (Integrated)
• Mounting Hardware
• Technical Instruction Manual
