RAB A22-320X LED Area Light 45,000LM 320W/280W/250W Selectable 3000K/4000K/5000K 120-277V Type III/Optic Swap Adjustable Mount Bronze
Available in stock (100)
About this item
About this item
- 45,000 Max Lumens: High-output selectable wattage of 320W / 280W / 250W for large-area site lighting.
- Optic Swap System: Field-interchangeable Type III lens kit for versatile light distribution.
- Universal Pole Mount: Adjustable mounting hardware compatible with square and round poles included.
- Photocell Included: Comes standard with a 120-277V twistlock photocell and a 7-pin receptacle.
- IP66 & DLC Premium: Maximum environmental protection and eligibility for top-tier utility energy rebates.
We process payments securely and do not store credit card information.
Description
Description

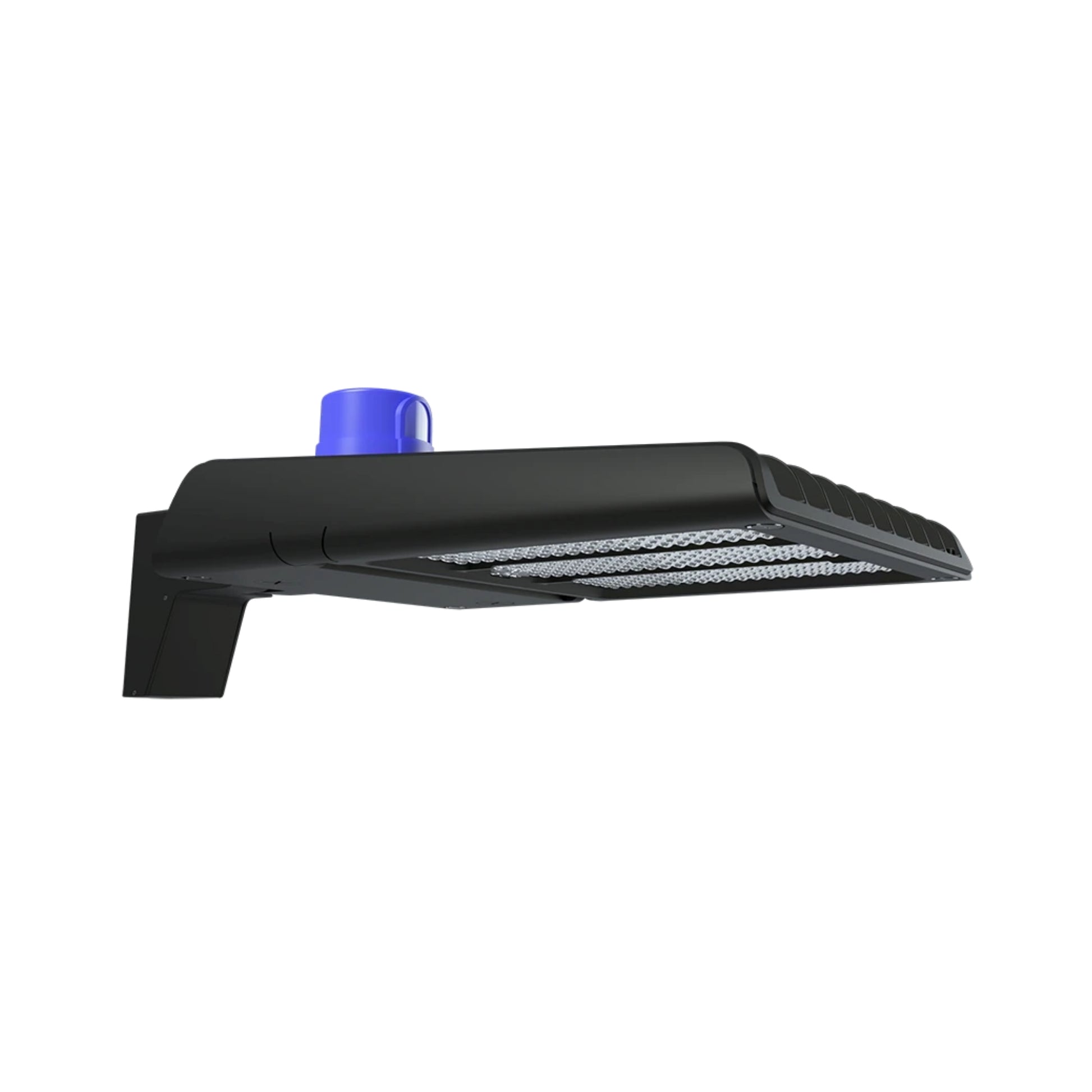

RAB A22-320X LED Area Light — Selectable 320W/280W/250W, 120-277V
The RAB A22-320X is a high-output LED area light delivering up to 45,000 lumens with field-selectable 320W / 280W / 250W power settings and 3000K / 4000K / 5000K CCT. This model features field-adjustable optics with an Optic Swap system supporting Type III distribution and interchangeable lens configurations to meet diverse site lighting requirements. Rated IP66 and DLC Premium, the fixture includes an Adjustable Universal Pole Mount and a 3-pin twistlock photocell for complete parking lot and perimeter illumination.
Key Features
- Field-Adjustable Wattage: Switch between 320W, 280W, and 250W power settings.
- Field-Adjustable CCT: Selectable 3000K, 4000K, or 5000K color temperatures.
- Optic Swap System: Field-interchangeable lenses including Type III distribution for versatile coverage.
- High Output: Delivers up to 45,000 lumens for large-area commercial and industrial applications.
- DLC Premium Listed: Qualifies for the highest tier of utility energy rebates.
- IP66 Rated: Dust-tight and protected against powerful water ingress.
- UL Listed: Suitable for wet locations and mounting within 4 ft of the ground.
- Twistlock Photocell Included: Comes with a 120V-277V 3-pin twistlock photocell.
- 7-Pin Receptacle: ANSI C136.41 socket with shorting cap for advanced control readiness.
- Adjustable Universal Pole Mount: Standard mount compatible with square and round poles.
- Trade Agreements Act (TAA) Compliant: Suitable for government-designated country projects.
- Surge Protection: Integrated 6kV protection for long-term electrical durability.
Typical Applications
- Large Commercial Parking Lots
- Municipal Roadways & Intersections
- Corporate Campuses
- Retail Shopping Centers
- Industrial Loading Yards
- Educational Facility Grounds
- Building Perimeter Security
Performance & Light Output
The A22-320X delivers a maximum of 45,000 lumens at its peak 320W setting. It maintains a color accuracy of 80+ CRI and is L70 rated for a 100,000-hour lifespan based on IES LM-80 testing and TM-21 calculations. The Optic Swap system allows for precise Type III distribution and field-interchangeable lens configurations depending on site requirements.
Electrical & Controls
This fixture operates on a universal 120-277V driver with 0-10V dimming that dims down to 10%. It includes a 7-pin NEMA receptacle and a 3-pin twistlock photocell for automated dusk-to-dawn operation. The electrical system is protected by 6kV surge suppression and maintains a high power factor.
Construction & Durability
Constructed with a die-cast aluminum housing and polycarbonate lens, the fixture is finished in a durable bronze powder coat. It is IP66 rated and utilizes high-temperature silicone gaskets for superior environmental sealing. The aerodynamic design operates in temperatures ranging from -40°C to 40°C.
Installation & Mounting

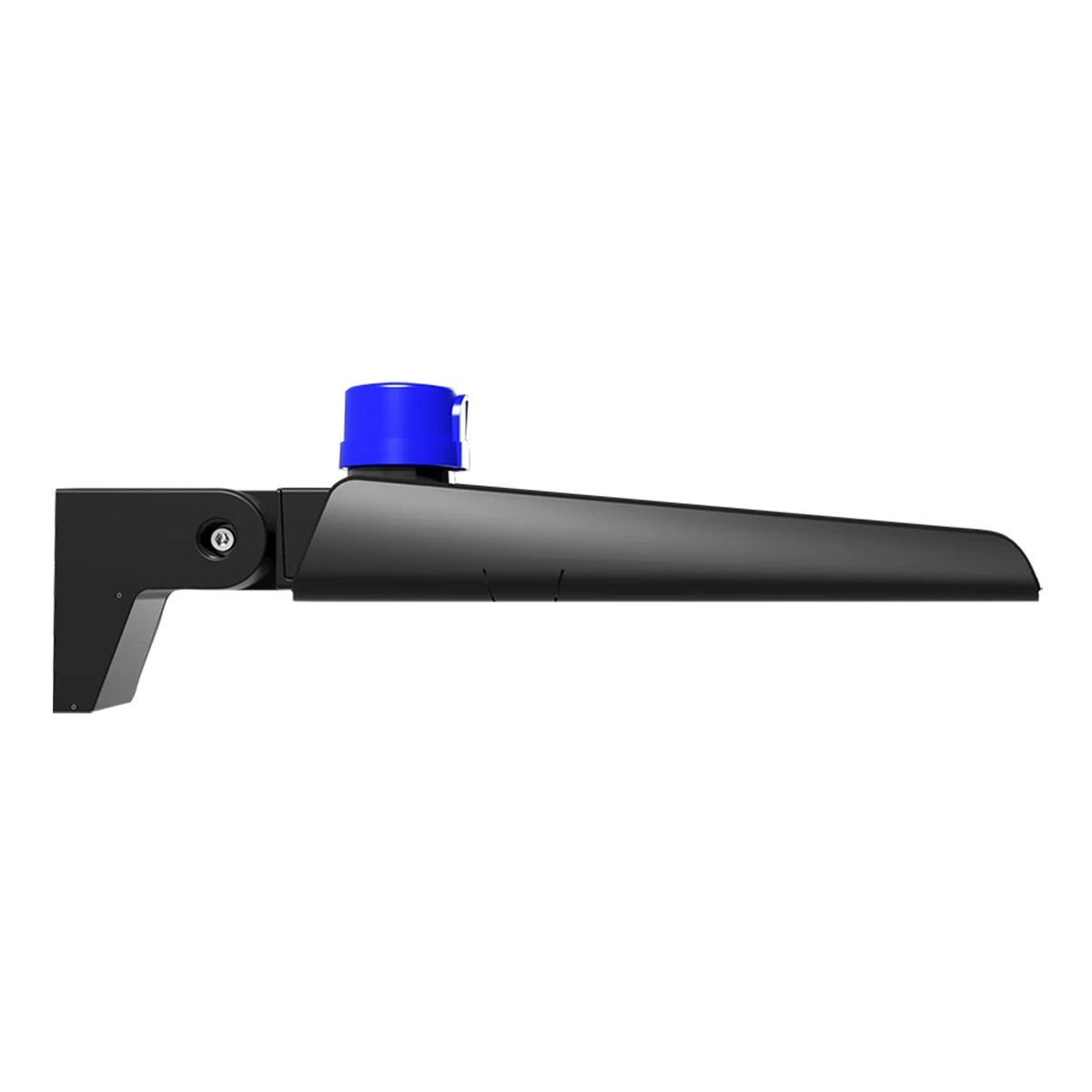

The A22-320X comes standard with an Adjustable Universal Pole Mount designed for square and round poles. This mount allows for field-adjustable tilting and precise aiming to optimize light distribution. All hardware is included to ensure a secure, UL Wet Location rated installation.
What's Included
- A22-320X LED Area Light Fixture
- Adjustable Universal Pole Mount
- Optic Swap Lens Kit (Type III)
- 7-Pin NEMA Receptacle and Shorting Cap
- 3-Pin Twistlock Photocell
Specifications
Specifications

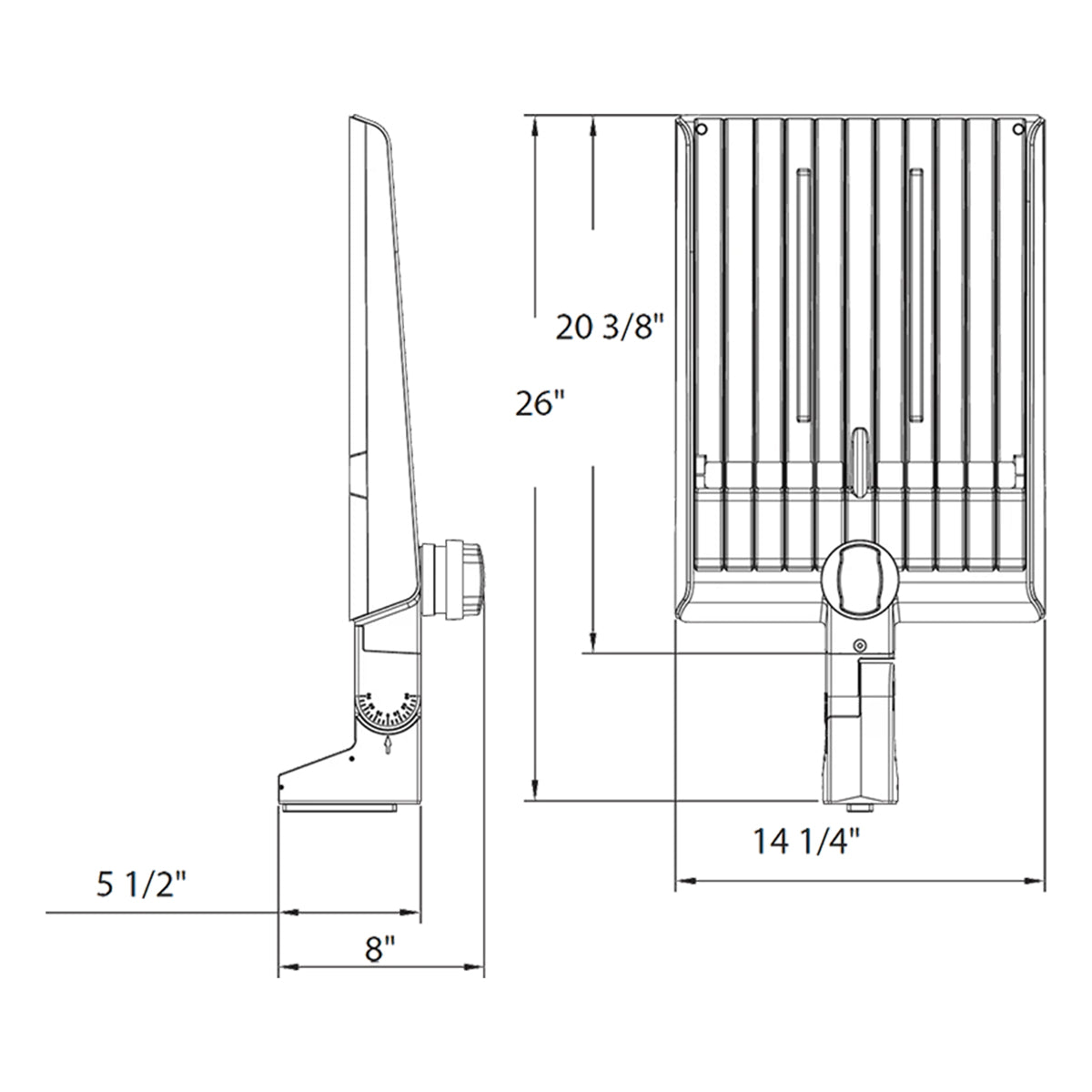

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What makes the A22-320X different from a standard high-wattage area light?
What makes the A22-320X different from a standard high-wattage area light?
How do I change the light distribution on this fixture?
How do I change the light distribution on this fixture?
This model features an Optic Swap system with a field-interchangeable Type III lens. You can swap the lens in the field to optimize the light distribution pattern for your specific site layout and coverage requirements.
Does this fixture support advanced controls beyond the included photocell?
Does this fixture support advanced controls beyond the included photocell?
Yes, the fixture is equipped with an ANSI C136.41 7-pin receptacle. While it includes a 3-pin photocell, the receptacle has extra contacts that support networked wireless sensors and advanced dimming control nodes.
Is the mounting bracket included with this area light?
Is the mounting bracket included with this area light?
Yes, the A22-320X includes an Adjustable Universal Pole Mount. This mount is designed to fit both square and round poles, allowing for flexible installation across various site types.
What are the environmental ratings for this light?
What are the environmental ratings for this light?
The fixture is IP66 rated, meaning it is dust-tight and protected against powerful jets of water. It is also UL Listed for Wet Locations and can start in temperatures as low as -40°C.
