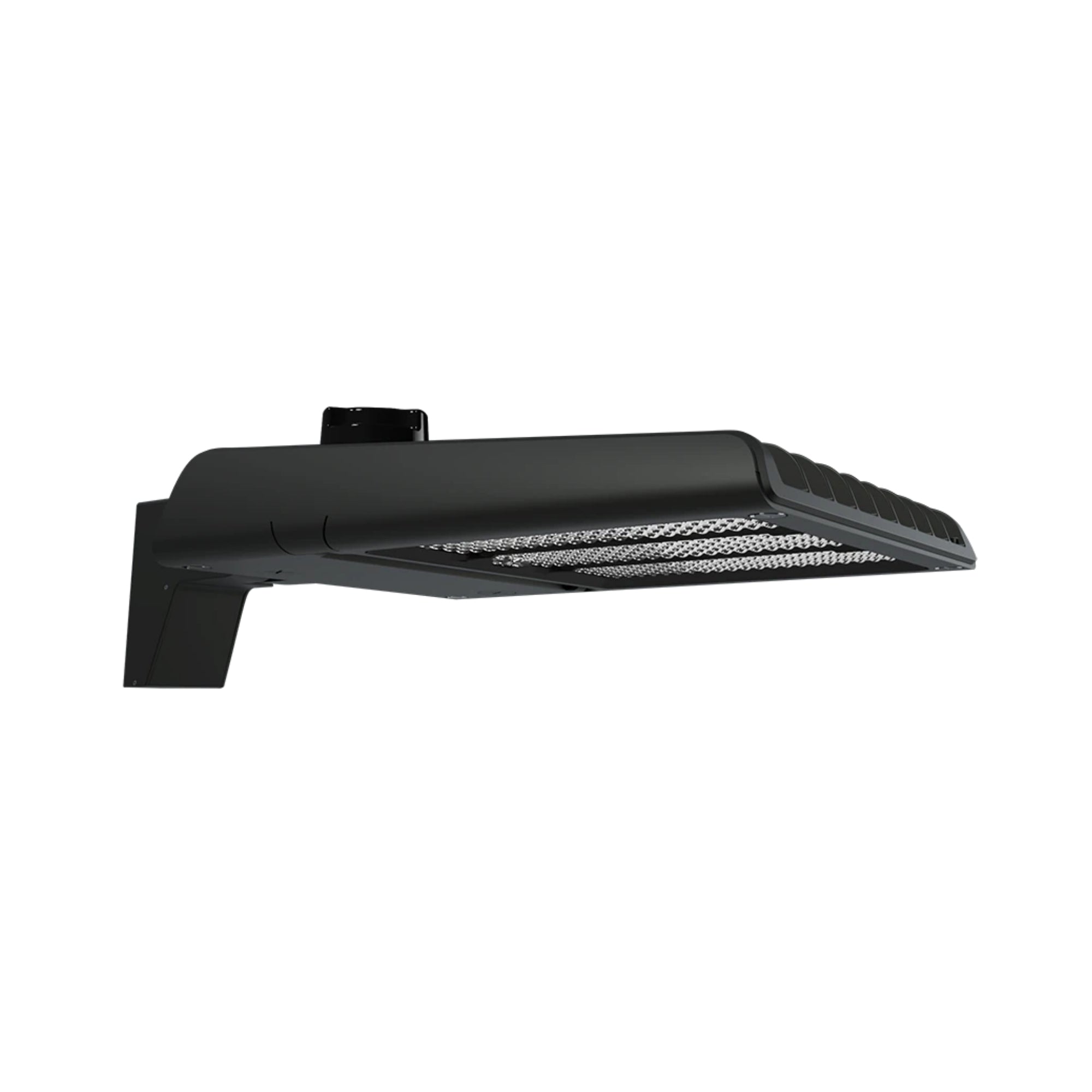

RAB A22-200 LED Area Light — Selectable 200W/180W/160W, 120-277V

The RAB A22-200 is a field-adjustable LED area light delivering up to 27,908 lumens with selectable 200W / 180W / 160W power settings and 3000K / 4000K / 5000K CCT. Operating on a universal 120-277V driver, this fixture features a precision Type III distribution and an Adjustable Universal Pole Mount. Rated IP66 and DLC Premium, it is engineered for high-performance illumination in parking lots and commercial perimeter applications.

Key Features

• Field-Adjustable Wattage: Select between 200W, 180W, or 160W power settings.
• Field-Adjustable CCT: Choose 3000K, 4000K, or 5000K color temperatures.
• Type III Distribution: Lateral light spread optimized for roadway and perimeter use.
• High Efficacy: Reaches up to 152 lm/W for maximum energy savings.
• DLC Premium Listed: Qualifies for the highest tier of utility rebates.
• IP66 Rated: Dust-tight and protected against powerful water jets.
• UL Listed: Suitable for wet locations and mounting within 4 ft of the ground.
• 7-Pin Receptacle: ANSI C136.41 socket compatible with wireless control systems.
• Surge Protection: Integrated 6kV protection for electrical durability.
• Adjustable Universal Pole Mount: Compatible with square and round poles.
• Trade Agreements Act (TAA) Compliant: Manufactured in Cambodia and complies with TAA regulations.
• Mercury and UV Free: Environmentally friendly RoHS-compliant construction.

Typical Applications

• Commercial Parking Lots
• Municipal Roadways
• Corporate Campuses
• Retail Shopping Centers
• Industrial Loading Yards
• Educational Facility Grounds
• Building Perimeter Security

Performance & Light Output

The A22-200 provides a maximum output of 27,908 lumens with a high efficacy of up to 152 lm/W. It maintains a color accuracy of 80-84 CRI and is L70 rated for a 100,000-hour lifespan based on IES LM-80 results and TM-21 calculations. The Type III distribution is specifically intended for area lighting where light must project outward to fill large zones.

Electrical & Controls

Operating on 120-277V at 50/60Hz, this fixture includes a 0-10V dimming driver that dims down to 10%. It features an ANSI C136.41 7-pin receptacle with a shorting cap, allowing for immediate integration with twist-lock photocells or advanced wireless controls. The system is protected by 6kV surge suppression and maintains a power factor of 99.9% at 120V.

Construction & Durability

The die-cast aluminum housing features a low-profile design with an aerodynamic 0.4 EPA rating for a single fixture. It is IP66 rated and utilizes high-temperature silicone gaskets for superior environmental sealing. The unit is UL Listed for Wet Locations and operates in ambient temperatures from -40°C to 40°C.

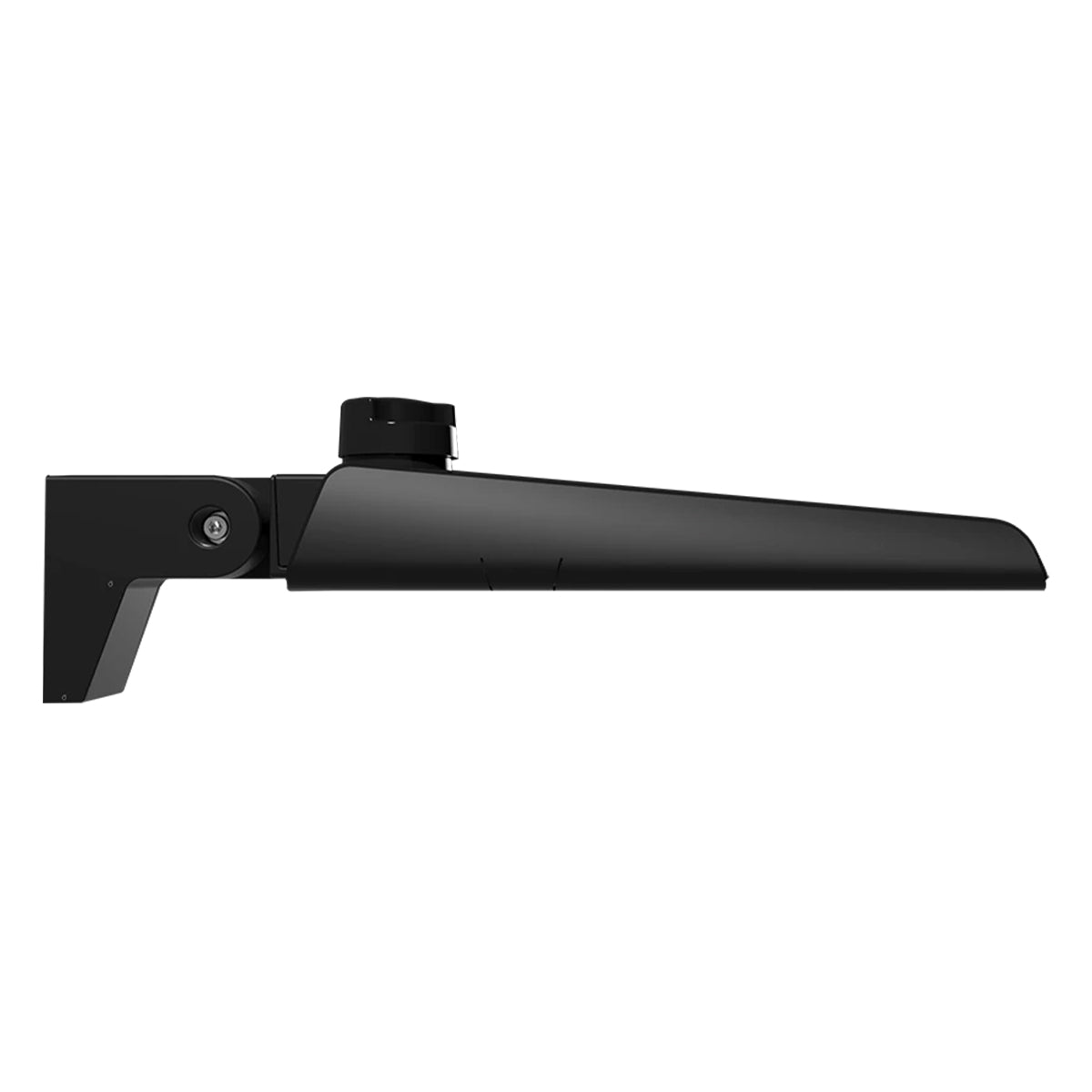

Installation & Mounting

This model comes standard with an Adjustable Universal Pole Mount, compatible with both square and round poles. The modular design supports precise tilting and aiming, while a polycarbonate lens provides durable, impact-resistant protection for the LEDs. All hardware is included to ensure a secure, weather-tight installation for 120-277V commercial site lighting.

What’s Included

• A22-200 LED Area Light Fixture
• Adjustable Universal Pole Mount
• 7-Pin NEMA Receptacle (Pre-installed)
• Shorting Cap
