RAB A22-150X LED Area Light — Selectable 150W/120W/100W, 120-277V

The RAB A22-150X is a highly versatile LED area light delivering up to 22,117 lumens with field-selectable 150W / 120W / 100W power settings and 3000K / 4000K / 5000K CCT. This model features field-adjustable optics, including interchangeable Type III, Type IV, and Type V lenses to meet diverse site lighting requirements. Rated IP66 and DLC Premium, the fixture includes an Adjustable Universal Pole Mount and a 3-pin twistlock photocell for complete parking lot and perimeter illumination.

Key Features

• Field-Adjustable Wattage: Switch between 150W, 120W, and 100W power settings.
• Field-Adjustable CCT: Selectable 3000K, 4000K, or 5000K color temperatures.
• Interchangeable Lenses: Includes Type III, Type IV, and Type V lenses in the box.
• High Efficacy: Reaches up to 163.1 lm/W for maximum energy efficiency.
• DLC Premium Listed: Qualifies for the highest tier of utility energy rebates.
• IP66 Rated: Dust-tight and protected against powerful water ingress.
• UL Listed: Suitable for wet locations and mounting within 4 ft of the ground.
• Twistlock Photocell Included: Comes with a 120V-277V 3-pin twistlock photocell.
• 7-Pin Receptacle: ANSI C136.41 socket with shorting cap for advanced control readiness.
• Adjustable Universal Pole Mount: Standard mount compatible with square and round poles.
• Trade Agreements Act (TAA) Compliant: Suitable for government-designated country projects.
• Surge Protection: Integrated 6kV protection for long-term electrical durability.

Typical Applications

• Commercial Parking Lots
• Municipal Roadways
• Corporate Campuses
• Retail Shopping Centers
• Industrial Loading Yards
• Educational Facility Grounds
• Building Perimeter Security

Performance & Light Output

The A22-150X delivers a maximum of 22,117 lumens with a high efficacy of 163.1 lm/W at its peak performance. It maintains a color accuracy of 80-84 CRI and is L70 rated for a 100,000-hour lifespan based on IES LM-80 testing and TM-21 calculations. The adjustable optics allow for precise Type III, IV, or V distribution depending on the installed lens kit.

Electrical & Controls

This fixture operates on a universal 120-277V driver with 0-10V dimming that dims down to 10%. It includes a 7-pin NEMA receptacle and a 3-pin twistlock photocell for automated dusk-to-dawn operation. The electrical system is protected by 6kV surge suppression and maintains a high 99.8% power factor at 120V.

Construction & Durability

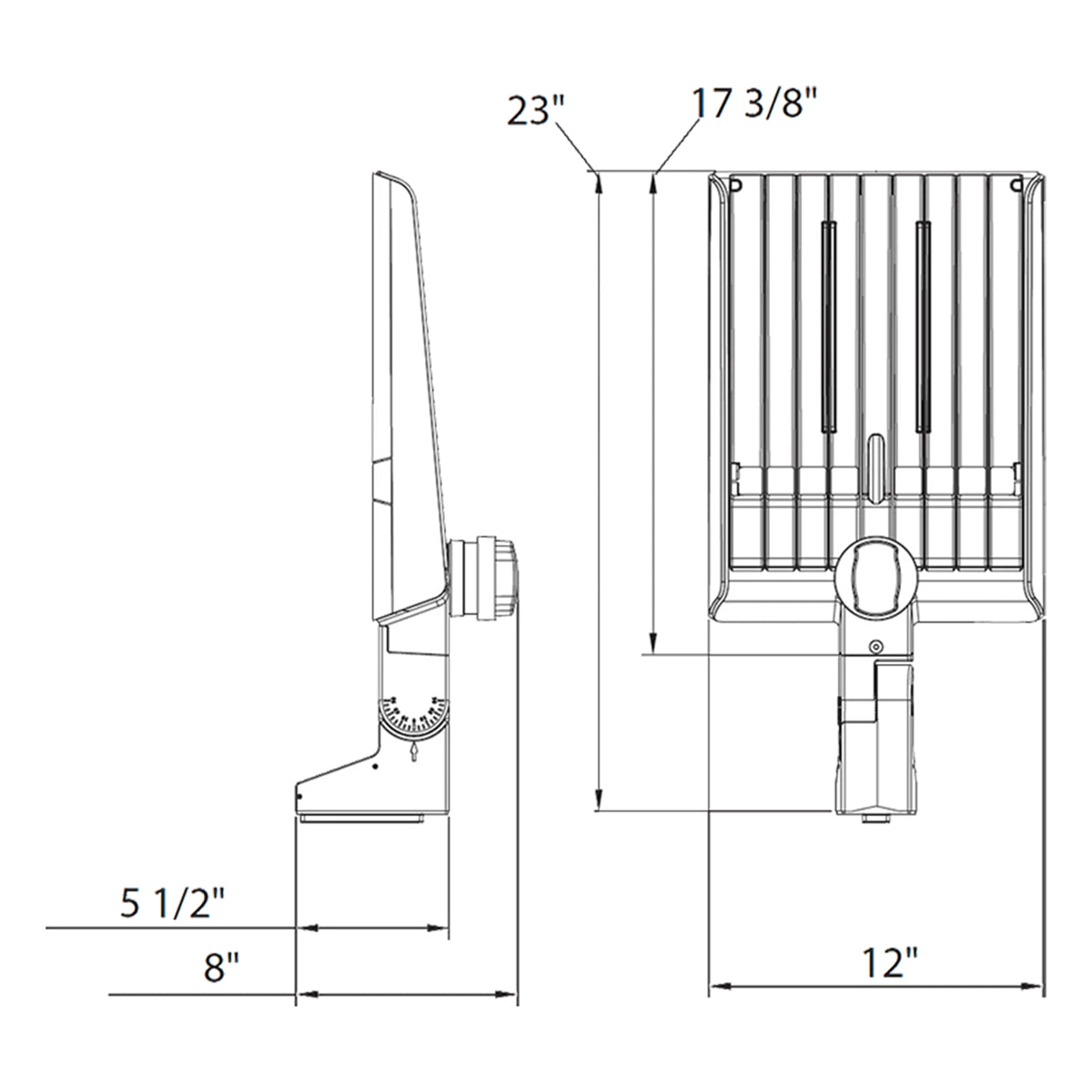

Constructed with a die-cast aluminum housing and polycarbonate lens, the fixture is finished in a durable bronze powder coat. It is IP66 rated and utilizes high-temperature silicone gaskets for superior environmental sealing. The aerodynamic design features an Effective Projected Area (EPA) of 0.4 and operates in temperatures ranging from -40°C to 40°C.

Installation & Mounting

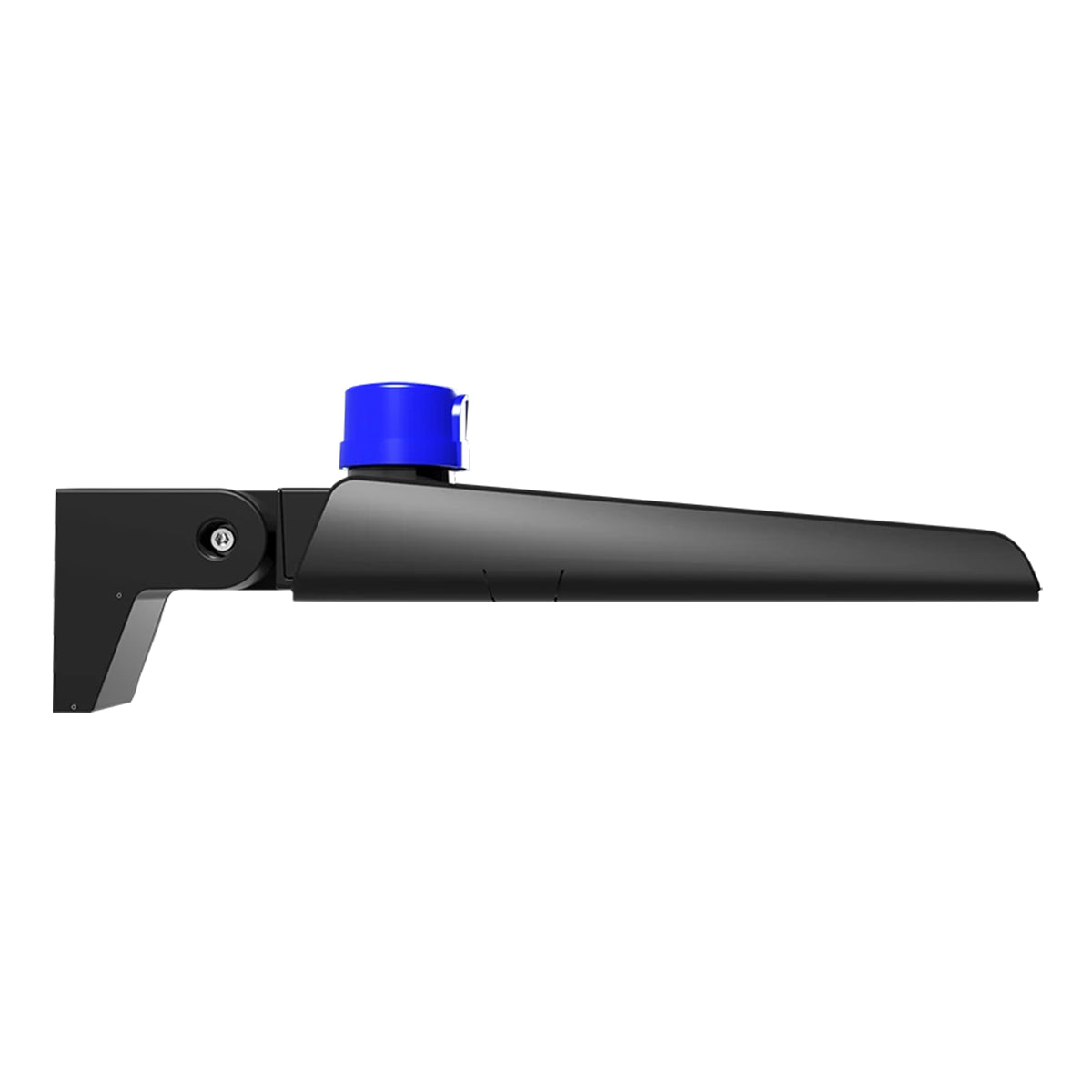

The A22-150X comes standard with an Adjustable Universal Pole Mount designed for square and round poles. This mount allows for field-adjustable tilting and precise aiming to optimize the Type III, IV, or V light distribution. All hardware is included to ensure a secure, UL Wet Location rated installation.

What’s Included

• A22-150X LED Area Light Fixture
• Adjustable Universal Pole Mount
• Three (3) Interchangeable Lenses (Types III, IV, V)
• 7-Pin NEMA Receptacle and Shorting Cap
• 3-Pin Twistlock Photocell
