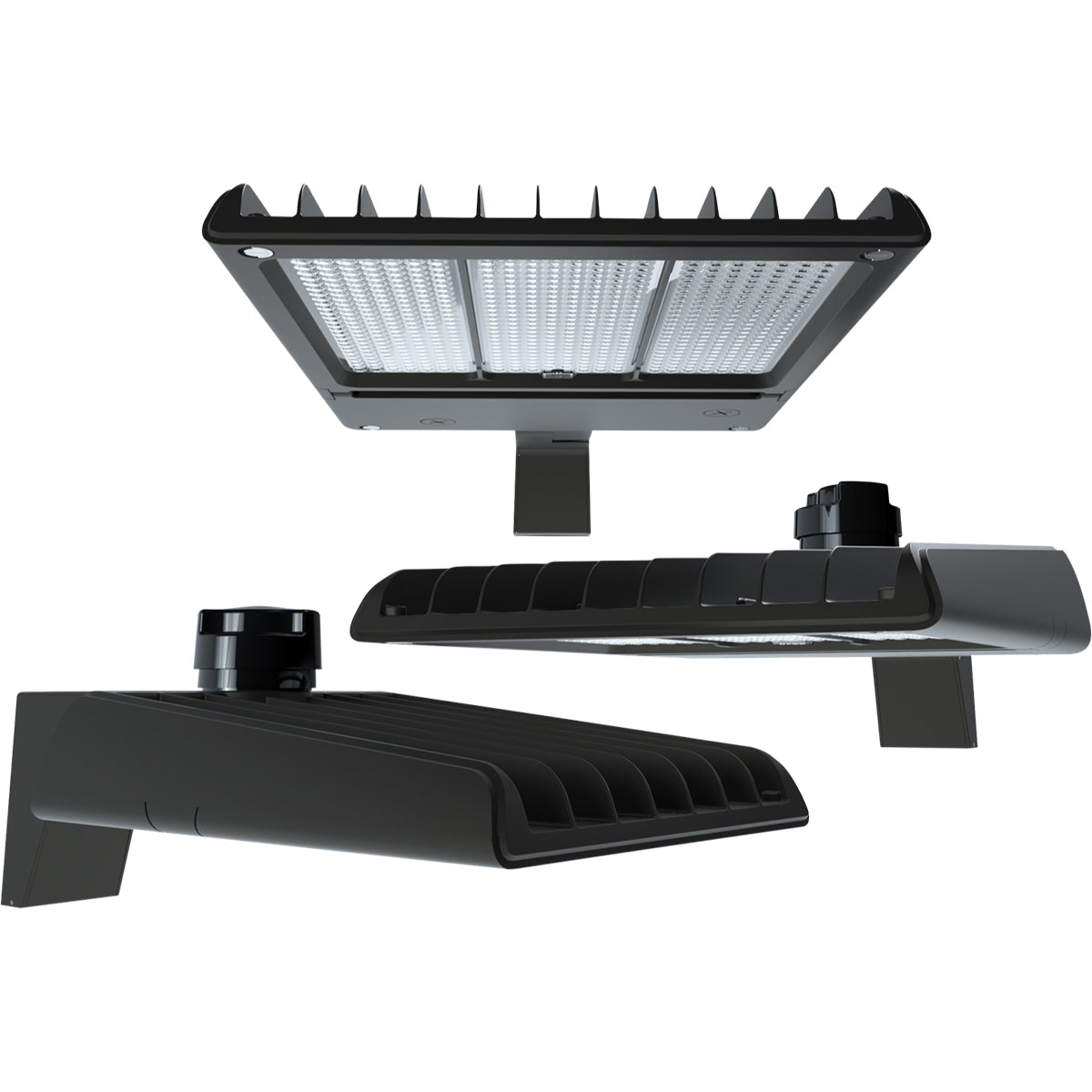

RAB A22-150 LED Area Light — Selectable 150W/120W/100W, 120-277V

The RAB A22-150 is a field-adjustable LED area light delivering up to 22,117 lumens with selectable 150W / 120W / 100W power settings and 3000K / 4000K / 5000K CCT. Operating on 120-277V , this fixture features Type III distribution and an Adjustable Universal Pole Mount. Rated IP66 and DLC Premium, it is engineered for high-performance illumination in parking lots and commercial perimeters.

Key Features

• Field-Adjustable Wattage: Switch between 150W, 120W, and 100W power levels.
• Field-Adjustable CCT: Selectable 3000K, 4000K, or 5000K color temperatures.
• Type III Distribution: Lateral forward-throw optics optimized for roadways and parking areas.
• High Efficacy: Delivers up to 163.1 lm/W for superior energy efficiency.
• DLC Premium Listed: Qualifies for the maximum tier of energy utility rebates.
• IP66 Rated: Dust-tight and protected against powerful water ingress.
• UL Listed: Suitable for wet locations and mounting within 4 ft of the ground.
• 7-Pin Receptacle: ANSI C136.41 socket with shorting cap for wireless control readiness.
• Surge Protection: Integrated 6kV protection against electrical spikes.
• Universal Pole Mount: Adjustable mounting hardware compatible with square and round poles.
• Trade Agreements Act (TAA) Compliant: Suitable for government and designated country projects.
• Mercury and UV Free: Environmentally friendly RoHS-compliant construction.

Typical Applications

• Commercial Parking Lots
• Municipal Roadways
• Corporate Campuses
• Retail Shopping Centers
• Industrial Loading Yards
• Educational Facility Grounds
• General Perimeter Security

Performance & Light Output

The A22-150 provides a maximum output of 22,117 lumens with an efficacy range of 132.4-163.1 lm/W. It maintains 80-84 CRI color accuracy and is L70 rated for a 100,000-hour lifespan. The precision Type III distribution is specifically designed to project a large pool of light outward from the side of an area.

Electrical & Controls

Operating on a universal 120-277V at 50/60Hz , this fixture includes a 0-10V dimming driver that dims down to 10%. It features an ANSI C136.41 7-pin receptacle , compatible with networked wireless sensors and photocells. The system includes 6kV surge protection and maintains a 99.8% power factor at 120V.

Construction & Durability

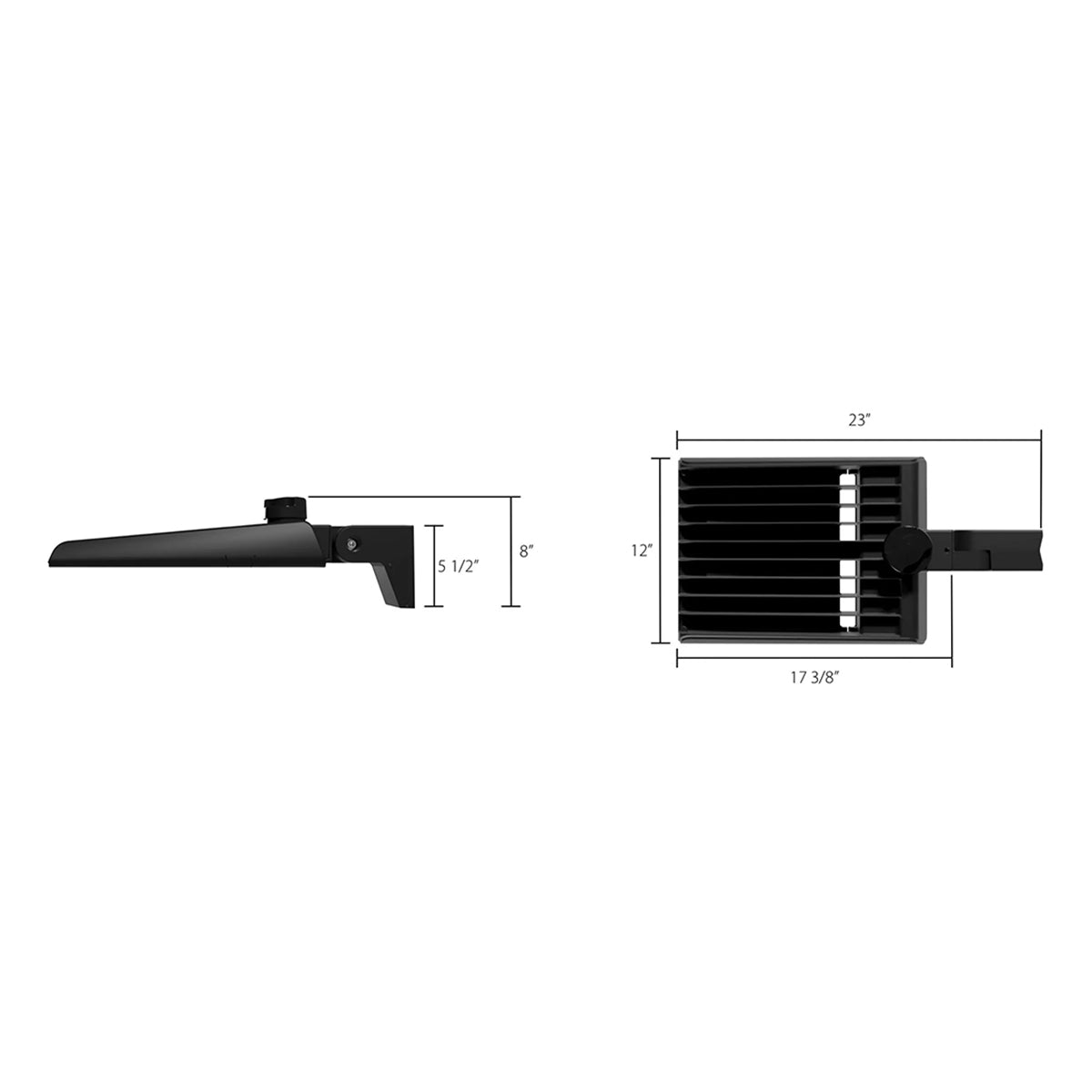

The die-cast aluminum housing is finished with a durable bronze powder coat. It is IP66 rated and utilizes high-temperature silicone gaskets with a polycarbonate lens. The aerodynamic design features an Effective Projected Area (EPA) of 0.4 and operates from -40°C to 40°C.

Installation & Mounting

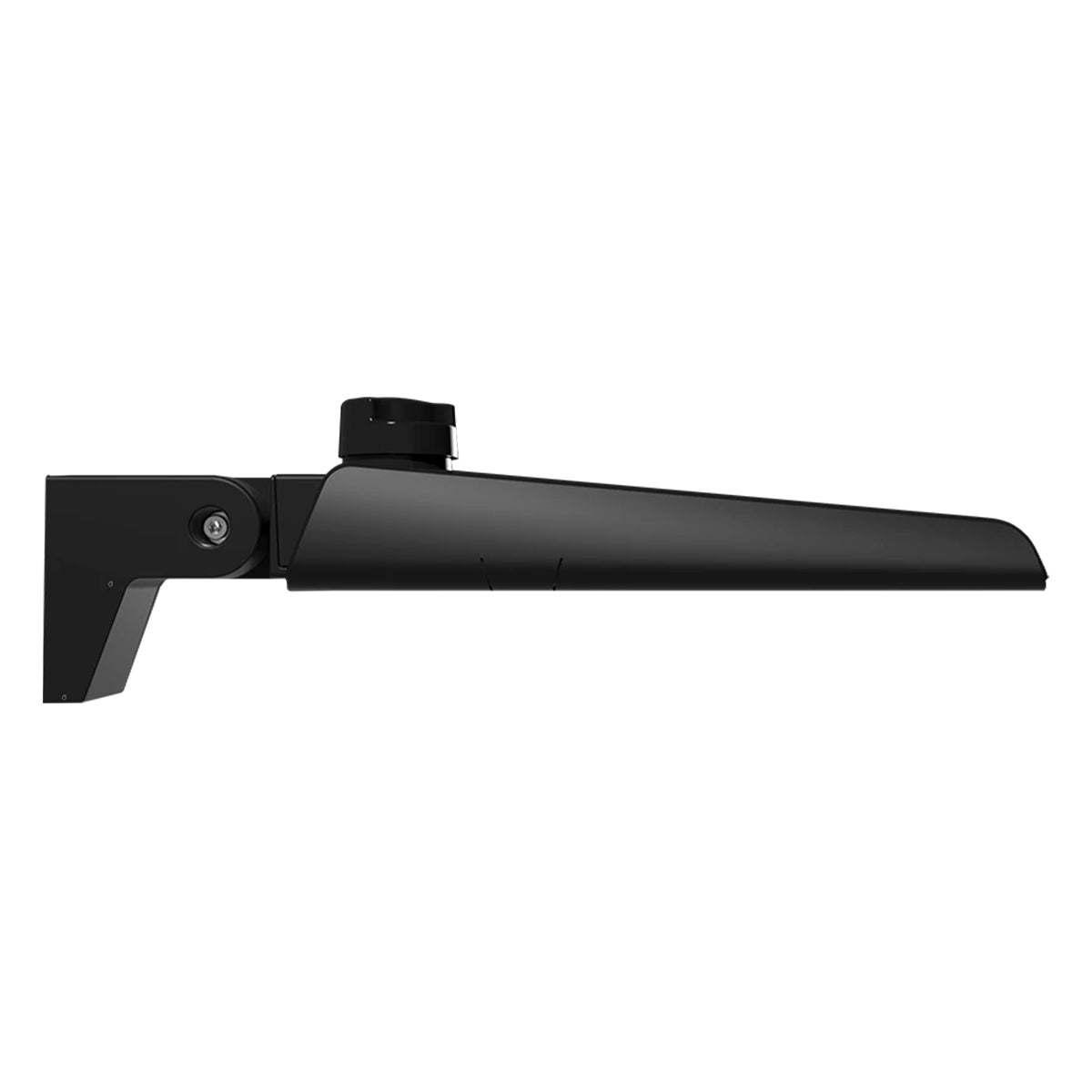

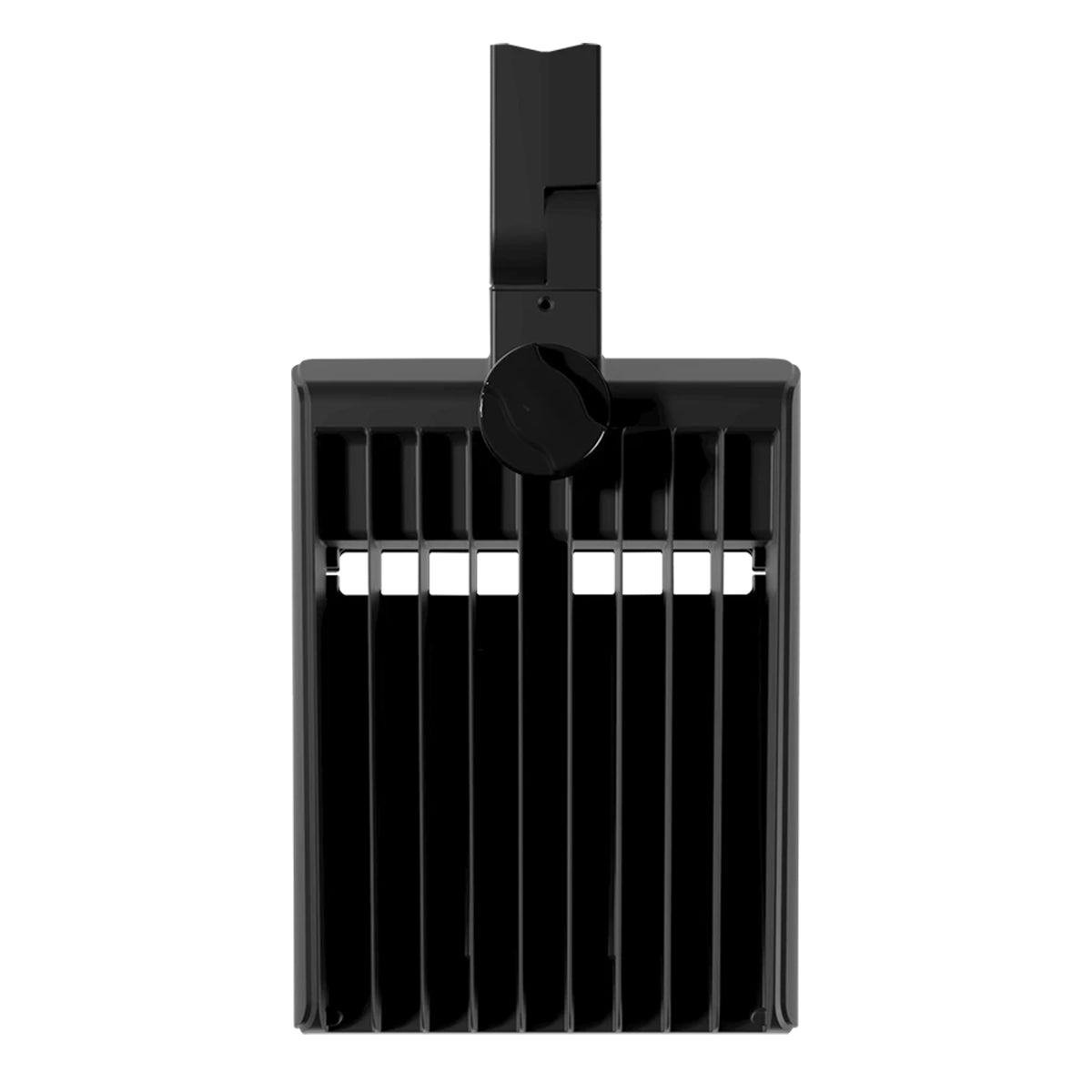

This model includes an Adjustable Universal Pole Mount , suitable for both square and round poles. The adjustable arm allows for precise aiming of the fixture during installation while maintaining the unit's wet location rating. All necessary installation hardware is provided to ensure a secure, weather-tight connection.

What’s Included

• A22-150 LED Area Light Fixture
• Adjustable Universal Pole Mount
• 7-Pin NEMA Receptacle (Pre-installed)
• Shorting Cap
