RAB A17XFU300W LED Area Light 46,356 Lumens 200W/240W/300W 3000K/4000K/5000K 120-277V Type III White
Available in stock (200)
About this item
About this item
- Selectable Output: Field-adjustable 200W / 240W / 300W and 3000K / 4000K / 5000K settings
- Automatic Control: Included 3-pin twistlock photocell for hands-free dusk-to-dawn security lighting
- Smart Control Ready: Integrated NEMA 7-pin receptacle enables easy upgrades to networked lighting controls
- Optical Distribution: Type III forward-throw optics designed for perimeter and roadway mounting
- Universal Mounting: Includes mounting arm compatible with most existing hole patterns and round poles
We process payments securely and do not store credit card information.
Description
Description

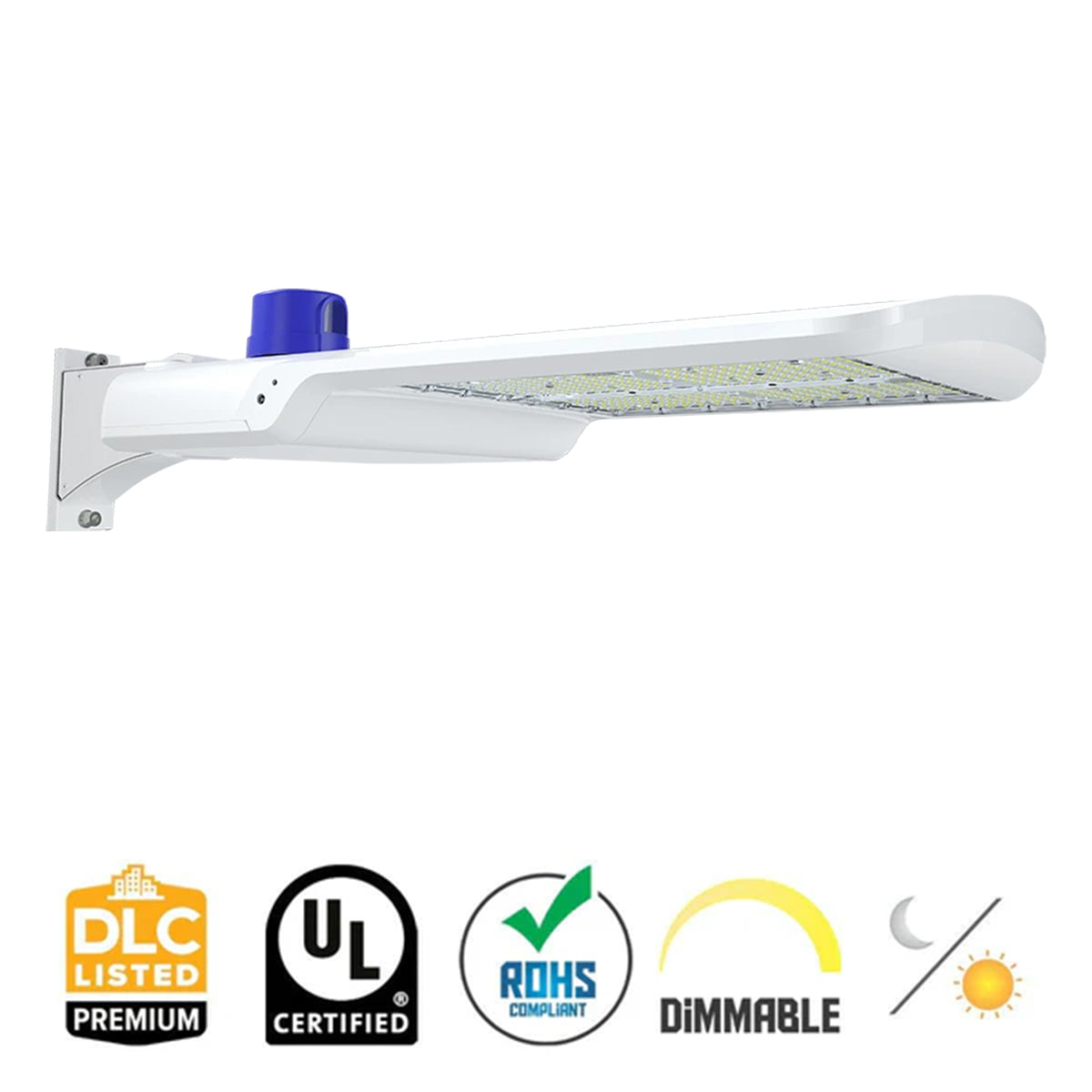

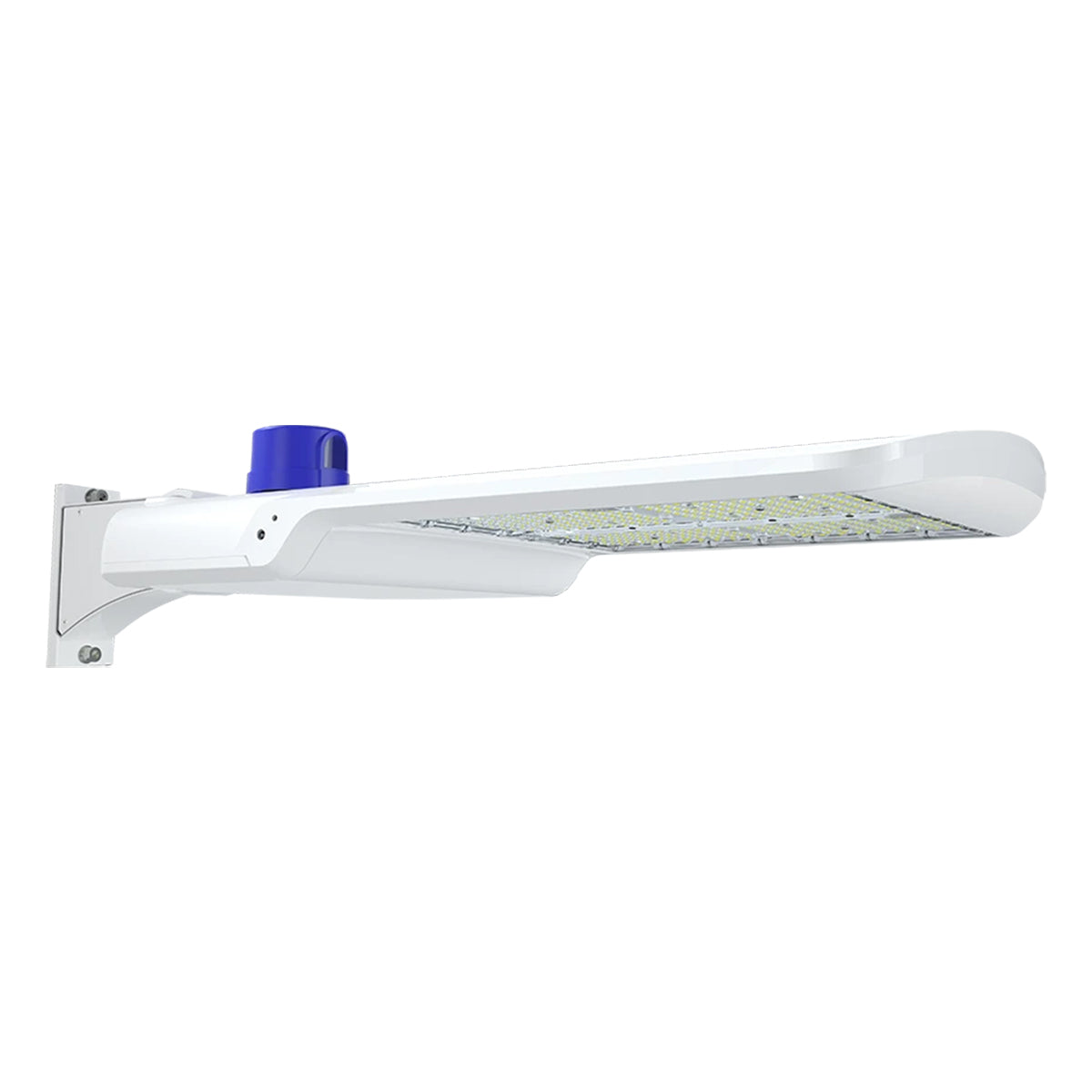

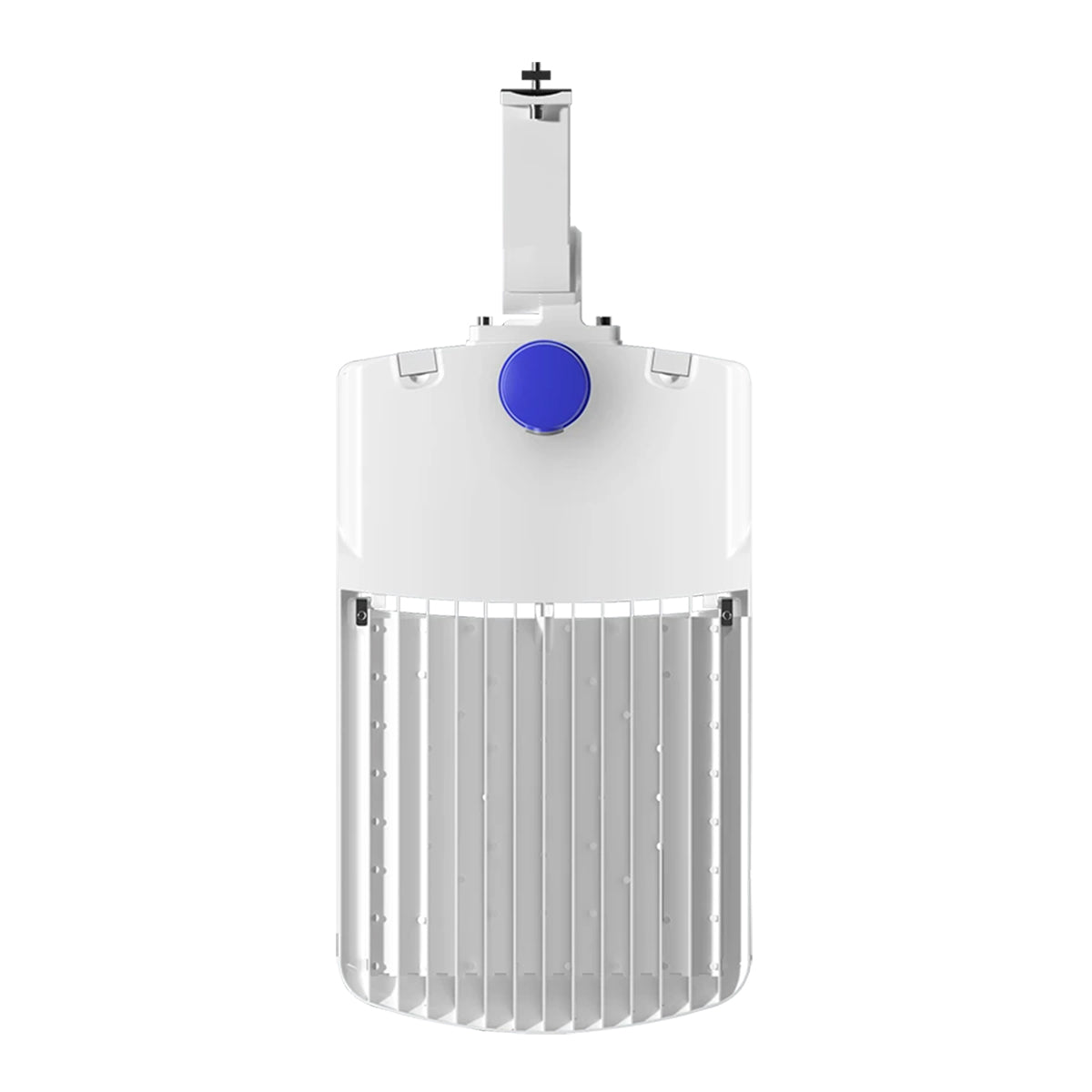

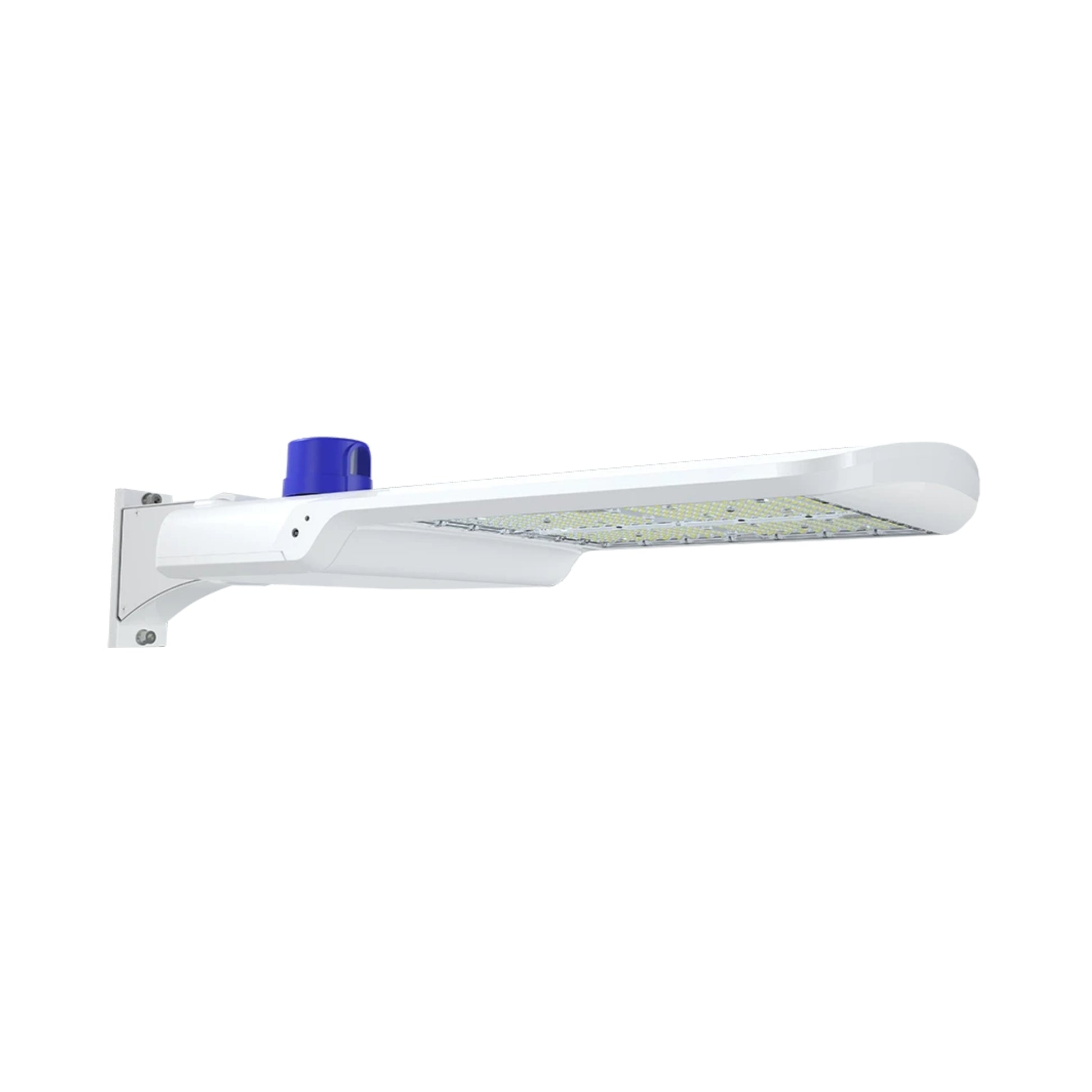

RAB Field-Adjustable LED Area Light — 200W/240W/300W, White
The RAB A17XFU300W is a versatile field-adjustable LED area light delivering up to 46,356 lumens with selectable wattage and CCT. Operating on a universal 120-277V input, this fixture is rated IP65 and DLC Premium for reliable commercial use. It is specifically designed for large parking lots and roadways, utilizing a Type III distribution and featuring an included twistlock photocell to provide automated dusk-to-dawn security lighting.
Key Features
- Field-Adjustable Wattage: Selectable settings of 200W, 240W, and 300W
- Selectable CCT: Choice of 3000K, 4000K, or 5000K color temperatures
- Lumen Output: Maximum delivery of 46,356 lumens
- Optical Distribution: Type III IES classification for wide area coverage
- Automatic Control: 3-pin twistlock photocell and shorting cap included
- Universal Voltage: 120–277V commercial-grade constant current driver
- Receptacle: Integrated NEMA 7-pin receptacle for optional smart control upgrades
- Dimming: 0-10V dimmable down to 10%
- High Efficiency: Efficacy up to 163.3 lm/W
- Surge Protection: Robust 10kV protection against electrical transients

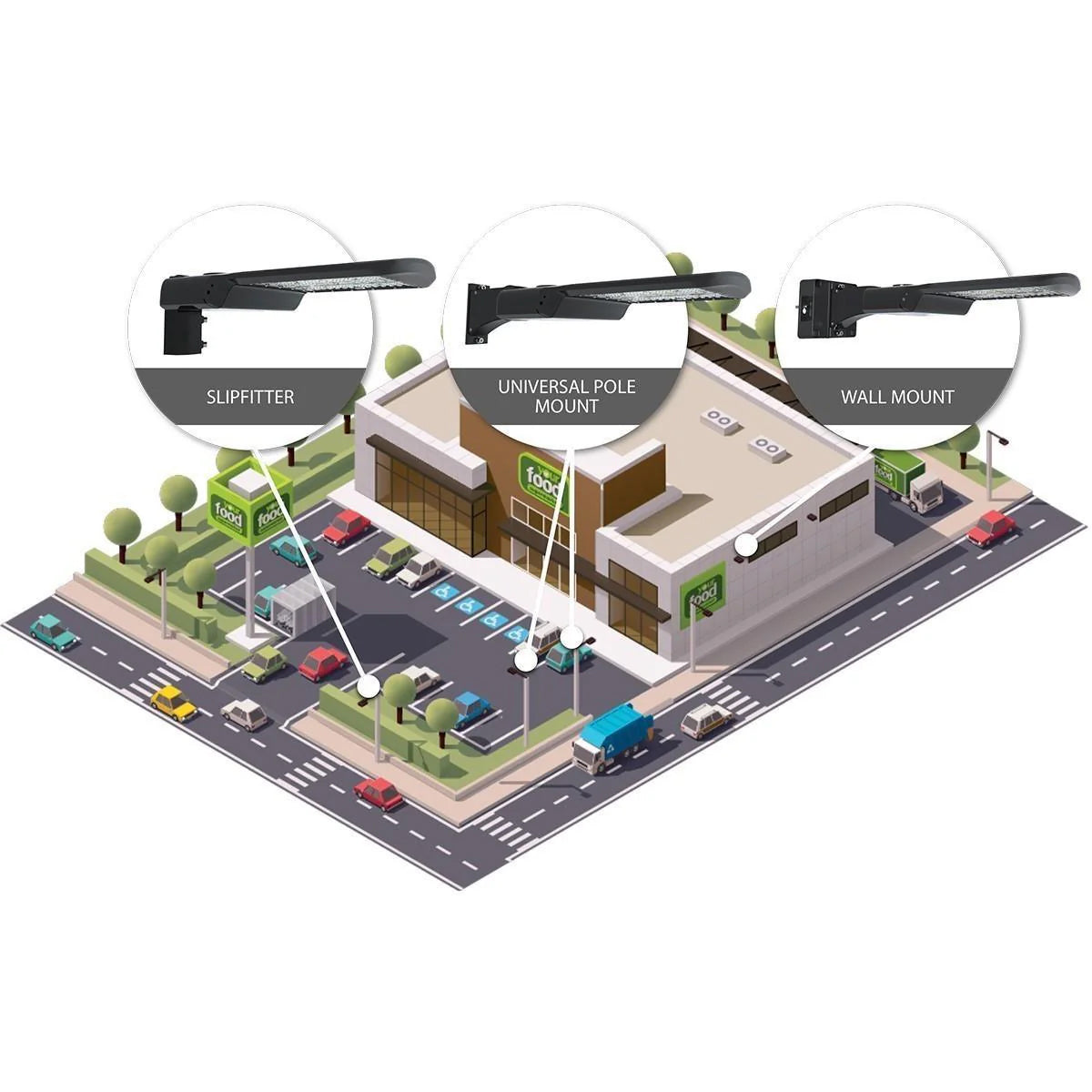

Typical Applications
- Large commercial parking lots
- Municipal roadways and highway perimeters
- Regional distribution center exteriors
- Industrial shipping and logistics yards
- Automotive dealership display lots
- Retail shopping center perimeters
Performance & Light Output

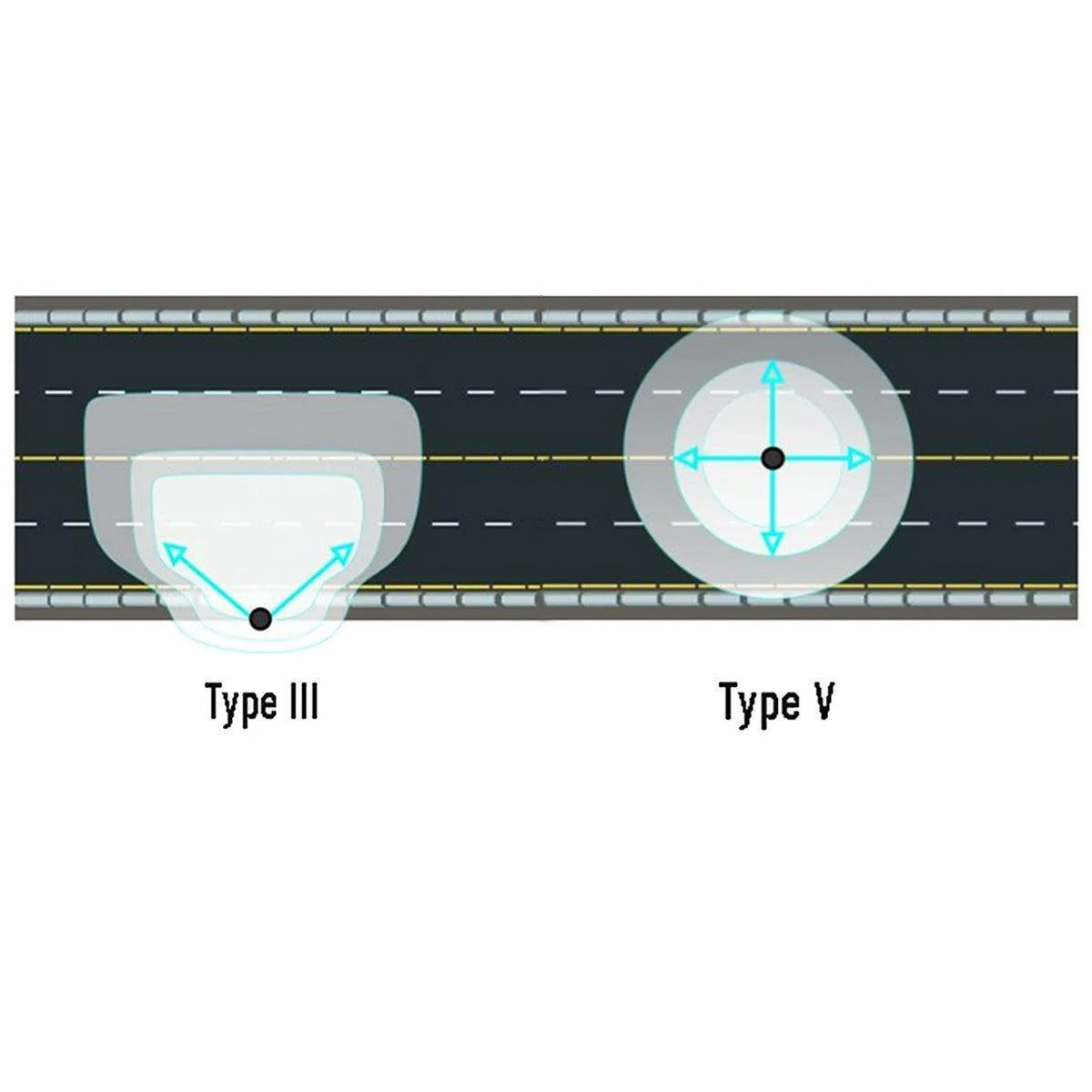

This fixture produces a versatile light output range from 30,567 to 46,356 lumens with an impressive efficacy reaching up to 163.3 lm/W. It maintains a color rendering index of 82-84 CRI for accurate visibility and boasts a long L70 lifespan of 100,000 hours. Utilizing a Type III optical distribution, the fixture pushes light outward and forward, making it ideal for perimeter mounting applications where a larger pool of light is required.
Electrical & Controls
The integrated constant current driver operates on a universal voltage range of 120–277V at 50/60Hz and includes standard 0–10V dimming capabilities. The unit comes out of the box with a 3-pin twistlock photocell for immediate dusk-to-dawn automation, as well as a shorting cap. It is fortified with high-level 10kV surge protection and maintains an excellent power factor of 99.5% at 120V.
Construction & Durability

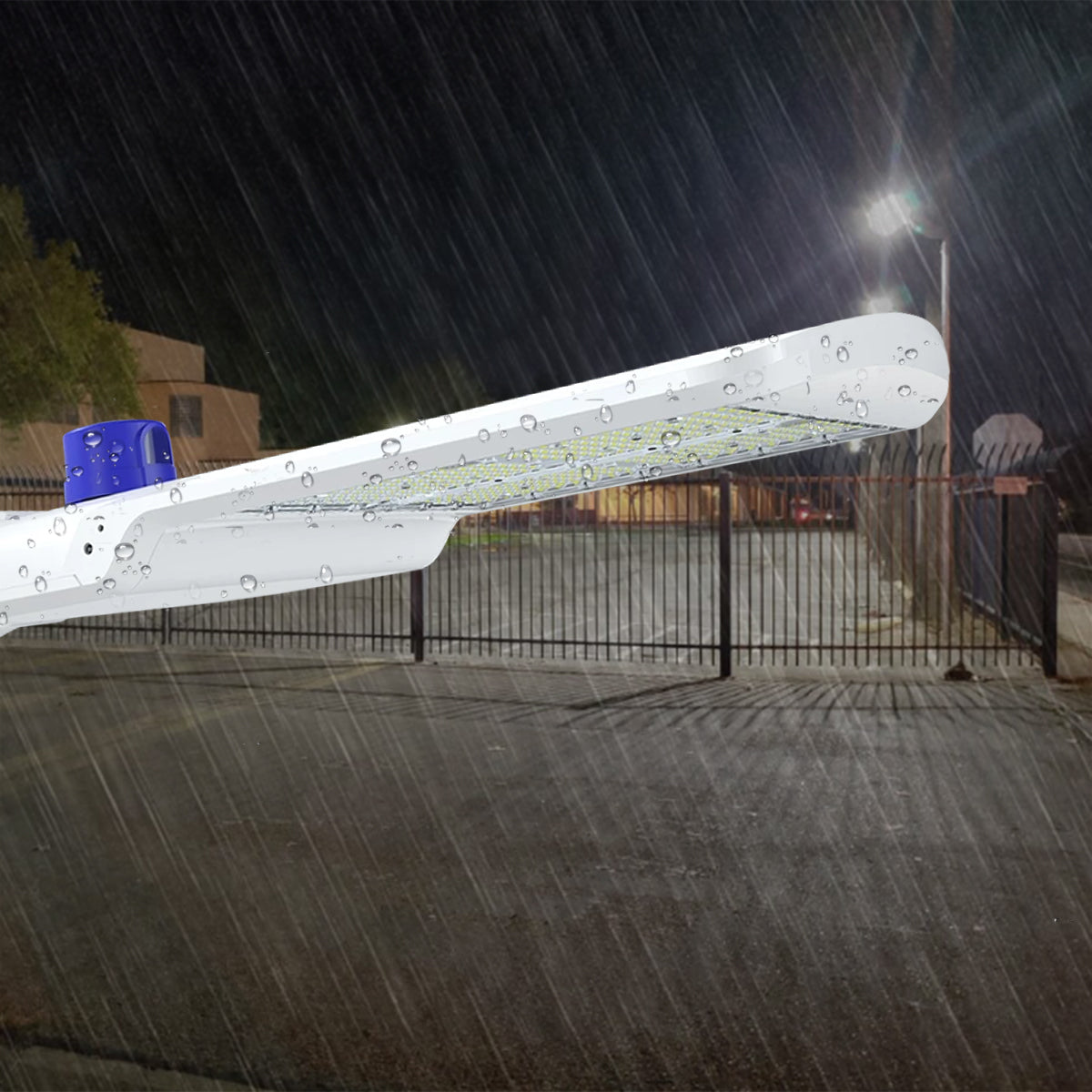

Constructed from rugged die-cast aluminum with a high-durability white finish, the housing is engineered to withstand extreme outdoor conditions. It features a clear polycarbonate lens and achieves an IP65 ingress protection rating against dust and water. The fixture carries a 3G vibration rating for secure pole-mounted operation and operates reliably in cold weather environments down to -40°C (-40°F).

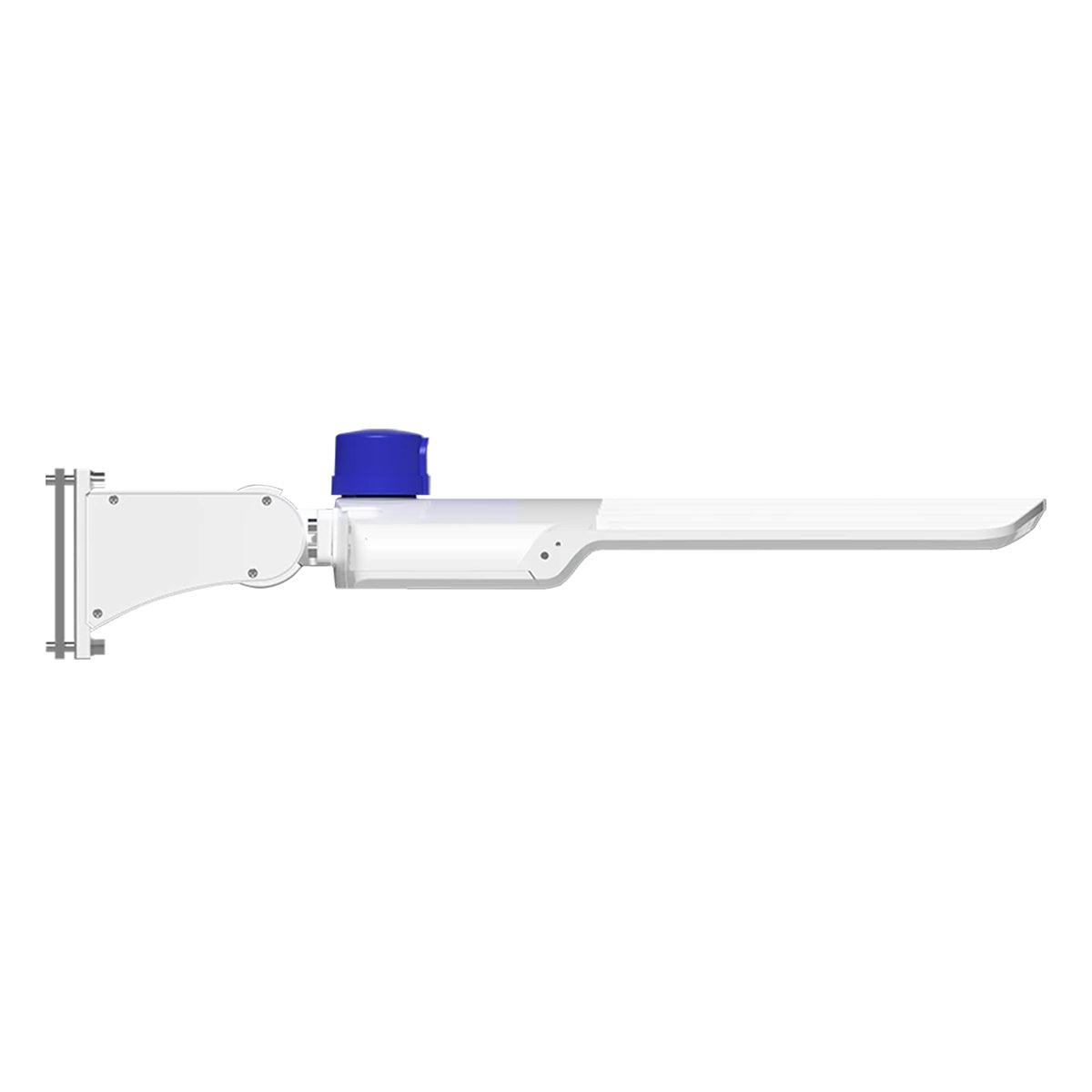

Installation & Mounting

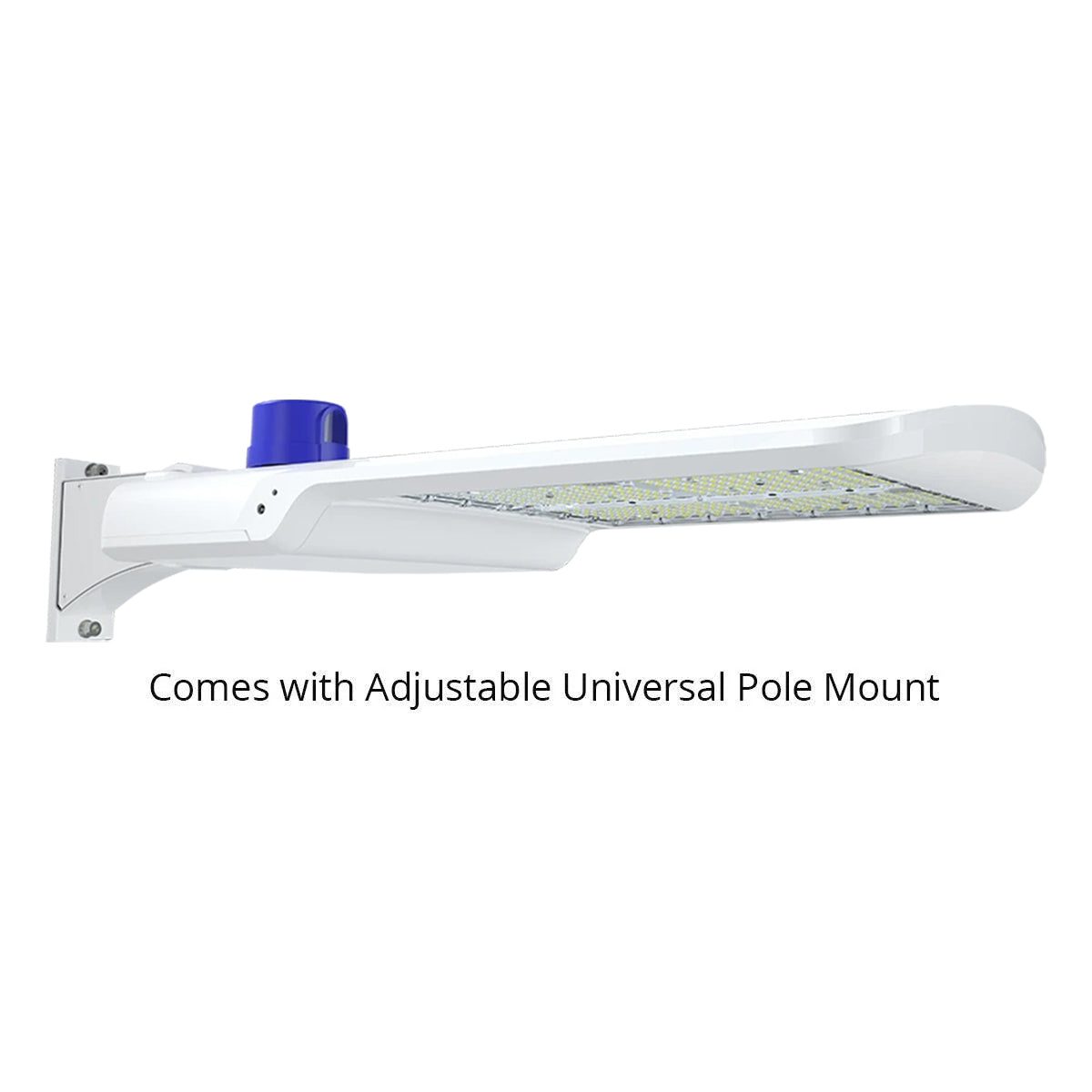

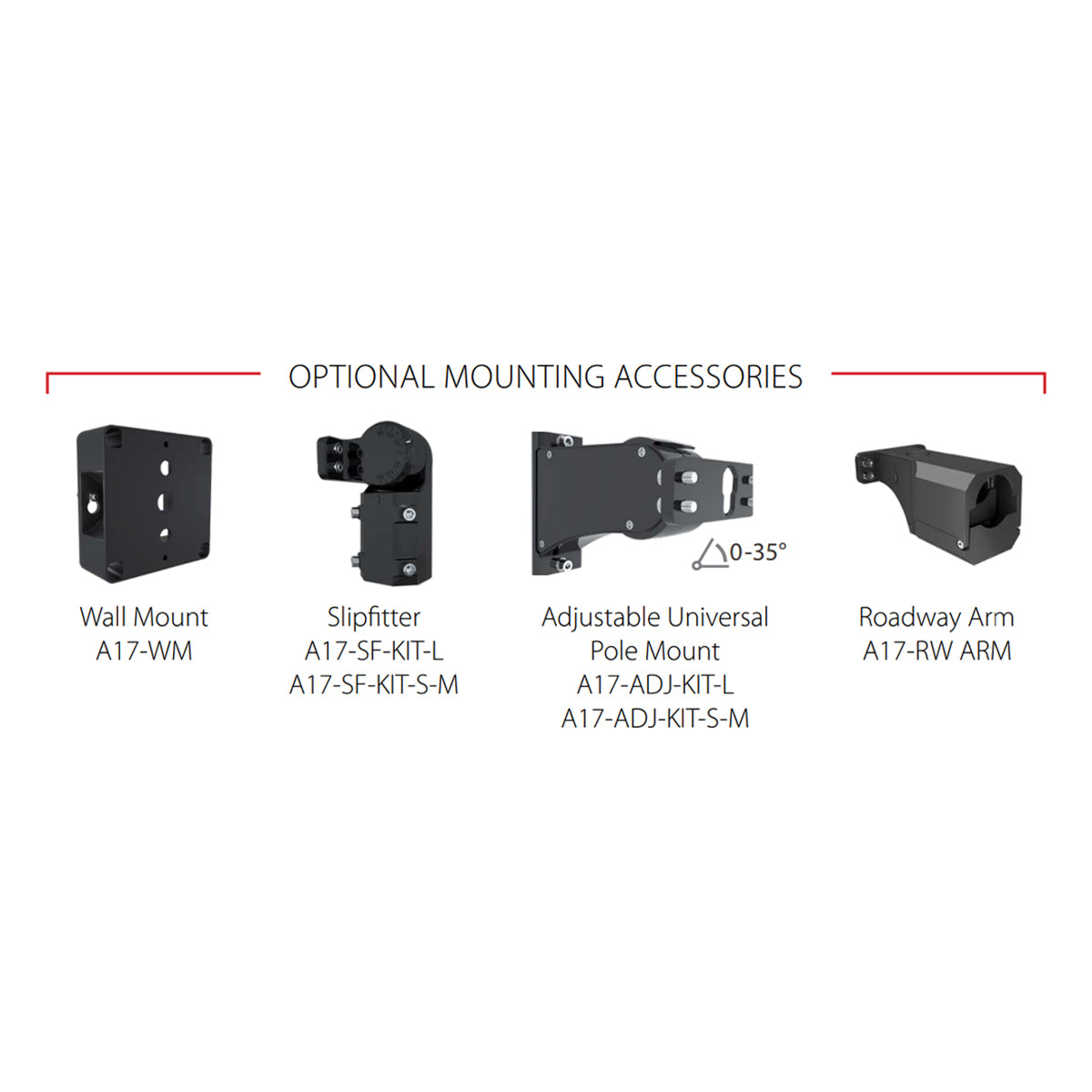

This area light comes standard with a universal pole mounting arm that accommodates existing drill hole patterns ranging from 1 inch to 5 1/2 inches center-to-center. A round pole adapter plate is also included as a standard accessory to ensure seamless mounting on round poles with a diameter greater than 4 inches. The mounting arm utilizes an easy slide-and-lock mechanism, streamlining the installation process.
What’s Included
- LED Area Light Fixture
- Universal Pole Mounting Arm
- Round Pole Adapter Plate
- 3-Pin Twistlock Photocell
- Shorting Cap
Specifications
Specifications

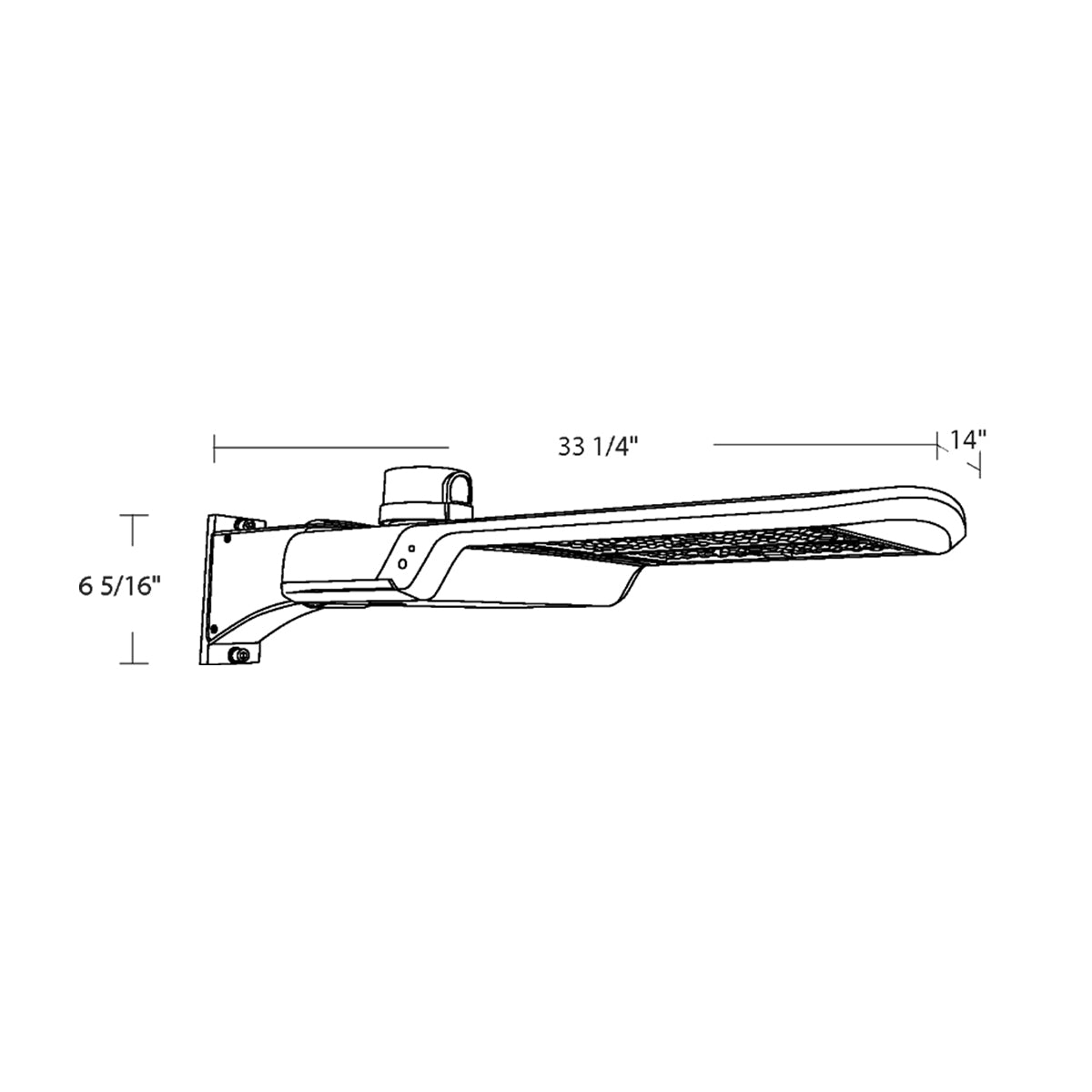

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can I adjust the wattage and color temperature of this area light?
Can I adjust the wattage and color temperature of this area light?
Does this white fixture come with a photocell?
Does this white fixture come with a photocell?
What is the purpose of the integrated NEMA 7-pin receptacle?
What is the purpose of the integrated NEMA 7-pin receptacle?
Will the included mount fit a round pole?
Will the included mount fit a round pole?
What type of lighting distribution does this fixture have?
What type of lighting distribution does this fixture have?
