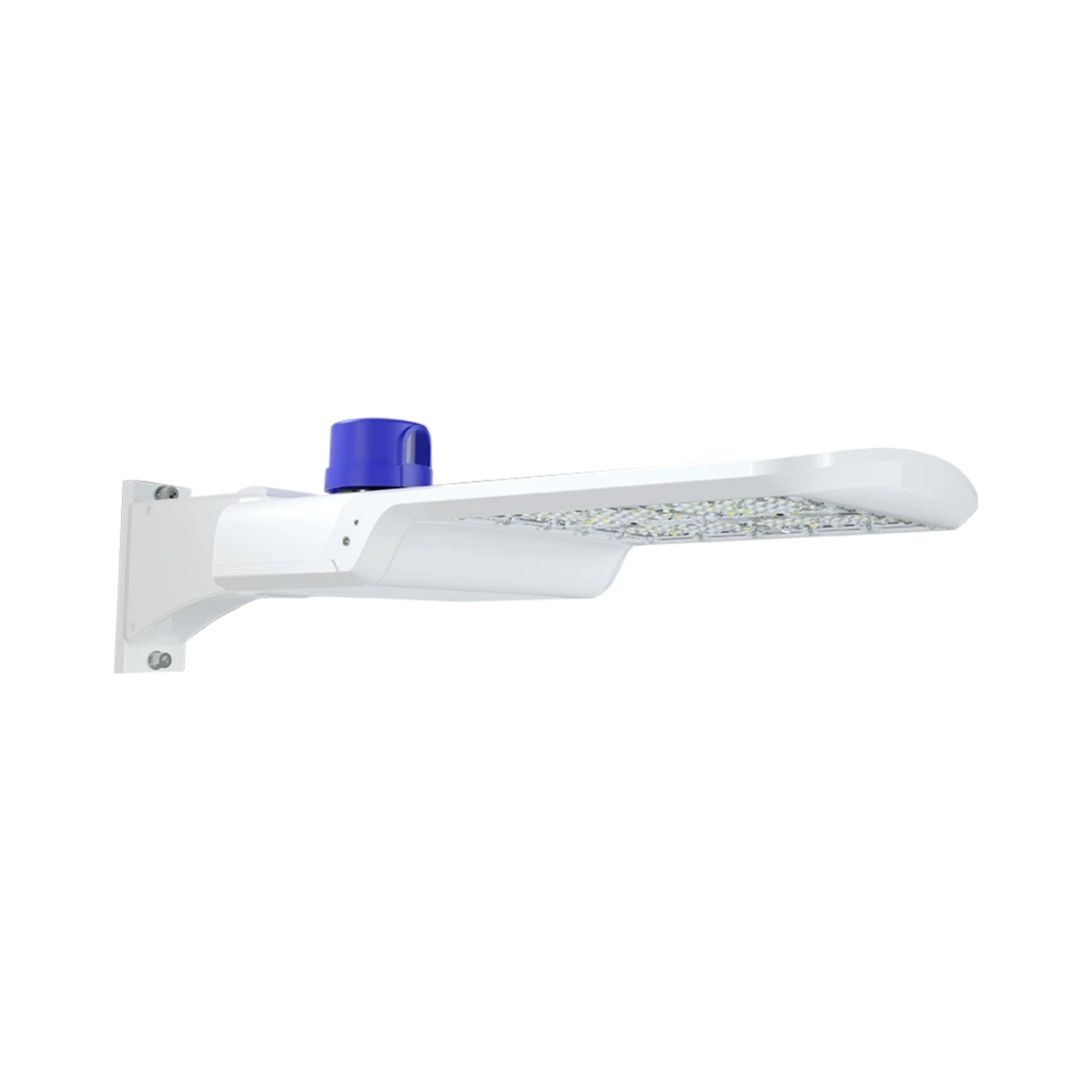

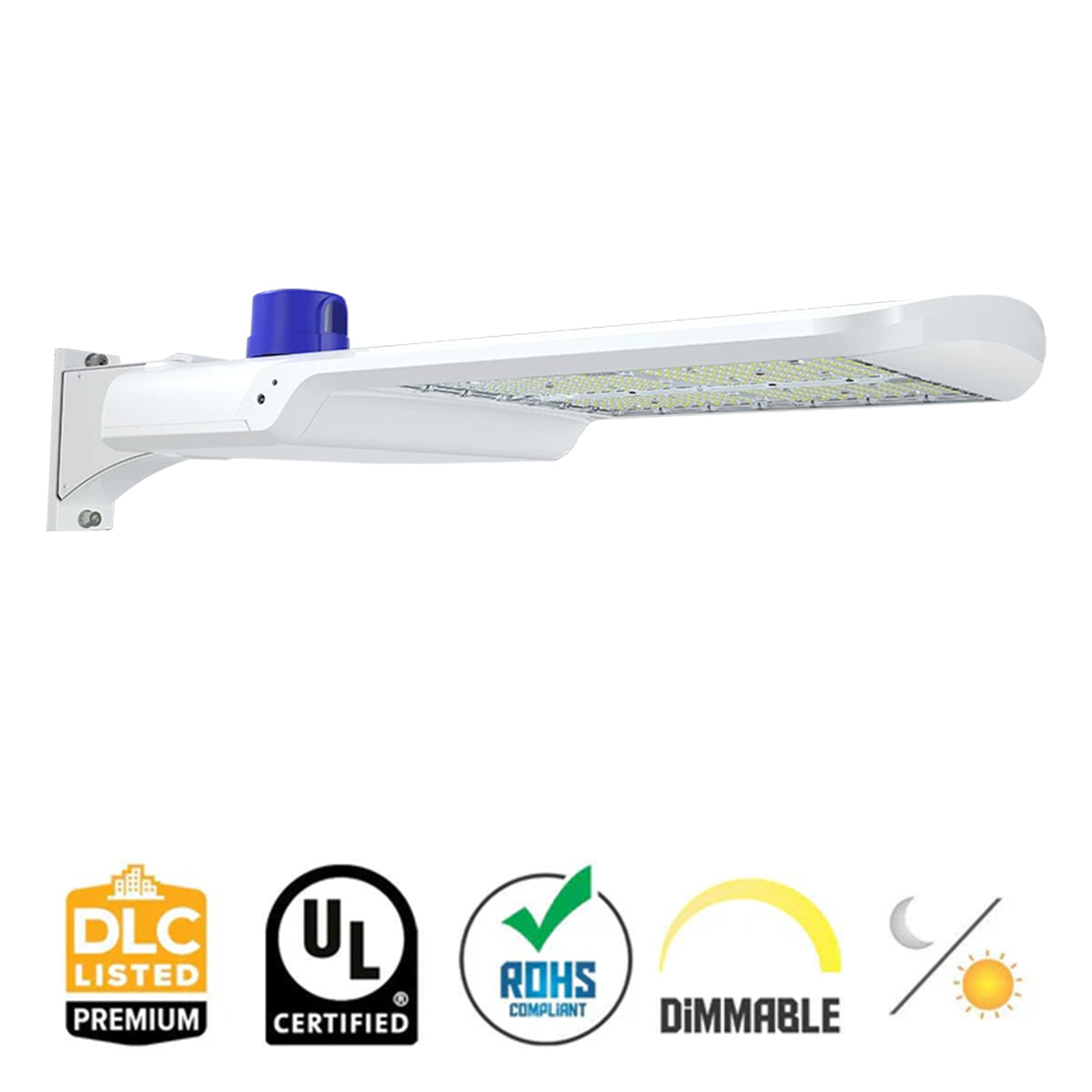

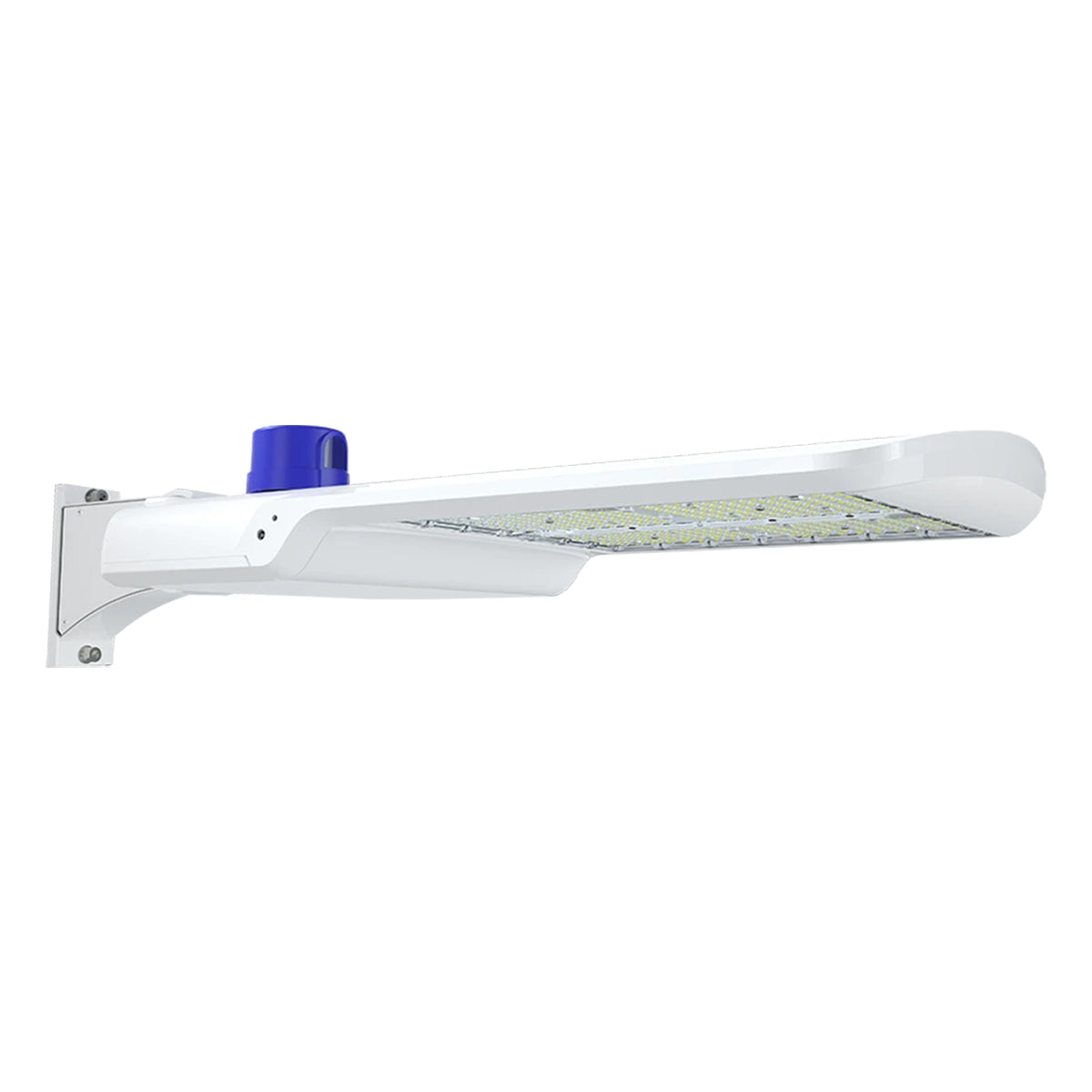

RAB A17XFU150W LED Area Light — 100W/120W/150W, White

The RAB A17XFU150W is a white field-adjustable LED area light delivering up to 23,339 lumens with selectable wattage and CCT. Operating on 120-277V, it is designed for parking lots and roadways, utilizing a Type III distribution. This model includes a twistlock photocell to provide automated dusk-to-dawn security lighting right out of the box.

Key Features

• Field-Adjustable Wattage: Selectable settings of 100W, 120W, and 150W
• Selectable CCT: Choice of 3000K, 4000K, or 5000K color temperatures
• Lumen Output: Maximum delivery of 23,339 lumens
• Optical Distribution: Type III IES classification for wide area coverage
• Automatic Control: 3-pin twistlock photocell and shorting cap included
• Universal Voltage: 120–277V commercial-grade constant current driver
• Receptacle: Integrated NEMA 7-pin receptacle for optional smart control upgrades
• Dimming: 0-10V dimmable down to 10%
• High Efficiency: Efficacy up to 165.7 lm/W
• Surge Protection: Robust 10kV protection against electrical transients
• Finish: Durable white powder coat

Typical Applications

• Commercial parking lots
• Municipal roadways and street lighting
• Campus walkways and building perimeters
• Retail shopping center exteriors
• Industrial and warehouse yards
• Automotive dealership display lots

Performance & Light Output

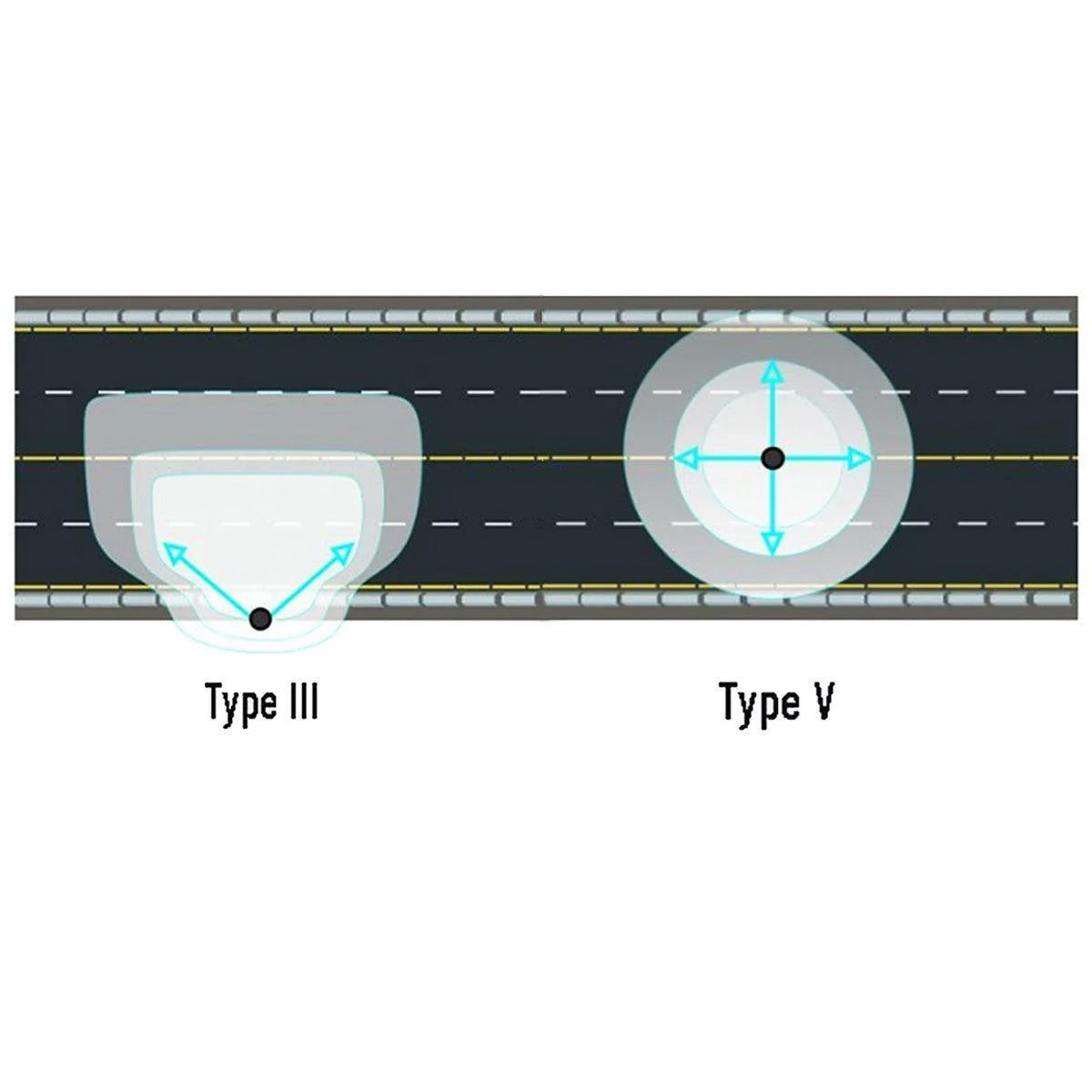

This fixture produces a versatile light output range from 15,177 to 23,339 lumens with an impressive efficacy reaching up to 165.7 lm/W. It maintains a color rendering index of 81-84 CRI for accurate visibility and boasts a long L70 lifespan of 100,000 hours. Utilizing a Type III optical distribution, the fixture pushes light outward and forward, making it ideal for perimeter mounting applications where a larger pool of light is required.

Electrical & Controls

The integrated constant current driver operates on a universal voltage range of 120–277V at 50/60Hz and includes standard 0–10V dimming capabilities. The unit comes out of the box with a 3-pin twistlock photocell for immediate dusk-to-dawn automation, as well as a shorting cap. It is fortified with high-level 10kV surge protection and maintains an excellent power factor of 99.9% at 120V.

Construction & Durability

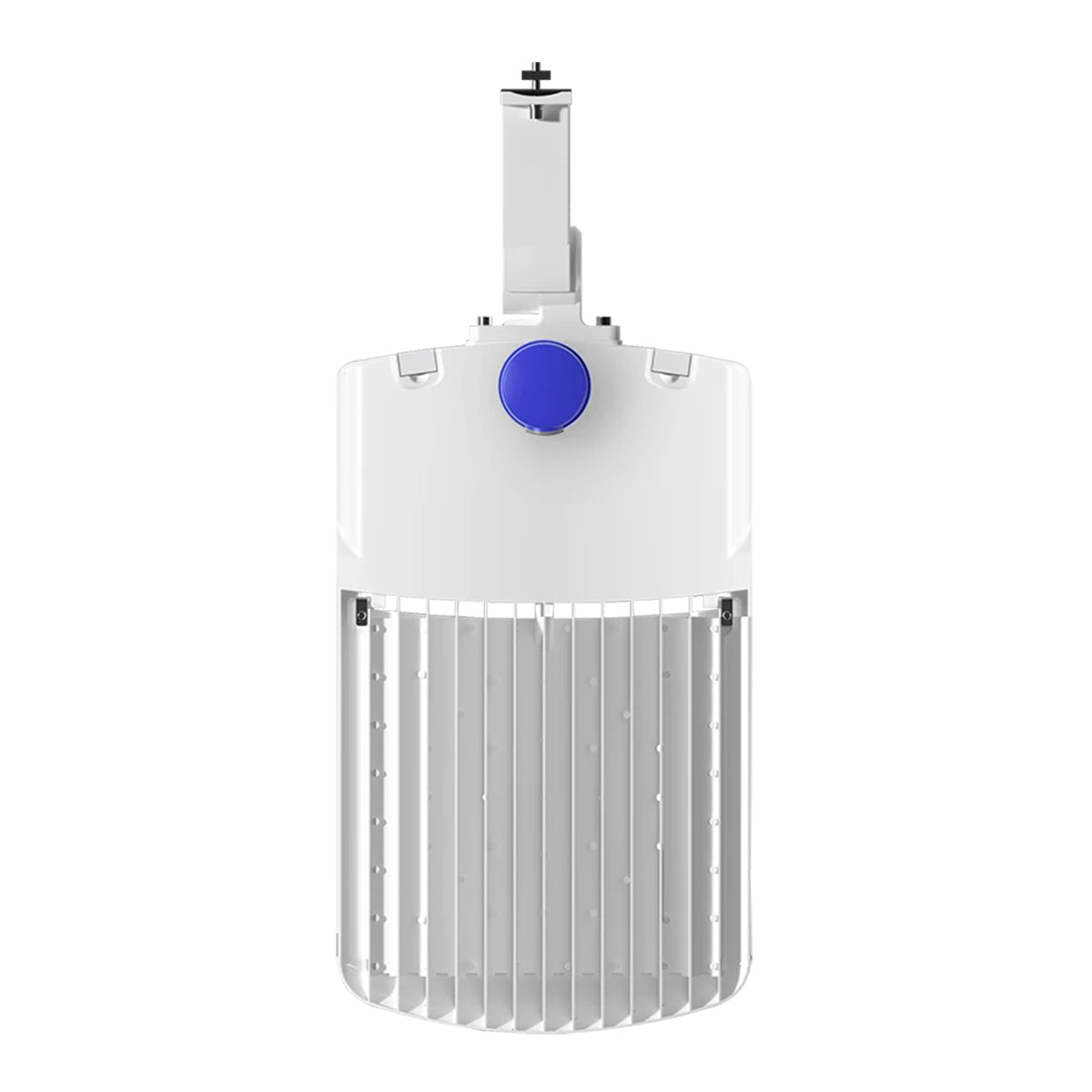

Constructed from rugged die-cast aluminum with a high-durability white finish, the housing is engineered to withstand extreme outdoor conditions. It features a clear polycarbonate lens and achieves an IP65 ingress protection rating against dust and water. The fixture carries a 3G vibration rating for secure pole-mounted operation and operates reliably in cold weather environments down to -40°C (-40°F).

Installation & Mounting

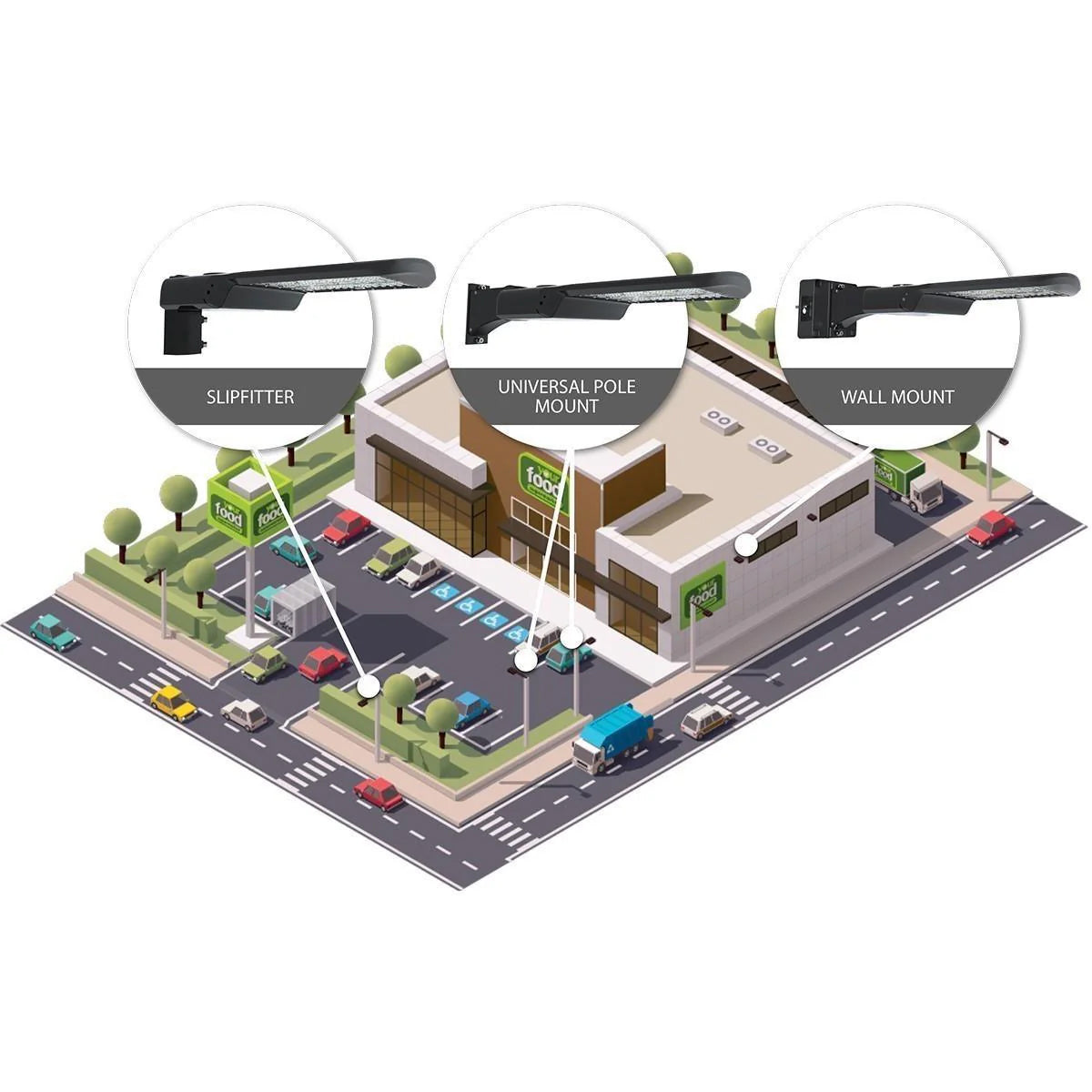

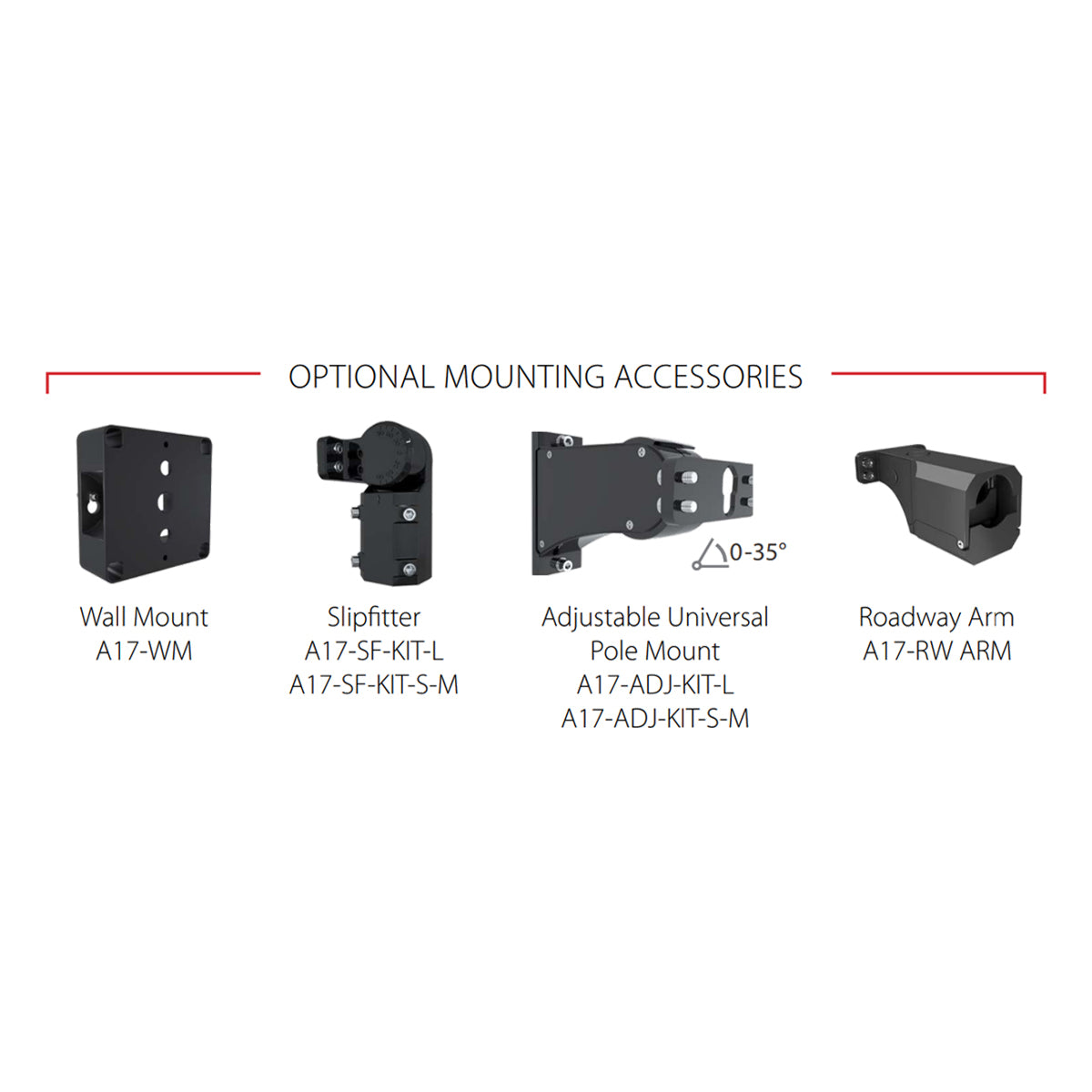

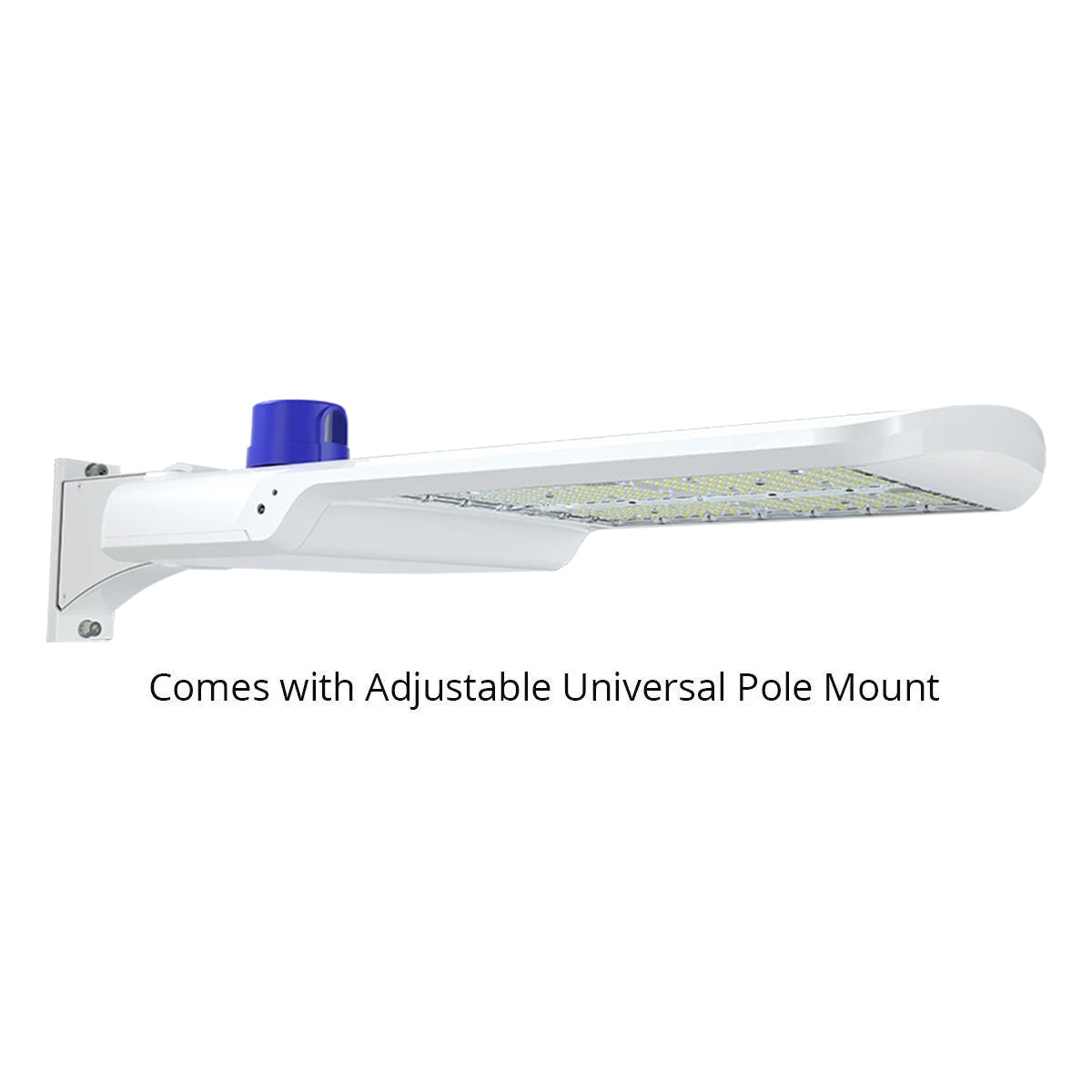

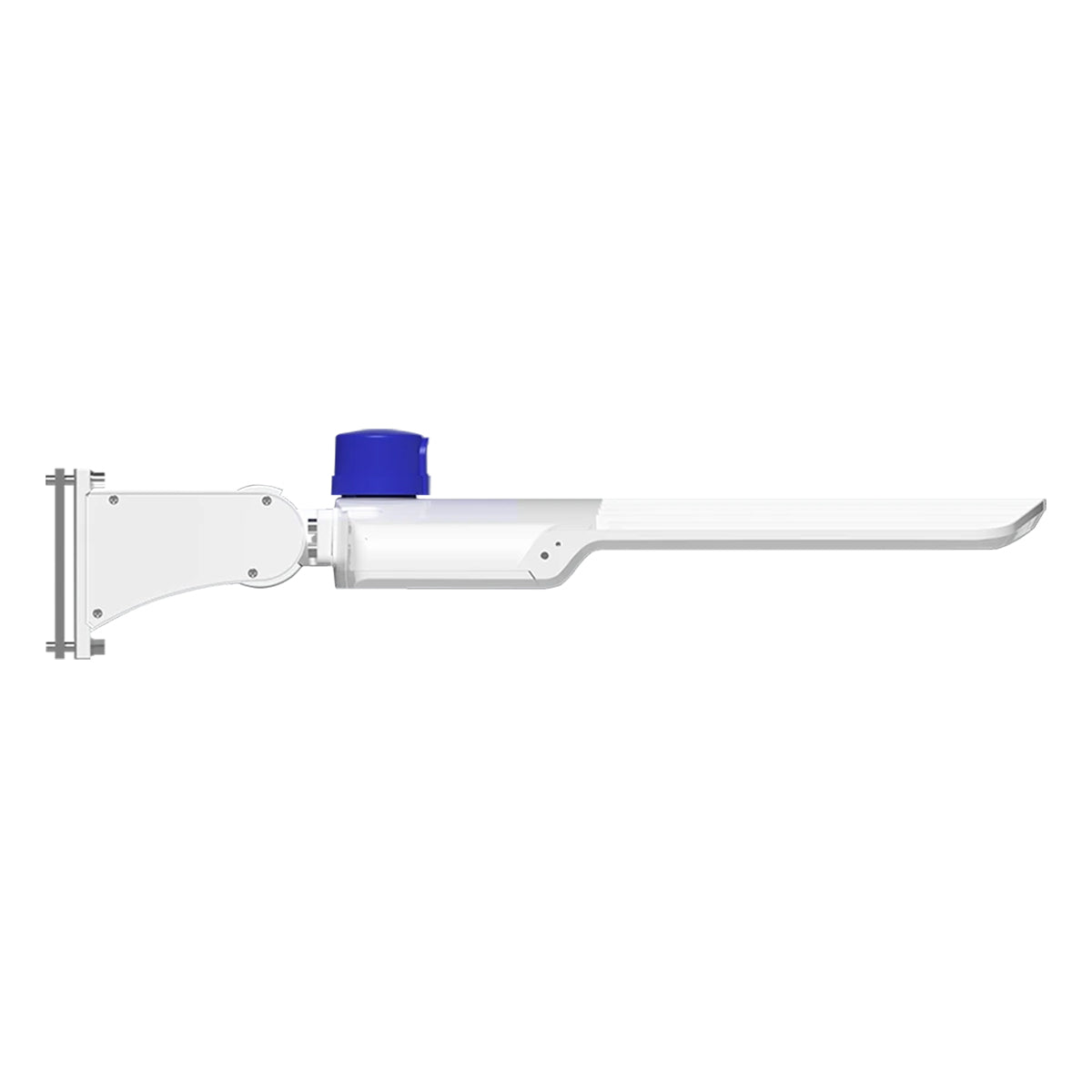

This area light comes standard with a universal pole mounting arm that accommodates existing drill hole patterns ranging from 1 inch to 5 1/2 inches center-to-center. A round pole adapter plate is also included as a standard accessory to ensure seamless mounting on round poles with a diameter greater than 4 inches. The mounting arm utilizes an easy slide-and-lock mechanism, streamlining the installation process.

What’s Included

• LED Area Light Fixture
• Universal Pole Mounting Arm
• Round Pole Adapter Plate
• 3-Pin Twistlock Photocell
• Shorting Cap
