RAB A17XFU150 LED Area Light 23,339 Lumens 100W/120W/150W 3000K/4000K/5000K 120-277V Type III Bronze
Available in stock (200)
About this item
About this item
- Selectable Output: Field-adjustable 100W / 120W / 150W and 3000K / 4000K / 5000K settings
- Automatic Control: Included twistlock photocell for automated dusk-to-dawn security operation
- Type III Distribution: Optimized forward-throw optics for parking lot and roadway perimeters
- Maximum Efficiency: DLC Premium listed with performance up to 165.7 lumens per watt
- Universal Mounting: Includes mounting arm compatible with most existing hole patterns and round poles
We process payments securely and do not store credit card information.
Description
Description

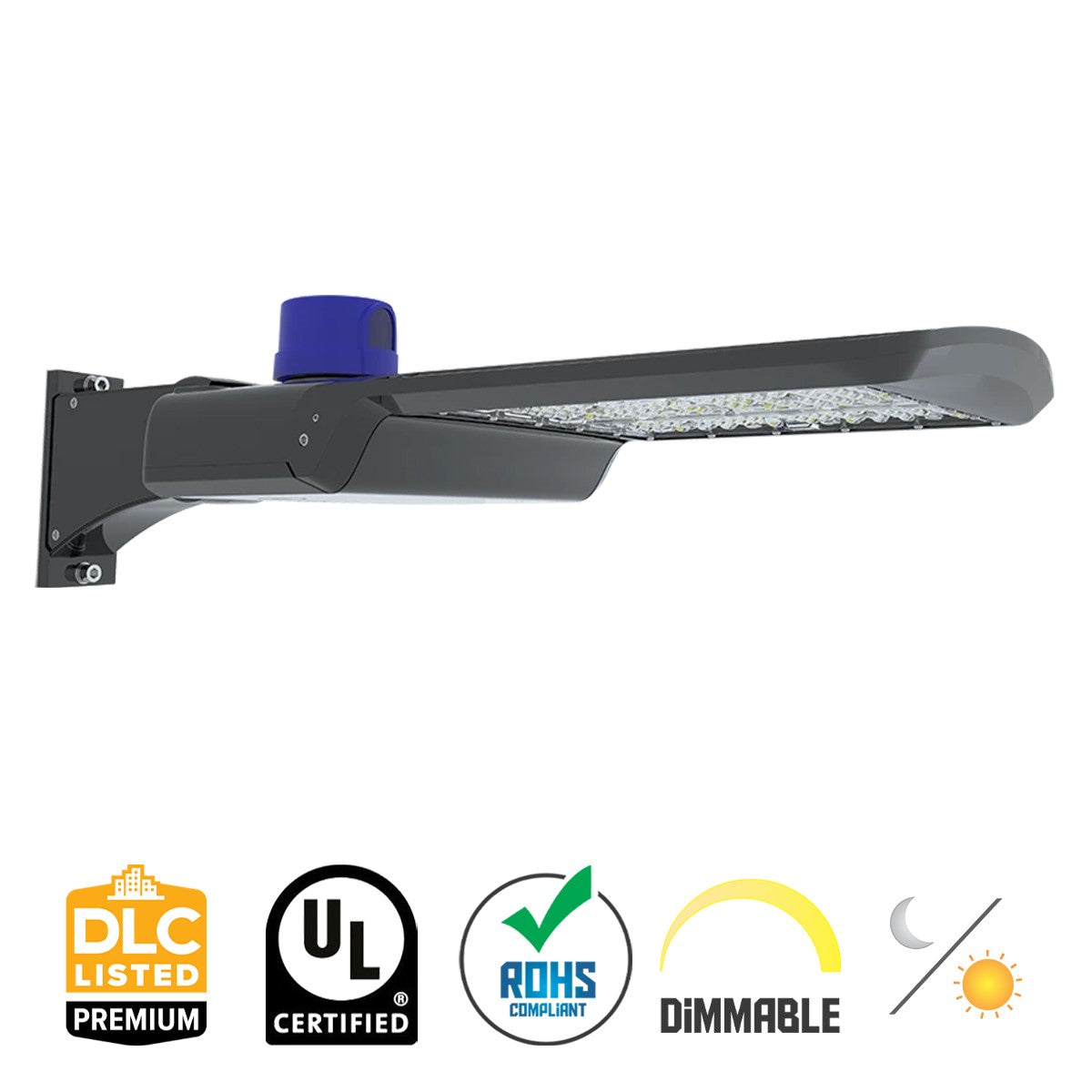

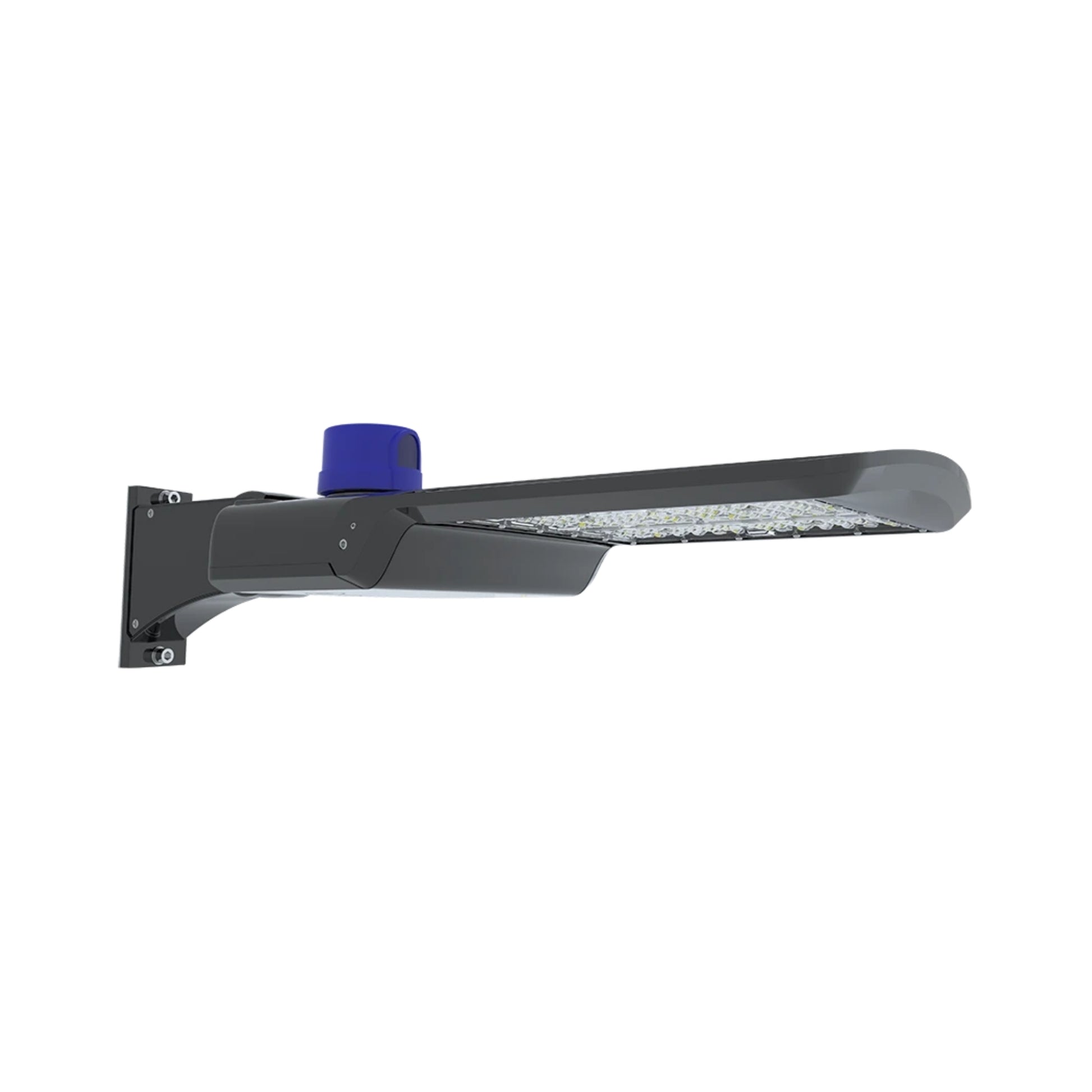

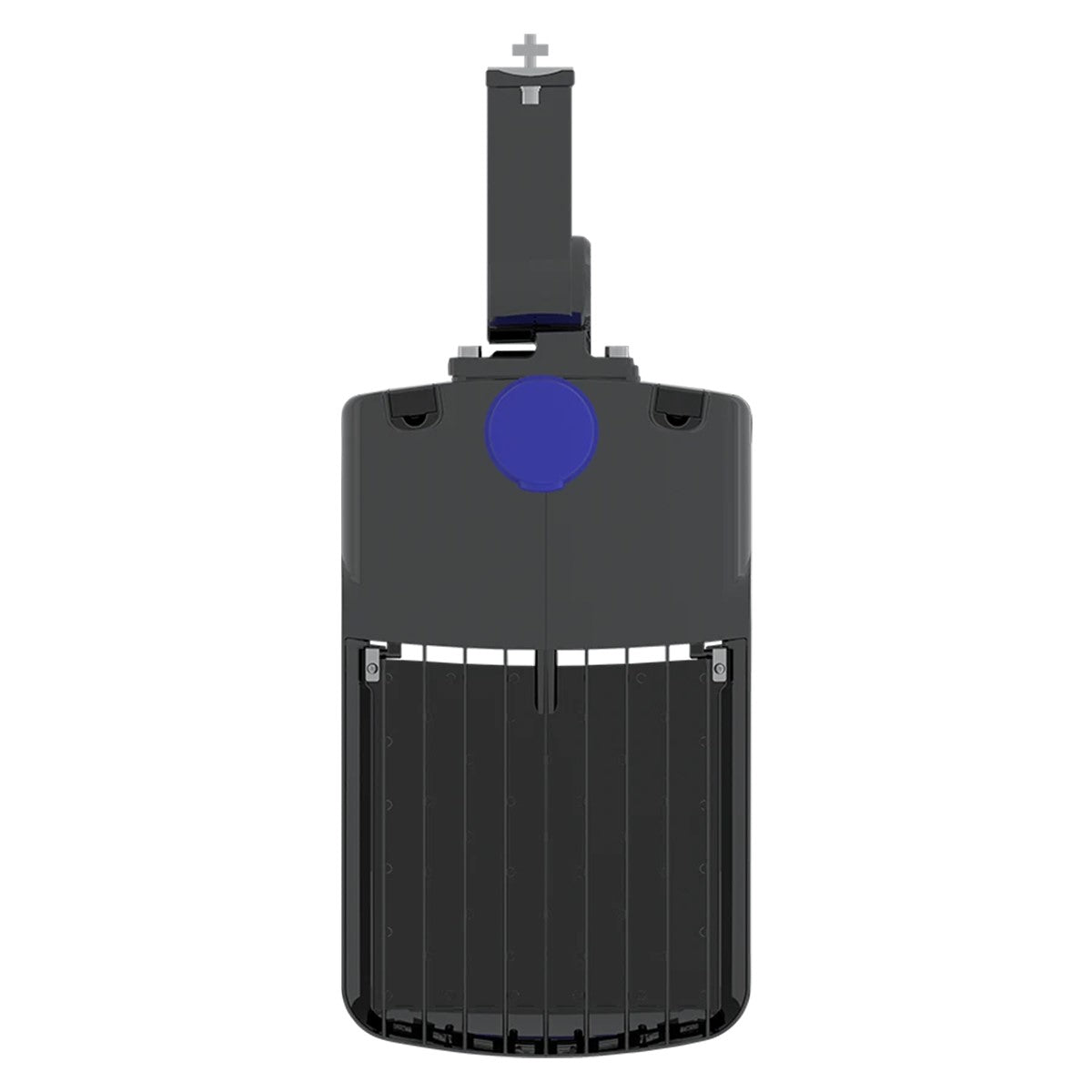

RAB A17XFU150 LED Area Light — 100W/120W/150W, 120-277V
The RAB A17XFU150 is a versatile field-adjustable LED area light delivering up to 23,339 lumens with selectable wattage and CCT. Operating on a universal 120-277V input, this fixture is rated IP65 and DLC Premium for reliable commercial use. It is specifically designed for parking lots and roadways, utilizing a Type III distribution and featuring an included twistlock photocell to provide automated dusk-to-dawn security lighting.
Key Features
- Field-Adjustable Wattage: Selectable settings of 100W, 120W, and 150W
- Selectable CCT: Choice of 3000K, 4000K, or 5000K color temperatures
- Lumen Output: Maximum delivery of 23,339 lumens
- Optical Distribution: Type III IES classification for wide area coverage
- Automatic Control: 3-pin twistlock photocell and shorting cap included
- Universal Voltage: 120–277V commercial-grade constant current driver
- Receptacle: Integrated NEMA 7-pin receptacle for optional smart control upgrades
- Dimming: 0-10V dimmable down to 10%
- High Efficiency: Efficacy up to 165.7 lm/W
- Surge Protection: Robust 10kV protection against electrical transients

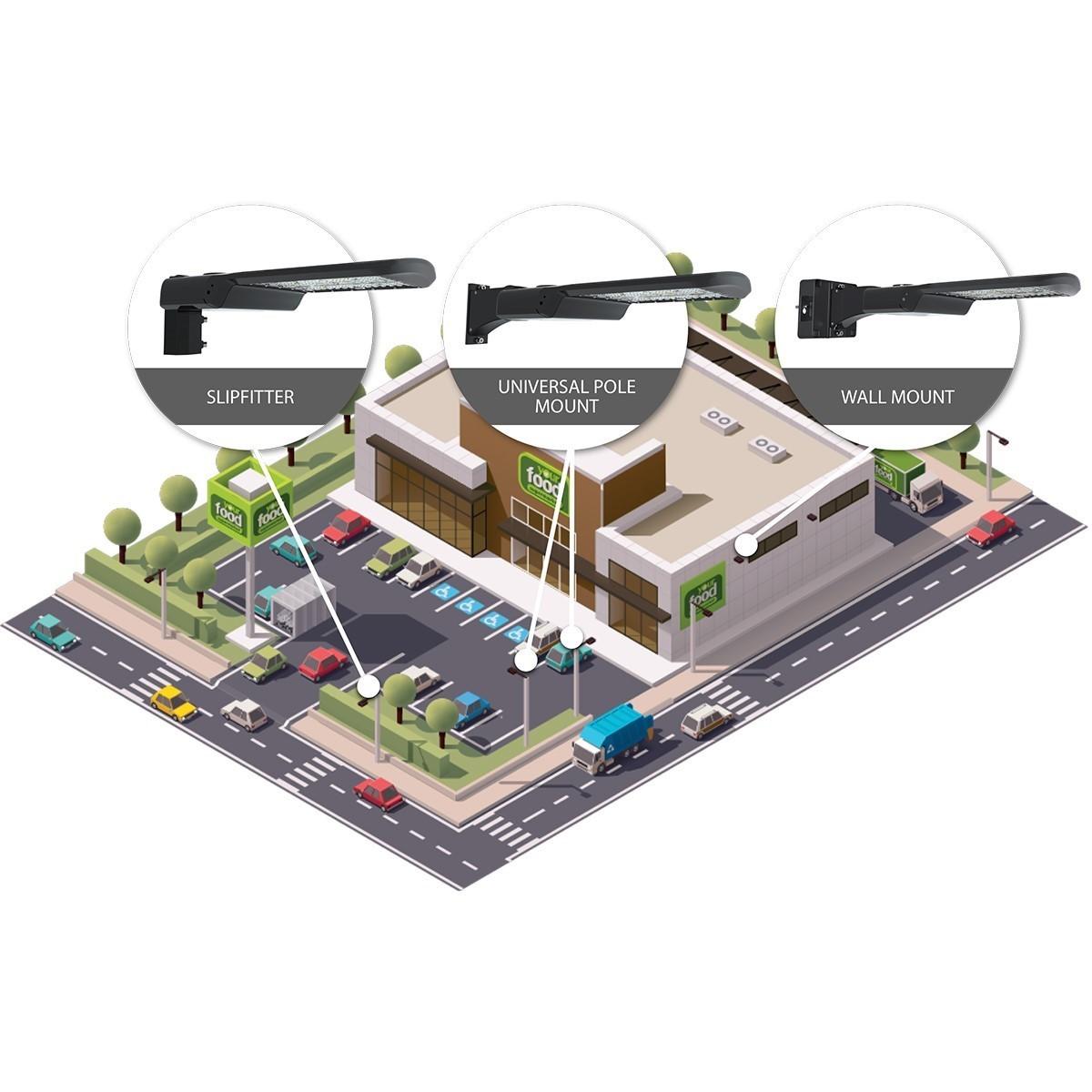

Typical Applications
- Commercial parking lots
- Municipal roadways and street lighting
- Campus walkways and building perimeters
- Retail shopping center exteriors
- Industrial and warehouse yards
- Automotive dealership display lots
Performance & Light Output

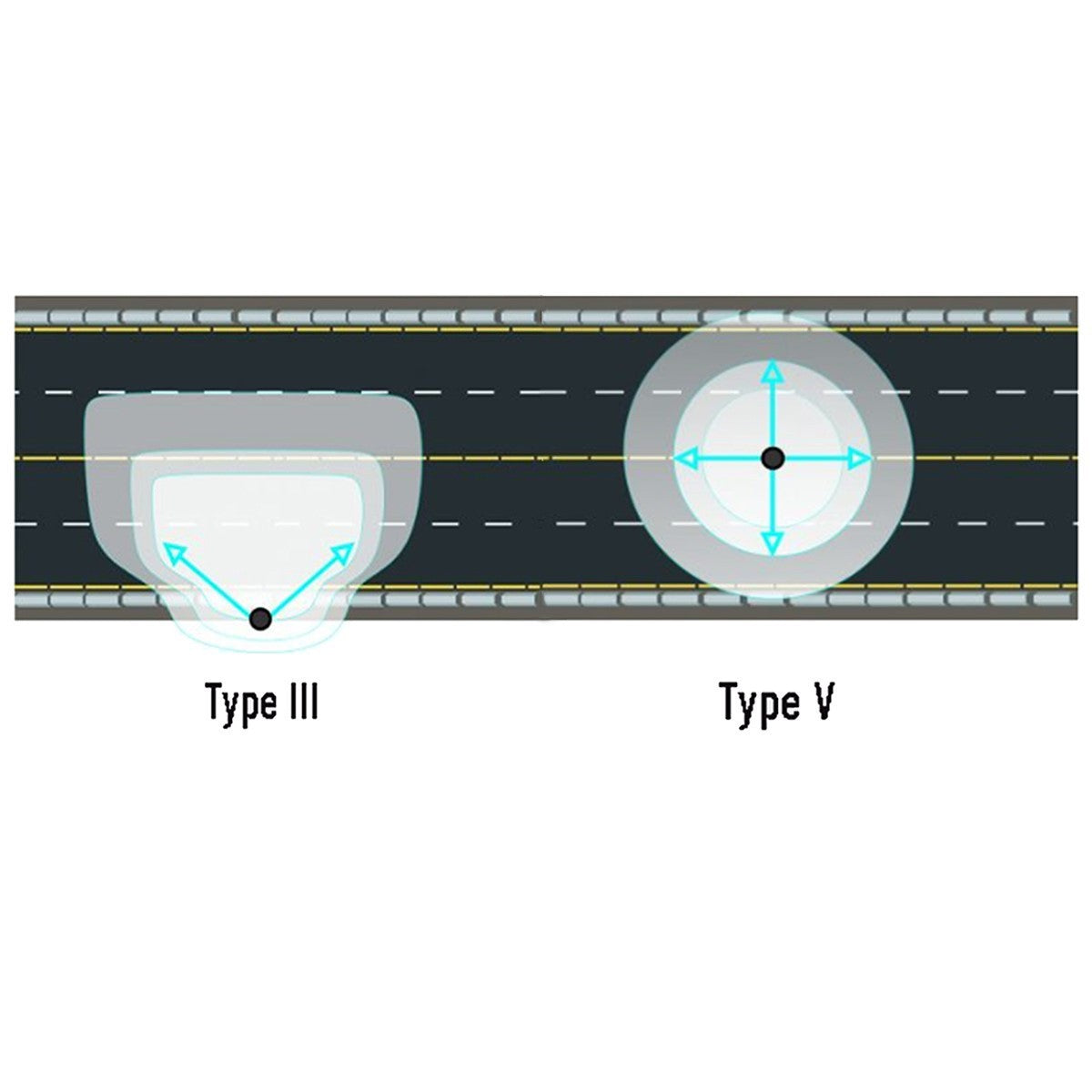

This fixture produces a versatile light output range from 15,177 to 23,339 lumens with an impressive efficacy reaching up to 165.7 lm/W. It maintains a color rendering index of 81-84 CRI for accurate visibility and boasts a long L70 lifespan of 100,000 hours. Utilizing a Type III optical distribution, the fixture pushes light outward and forward, making it ideal for perimeter mounting applications where a larger pool of light is required.
Electrical & Controls
The integrated constant current driver operates on a universal voltage range of 120–277V at 50/60Hz and includes standard 0–10V dimming capabilities. The unit comes out of the box with a 3-pin twistlock photocell for immediate dusk-to-dawn automation, as well as a shorting cap. It is fortified with high-level 10kV surge protection and maintains an excellent power factor of 99.9% at 120V.

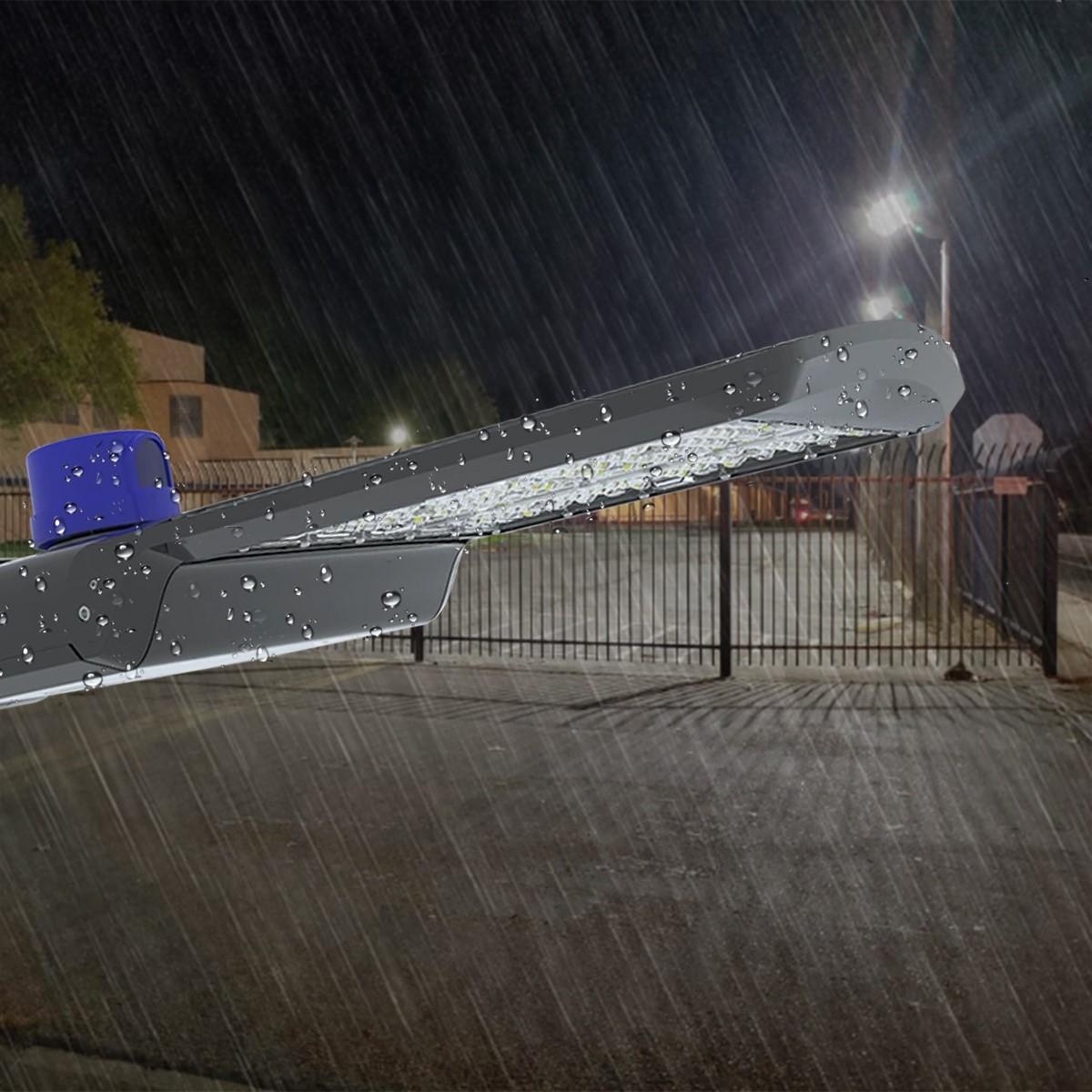

Construction & Durability
Constructed from rugged die-cast aluminum with a high-durability bronze finish, the housing is engineered to withstand extreme outdoor conditions. It features a clear polycarbonate lens and achieves an IP65 ingress protection rating against dust and water. The fixture carries a 3G vibration rating for secure pole-mounted operation and operates reliably in cold weather environments down to -40°C (-40°F).

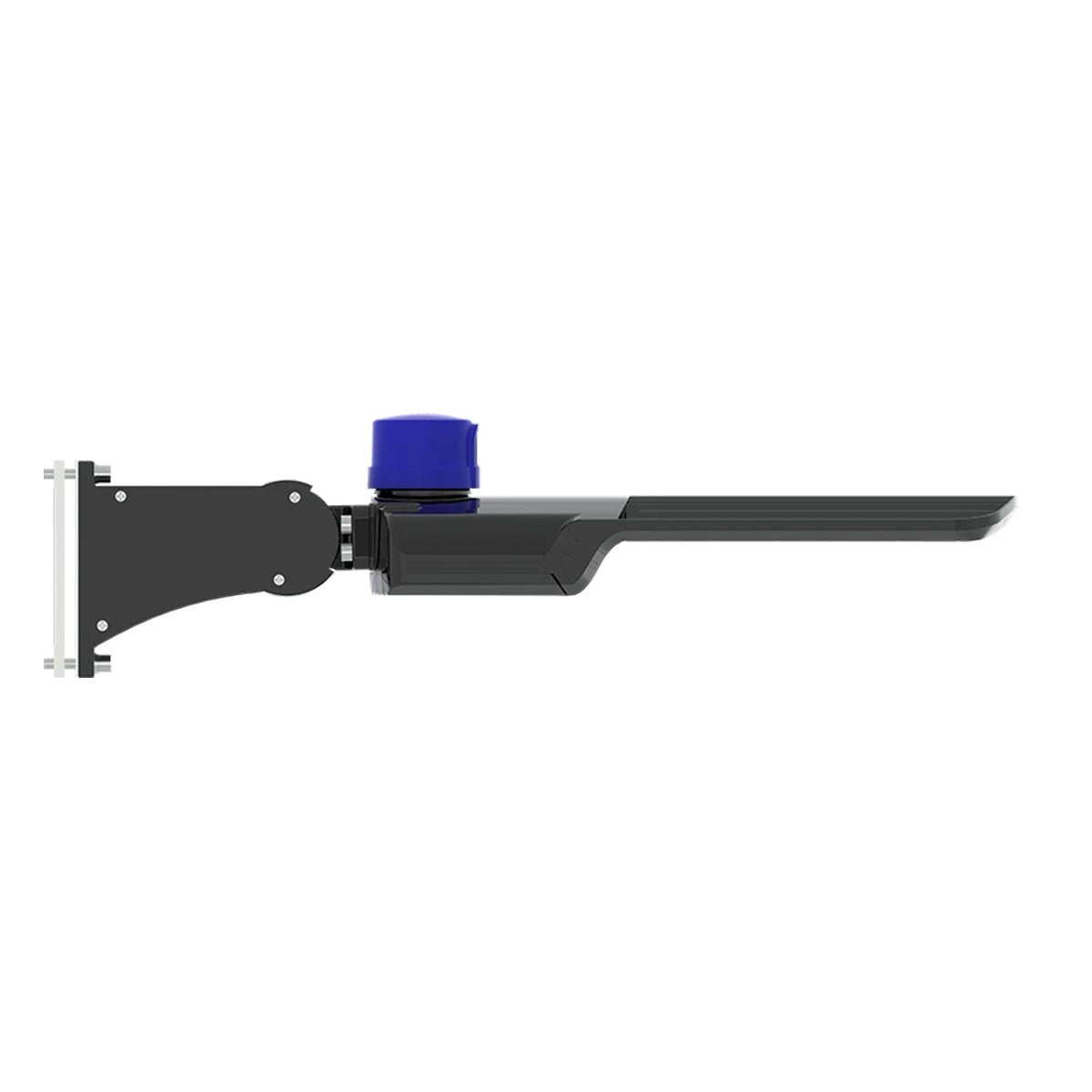

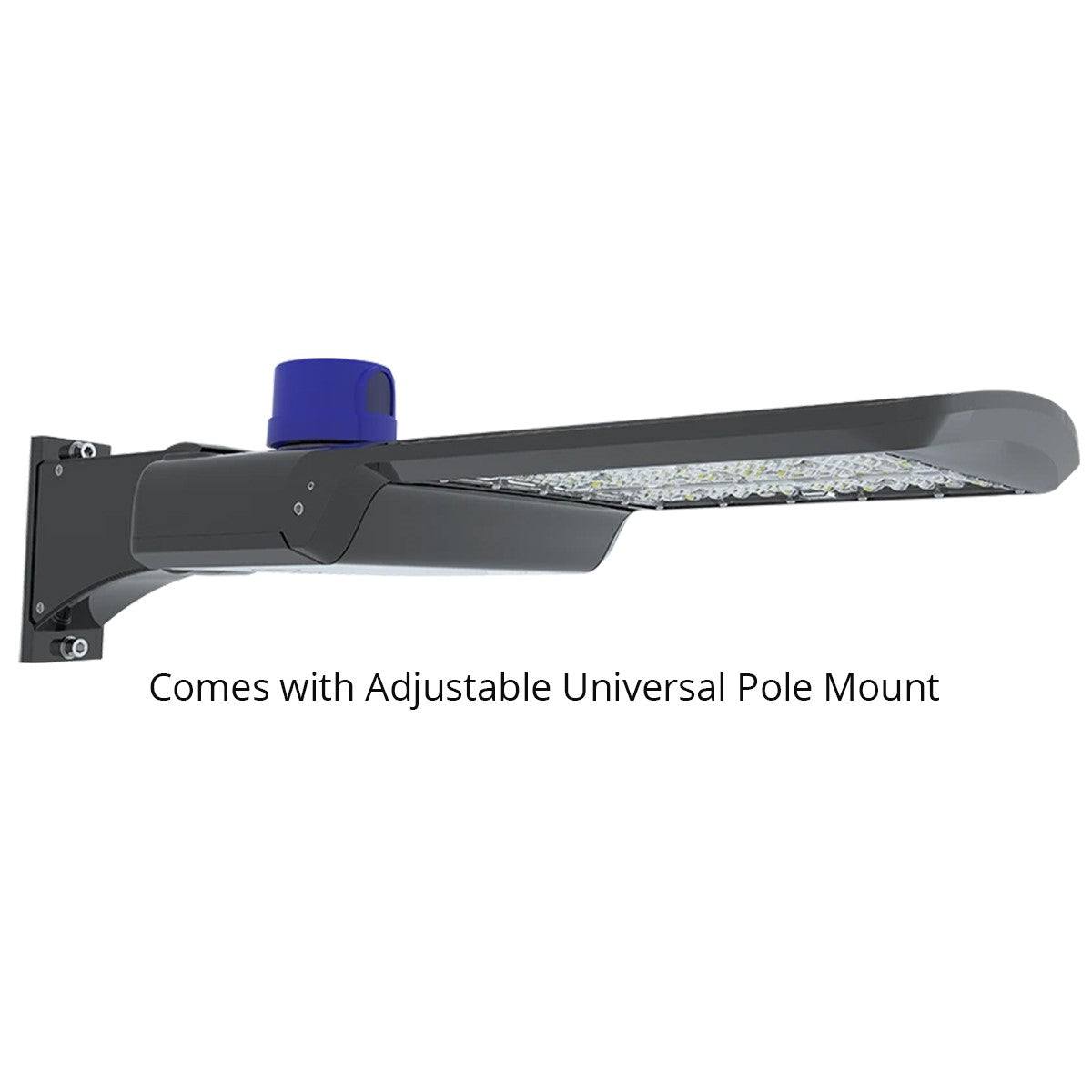

Installation & Mounting
This area light comes standard with a universal pole mounting arm that accommodates existing drill hole patterns ranging from 1 inch to 5 1/2 inches center-to-center. A round pole adapter plate is also included as a standard accessory to ensure seamless mounting on round poles with a diameter greater than 4 inches. The mounting arm utilizes an easy slide-and-lock mechanism, streamlining the installation process.
What’s Included
- LED Area Light Fixture
- Universal Pole Mounting Arm
- Round Pole Adapter Plate
- 3-Pin Twistlock Photocell
- Shorting Cap
Specifications
Specifications

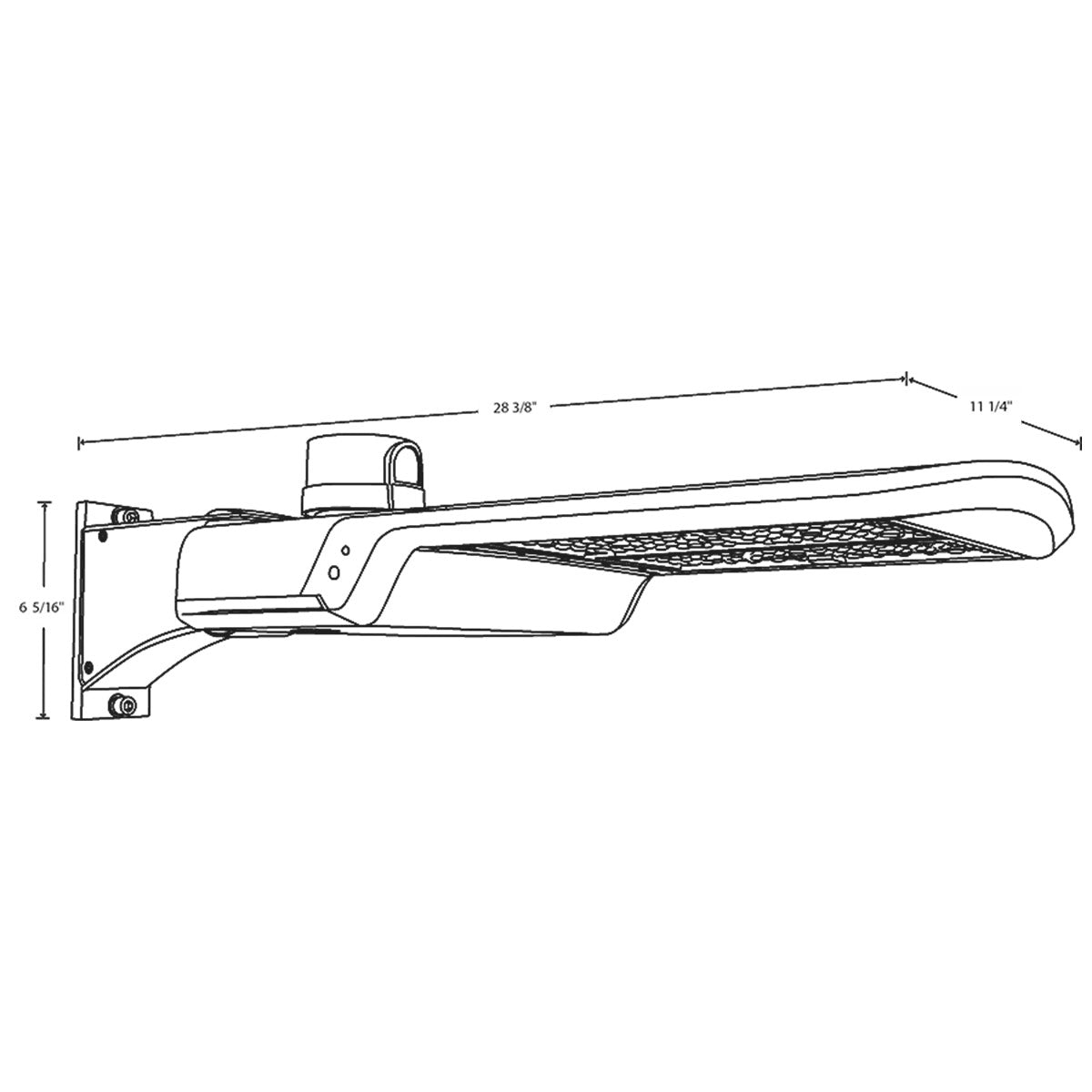

Dimensions
