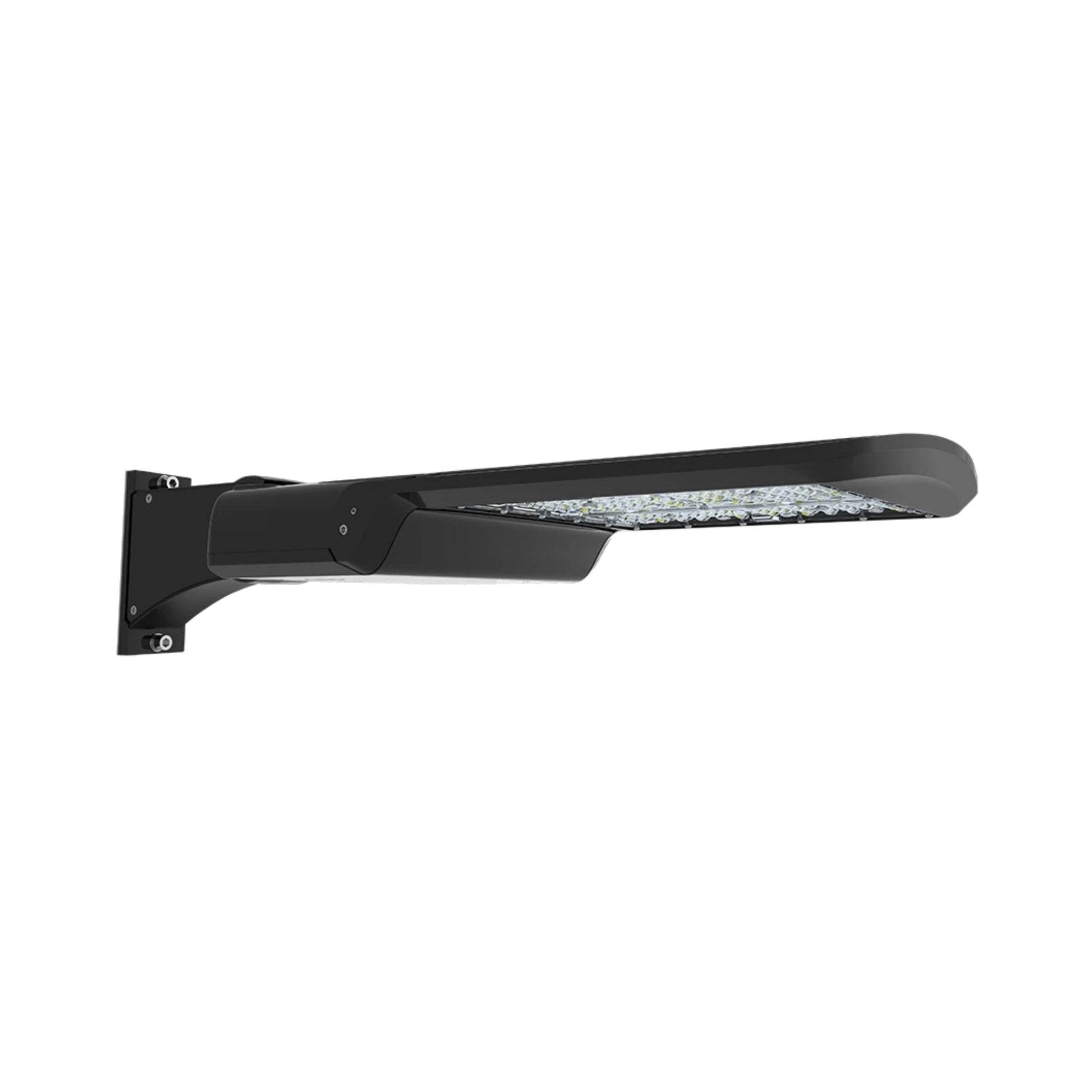

RAB A17-3T70 LED Area Light 11,192 Lumens 50W/60W/70W 3000K/4000K/5000K 120-277V Type III Bronze
Available in stock (100)
About this item
About this item

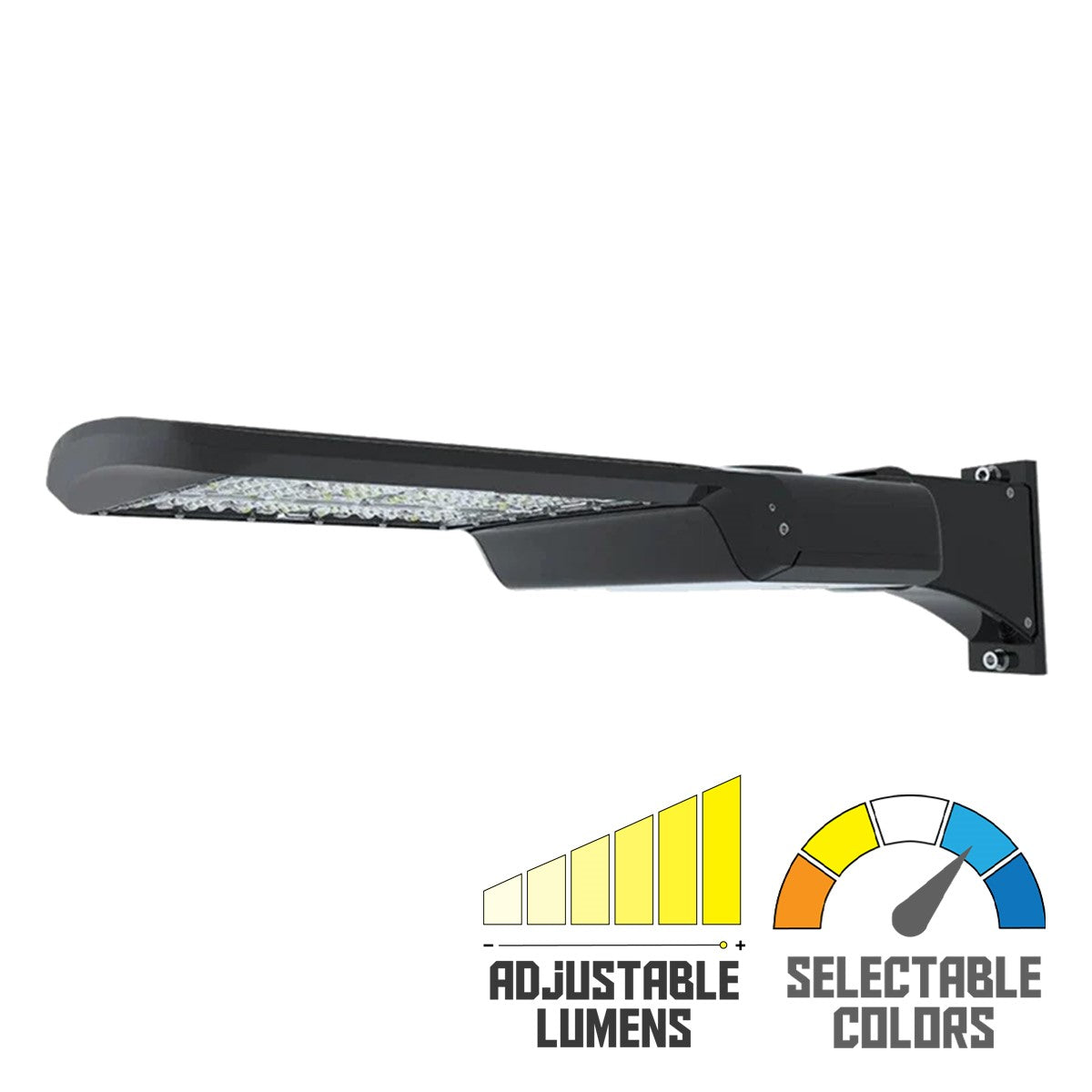

- Selectable Output: Field-adjustable 50W / 60W / 70W and 3000K / 4000K / 5000K settings
- Type III Distribution: Optimized forward-throw optics for parking lot and roadway perimeters
- Universal Voltage: 120–277V commercial-grade driver
- Dimming Ready: Includes 0-10V dimming capabilities for advanced lighting control systems
- Environmental Durability: IP65 rated against dust and water with 3G vibration resistance
We process payments securely and do not store credit card information.
Description
Description
RAB A17-3T70 LED Area Light — 50W/60W/70W, 120-277V
The RAB A17-3T70 is an ultra-economy field-adjustable LED area light delivering up to 11,192 lumens with selectable wattage and selectable CCT. Operating on 120-277V, the fixture is rated IP65 and DLC Premium for high-efficiency outdoor commercial use. This versatile fixture is designed for parking lots and roadway perimeters, providing a forward-throwing Type III distribution to optimize illumination across expansive outdoor sites.
Key Features
- Field-Adjustable Wattage: Selectable settings of 50W, 60W, and 70W
- Selectable CCT: Choice of 3000K, 4000K, or 5000K color temperatures
- Lumen Output: Maximum delivery of 11,192 lumens
- Optical Distribution: Type III IES classification for wide area coverage
- Universal Voltage: 120–277V commercial-grade constant current driver
- Dimming: 0-10V dimmable down to 10%

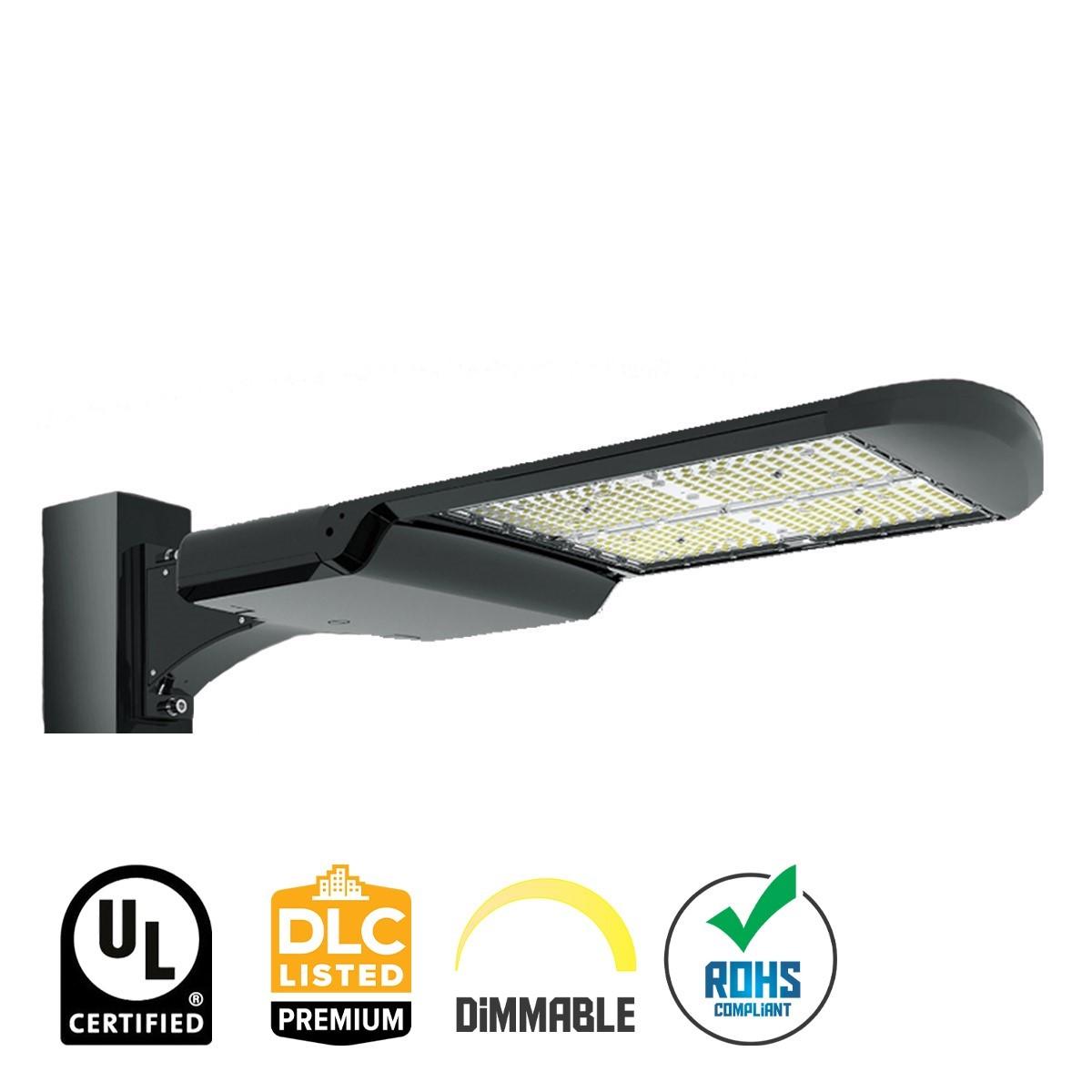

- High Efficiency: Efficacy up to 165.4 lm/W, qualified for DLC Premium rebates
- Vibration Rating: 3G vibration rating for stability in high-traffic applications
- Surge Protection: Integrated 6kV protection against electrical transients
- Universal Mounting: Included arm fits 1" to 5 1/2" hole patterns
Typical Applications
- Commercial parking lots
- Municipal roadways and streets
- Campus walkways and perimeters
- Retail shopping centers
- Industrial and warehouse exteriors
- Automotive dealership lots
Performance & Light Output

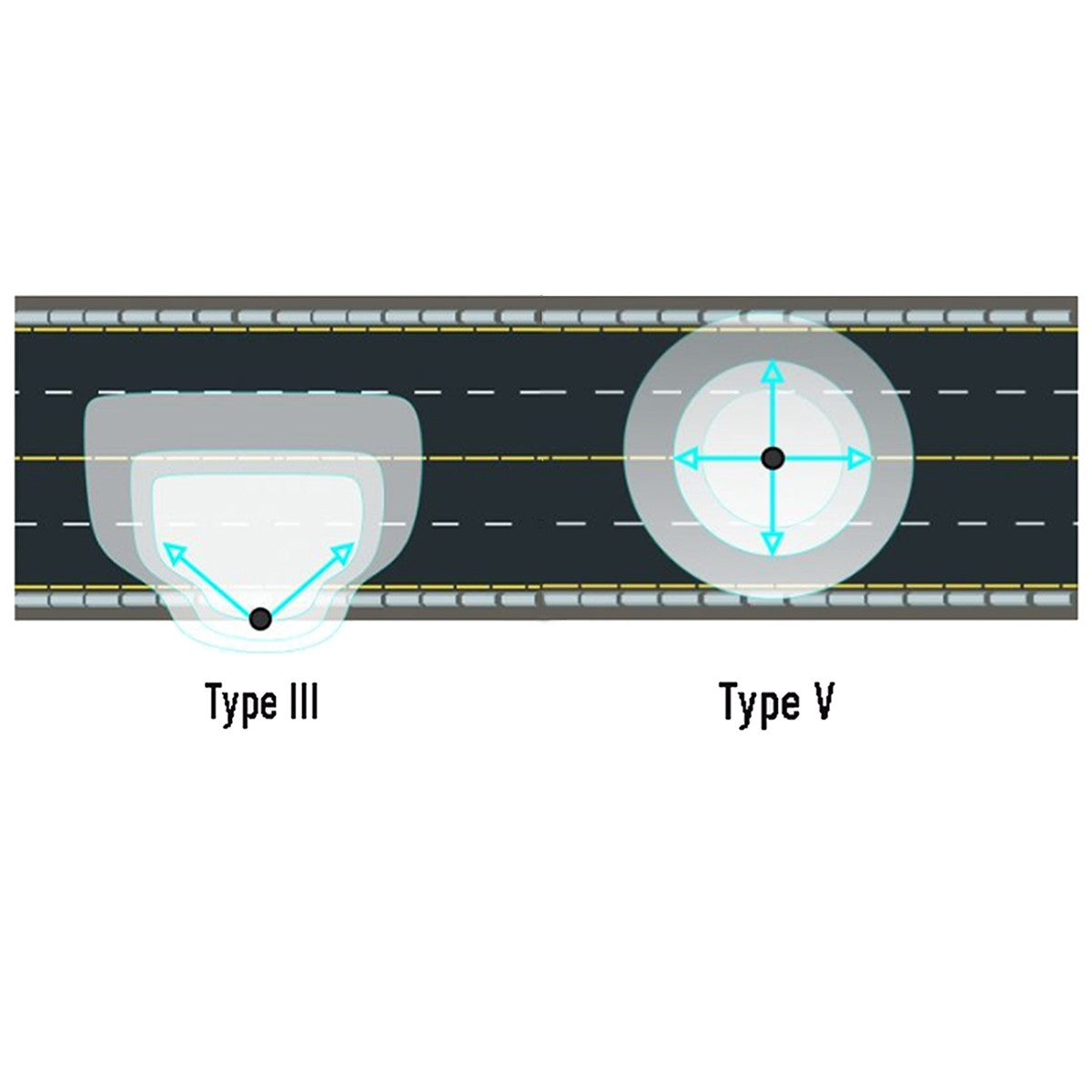

The A17-3T70 produces an adjustable output range from 7,788 to 11,192 lumens with an impressive efficacy reaching up to 165.4 lm/W. It maintains a color rendering index (CRI) of 80+ for accurate visibility and boasts a long L70 lifespan of 100,000 hours to minimize maintenance. Utilizing a Type III optical distribution, this fixture pushes light outward and forward, making it an ideal LED replacement for traditional 250W metal halide fixtures positioned near the perimeter of a site.
Electrical & Controls
The integrated constant current driver operates on a universal voltage range of 120–277V at 50/60Hz and includes 0–10V dimming wiring for integration with standard lighting control systems. To ensure long-term electrical reliability in outdoor environments, the fixture is equipped with 6kV surge protection. It maintains an excellent power factor greater than 0.9 and low total harmonic distortion across all voltage inputs.
Construction & Durability

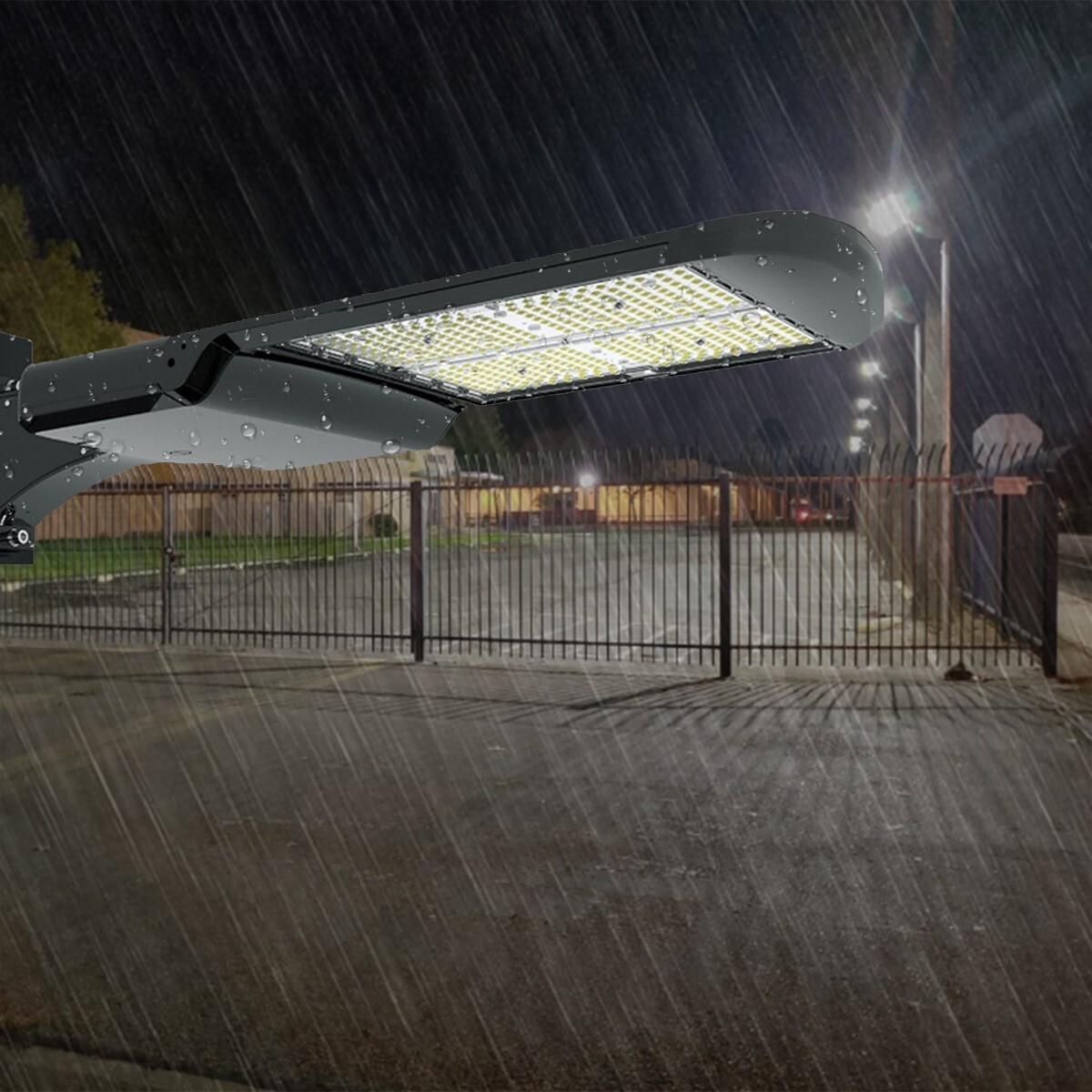

Constructed from rugged die-cast aluminum with a high-durability bronze powder coat finish, the A17-3T70 is engineered to withstand extreme weather conditions. The housing features a clear polycarbonate lens and is fully sealed with silicone gaskets to achieve an IP65 ingress protection rating against dust and water. The fixture carries a 3G vibration rating for secure pole-mounted operation and is rated for ambient temperatures ranging from -40°C (-40°F) to 40°C (104°F).
Installation & Mounting

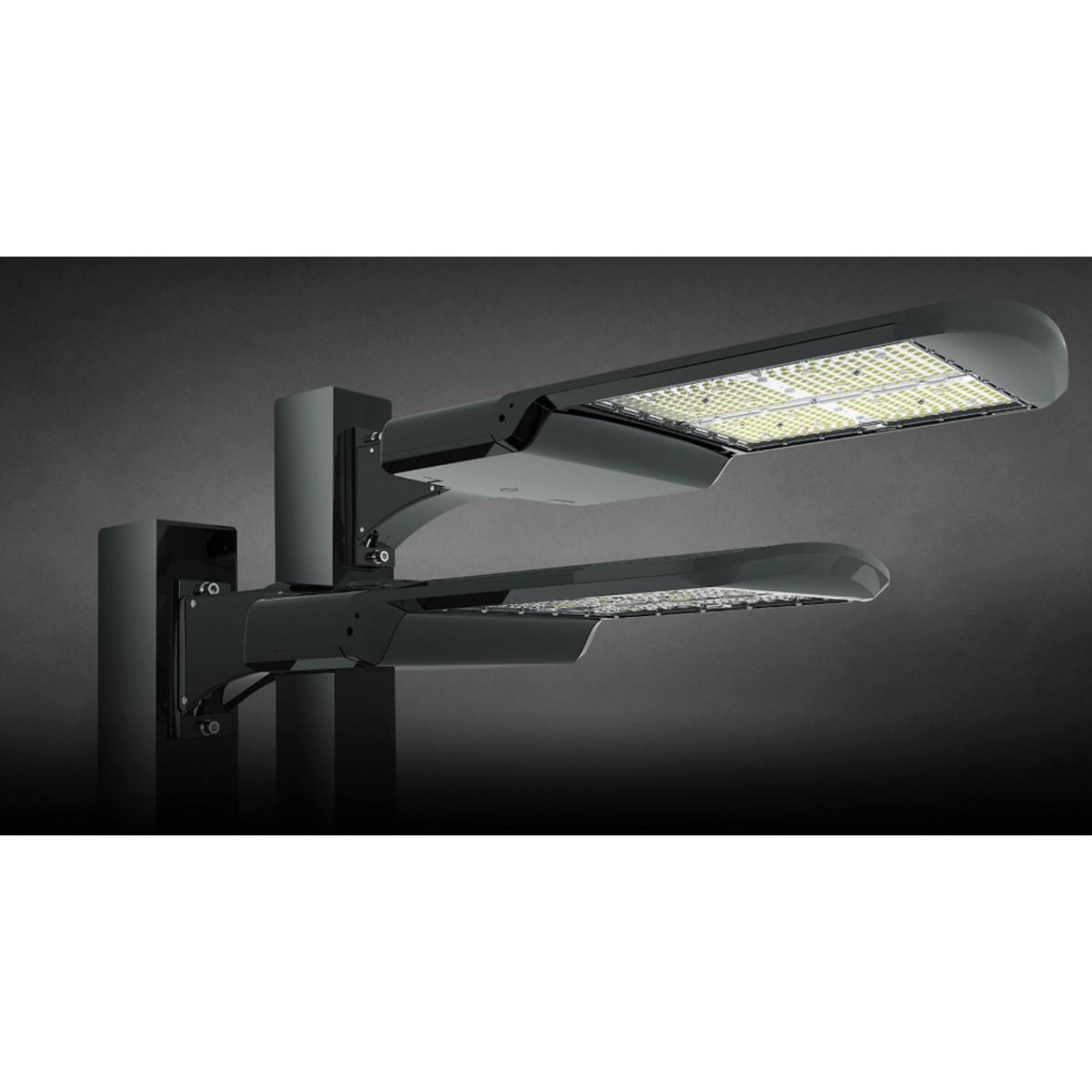

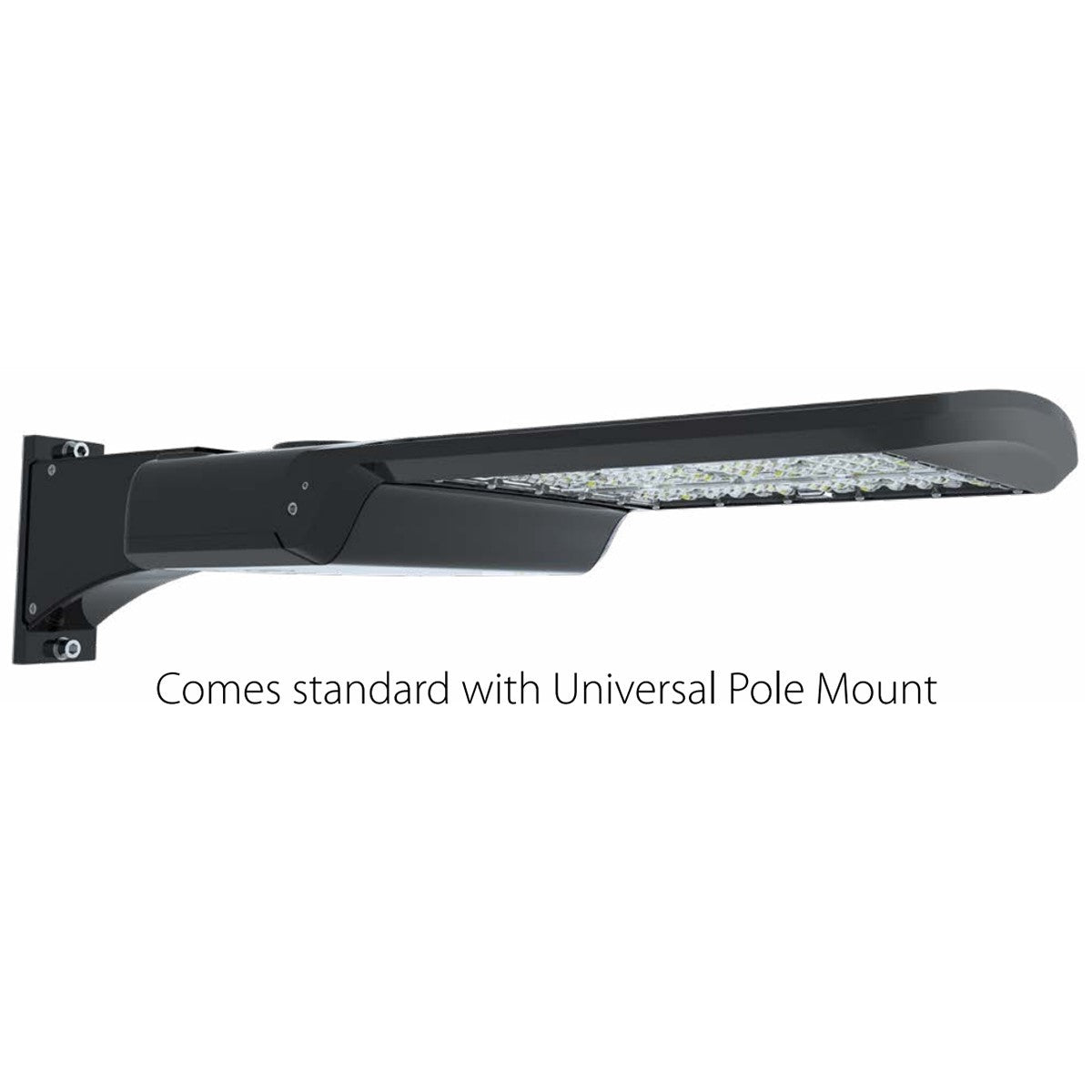

This area light comes standard with a universal pole mounting arm that accommodates existing drill hole patterns ranging from 1 inch to 5 1/2 inches center-to-center. For added versatility, a round pole adapter plate is included in the box to ensure seamless mounting on round poles with a diameter greater than 4 inches. The mounting arm utilizes an easy slide-and-lock mechanism, allowing for a safer and more streamlined installation process by a single technician.
What’s Included
- A17-3T70 LED Area Light
- Universal Pole Mounting Arm
- Round Pole Adapter Plate
- Installation Hardware
