RAB A17-3T480 LED Area Light 76,317 Lumens 320W/400W/480W 3000K/4000K/5000K 120-277V Type III Bronze
Available in stock (200)
About this item
About this item
- Selectable Output: Field-adjustable 320W / 400W / 480W and 3000K / 4000K / 5000K settings
- Type III Distribution: Optimized forward-throw optics for parking lot and roadway perimeters

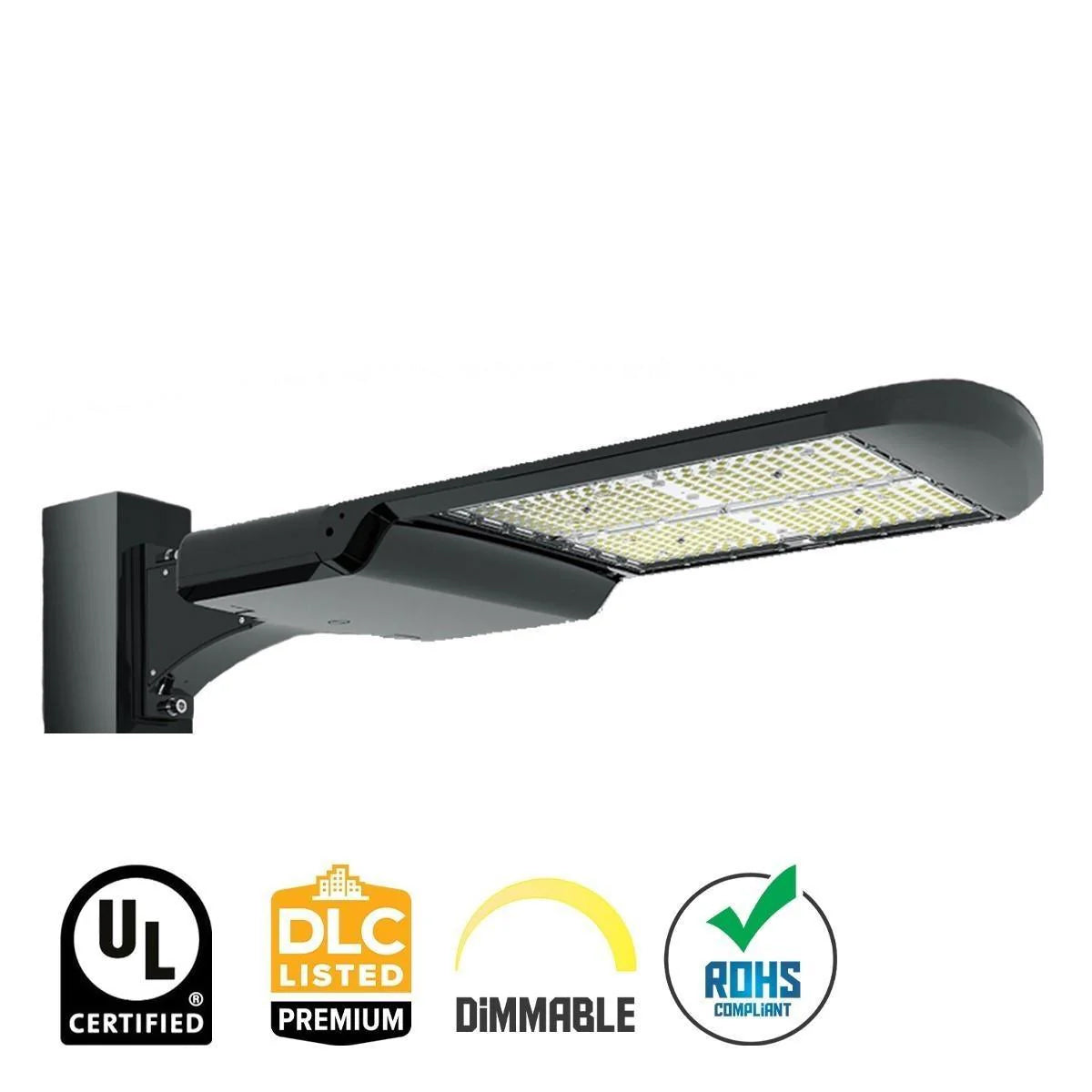

- Maximum Efficiency: DLC Premium listed with performance up to 175.9 lumens per watt
- Environmental Durability: IP65 rated against dust and water with 3G vibration resistance
- Universal Mounting: Includes mounting arm compatible with most existing hole patterns and round poles
We process payments securely and do not store credit card information.
Description
Description
RAB A17 Series LED Area Light — 320W/400W/480W, 120-277V
The RAB A17-3T480 is an ultra-economy field-adjustable LED area light delivering up to 76,317 lumens with selectable wattage and selectable CCT. Operating on 120-277V, the fixture is rated DLC Premium for commercial use. It provides a Type III distribution to optimize illumination across expansive outdoor sites.
Key Features
- Field-Adjustable Wattage: Selectable settings of 320W, 400W, and 480W
- Selectable CCT: Choice of 3000K, 4000K, or 5000K color temperatures
- Lumen Output: Maximum delivery of 76,317 lumens
- Optical Distribution: Type III IES classification for wide area coverage
- Universal Voltage: 120–277V commercial-grade constant current driver
- Dimming: 0-10V dimmable down to 10%
- High Efficiency: Efficacy up to 175.9 lm/W
- Vibration Rating: 3G vibration rating for stability in high-wind applications
- Surge Protection: Integrated 6kV protection against electrical transients
- Universal Mounting: Included arm fits 1" to 5 1/2" hole patterns

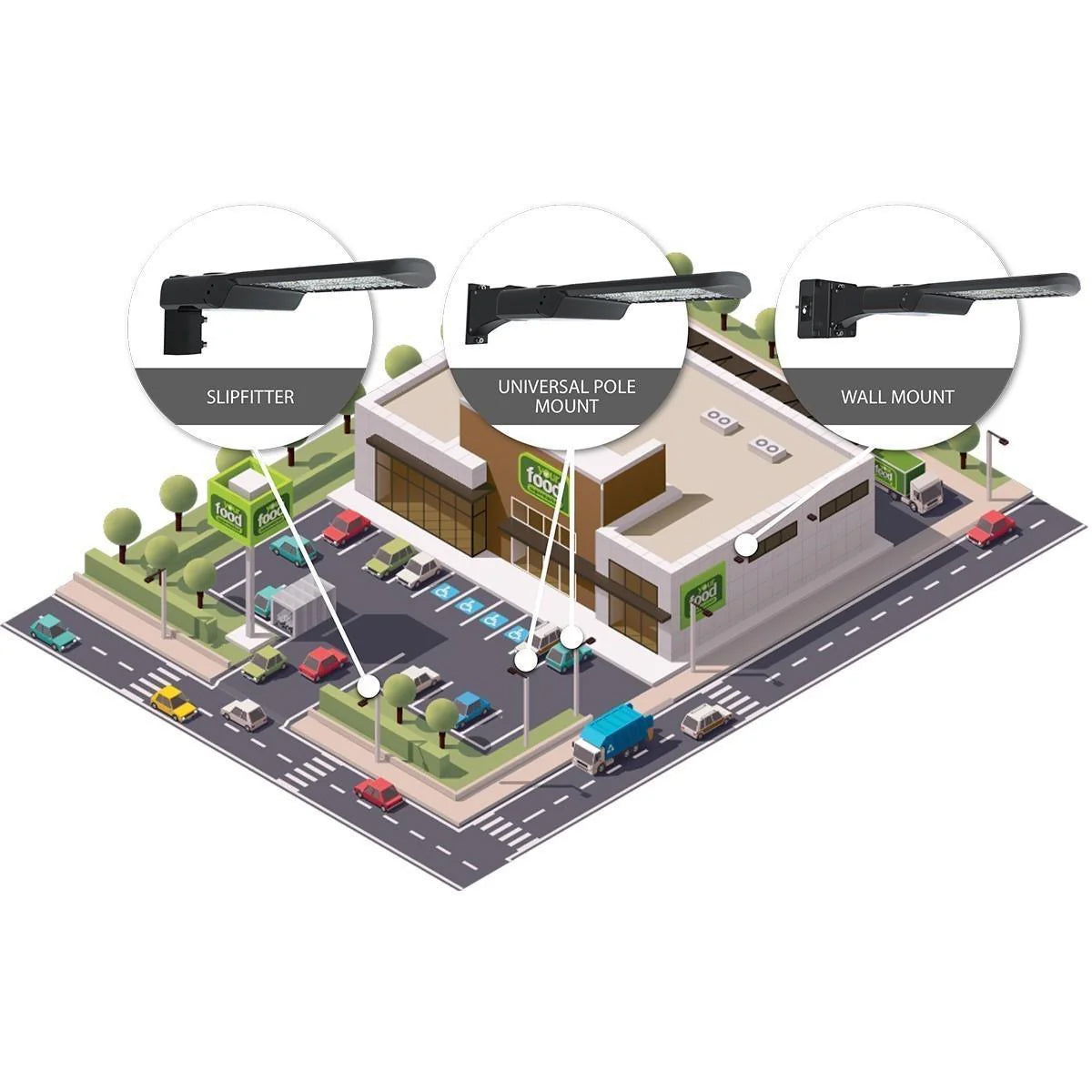

Typical Applications
- Large-scale commercial parking lots
- Municipal roadways and highway perimeters
- Regional distribution center exteriors
- Industrial shipping and logistics yards
- Automotive dealership display lots
- Retail shopping center perimeters
Performance & Light Output

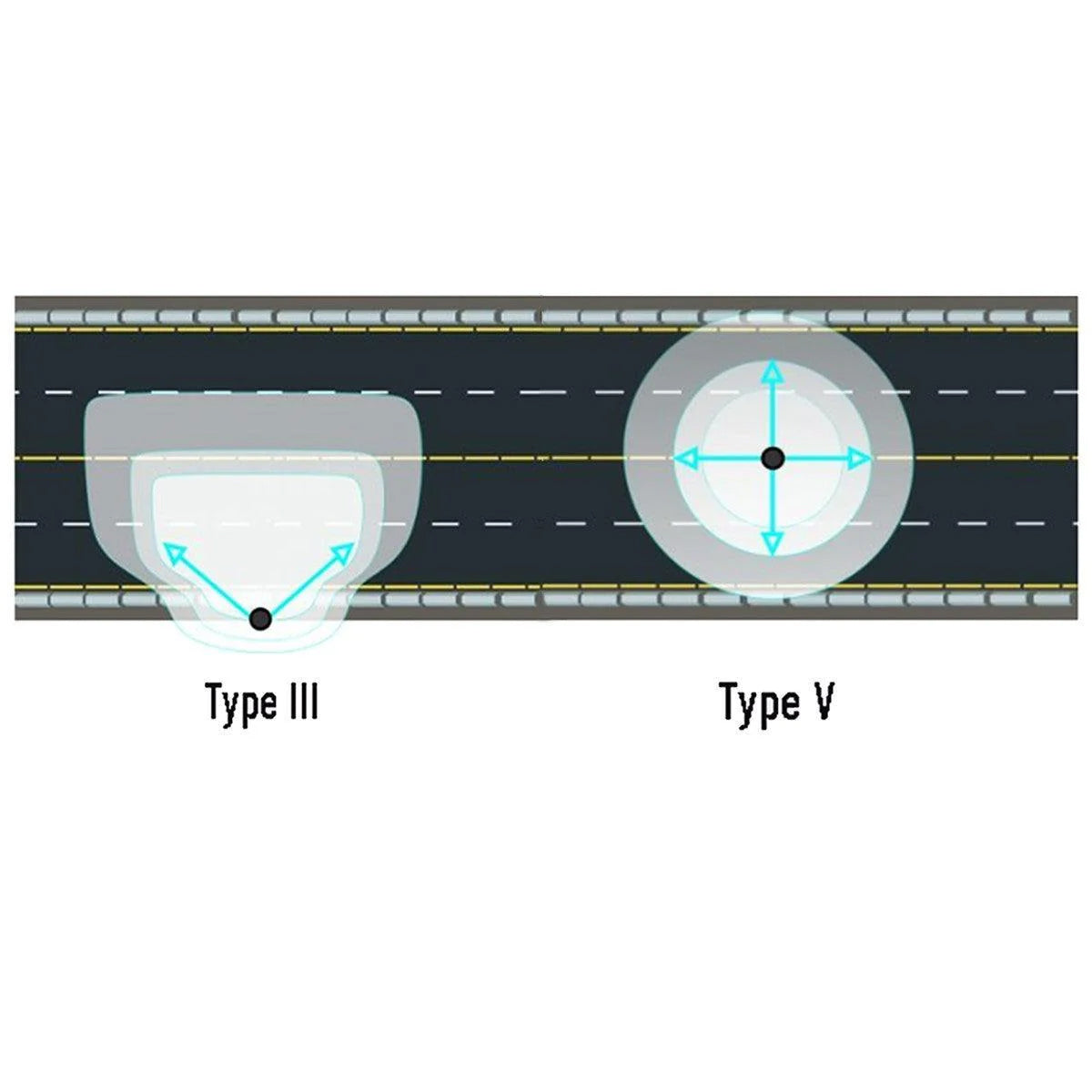

The fixture produces 51,933 to 76,317 lumens with an efficacy reaching up to 175.9 lm/W. It maintains 82-84 CRI and a 100,000-hour L70 lifespan. Utilizing a Type III optical distribution, this fixture efficiently projects illumination from the perimeter of a site into large parking or roadway areas.
Electrical & Controls
The integrated constant current driver operates on a universal 120-277V, 50/60Hz input and includes 0–10V dimming wiring for integration with standard lighting control systems. To ensure long-term electrical reliability in challenging outdoor environments, the unit is equipped with 6kV surge protection.
Construction & Durability

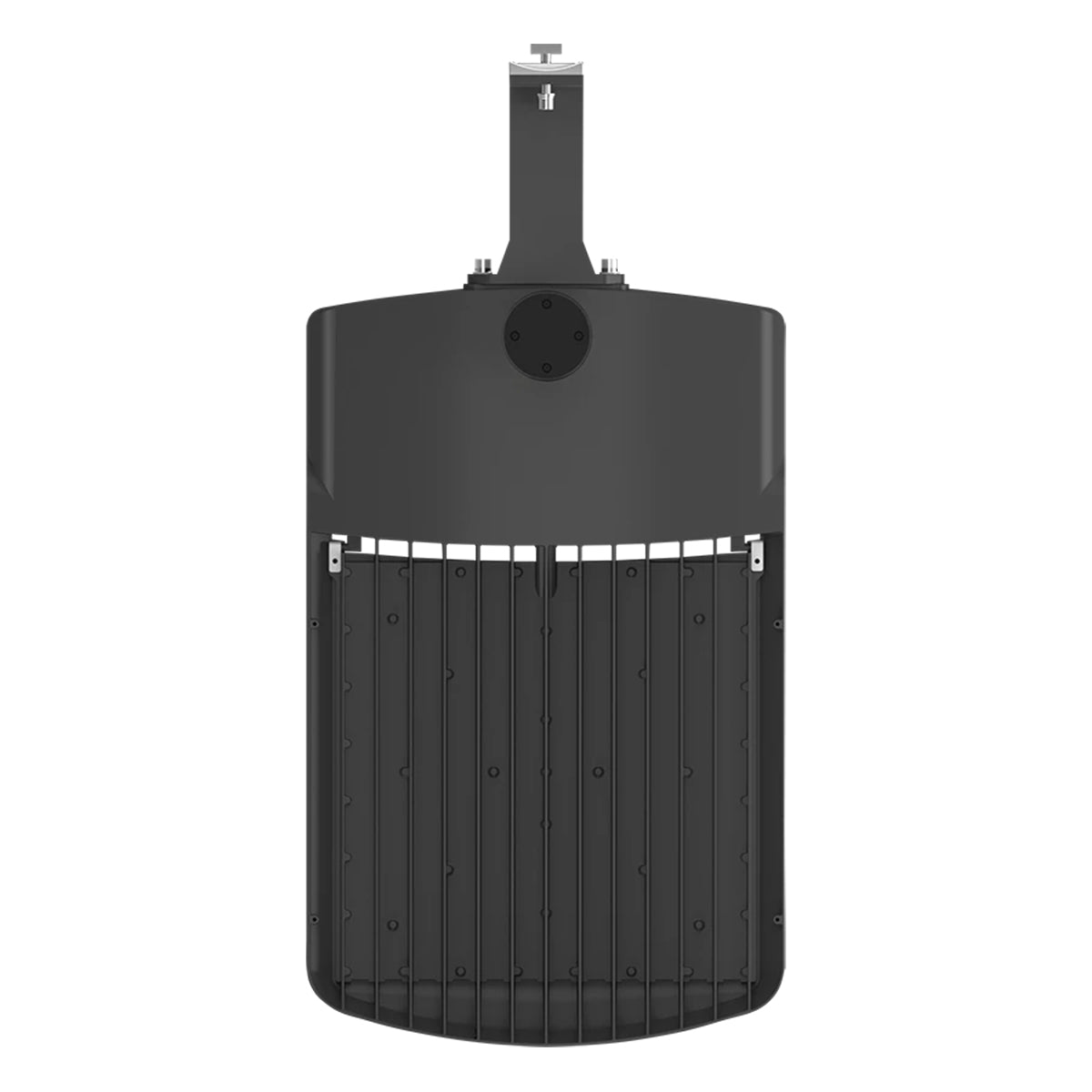

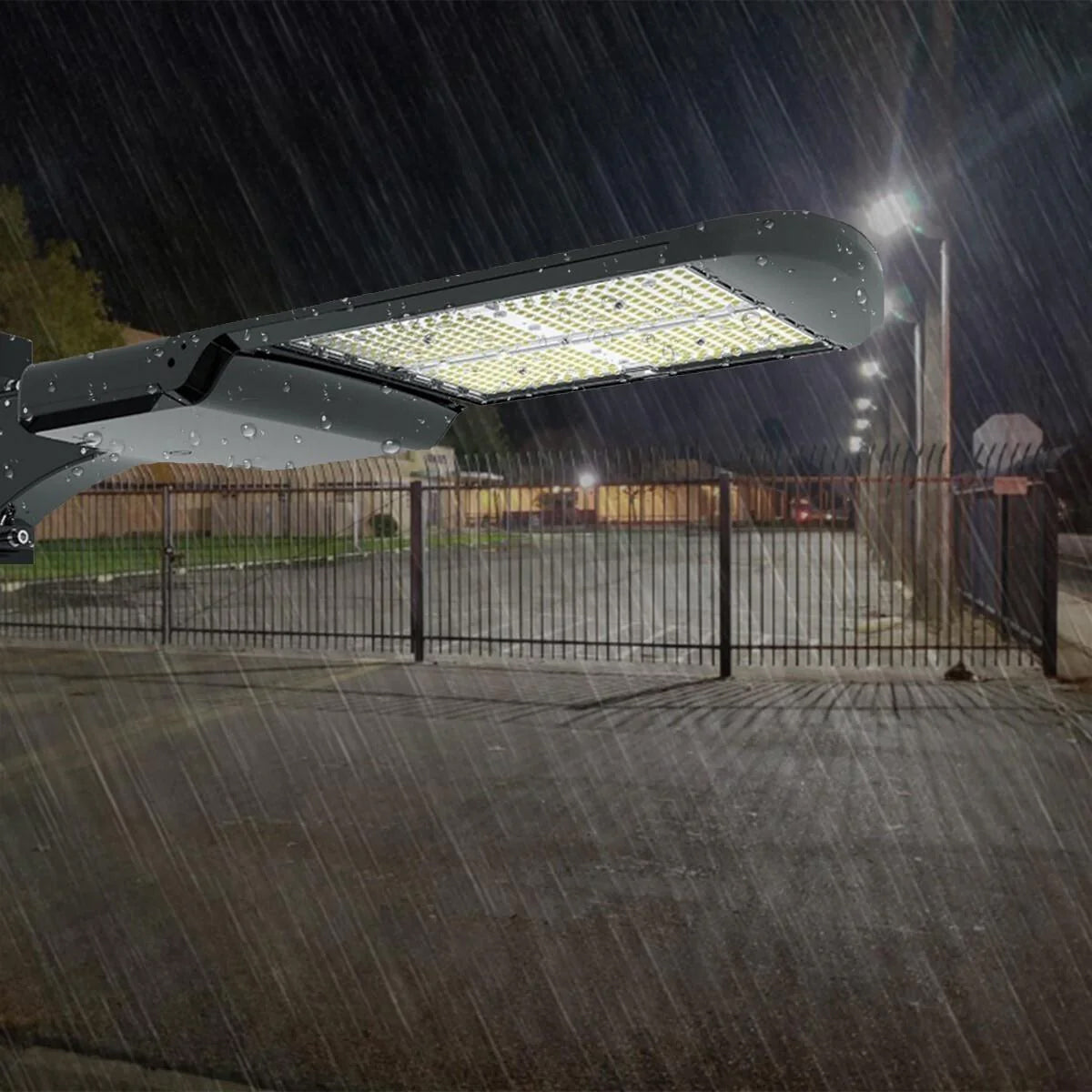

Constructed from rugged die-cast aluminum with a high-durability powder coat finish, the housing is engineered to withstand extreme weather conditions. It features a clear polycarbonate lens and is fully sealed to achieve an IP65 ingress protection rating. The fixture carries a 3G vibration rating for secure pole-mounted operation and is cold-weather rated for ambient temperatures ranging from -40°C (-40°F) to 40°C (104°F).
Installation & Mounting

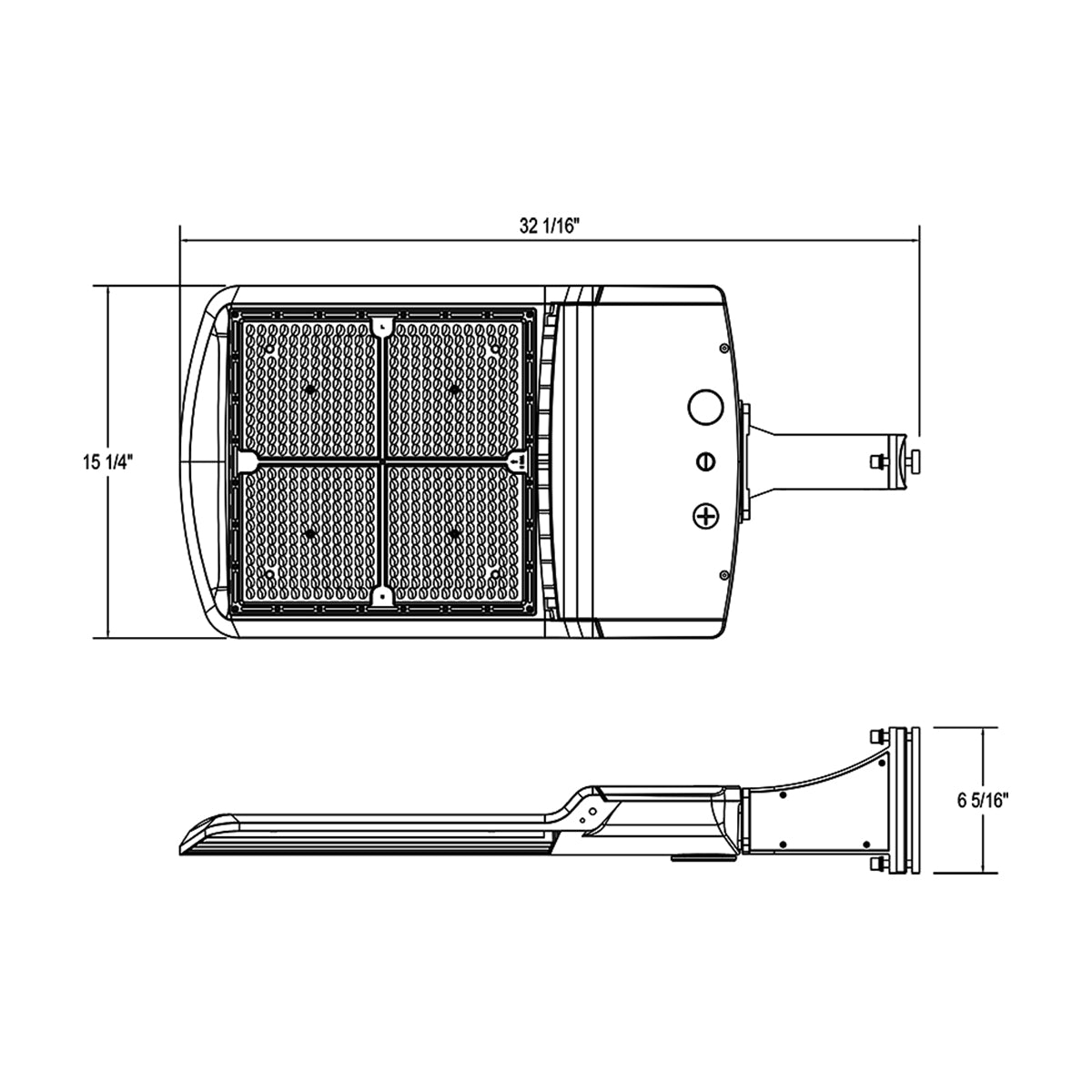

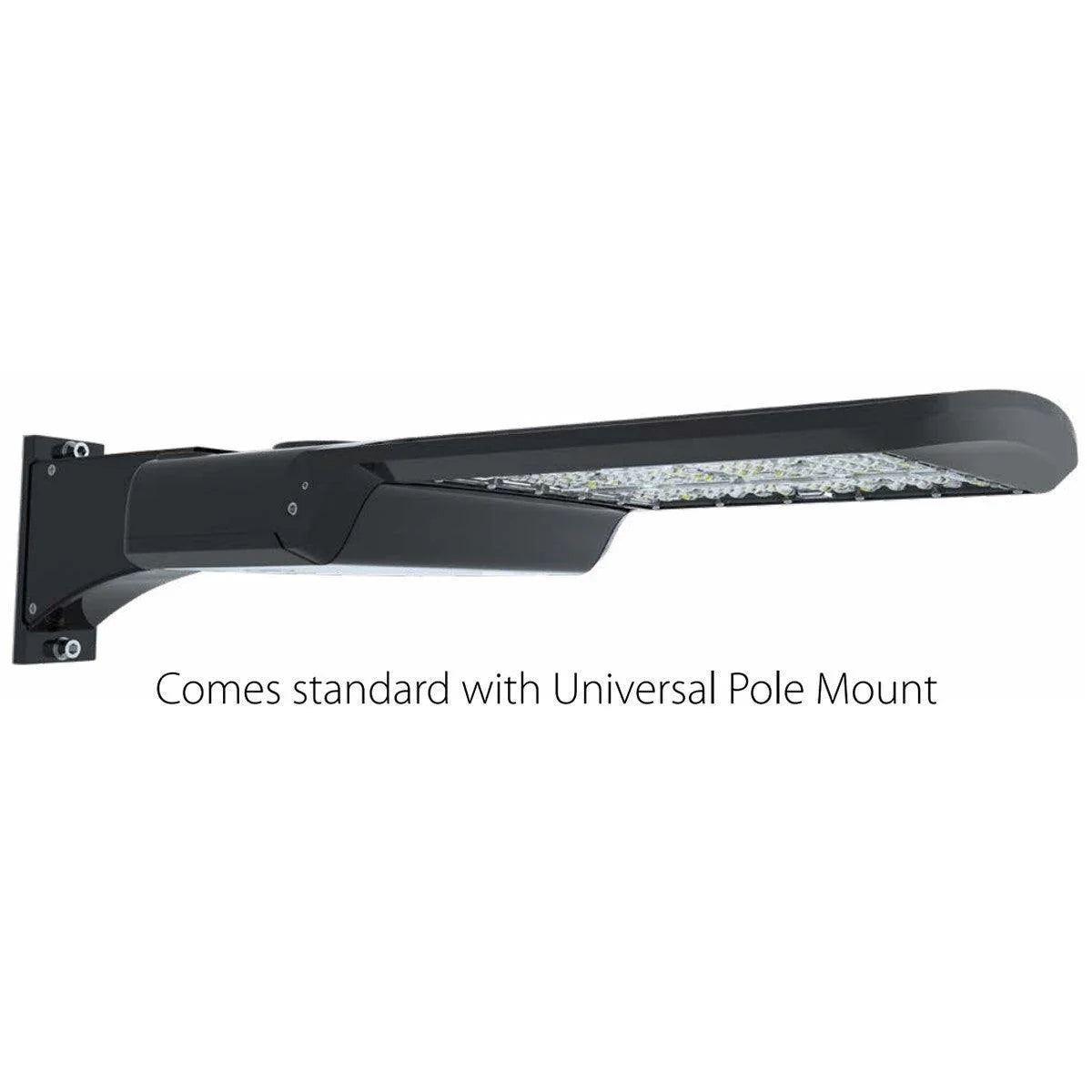

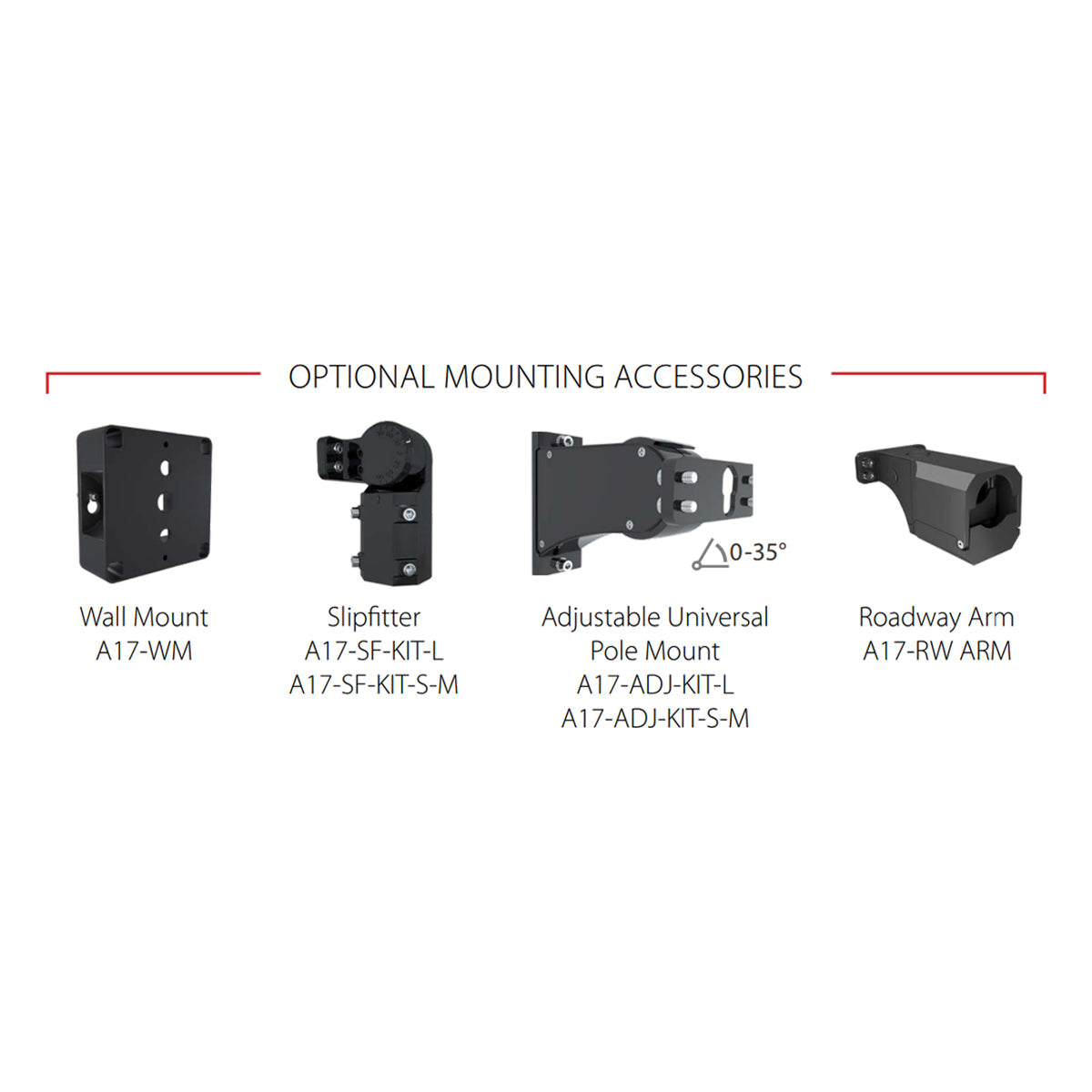

This area light comes standard with a universal pole mounting arm that accommodates existing drill hole patterns ranging from 1 inch to 5 1/2 inches center-to-center. For added versatility, a round pole adapter plate is included to ensure seamless mounting on round poles with a diameter greater than 4 inches. The 24.2 lb fixture utilizes an easy slide-and-lock mechanism, allowing for a streamlined installation process.
What’s Included
- LED Area Light Fixture
- Universal Pole Mounting Arm
- Round Pole Adapter Plate
