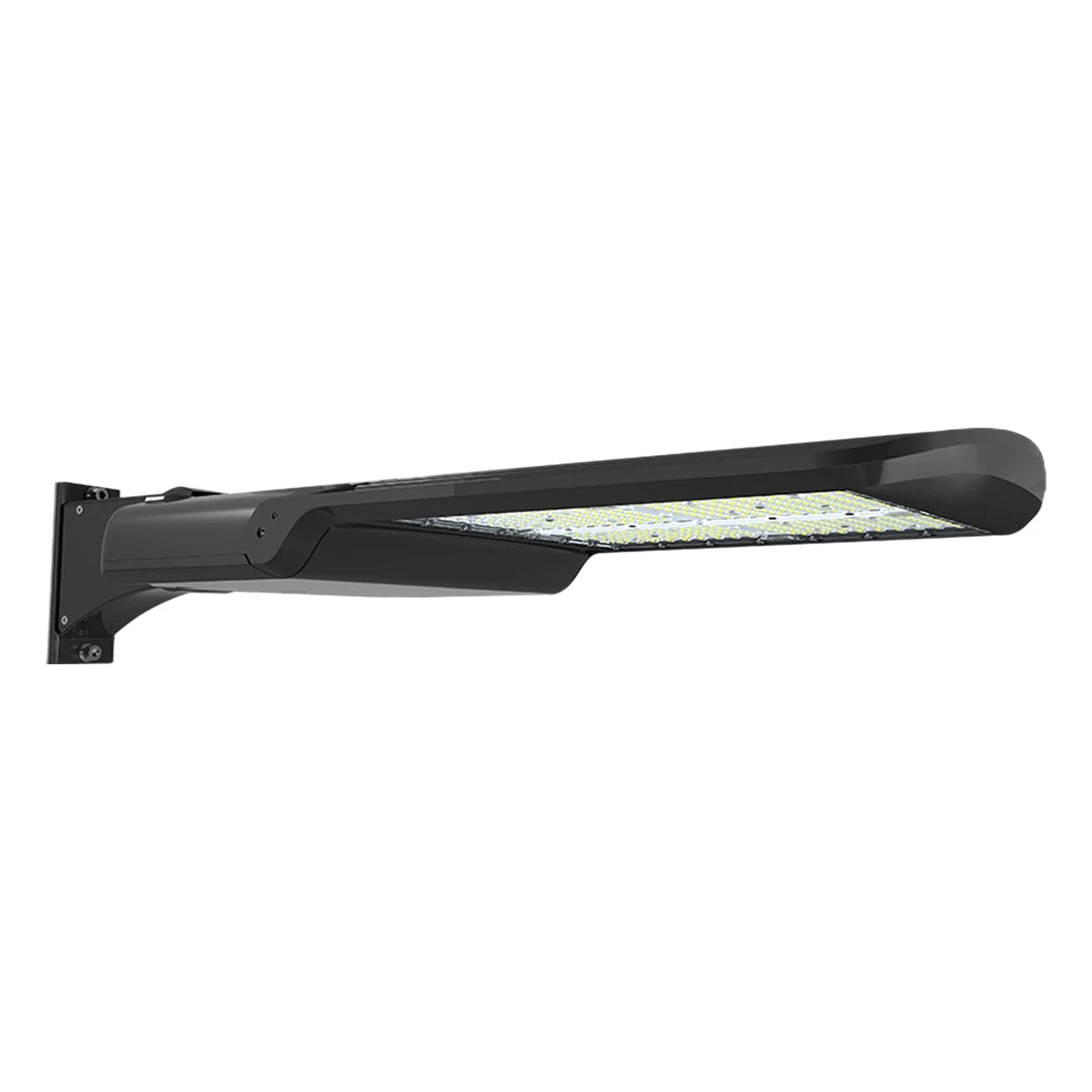

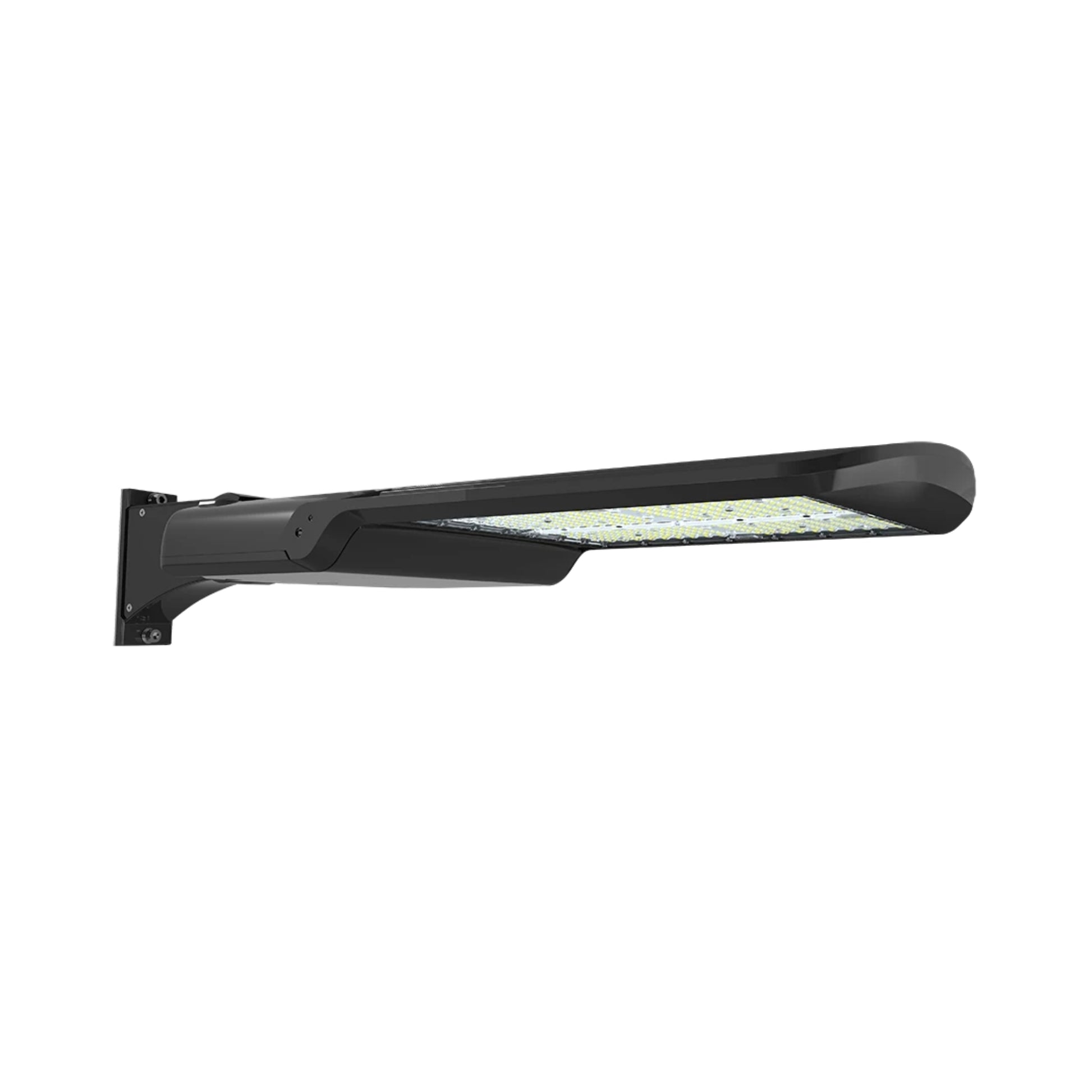

RAB A17-3T375 LED Area Light — 240W/300W/375W, 120-277V

The RAB A17-3T375 is an ultra-economy field-adjustable LED area light delivering up to 59,359 lumens with selectable wattage and selectable CCT. Operating on 120-277V, the fixture is rated IP65 and DLC Premium for high-efficiency outdoor commercial use. This heavy-duty fixture is designed for large parking lots and roadway perimeters, providing a forward-throwing Type III distribution to optimize illumination across expansive outdoor sites.

Key Features

• Field-Adjustable Wattage: Selectable settings of 240W, 300W, and 375W
• Selectable CCT: Choice of 3000K, 4000K, or 5000K color temperatures
• Lumen Output: Maximum delivery of 59,359 lumens
• Optical Distribution: Type III IES classification for wide area coverage
• Universal Voltage: 120–277V commercial-grade constant current driver
• Dimming: 0-10V dimmable down to 10%

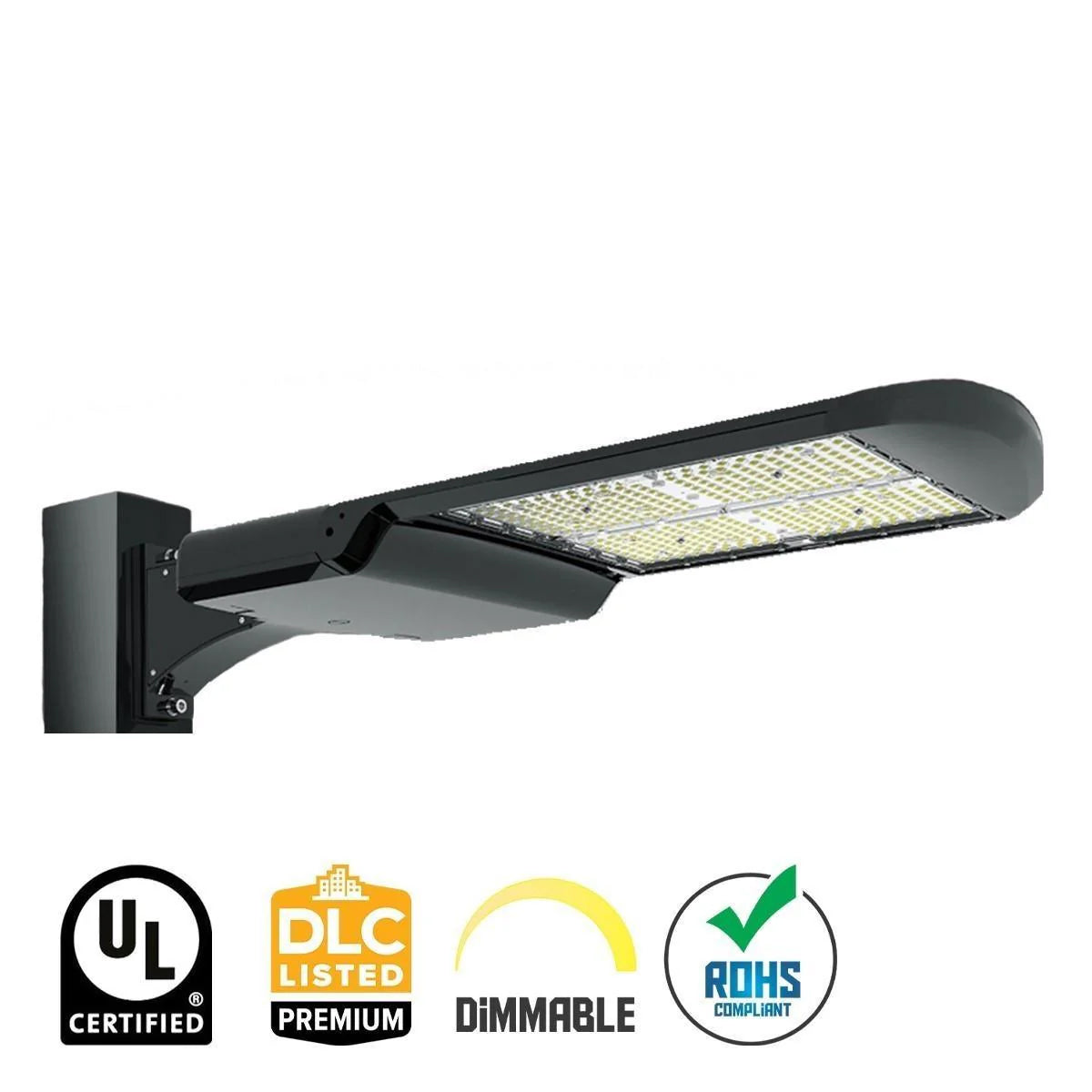

• High Efficiency: Efficacy up to 168.7 lm/W, qualifying for DLC Premium rebates
• Vibration Rating: 3G vibration rating for stability in high-wind and high-traffic applications
• Surge Protection: Integrated 6kV protection against electrical transients
• Universal Mounting: Included arm fits 1" to 5 1/2" hole patterns on standard poles

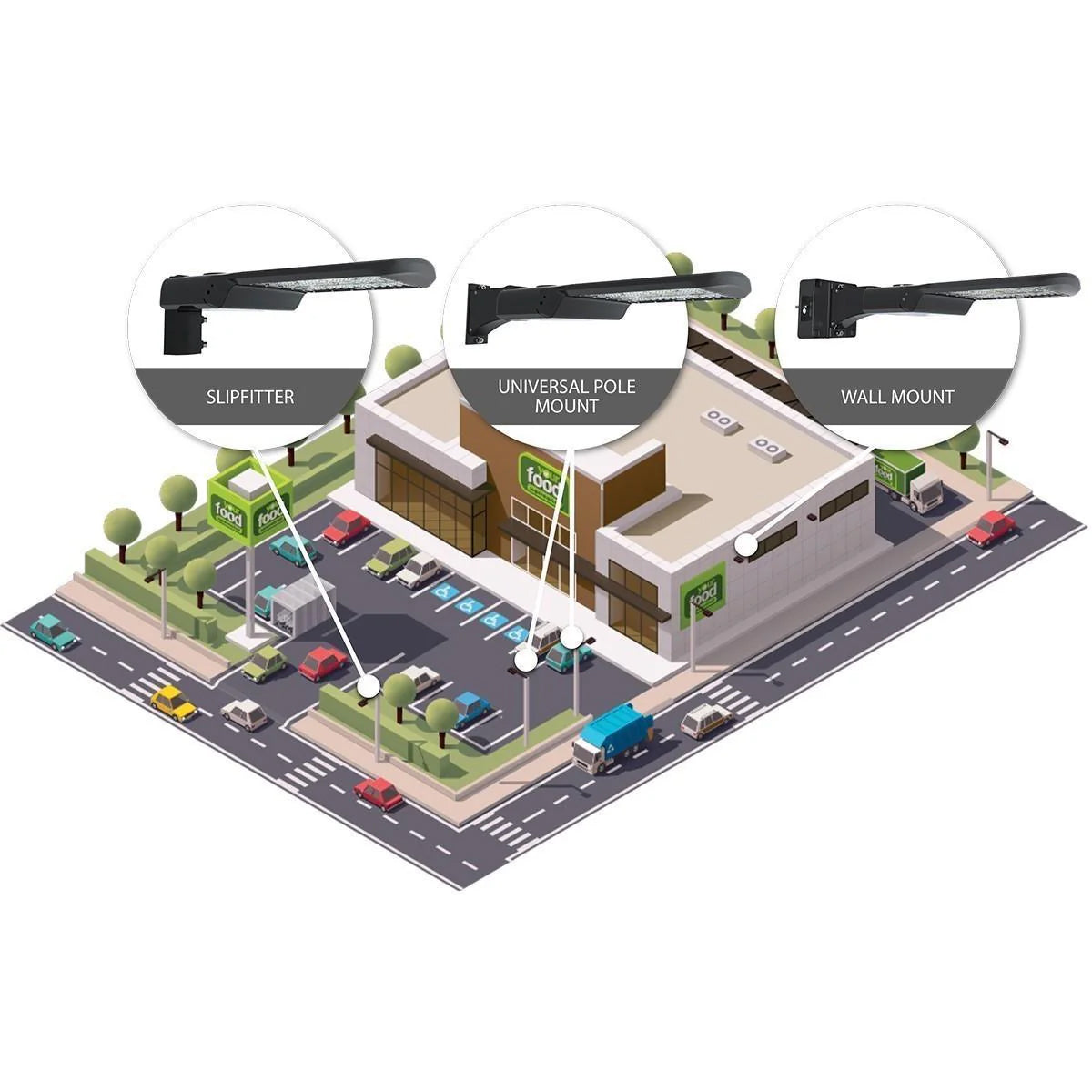

Typical Applications

• Large-scale commercial parking lots
• Municipal roadways and highway perimeters
• Regional distribution center exteriors
• Industrial shipping and logistics yards
• Automotive dealership display lots
• Retail shopping center perimeters

Performance & Light Output

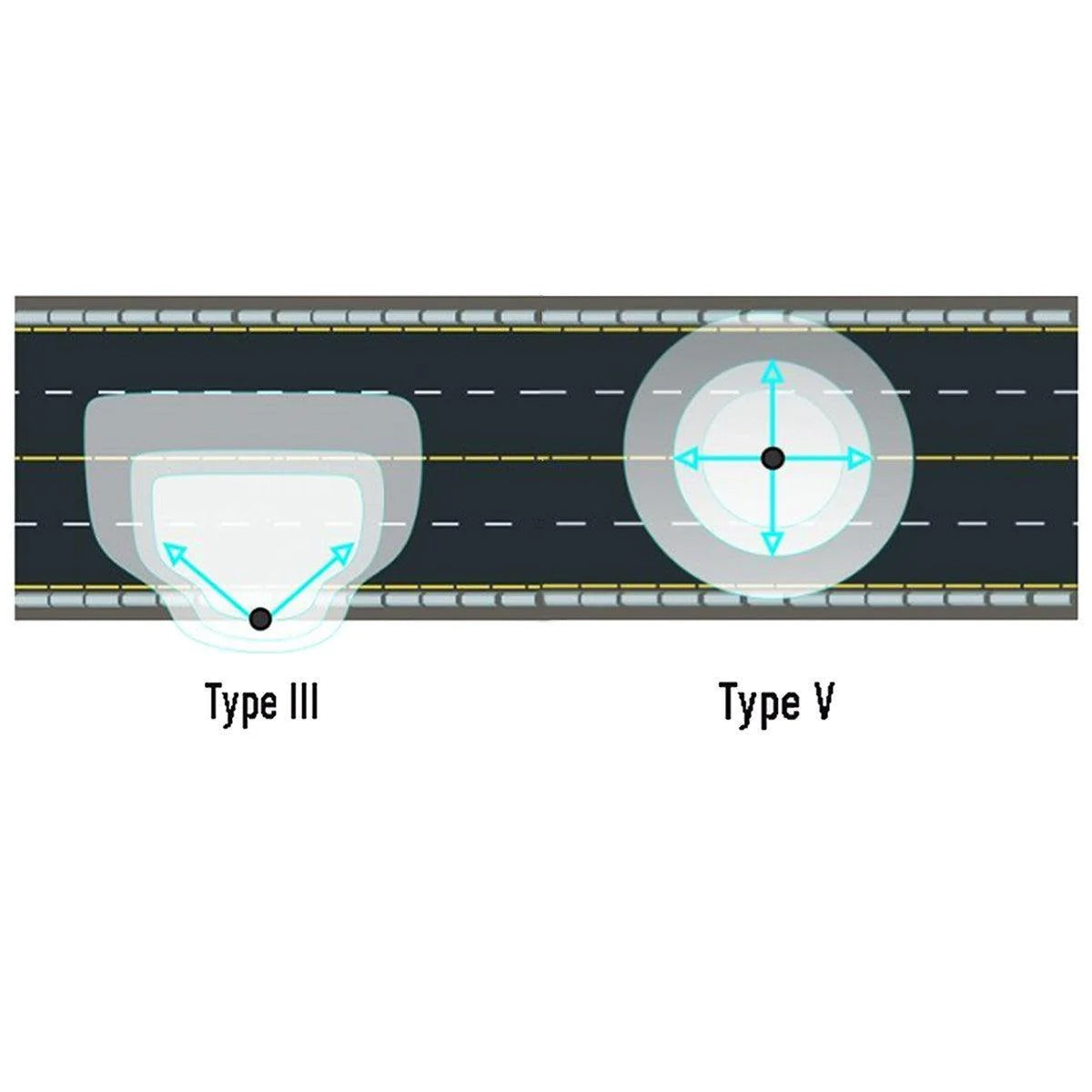

The fixture provides an expansive light output range from 37,312 to 59,359 lumens with an ultra-efficient efficacy reaching up to 168.7 lm/W. It maintains a color accuracy of 82-84 CRI for clear visibility and boasts a long L70 lifespan of 100,000 hours to minimize maintenance in difficult-to-reach pole locations. Utilizing a Type III optical distribution, this fixture pushes light outward and forward, efficiently projecting illumination from the perimeter of a site into large parking or roadway areas.

Electrical & Controls

The integrated constant current driver operates on a universal 120-277V, 50/60Hz input and includes 0–10V dimming wiring for integration with standard lighting control systems. To ensure long-term electrical reliability in challenging outdoor environments, the unit is equipped with 6kV surge protection.

Construction & Durability

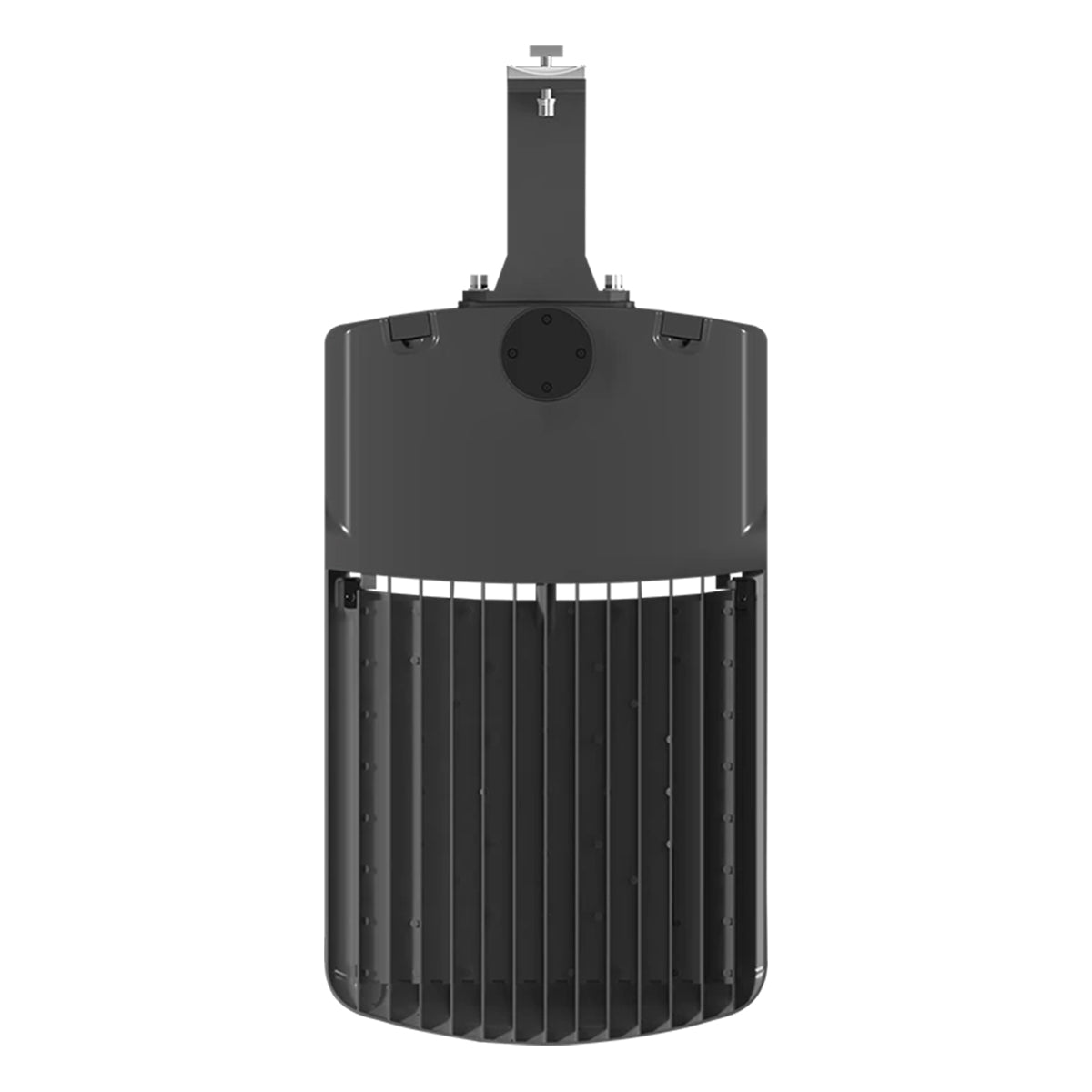

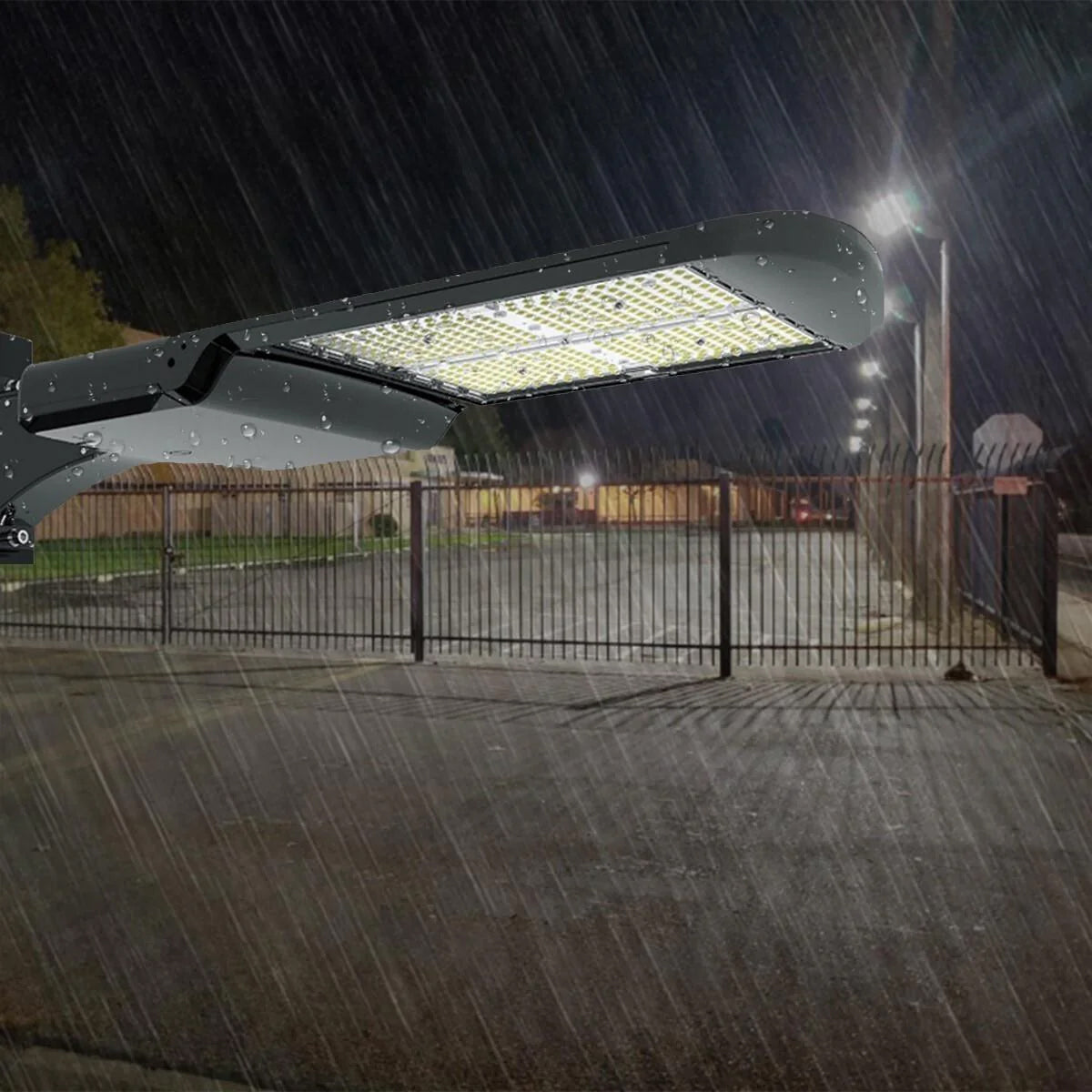

Constructed from rugged die-cast aluminum with a high-durability powder coat finish, the housing is engineered to withstand extreme weather conditions. It features a clear polycarbonate lens and is fully sealed to achieve an IP65 ingress protection rating against dust and water. The fixture carries a 3G vibration rating for secure pole-mounted operation and is cold-weather rated for ambient temperatures ranging from -40°C (-40°F) to 40°C (104°F).

Installation & Mounting

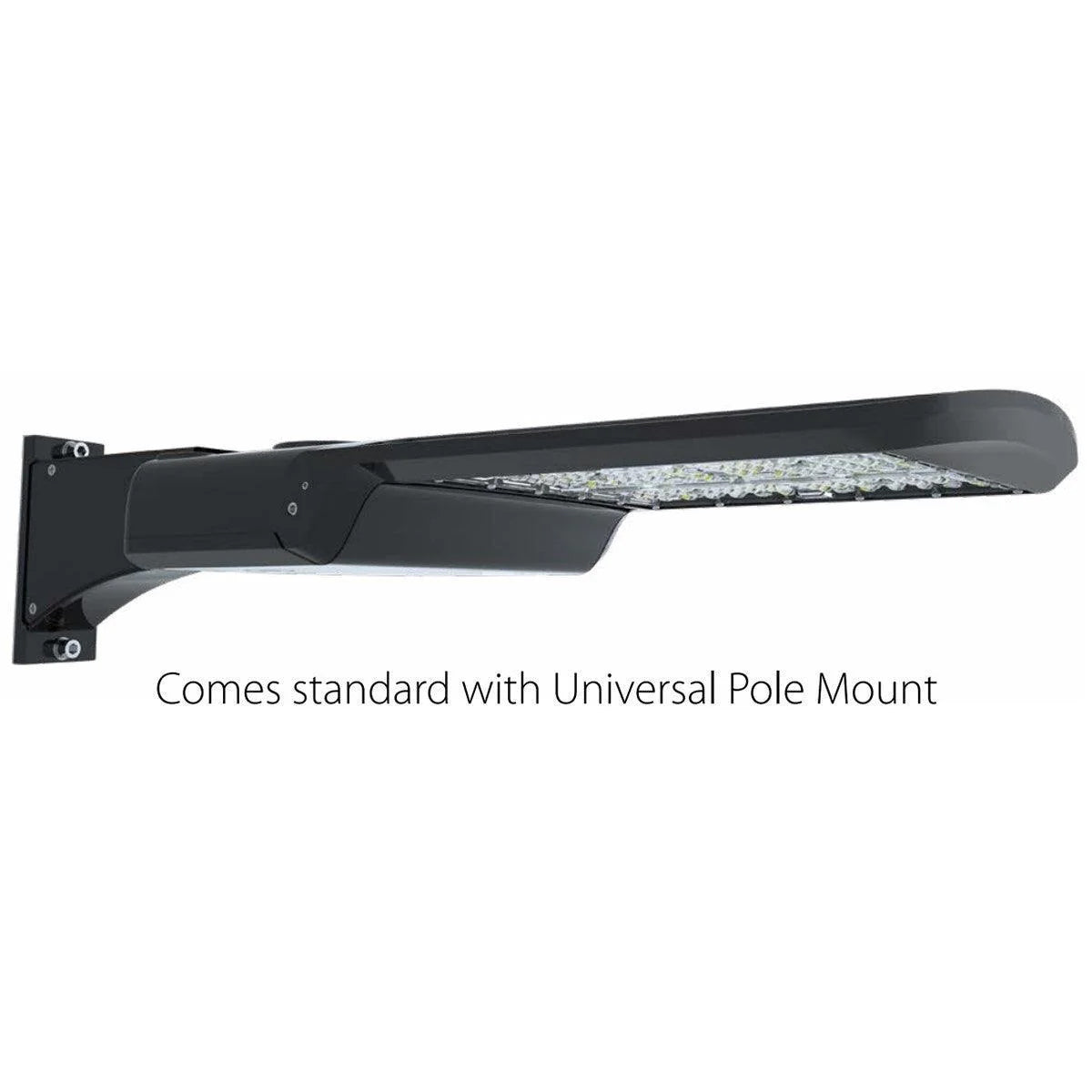

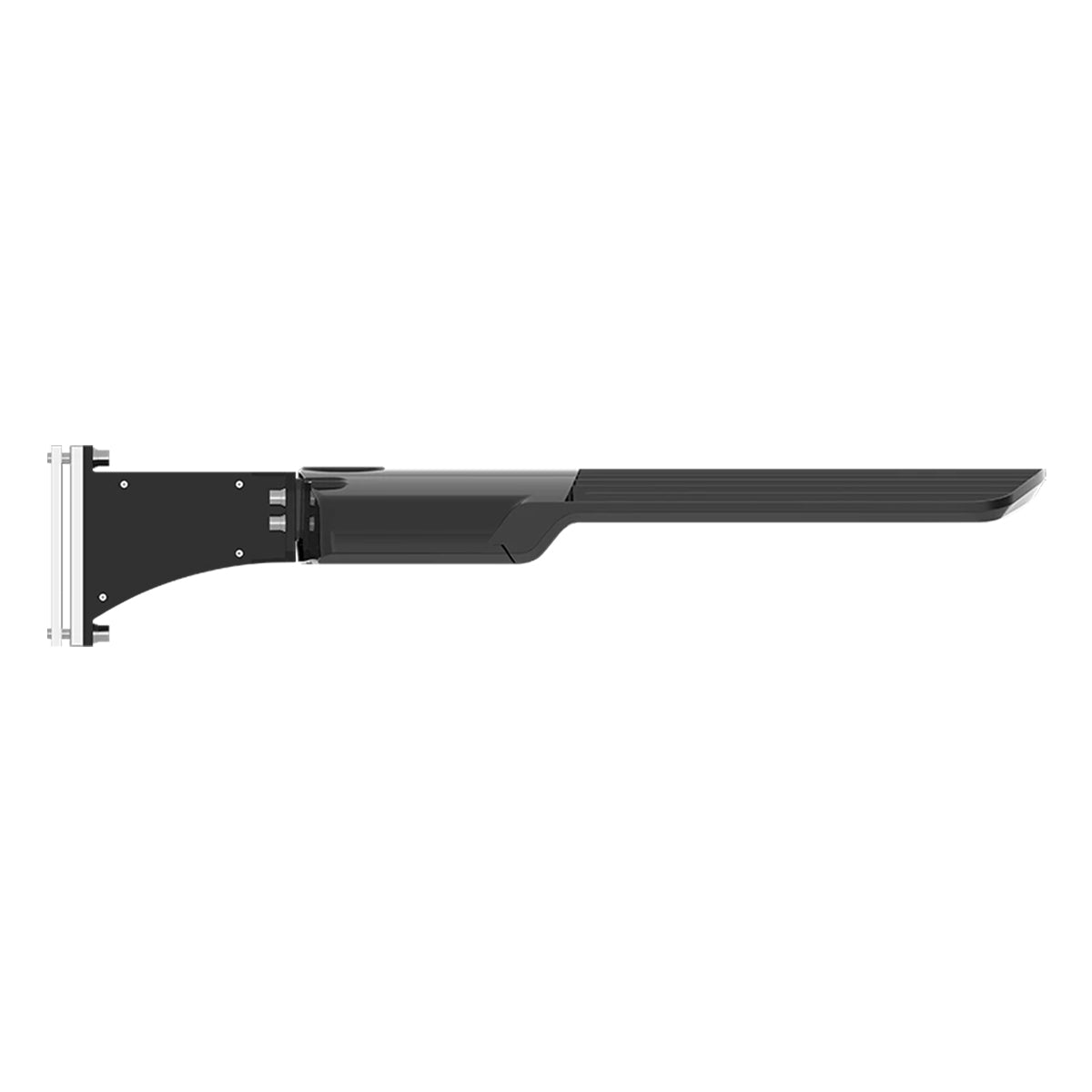

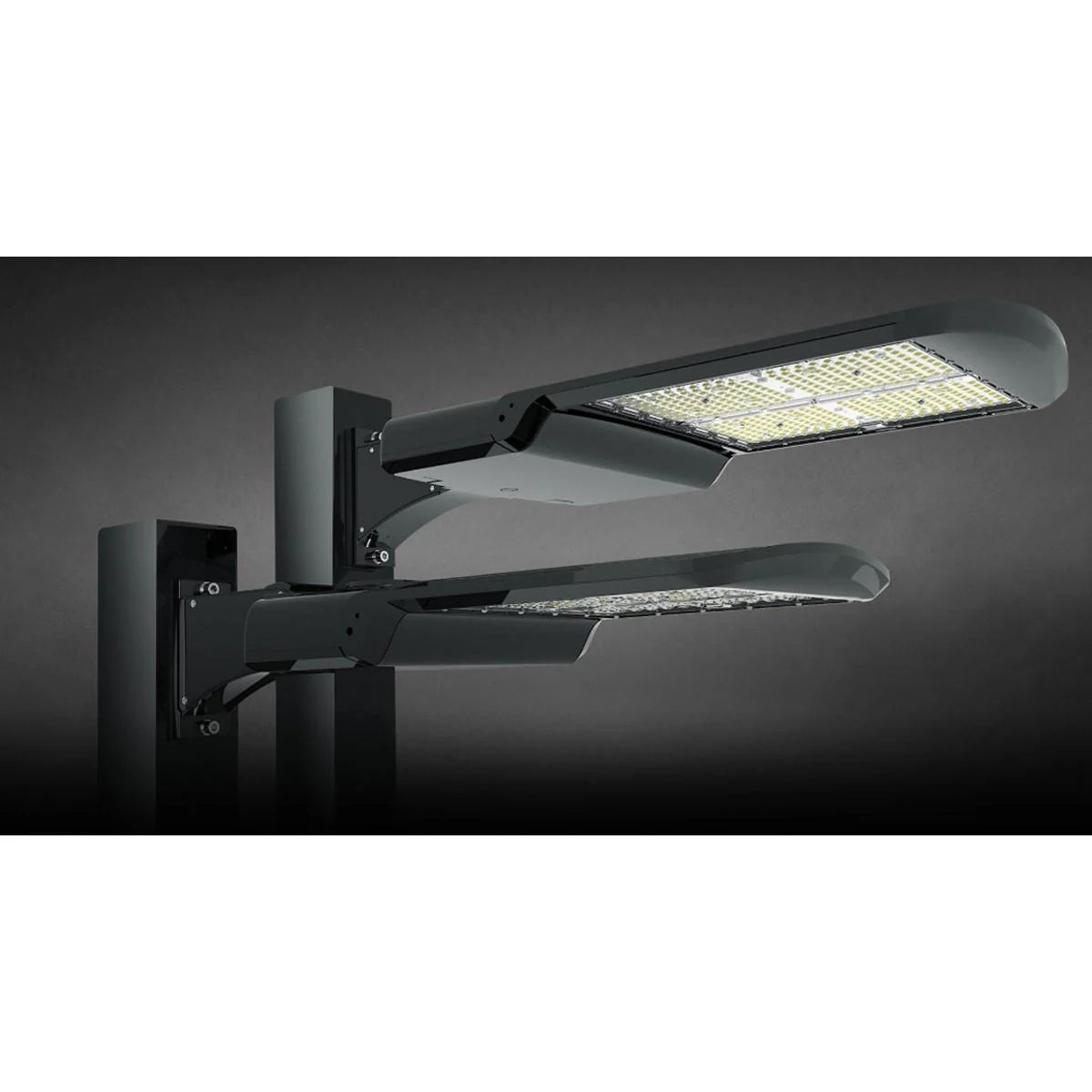

This area light comes standard with a universal pole mounting arm that accommodates existing drill hole patterns ranging from 1 inch to 5 1/2 inches center-to-center. For added versatility, a round pole adapter plate is included in the box to ensure seamless mounting on round poles with a diameter greater than 4 inches. The mounting arm utilizes an easy slide-and-lock mechanism, allowing for a safer and more streamlined installation process by a single technician. The unit weighs 24.2 lbs.

What’s Included

• LED Area Light Fixture
• Universal Pole Mounting Arm
• Round Pole Adapter Plate
