RAB A17-3T200 LED Area Light 31,971 Lumens 160W/180W/200W 3000K/4000K/5000K 120-277V Type III Bronze
Available in stock (193)
About this item
About this item
- Selectable Output: Field-adjustable 160W / 180W / 200W and 3000K / 4000K / 5000K settings
- Type III Distribution: Optimized forward-throw optics for parking lot and roadway perimeters
- Maximum Efficiency: DLC Premium listed with performance up to 168.4 lumens per watt
- Environmental Durability: IP65 rated against dust and water with 3G vibration resistance
- Universal Mounting: Includes mounting arm compatible with most existing hole patterns and round poles
We process payments securely and do not store credit card information.
Description
Description

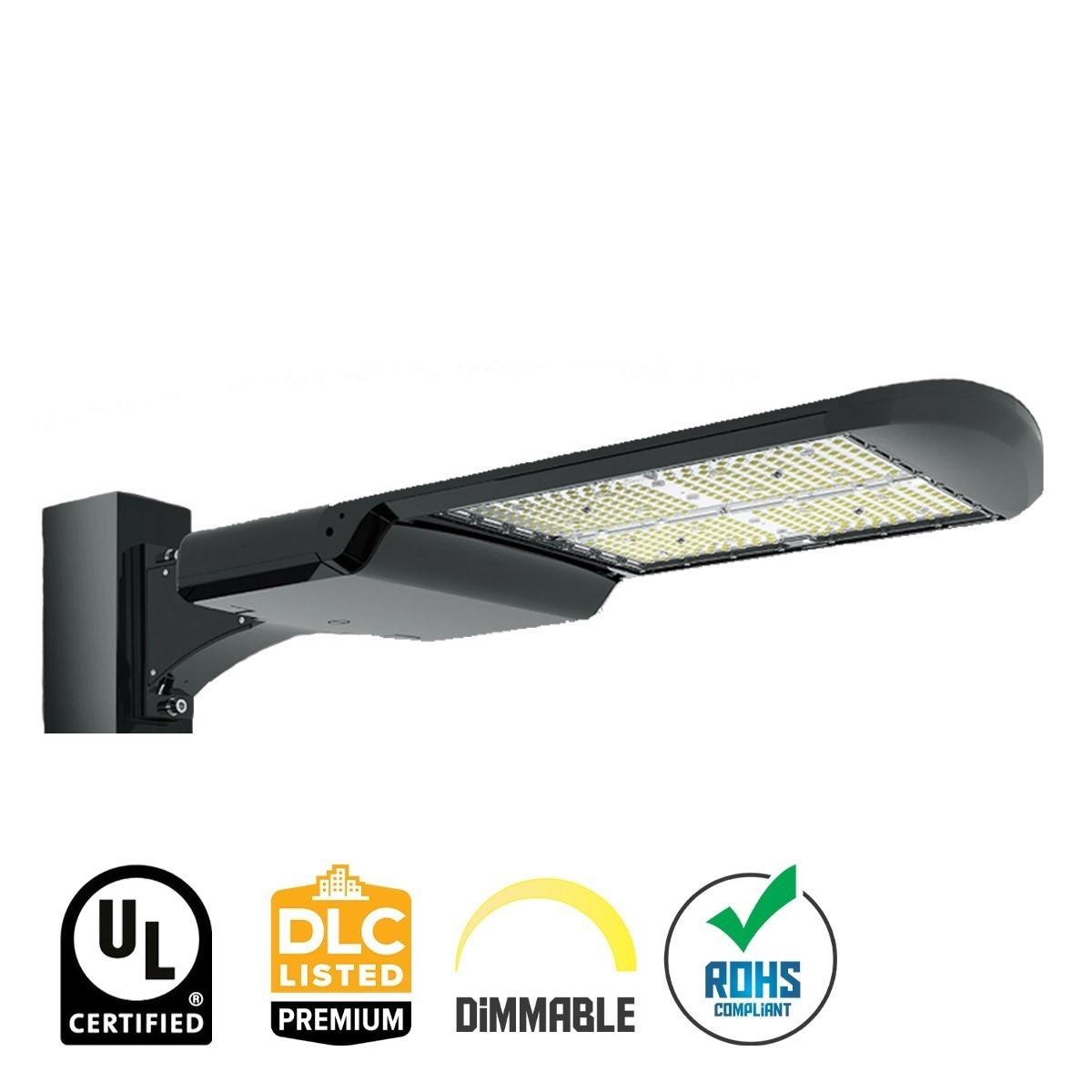

RAB A17 Series LED Area Light — 160W/180W/200W, 120-277V
The RAB A17-3T200 is an ultra-economy field-adjustable LED area light delivering up to 31,971 lumens with selectable wattage and selectable CCT. Operating on 120-277V, the fixture is rated DLC Premium for high-efficiency outdoor commercial use. This heavy-duty fixture is designed for large parking lots and roadway perimeters, providing a forward-throwing Type III distribution to optimize illumination across expansive outdoor sites.
Key Features
- Field-Adjustable Wattage: Selectable settings of 160W, 180W, and 200W
- Selectable CCT: Choice of 3000K, 4000K, or 5000K color temperatures
- Lumen Output: Maximum delivery of 31,971 lumens
- Optical Distribution: Type III IES classification for wide area coverage
- Universal Voltage: 120–277V commercial-grade constant current driver
- Dimming: 0-10V dimmable down to 10%
- High Efficiency: Efficacy up to 168.4 lm/W, qualifying for DLC Premium rebates
- Vibration Rating: 3G vibration rating for stability in high-wind and high-traffic applications
- Surge Protection: Integrated 6kV protection against electrical transients
- Universal Mounting: Included arm fits 1" to 5 1/2" hole patterns on standard poles
Typical Applications
- Large-scale commercial parking lots
- Municipal roadways and highway perimeters
- Regional distribution center exteriors
- Industrial shipping and logistics yards
- Automotive dealership display lots
- Retail shopping center perimeters
Performance & Light Output

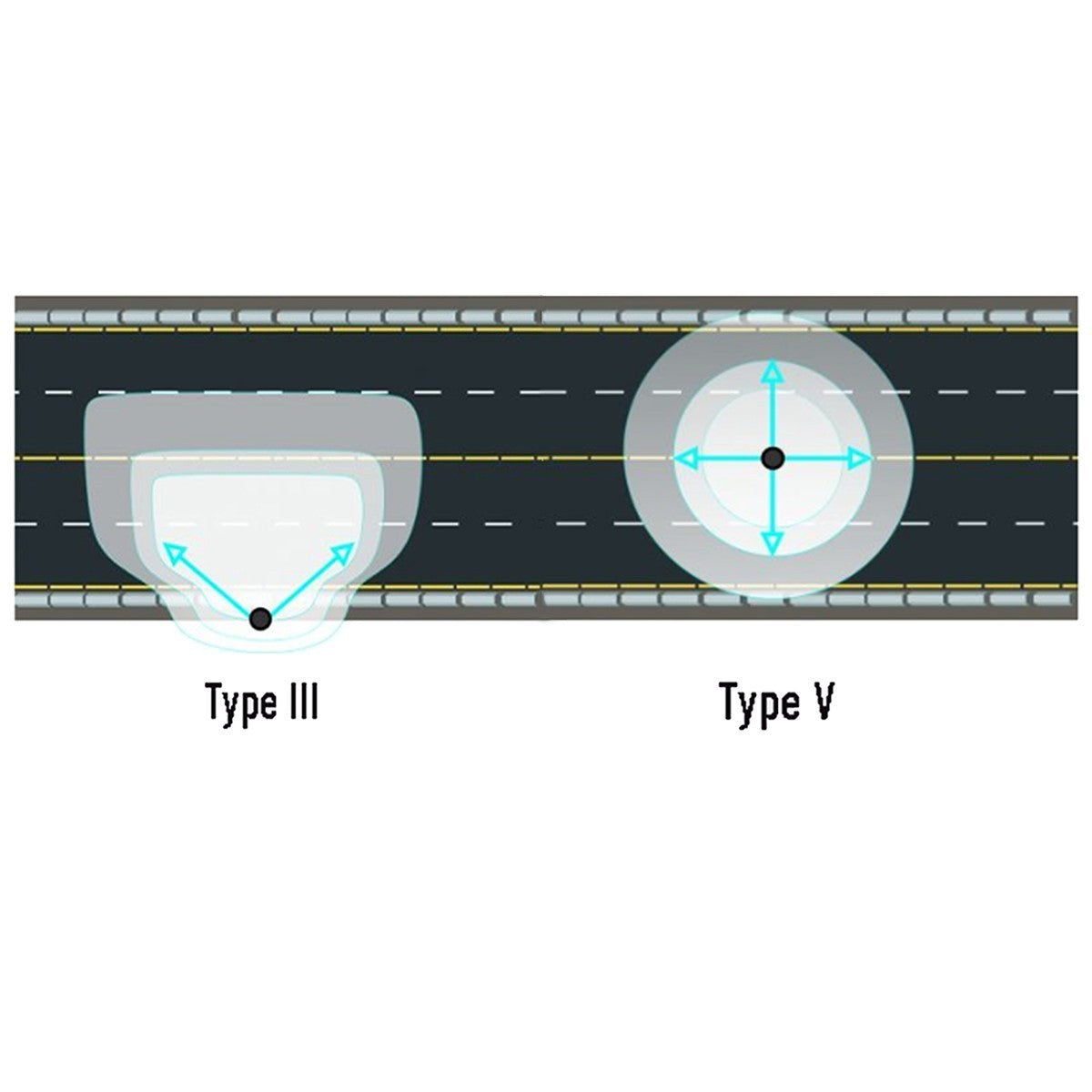

The fixture provides an expansive light output range from 25,114 to 31,971 lumens with an ultra-efficient efficacy reaching up to 168.4 lm/W. It maintains a color accuracy of 81-83 CRI for clear visibility and boasts a long L70 lifespan of 100,000 hours to minimize maintenance in difficult-to-reach pole locations. Utilizing a Type III optical distribution, this fixture pushes light outward and forward, efficiently projecting illumination from the perimeter of a site into large parking or roadway areas.
Electrical & Controls
The integrated constant current driver operates on a universal 120-277V, 50/60Hz input and includes 0–10V dimming wiring for integration with standard lighting control systems. To ensure long-term electrical reliability in challenging outdoor environments, the unit is equipped with 6kV surge protection. It maintains an excellent power factor of 99.9% at 120V and 95.8% at 277V, alongside low total harmonic distortion (THD) of 2.81% at 120V.
Construction & Durability
Constructed from rugged die-cast aluminum with a high-durability powder coat finish, the housing is engineered to withstand extreme weather conditions. It features a clear polycarbonate lens and is fully sealed with silicone gaskets to achieve an IP65 ingress protection rating against dust and water. The fixture carries a 3G vibration rating for secure pole-mounted operation and is cold-weather rated for ambient temperatures ranging from -40°C (-40°F) to 40°C (104°F).
Installation & Mounting

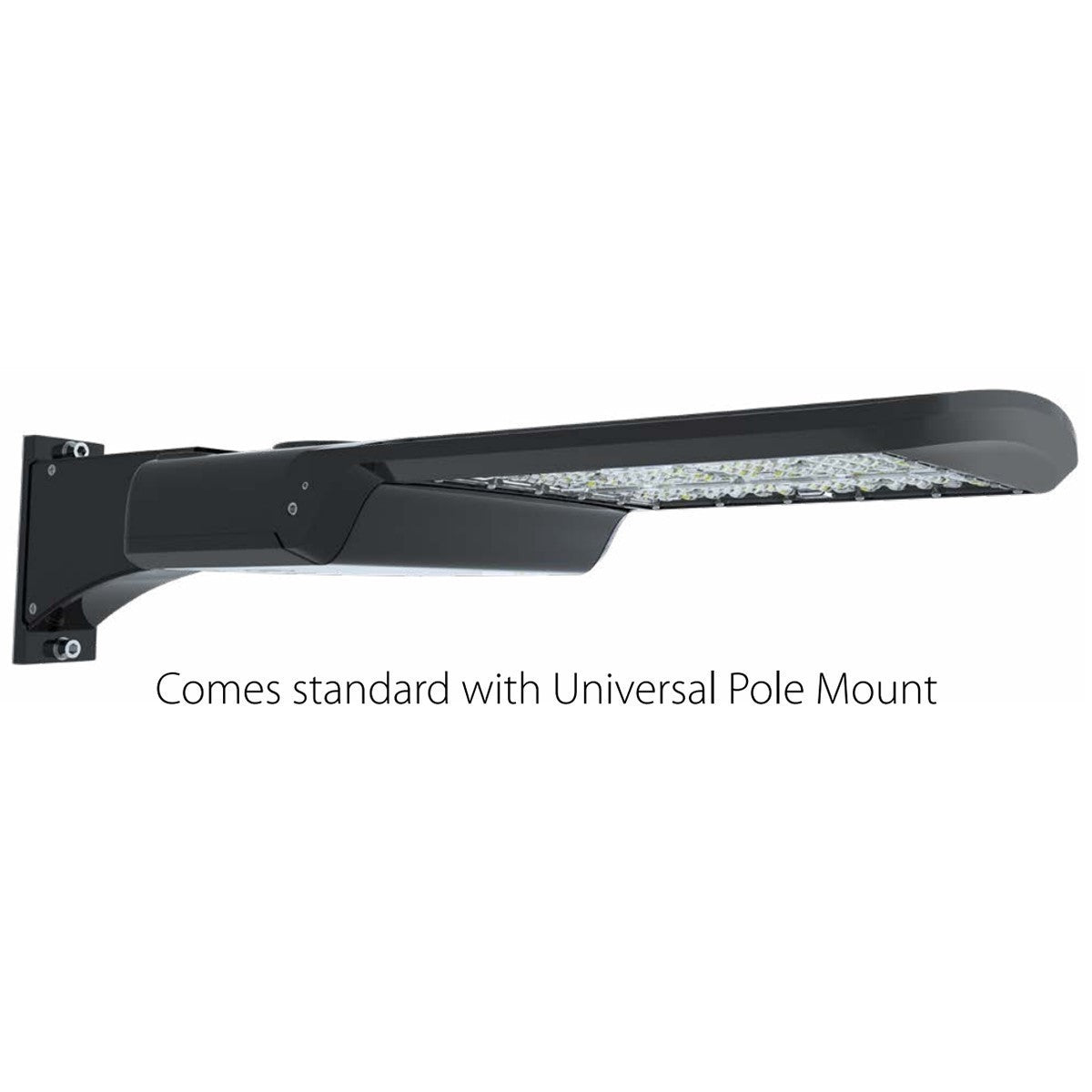

This area light comes standard with a universal pole mounting arm that accommodates existing drill hole patterns ranging from 1 inch to 5 1/2 inches center-to-center. For added versatility, a round pole adapter plate is included in the box to ensure seamless mounting on round poles with a diameter greater than 4 inches. The mounting arm utilizes an easy slide-and-lock mechanism, allowing for a safer and more streamlined installation process by a single technician.
What’s Included
- LED Area Light Fixture
- Universal Pole Mounting Arm
- Round Pole Adapter Plate
- Installation Hardware
Specifications
Specifications

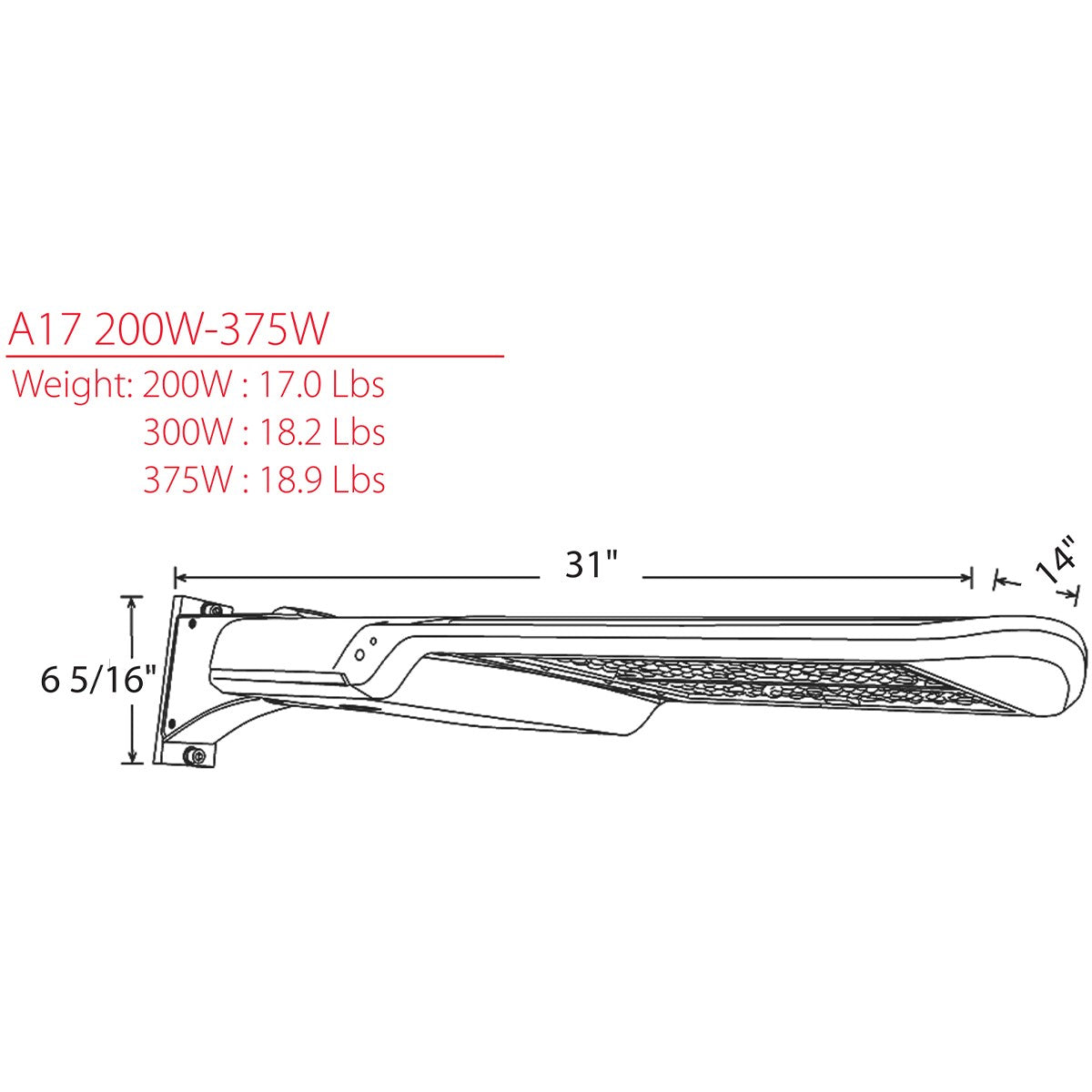

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can I adjust the wattage and color temperature of this area light?
Can I adjust the wattage and color temperature of this area light?
What type of lighting distribution does this fixture have?
What type of lighting distribution does this fixture have?
Will the included mount fit a round pole?
Will the included mount fit a round pole?
Does this fixture come with a photocell for dusk-to-dawn operation?
Does this fixture come with a photocell for dusk-to-dawn operation?
What is the voltage compatibility of this model?
What is the voltage compatibility of this model?
