RAB Lighting LF17 Field Adjustable LED Landscape Flood Light — Selectable Wattage, CCT & Finish

The RAB LF17 is a compact, high-performance field-adjustable LED landscape flood light engineered for residential and commercial outdoor applications. Available across three finish options — Bronze (LF17 / LF17X2), Black (LF17B / LF17X2B), and White (LF17W) — and three feature configurations — Standard single-head (8W), Double Head (16W), and Double Head with SMS Motion Sensor (16W) — the LF17 platform delivers unmatched flexibility for landscape designers, contractors, and facility managers. All models feature field-adjustable wattage, selectable CCT from 2700K to 5000K, a die-cast aluminum housing, IP65 wet location rating, and a 50,000-hour rated lifespan, making them the definitive solution for architectural accent, pathway, and security flood lighting.

RAB LF17 Features

• Field-Adjustable Wattage: Single-head models (LF17/LF17B/LF17W) select from 1W, 2W, 4W, 5W, or 8W; Double Head models (LF17X2/LF17X2B/LF17X2-SMS) select from 3W, 5W, 8W, 10W, or 16W — all via on-fixture switch, no rewiring required.
• Selectable CCT: Choose 2700K, 3000K, 3500K, 4000K, or 5000K in the field to match any landscape or architectural lighting scheme.
• High Efficacy: Up to 149 LPW across all wattage settings for maximum energy efficiency.
• CRI 82–86: Accurate, vibrant color rendering for plants, hardscapes, and architectural facades.
• 0-10V Dimmable: Compatible with 0-10V dimming systems, dimming down to 10% for full scene control.
• SMS Motion Sensor (LF17X2/SMS): Integrated adjustable motion sensor with selectable time and sensitivity settings for security and energy-saving applications.
• IP65 Wet Location Rated: Dust-tight and jet-water resistant for reliable performance in fully exposed outdoor environments.
• Die-Cast Aluminum Housing: Robust construction with PMMA lens withstands temperatures from -40°F to 104°F.
• Knuckle Arm Mount: Rotates in 10-degree increments for precise beam aiming; compatible with a wide range of landscape mounting accessories.
• 2.5kV Surge Protection: Guards internal components against electrical transients in outdoor environments.
• 7-Step MacAdam Ellipse Binning: Ensures consistent fixture-to-fixture color uniformity across multi-fixture installations.
• UL Listed for Wet Locations: Meets UL safety standards for fully exposed outdoor use.
• RoHS Compliant: Mercury-free and UV-free construction.
• 50,000-Hour Rated Life: Based on IES LM-80 results and TM-21 calculations.
• 5-Year Warranty: Backed by RAB Lighting’s 5-year manufacturer warranty.

Configuration Options & Light Output

Select the wattage configuration and finish that best suits your project:

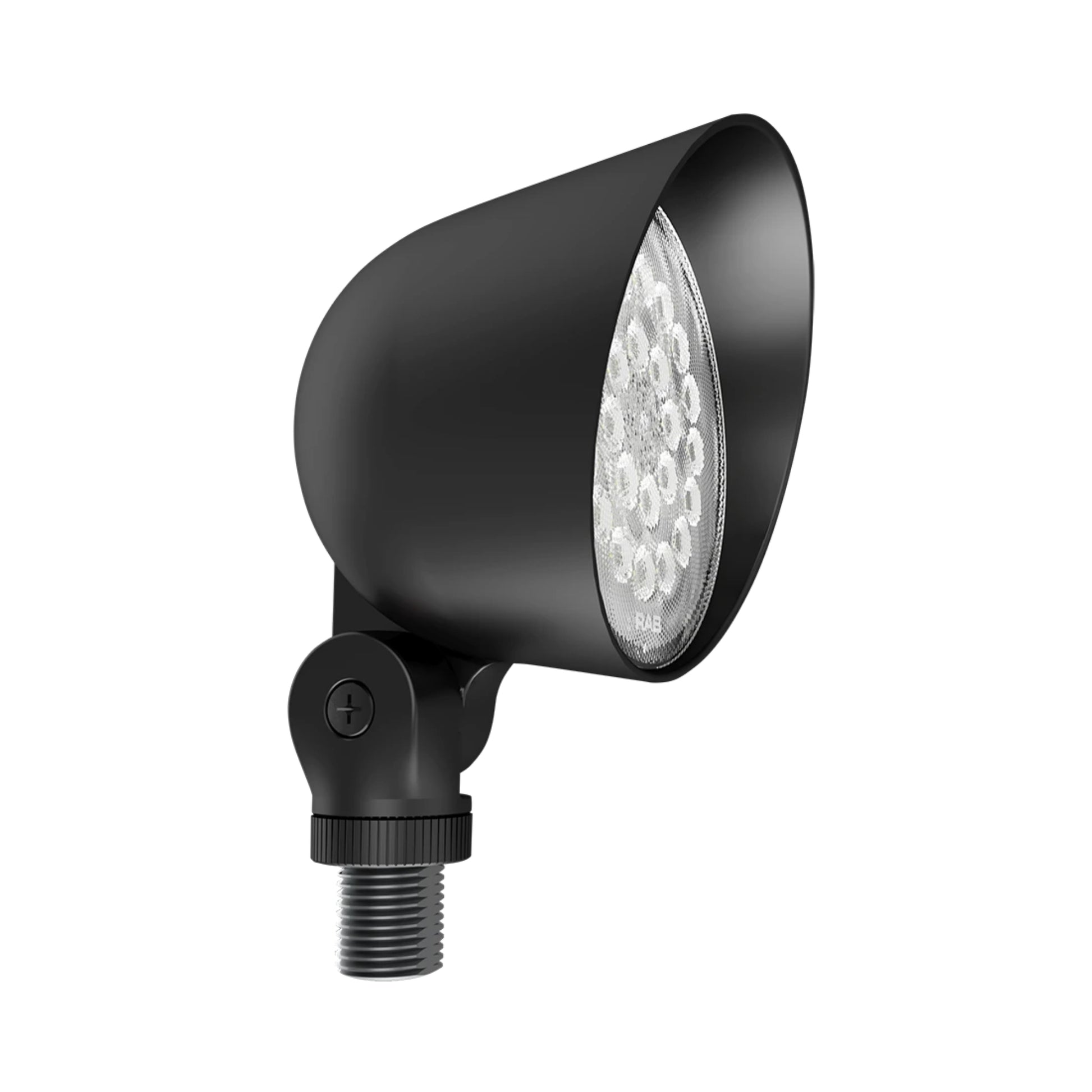

Single Head — 8W (Standard):

• LF17 (Bronze) — $47.00: 1,115 lumens max | 119–149 LPW | Selectable 1/2/4/5/8W
• LF17B (Black) — $47.00: 1,115 lumens max | 119–149 LPW | Selectable 1/2/4/5/8W
• LF17W (White) — $47.00: 1,115 lumens max | 119–149 LPW | Selectable 1/2/4/5/8W

Double Head — 16W:

• LF17X2 (Bronze) — $128.00: 2,230 lumens max | 119–149 LPW | Selectable 3/5/8/10/16W

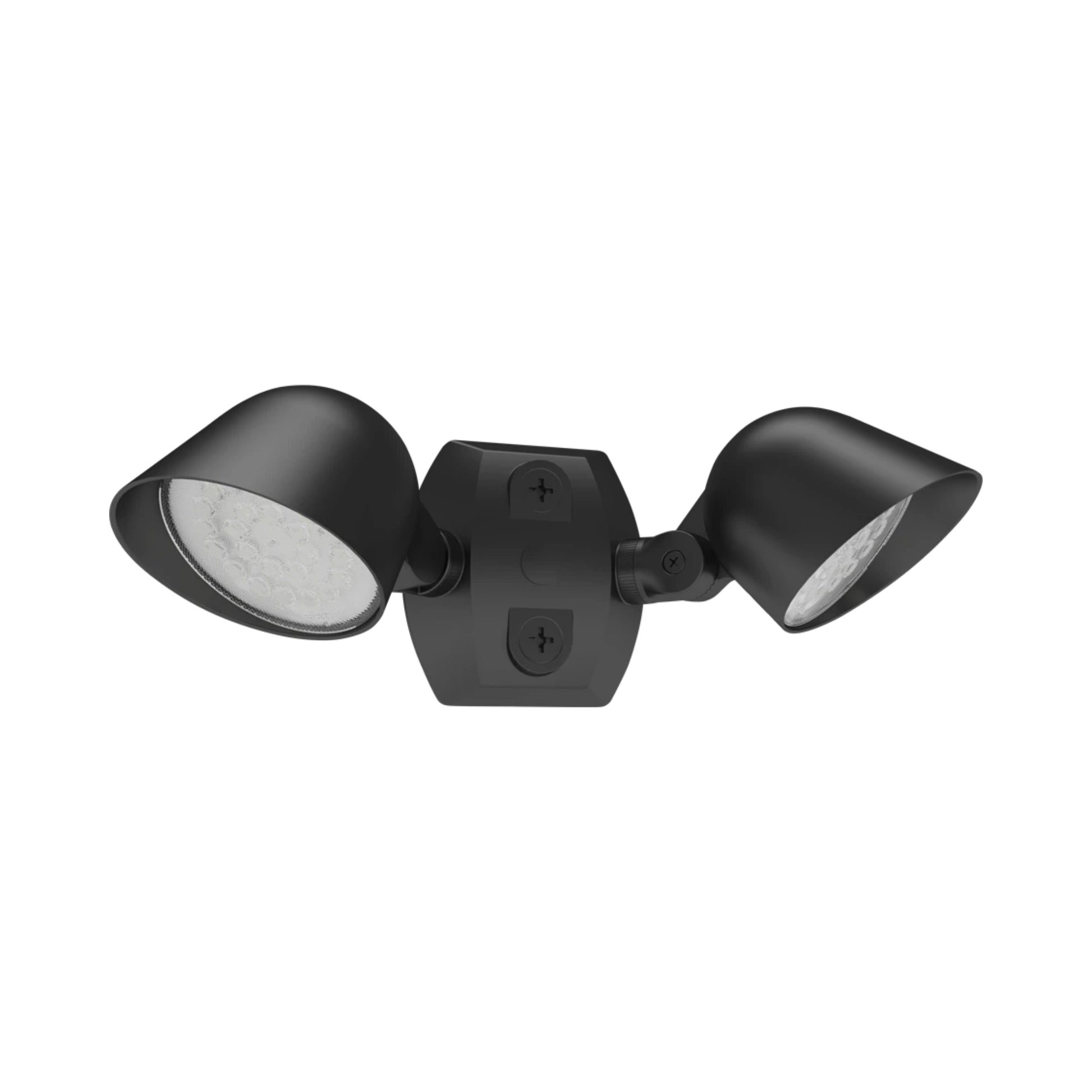

• LF17X2B (Black) — $128.00: 2,230 lumens max | 119–149 LPW | Selectable 3/5/8/10/16W

Double Head with SMS Motion Sensor — 16W:

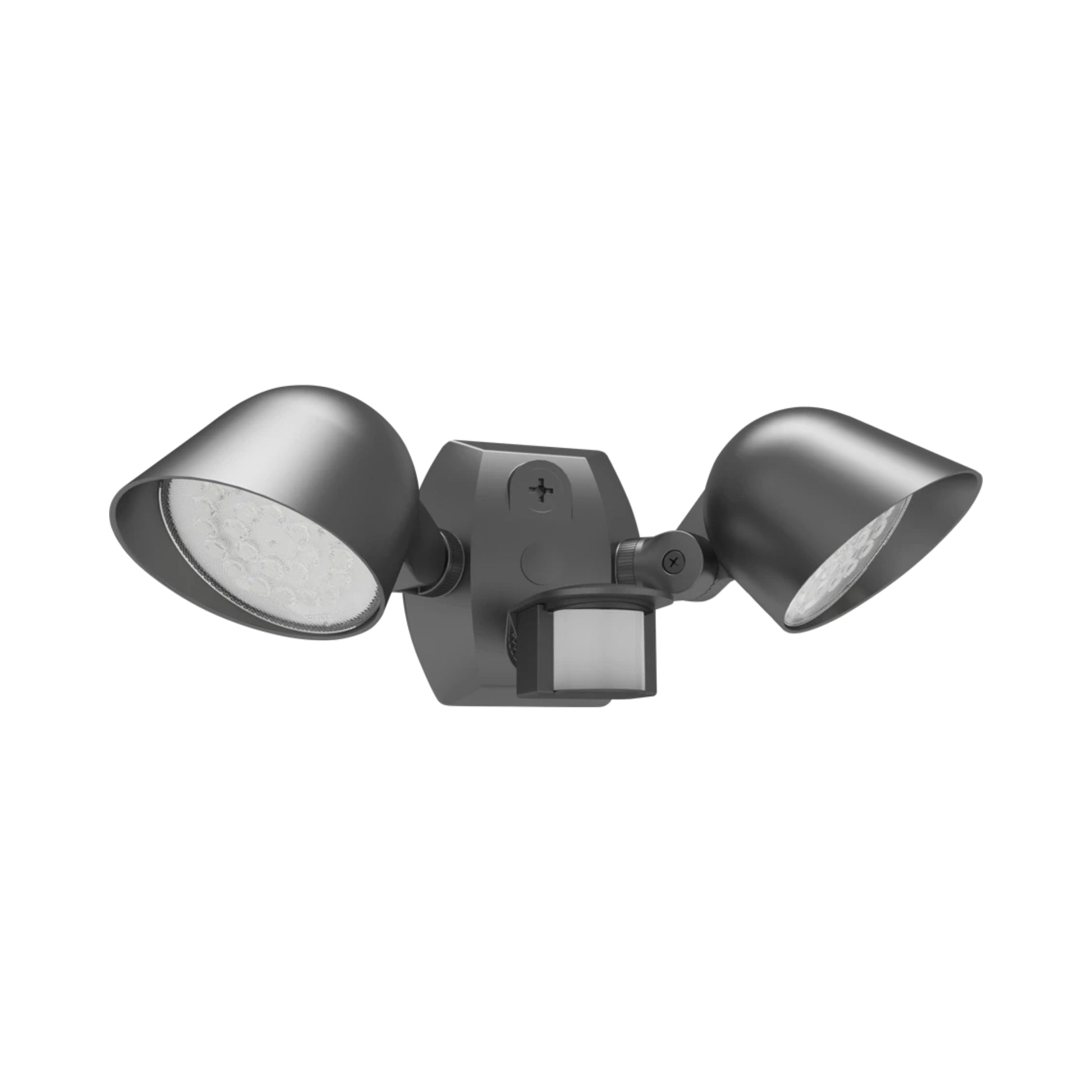

• LF17X2/SMS (Bronze) — $199.00: 2,230 lumens max | Integrated adjustable motion sensor | Selectable 3/5/8/10/16W

CCT Options (all models): 2700K (warm white / residential ambiance) — 3000K (soft white / hospitality) — 3500K (neutral / transitional) — 4000K (cool white / commercial) — 5000K (daylight / security & task)

Energy Efficiency & Performance

All LF17 models achieve an efficacy of up to 149 LPW, delivering significant energy savings versus traditional halogen or HID landscape fixtures. The 50,000-hour rated lifespan (IES LM-80 / TM-21) dramatically reduces lamp replacement and maintenance costs over the fixture’s service life. Universal 120-277V input ensures compatibility with standard US commercial and residential electrical systems, while 2.5kV surge protection and an operating range of -40°F to 104°F guarantee reliable year-round outdoor performance.

Why Choose RAB Lighting

RAB Lighting is a trusted leader in commercial and residential LED outdoor solutions, and the LF17 series exemplifies their commitment to installer flexibility, architectural versatility, and long-term reliability. With a 5-year manufacturer warranty, a 50,000-hour rated life, field-adjustable wattage and CCT, and a finish lineup spanning Bronze, Black, and White, the LF17 is engineered to perform across the full spectrum of landscape and architectural flood lighting applications. Why Buy From Us: Bees Lighting is an authorized RAB Lighting dealer, ensuring you receive genuine products, full warranty coverage, and expert support on every order.
