RAB HALED Modular LED Downlight System — 4 in (HA4) & 6 in (HA6) / Selectable CCT / 120V / Round

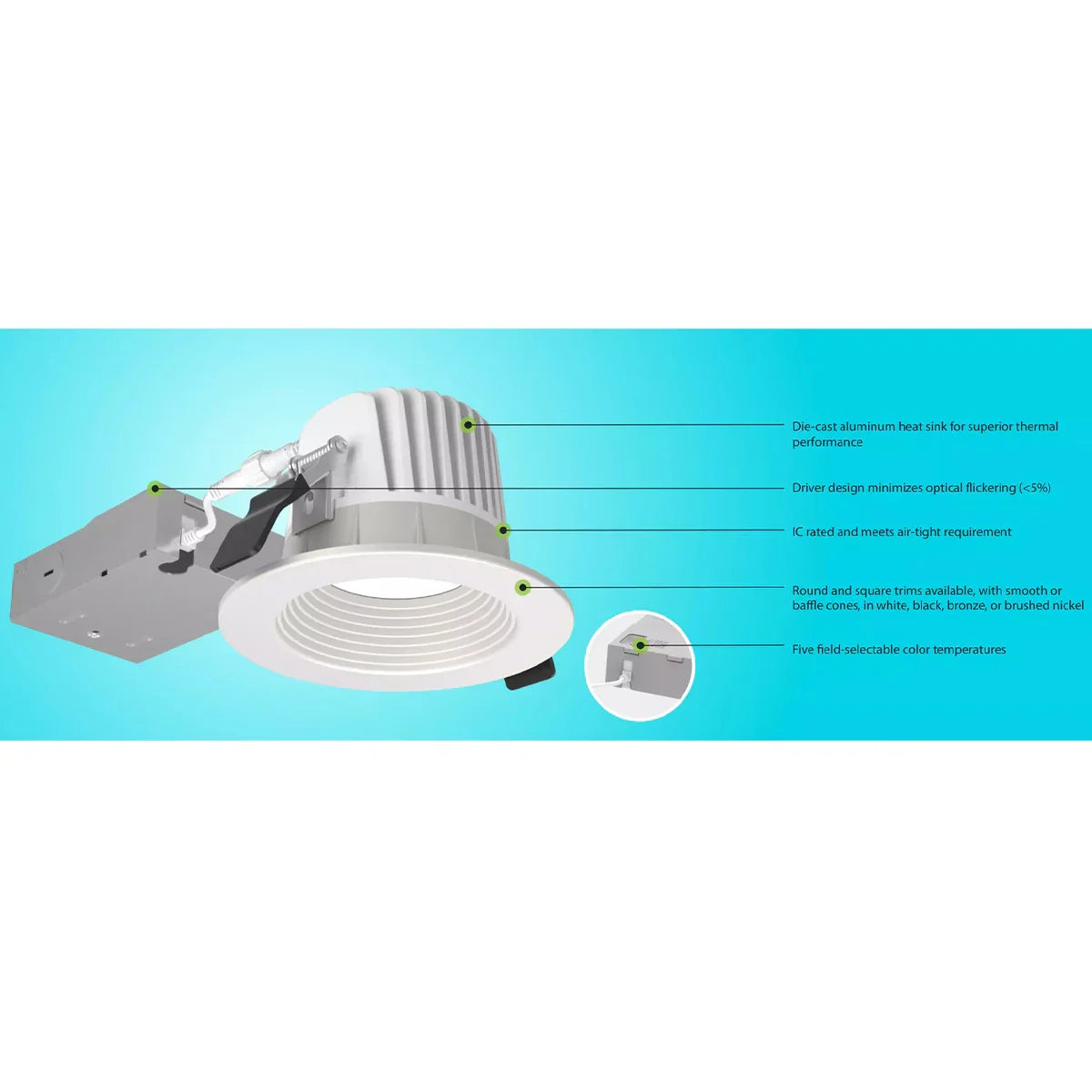

The RAB HALED is a modular recessed LED downlight system available in 4 in (HA4, 12W) and 6 in (HA6, 18W) round module sizes. Both models feature field-selectable CCT (2700K–5000K), Type IC rating, airtight construction, TRIAC and 0-10V dimming, wet location listing, and California Title 24 JA8 compliance. Each module requires a compatible snap-in HALED trim to complete the fixture. For 120-277V applications, a separate driver is required.

Series Overview

• HA4 (4 in): 12W | 950–1,060 lm | 79–88 lm/W | 0.11A | Replaces 14W CFL | Driver: HAD4/D10 (120-277V, sold separately)
• HA6 (6 in): 18W | 1,600–1,800 lm | 89–100 lm/W | 0.17A | Replaces 26W CFL | Driver: HAD6/D10 (120-277V, sold separately)

Key Features (Both Models)

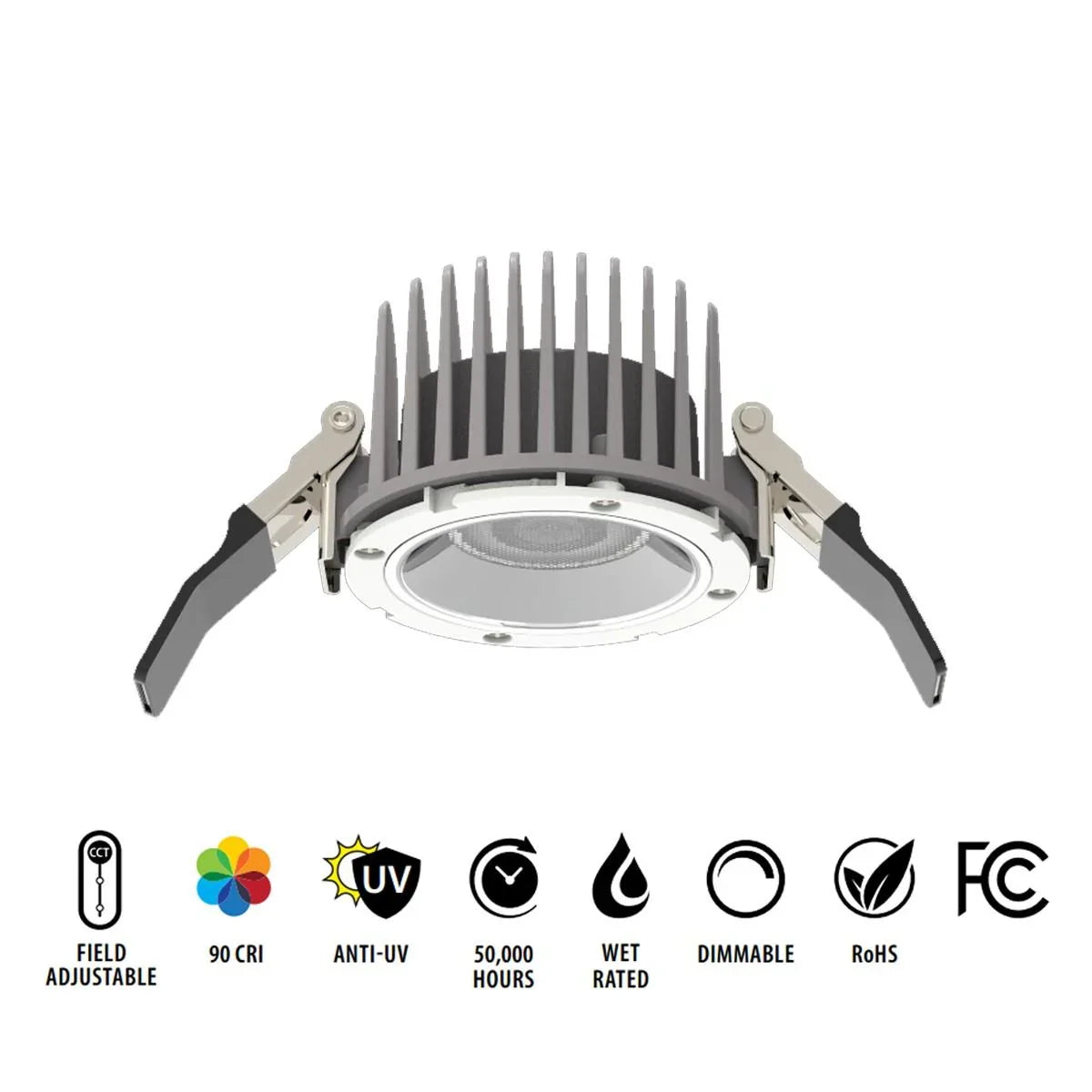

• Module Type: Round LED downlight module | HALED modular system | Requires HALED snap-in trim to complete fixture (sold separately)
• Construction: Metal | Anti-UV | Round | Smooth trim interface | 45° optical lens for uniform light distribution | Color: Black/white module body

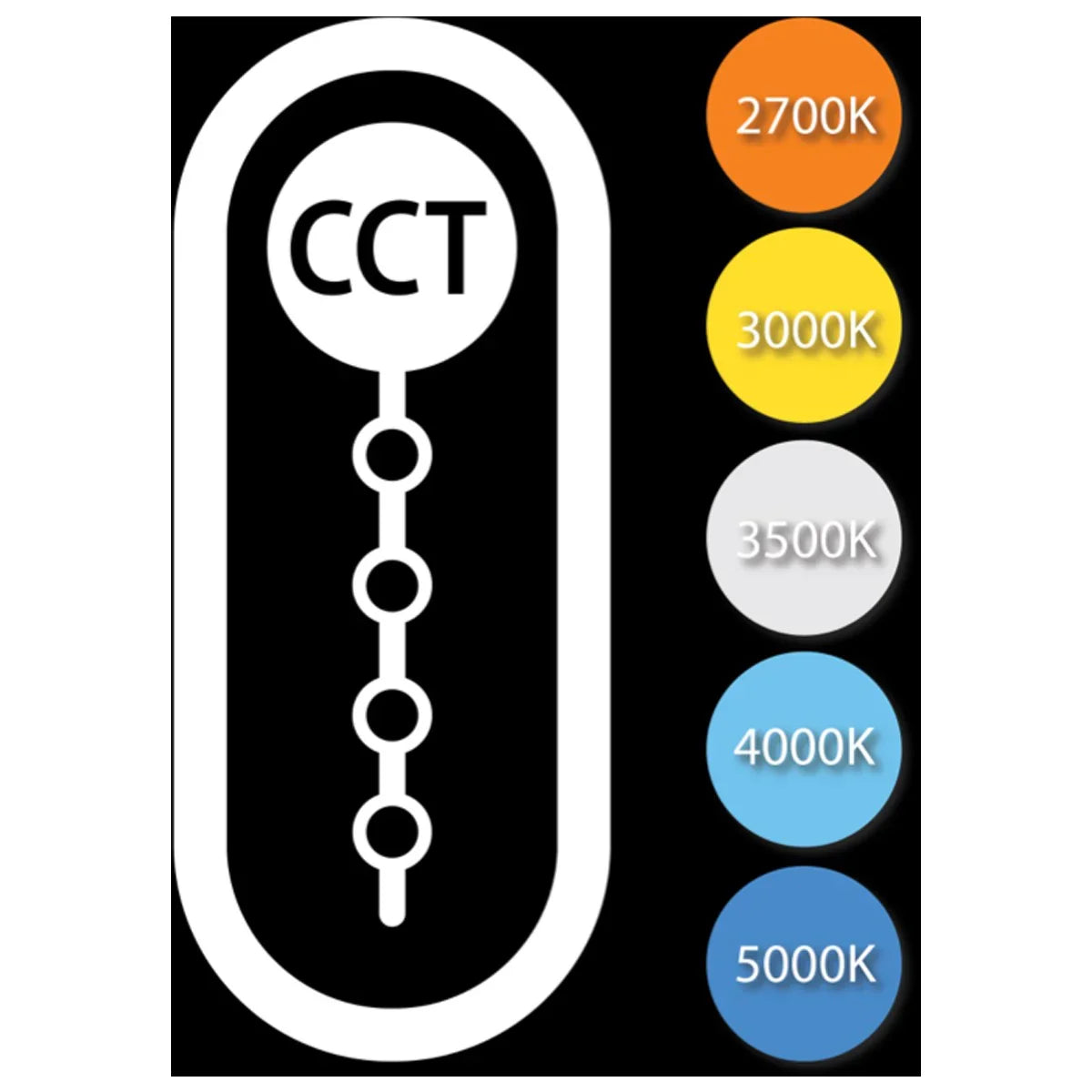

• Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K via dip switch
• CRI: 90 | Color stability ≤200K over 5 years (ANSI C78.377-2017)
• Input Voltage: 120V | 60 Hz | For 120-277V: order HAD4/D10 (4 in) or HAD6/D10 (6 in) separately
• Driver: Constant Current | PF: 0.9 | THD: ≤20%
• Dimming: TRIAC and 0-10V dimmable | See RAB Dimmer Compatibility List
• IC Rating: Type IC — inherently protected; suitable for direct contact with air-permeable insulation; cULus listed for damp locations; NOT for spray foam insulation (consult NEMA LSD57-2013)
• Air Tight: Yes — per ASTM-E283-04
• Environment: Wet rated (UL Listed) | Op temp: -4°F to 104°F (-20°C to 40°C)
• Certifications: UL Listed (wet locations) | ENERGY STAR Certified (v2.2) | California Title 24 Part 6 / JA8 Compliant | FCC Part 15 | IESNA LM-70 | ANSI C78.377-2017
• Note: All values typical (tolerance +/- 10%). BAA compliant upon request — contact RAB customer service.
• Lifespan: 50,000 hours L70 (IES LM-70) | Warranty: 5-year no-compromise warranty

Light Output & Performance

The HA4 delivers 950–1,060 lm at 12W (79–88 lm/W), replacing a 14W CFL. The HA6 delivers 1,600–1,800 lm at 18W (89–100 lm/W), replacing a 26W CFL. Both feature a 45° optical lens for uniform light distribution and CRI of 90 across all five CCT settings.

Electrical & Installation

Both models operate at 120V with a constant current driver. The HA4 draws 0.11A; the HA6 draws 0.17A. TRIAC and 0-10V dimmable at 120V — see RAB Dimmer Compatibility List. For 120-277V, order HAD4/D10 (4 in) or HAD6/D10 (6 in) separately. IC rated for air-permeable insulation; airtight per ASTM-E283-04. Each module requires a compatible HALED snap-in trim to complete the fixture.

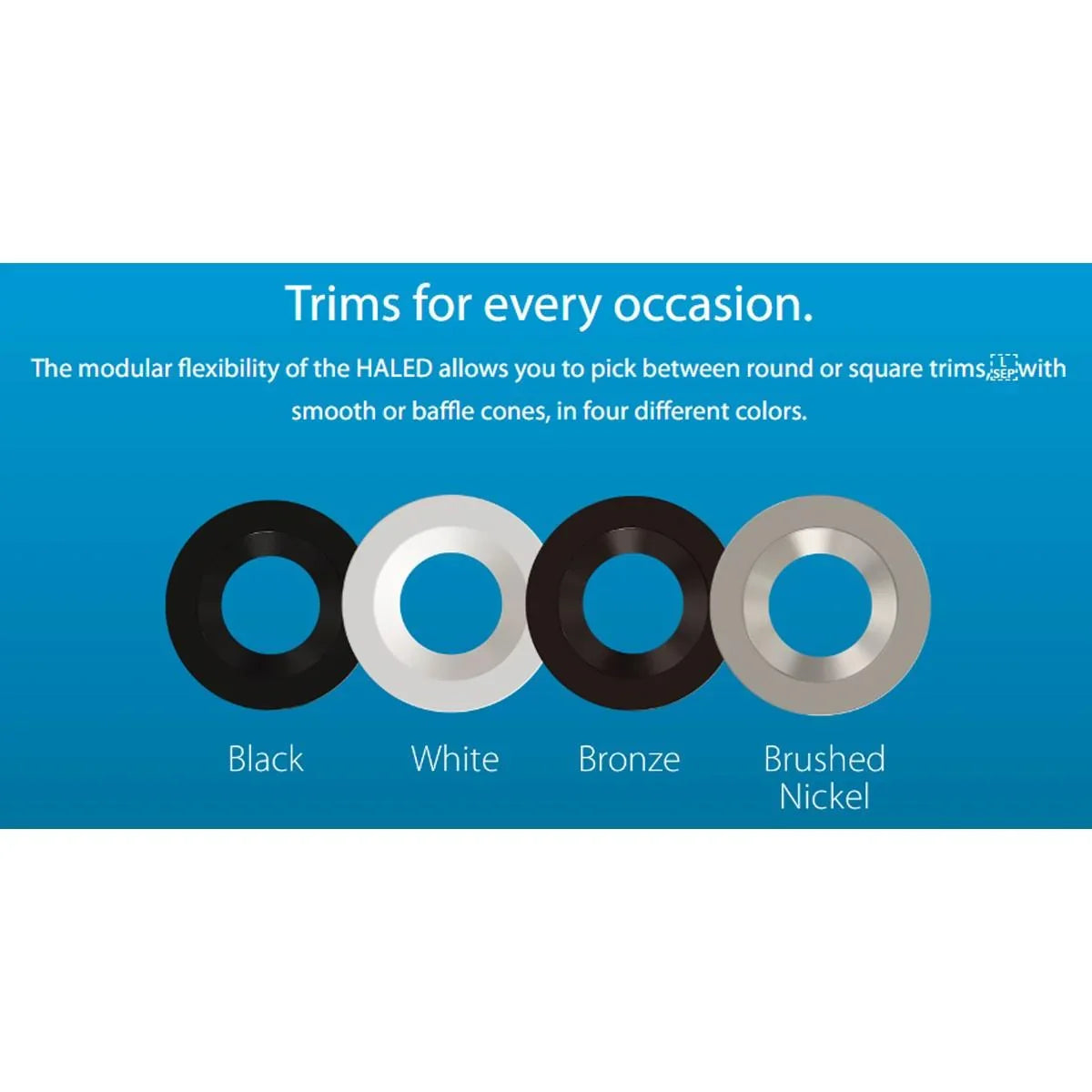

Compatible Trims & Drivers (Sold Separately)

• 4 in Round Smooth: HAT4RW (white) | HAT4RB (black) | HAT4RBN (brushed nickel) | HAT4RA (bronze)
• 4 in Round Baffle: HAT4RBW (white)
• 4 in Square Smooth: HAT45W (white) | HAT45B (black) | HAT45BN (brushed nickel) | HAT45A (bronze)
• 4 in Square Baffle: HAT45BW (white)
• 4 in Driver: HAD4/D10 (120-277V, 0-10V + TRIAC)
• 6 in Round Smooth: HAT6RW (white) | HAT6RB (black) | HAT6RBN (brushed nickel) | HAT6RA (bronze)
• 6 in Round Baffle: HAT6RBW (white)
• 6 in Square Smooth: HAT6SW (white) | HAT6SB (black) | HAT6SBN (brushed nickel) | HAT6SA (bronze)
• 6 in Square Baffle: HAT6SBW (white)
• 6 in Driver: HAD6/D10 (120-277V, 0-10V + TRIAC)

Typical Applications

• Residential kitchens, bathrooms, and living areas
• Commercial offices and retail spaces
• Hospitality environments
• Wet and damp locations including bathrooms and covered outdoor areas
• California Title 24 JA8 compliant installations
• IC-rated and airtight applications with air-permeable insulation
